Honeypot 1 Results

Creating a Server

I created a Ubuntu 14.04.03 x64 cloud server and set up monitoring with tcpdump, Tripwire, cron, and Dropbox as detailed here.

The server was running LAMP and Drupal, but that's not how it got hacked, so I don't think that mattered.

Vulnerability: Weak Root Password and SSH

I gave my server a weak root password of password123 and used that for SSH.

I gave my server a DNS name of drupal.samsclass.info. I Tweeted a link to it and added it to my homepage, to attract attacks.

Brute Force Logins

I saw a lot of failed authorization attempts against my SSH port, as expected, and on Dec. 23, they found my weak password. The auth.log showed these entries:
Dec 23 11:14:45 drupal sshd[29125]: Accepted password for root from port 48173 ssh2
Dec 23 19:59:24 drupal sshd[24570]: Accepted password for root from port 24904 ssh2
Dec 24 07:11:34 drupal sshd[21526]: Accepted password for root from port 55355 ssh2
The first two logins did nothing I could detect beyond logging in to see if the password worked.

However, the 7 AM Dec 24 login added a rootkit to the server, as shown below.

Rootkit Installed

On Dec. 24, at 11:18 am, Tripwire said my server had been hacked, as shown below:

A couple more ssh logins, but still nothing in bash_history Add the bash_history HTML stuff to startup Make another snapshot: 6-bash

Thu Dec 24 07:05:01 2015 Total violations found: 3
Thu Dec 24 07:10:01 2015 Total violations found: 3
Thu Dec 24 07:15:01 2015 Total violations found: 25
Thu Dec 24 07:20:01 2015 Total violations found: 25

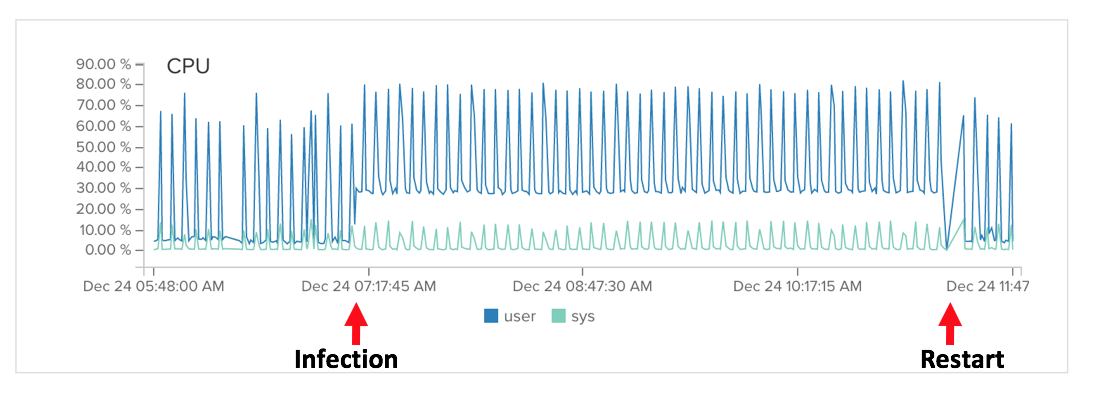

The attacker added these files to my box: Here's a timeline of the infection, showing the CPU as recorded by Digital Ocean:

md5sum shows that there are only two different icald files:

root@drupal:~# md5sum /usr/bin/icaldzcoww
b877518b1dedd733be145bd3f2d6f6f3  /usr/bin/icaldzcoww
root@drupal:~# md5sum /etc/init.d/icaldzcoww
a7ea5e651fb3bc3e8993a69c1331a9df  /etc/init.d/icaldzcoww
You have new mail in /var/mail/root
root@drupal:~# md5sum /etc/rc1.d/S90icaldzcoww
a7ea5e651fb3bc3e8993a69c1331a9df  /etc/rc1.d/S90icaldzcoww
root@drupal:~# md5sum /etc/rc2.d/S90icaldzcoww
a7ea5e651fb3bc3e8993a69c1331a9df  /etc/rc2.d/S90icaldzcoww
root@drupal:~# md5sum /etc/rc3.d/S90icaldzcoww
a7ea5e651fb3bc3e8993a69c1331a9df  /etc/rc3.d/S90icaldzcoww
root@drupal:~# md5sum /etc/rc4.d/S90icaldzcoww
a7ea5e651fb3bc3e8993a69c1331a9df  /etc/rc4.d/S90icaldzcoww
root@drupal:~# md5sum /etc/rc5.d/S90icaldzcoww
a7ea5e651fb3bc3e8993a69c1331a9df  /etc/rc5.d/S90icaldzcoww
root@drupal:~# cp /etc/rc5.d/S90icaldzcoww /root/Dropbox/

Control Channel

netstat shows a "route -n" process with a continuous connection to a command-and-control server operating at
root@drupal:~# netstat -pant

Active Internet connections (servers and established)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name

tcp        0      0      ESTABLISHED 1124/route -n is my drupal box.

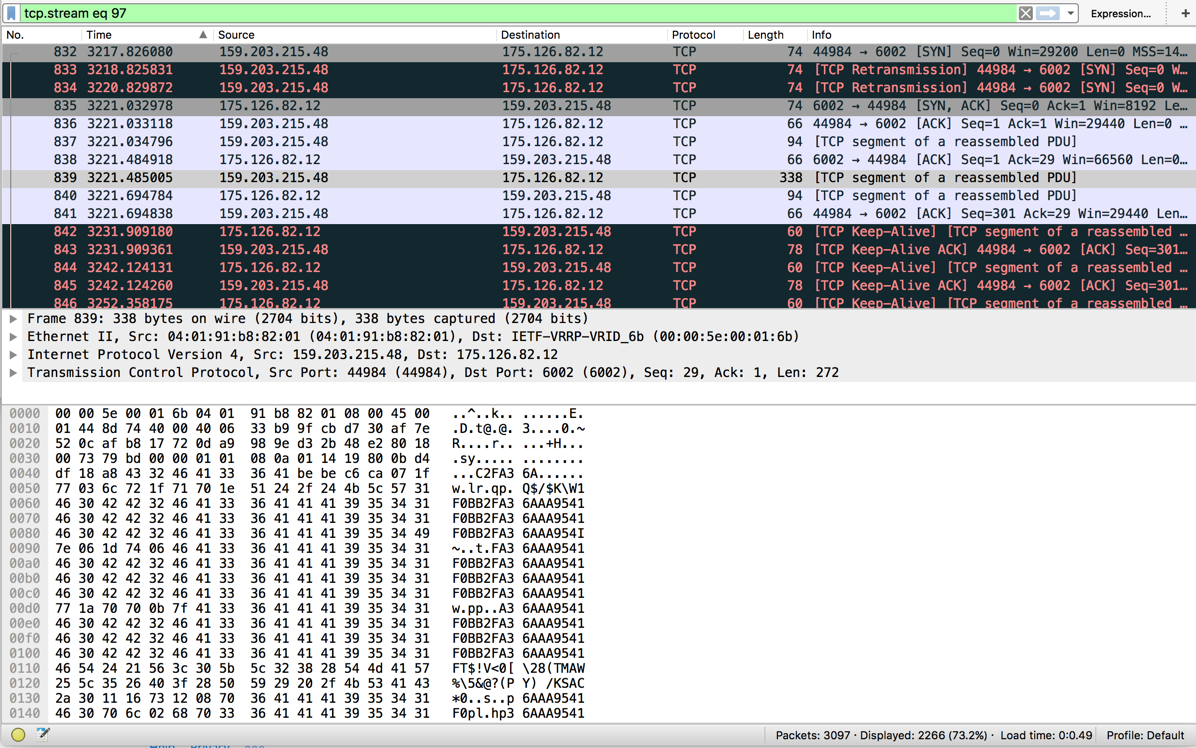

Wireshark shows connections once per second or so:

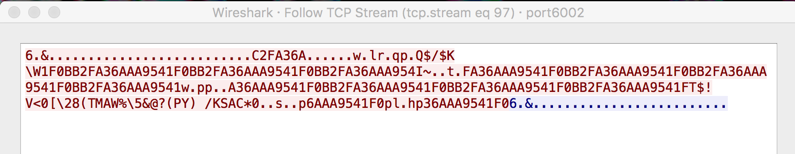

Most are just handshakes, but one shows a repetitive ASCII string. I don't know what it is, perhaps just an identifier of my bot.

Identifying the Rootkit

An "i" directory was created in /root at time of compromise, but it's empty:
root@drupal:~# ls -al
total 72448
drwx------ 10 root root     4096 Dec 24 07:11 .
drwxr-xr-x 23 root root     4096 Dec 24 11:22 ..

drwxr-xr-x  2 root root     4096 Dec 24 07:11 i
gcc.sh contains
for i in `cat /proc/net/dev|grep :|awk -F: {'print $1'}`; do ifconfig $i up& done
cp /lib/libudev.so /lib/libudev.so.6
/usr/X11R6/bin is strange, and that folder no longer exists.

S90icaldzcoww contains:

# chkconfig: 12345 90 90
# description: icaldzcoww
# Provides:             icaldzcoww
# Required-Start:
# Required-Stop:
# Default-Start:        1 2 3 4 5
# Default-Stop:
# Short-Description:    icaldzcoww
case $1 in
Googling icaldzcoww shows nothing.

Searching VirusTotal with the MD5 hash finds it:

ESET-NOD32 a variant of Linux/Xorddos.C

This is a known rootkit:





I checked for more modified files; none found

cd /
root@drupal:/# ls -ltR . > allfiles

cat allfiles2.txt | grep 07:1
drwx------  10 root root  4096 Dec 24 07:11 root
drwxr-xr-x 2 root root    4096 Dec 24 07:11 cron.hourly
drwxr-xr-x 2 root root    4096 Dec 24 07:11 init.d
drwxr-xr-x 2 root root     4096 Dec 24 07:11 i
-rw-r--r-- 1 root root  3078 Dec 24 07:15 drupal-20151224-071501.twr
-rw-r--r-- 1 root root  2190 Dec 24 07:10 drupal-20151224-071001.twr
-rw-r--r-- 1 root root  3078 Dec 23 07:15 drupal-20151223-071501.twr
-rw-r--r-- 1 root root  3078 Dec 23 07:10 drupal-20151223-071001.twr
-rwxr-xr-x 1 root   root     625718 Dec 24 07:11 icaldzcoww
-rw-r--r-- 1 root root 895 Oct 14 07:18 envvars-std

Command and Control Server

The Command and Control server is at

Reverse DNS (PTR record) mail.hyaudi.co.kr, in South Korea.

The reverse DNS record is from hanyoung motors, but it doesn't seem to be used currently by that company. Perhaps the reverse DNS record is leftover from an earlier owner of that IP address.

Nmap shows a Windows box at that address:

Sams-MacBook-Pro:~ sambowne$ sudo nmap -p0-65535 -Pn -A

Starting Nmap 7.01 ( https://nmap.org ) at 2015-12-24 13:04 PST
Nmap scan report for mail.hyaudi.co.kr (
Host is up (0.17s latency).
Not shown: 65531 filtered ports
3389/tcp  open  tcpwrapped
6001/tcp  open  tcpwrapped
|_x11-access: ERROR: Script execution failed (use -d to debug)
6003/tcp  open  tcpwrapped
|_x11-access: ERROR: Script execution failed (use -d to debug)
6004/tcp  open  tcpwrapped
|_x11-access: ERROR: Script execution failed (use -d to debug)
49154/tcp open  msrpc      Microsoft Windows RPC
Warning: OSScan results may be unreliable because we could not find at least 1 open and 1 closed port
Device type: general purpose|specialized|phone
Running: Microsoft Windows 2008|7|Phone|Vista
OS CPE: cpe:/o:microsoft:windows_server_2008::beta3 cpe:/o:microsoft:windows_server_2008 cpe:/o:microsoft:windows_7::-:professional cpe:/o:microsoft:windows_8 cpe:/o:microsoft:windows_7 cpe:/o:microsoft:windows cpe:/o:microsoft:windows_vista::- cpe:/o:microsoft:windows_vista::sp1
OS details: Microsoft Windows Server 2008 or 2008 Beta 3, Windows Server 2008 R2, Microsoft Windows 7 Professional or Windows 8, Microsoft Windows Embedded Standard 7, Microsoft Windows Phone 7.5 or 8.0, Microsoft Windows Vista SP0 or SP1, Windows Server 2008 SP1, or Windows 7, Microsoft Windows Vista SP2, Windows 7 SP1, or Windows Server 2008
Network Distance: 24 hops
Service Info: OS: Windows; CPE: cpe:/o:microsoft:windows

TRACEROUTE (using port 3389/tcp)
1   8.19 ms
2   16.39 ms
3   16.27 ms  te-0-7-0-2-sur04.sfmission.ca.sfba.comcast.net (
4   17.53 ms  be-310-ar01.hayward.ca.sfba.comcast.net (
5   13.26 ms  hu-0-19-0-0-ar01.santaclara.ca.sfba.comcast.net (
6   ...
7   14.65 ms  be-10925-cr01.9greatoaks.ca.ibone.comcast.net (
8   16.66 ms  he-0-13-0-1-pe03.11greatoaks.ca.ibone.comcast.net (
9   16.44 ms
10  14.59 ms  sl-st31-sj-.sprintlink.net (
11  12.88 ms
12  25.01 ms
13  23.02 ms
14  25.26 ms  sl-st55-la-.sprintlink.net (
15  27.54 ms  sl-hanar2-864138-0.sprintlink.net (
16  167.48 ms
17  171.12 ms
18  170.13 ms
19  174.95 ms
20  178.49 ms
21  176.60 ms
22  ... 23
24  166.48 ms mail.hyaudi.co.kr (

OS and Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 1620.96 seconds
It's a Windows 2008 R2 server with RDP running, I can see the login screen

DDoS Attack

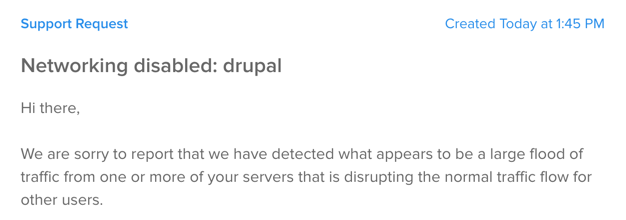

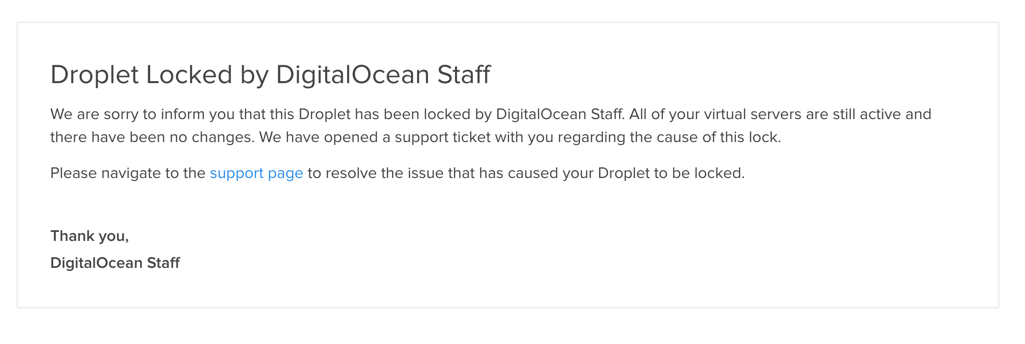

DigitalOcean took down my server, because it started performing a DDoS attack

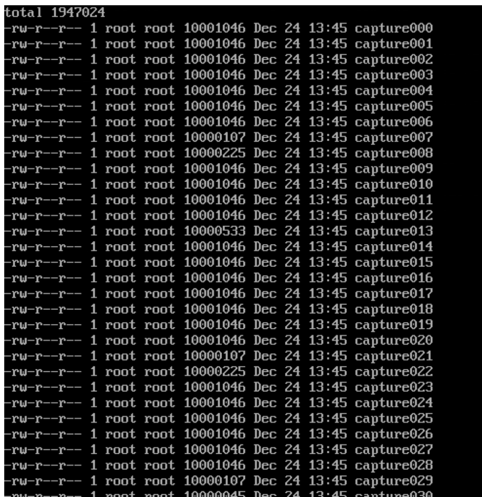

Tcpdump captured a lot of traffic!

In the future, I'll slow down my networking to avoid this, as explained here.

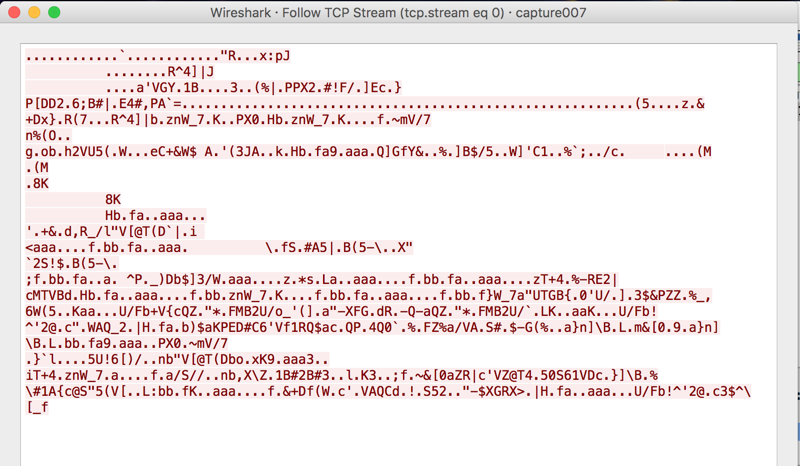

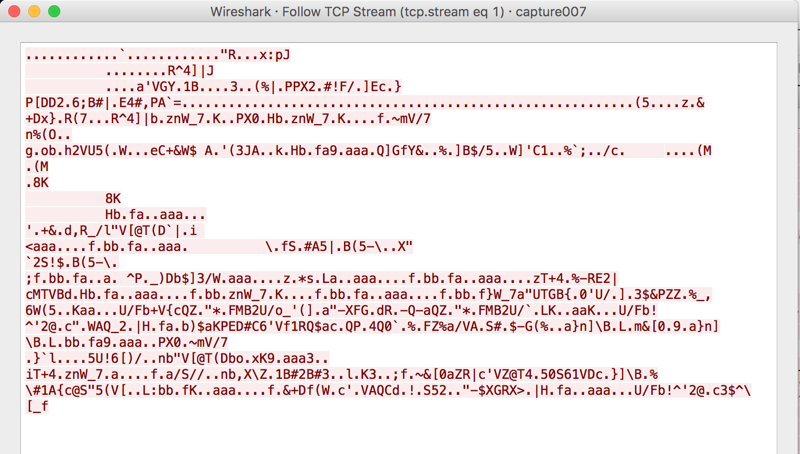

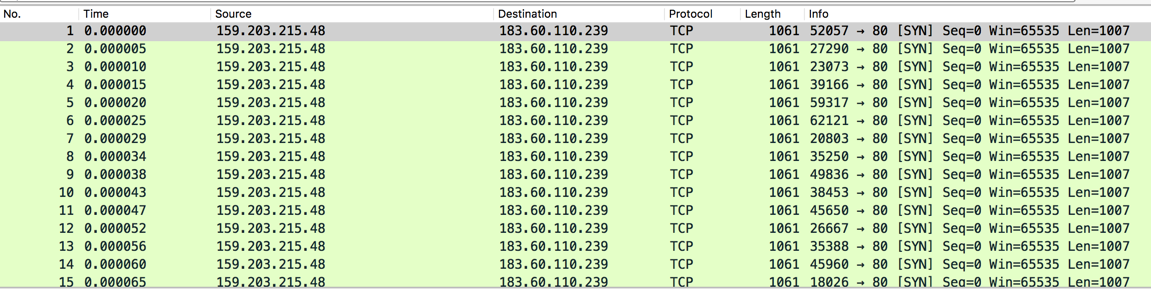

I got some pcaps from my server via Dropbox :). It's sending a SYN flood, with each packet containing the same long string of gibberish. Perhaps that gibberish is intended to make filtering it more difficult, but I think just blocking abnormally large SYN packets would work.

The target seems to be a Chinese web server at

It seems to have been used as the attacker in a DDoS in March, 2015. So perhaps my server was being used in an attack from one criminal gang on another.


I learned how to make future honeypots better, and got a sample of a known rootkit. Nothing earth-shaking, but a good start!

Posted by Sam Bowne on 12-26-15 1:56 pm
