SC 130: Finding and Fixing Security Issues with Snyk (15 pts)

What You Need

GitHub Account and Vulnerable Codebase

You should already have prepared a GitHub account with the OWASP Juice Shop code in it in a previous project. If you did not do that, do the steps in the blue box below.

Make a Github Account

In a Web browser, go to

Create an account and log in.

Forking the OWASP Juice Shop Core

This is a deliberately vulnerable codebase from OWASP. Instead of forking the original code from OWASP, which may be changing, you'll copy my version, which is frozen in the state the code was on Mar 3, 2024.

In a Web browser, go to

At the top right, click the drop-down arrow next to "Fork". Click "Create a new fork", as shown below.

On the "Create a new fork" page, change the Repository name to juice-shop-working, and, at the bottom right, click the "Create fork" button, as shown below.

Make a Snyk Account

In a Web browser, go to

Click the "Start free" button.

Click the Github button.

Log in to Github if you are prompted to.

When you see it, click the green "Authorize snyk" button.

If a "Welcome to Snyk" bos pops up, click the "No, not right now" button.

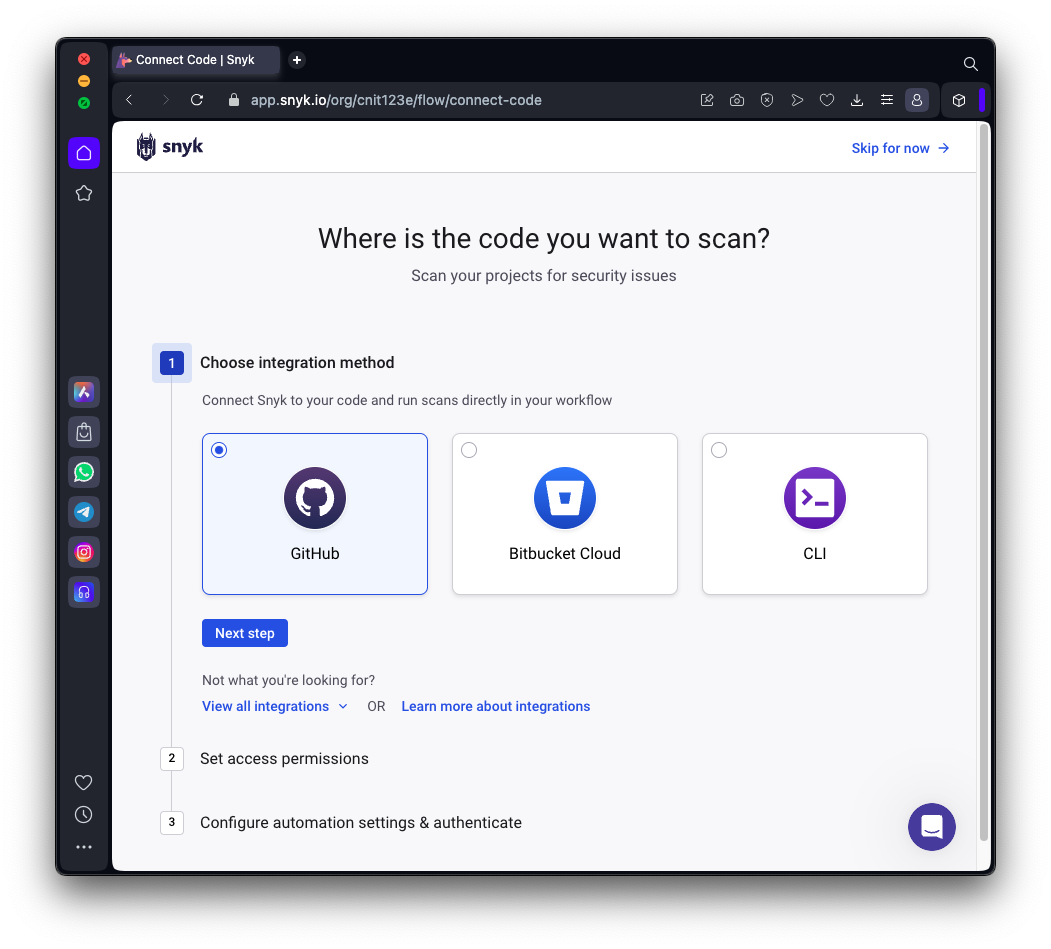

On the "Where is the code you want to scan" page, click Github, as shown below.

Click the "Next step" button.

At step "2: Set access permissions", accept the default options and click the "Next step" button.

At step "3: Configure automation settings & authenticate", accept the default options and click the "Authenticate GitHub" button.

Click the green "Authorize snyk" button.

Enter your GitHub password when you are prompted to.

Scanning the juice-shop

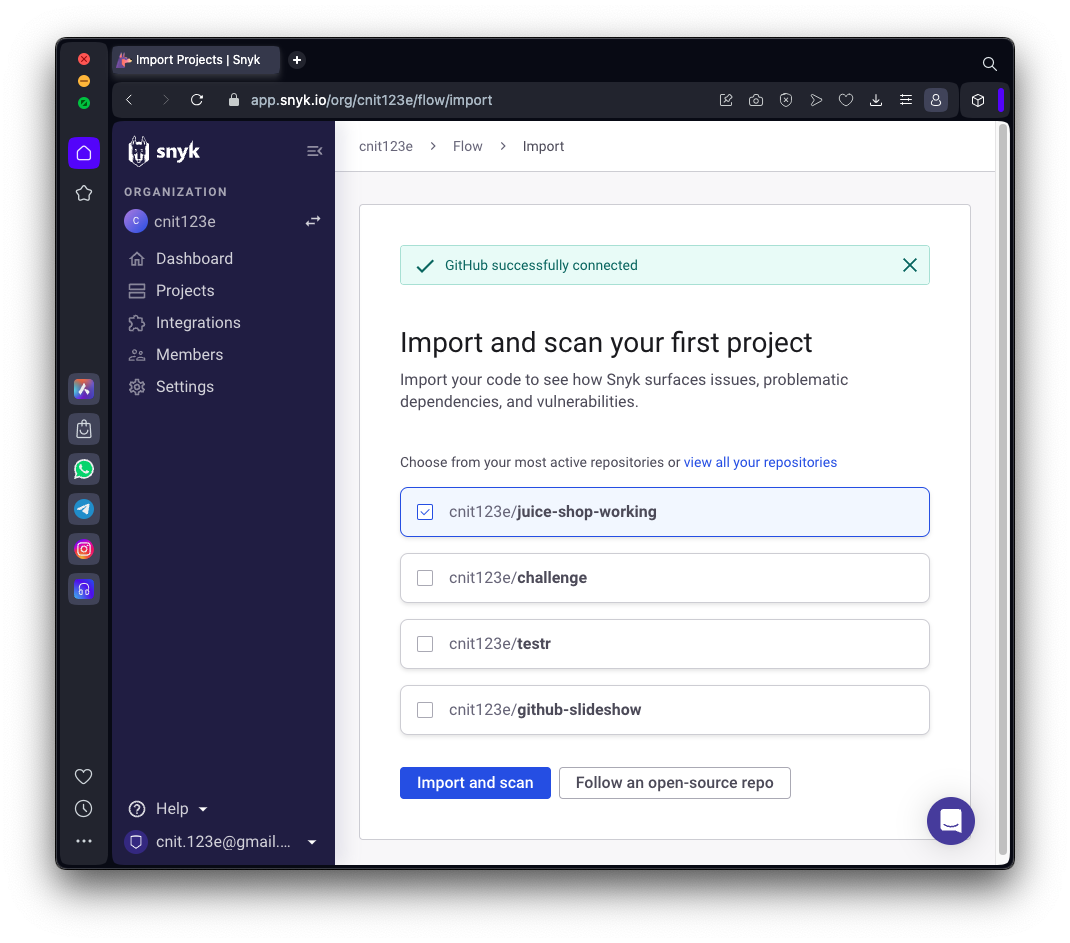

At the "Import and scan your first project" page, verify that "juice-shop-working" is selected and Click the blue "Import and scank" button, as shown below.

Viewing Results

Wait while the project is imported and scanned.

Click the right-arrow next to "juice-shop-working" to see the results.

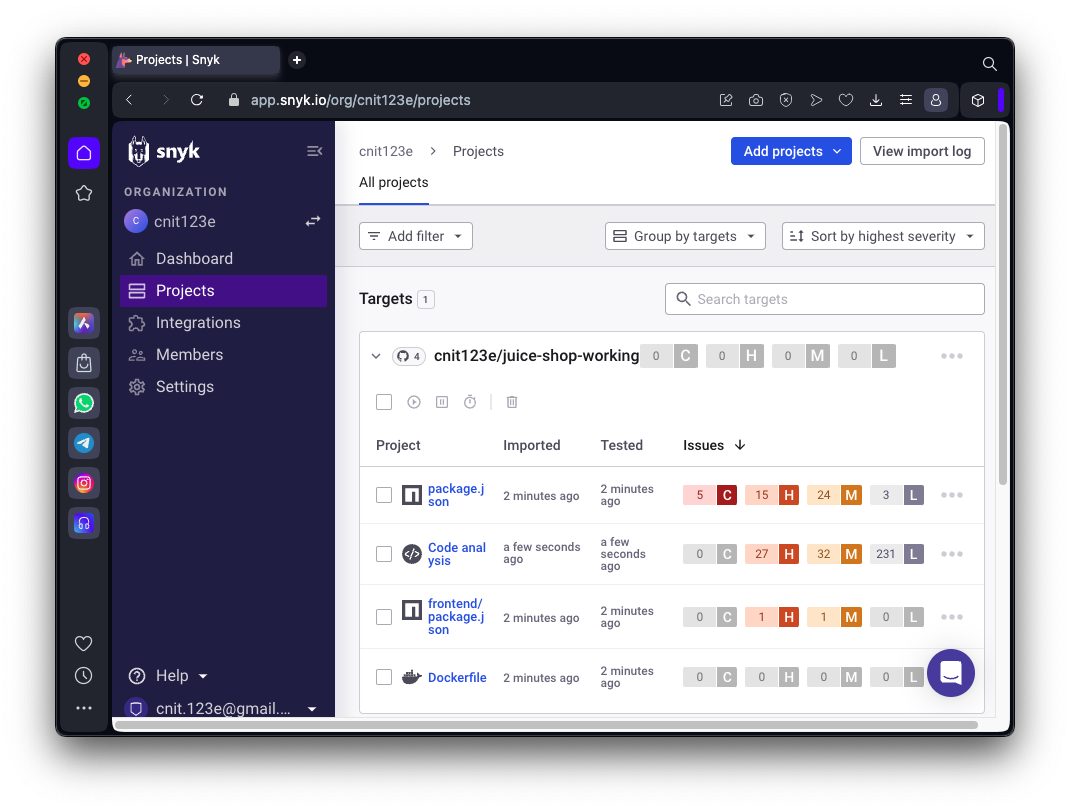

There are 5 critical vulnerabilities in "package.json", as shown below.

Click package.json.

You see a list of issues. On the left side, click the Critical box.

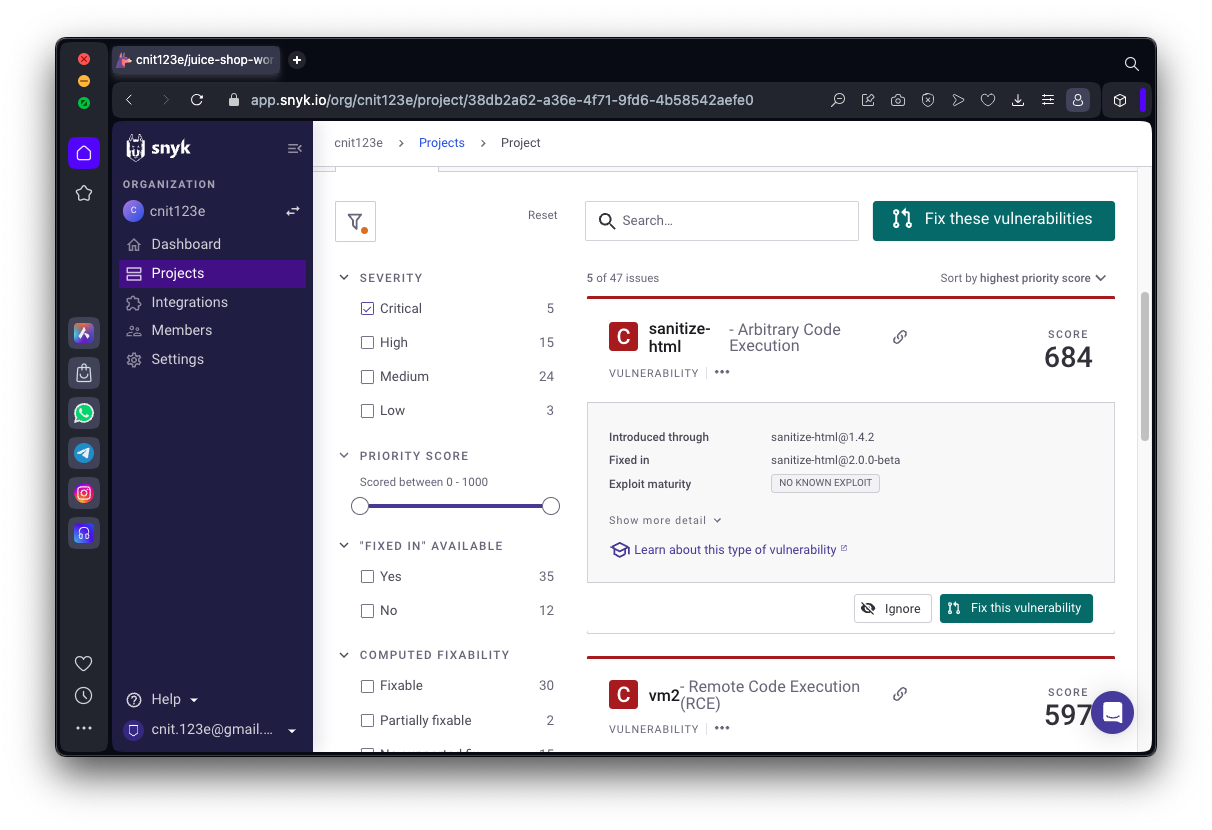

There are 5 issues, showing a priority score, as shown below.

Fixing "sanitize-html"

In the "sanitize-html" section, click "Show more detail".

Click the green "Fix this vulnerability" button.

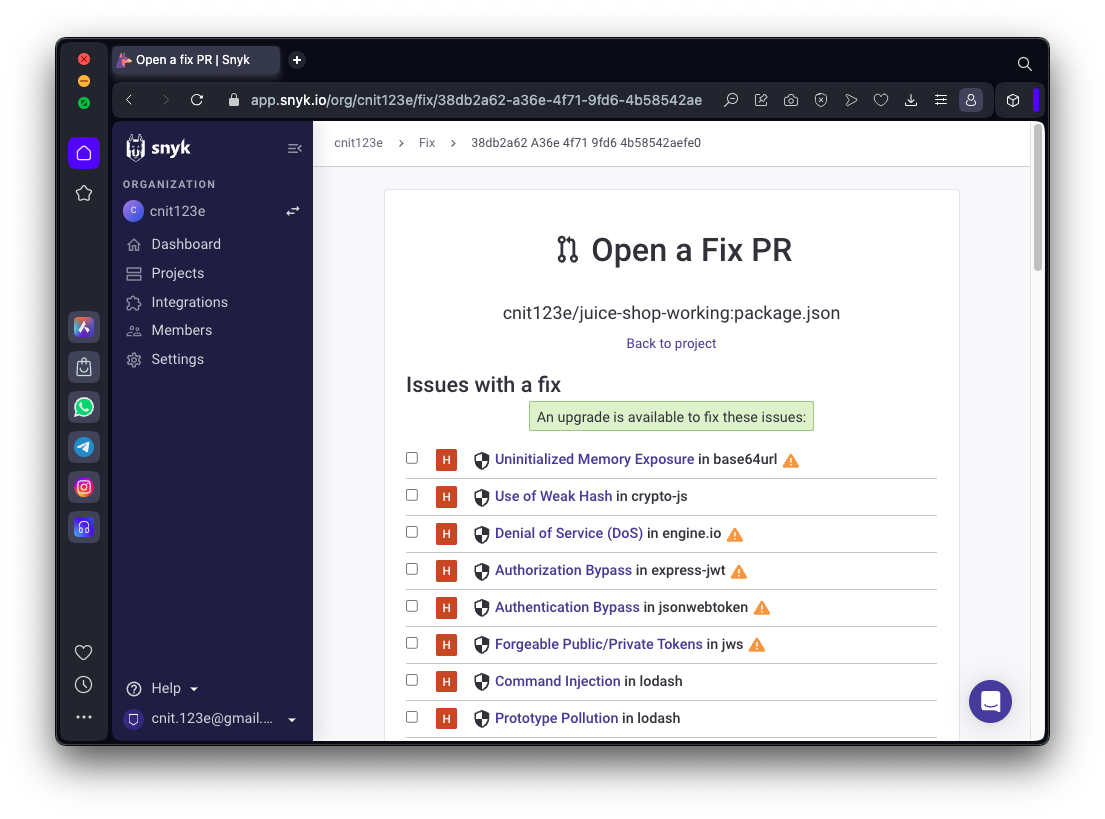

The next page is titled "Open a Fix PR", as shown below.

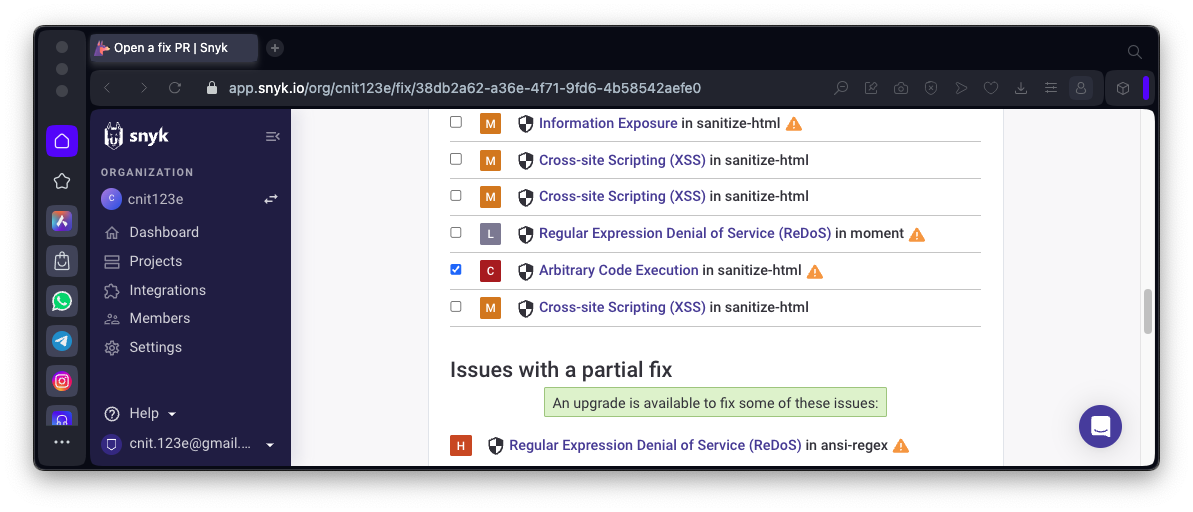

Scroll down to verify that "Arbitrary Code Execution in sanitize-html" is in the "Issues with a fix" section and is selected, as shown below.

Scroll to the bottom and click the green "Open a Fix PR" button.

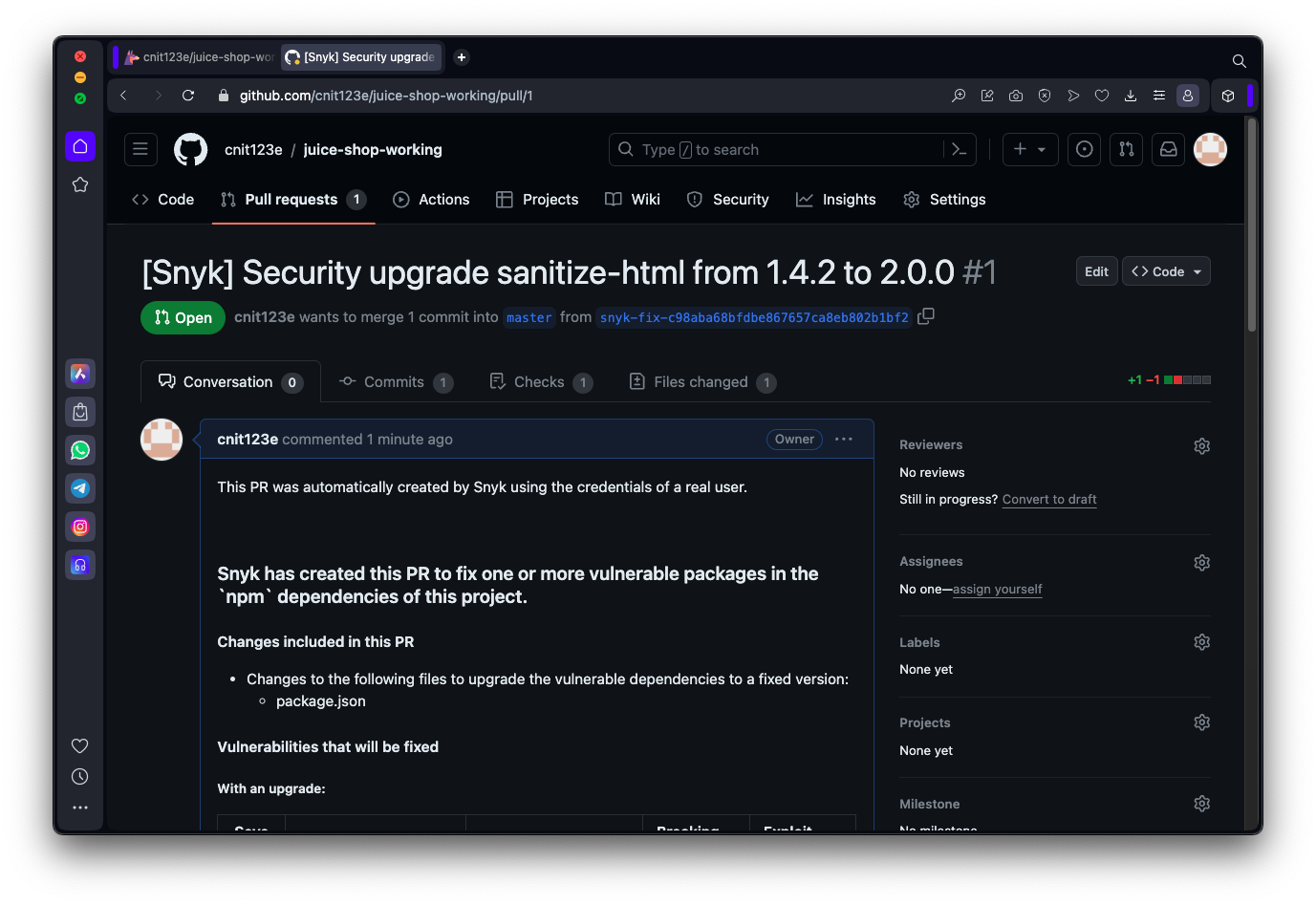

GitHib opens with a Pull Request page, as shown below.

Click the "Files changed" tab.

Click the three dots after "fix: package.json to reduce vulnerabilities".

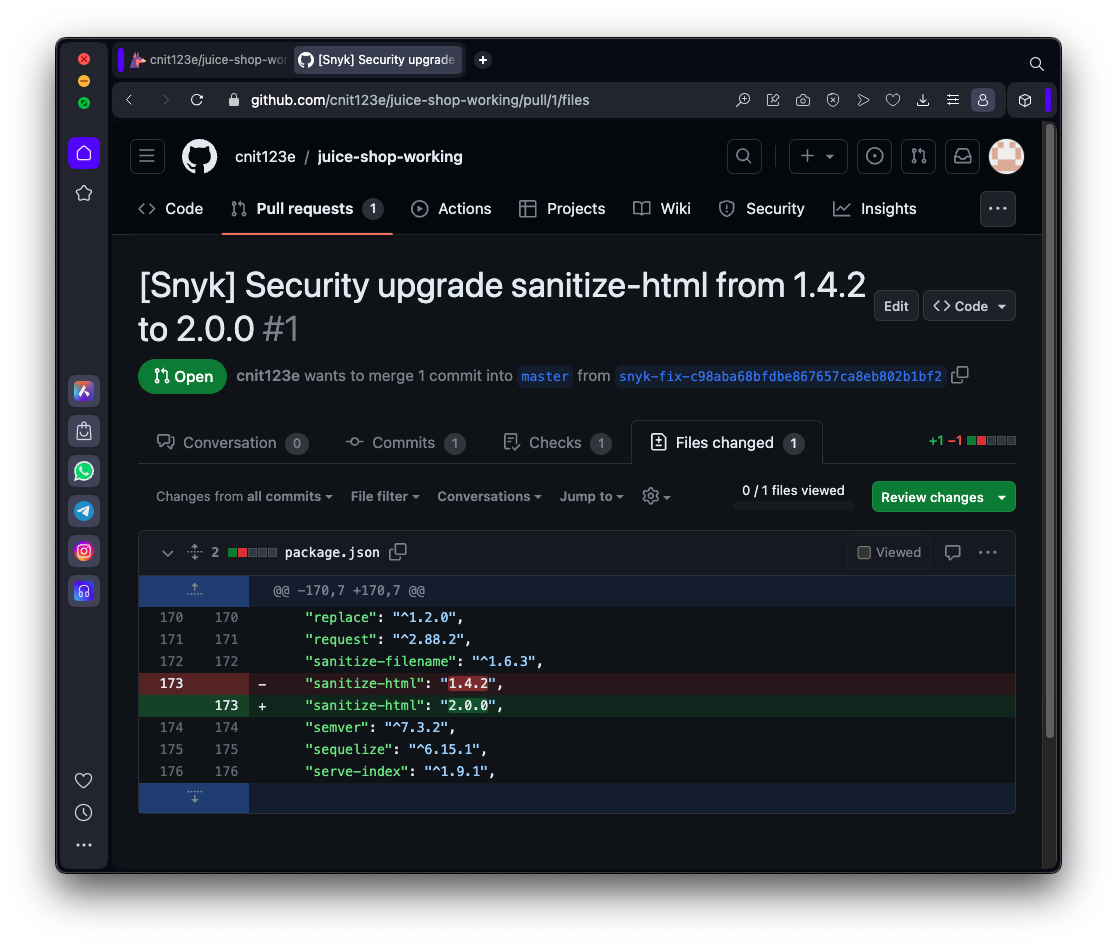

As shown below, the change is just to update the "sanitize-html" version number.

Fixing a base64url Vulnerability

In the Snyk page, on the left, click Dashboard.

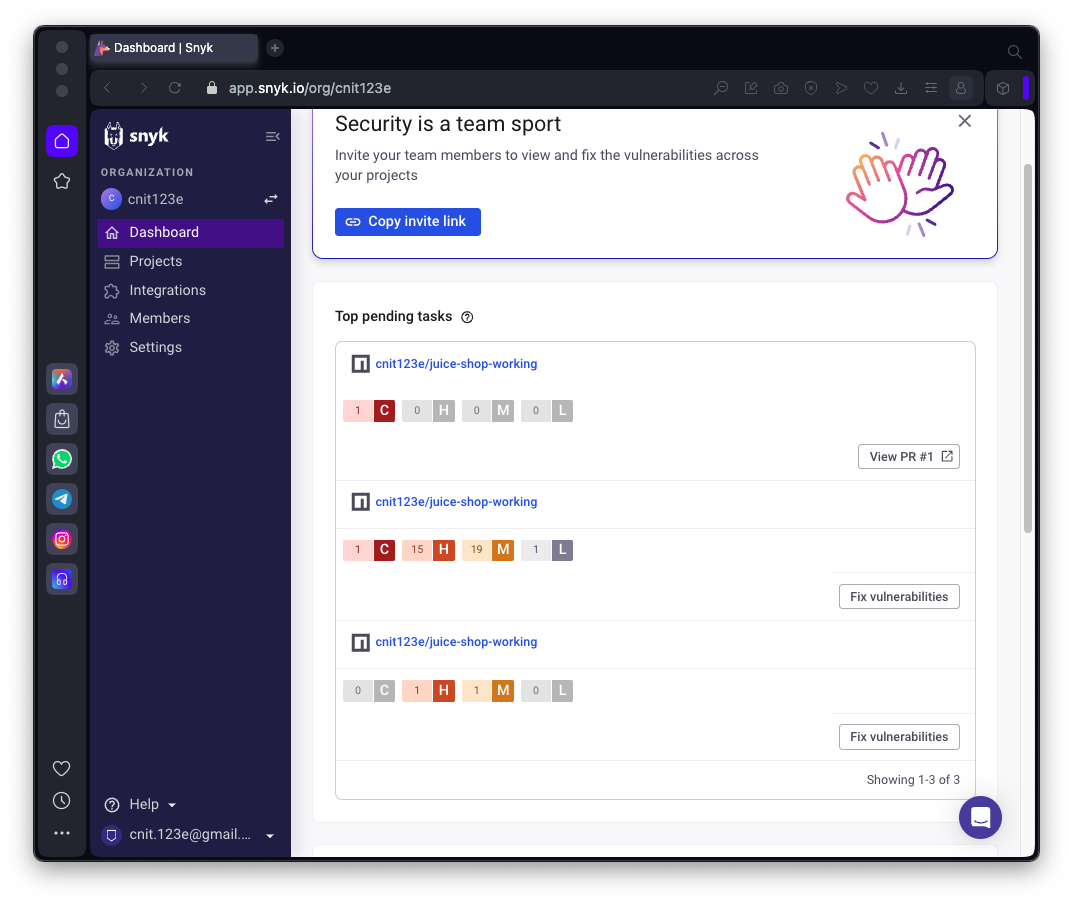

The second item shows 15 H vulnerabilities, as shown below.

Click juice-shop-working on that line.

Flag SC 130.1: base64url (15 pts)

Find the base64url vulnerability and automatically fix it. View the changed code.

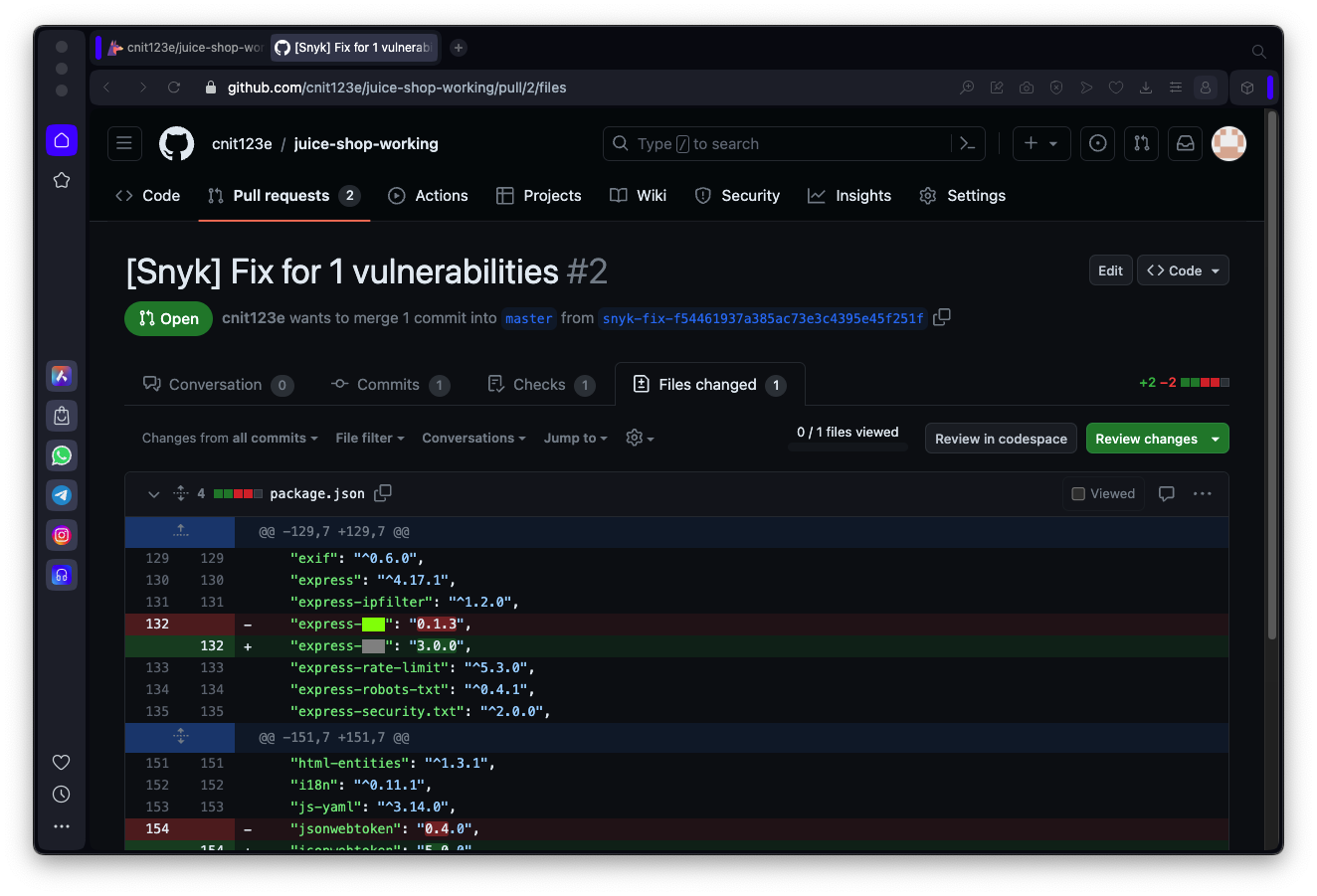

The flag is covered by a green rectangle in the image below.

Findng a Cross-site Scripting Vulnerability

In the Snyk page, on the left, click Dashboard.

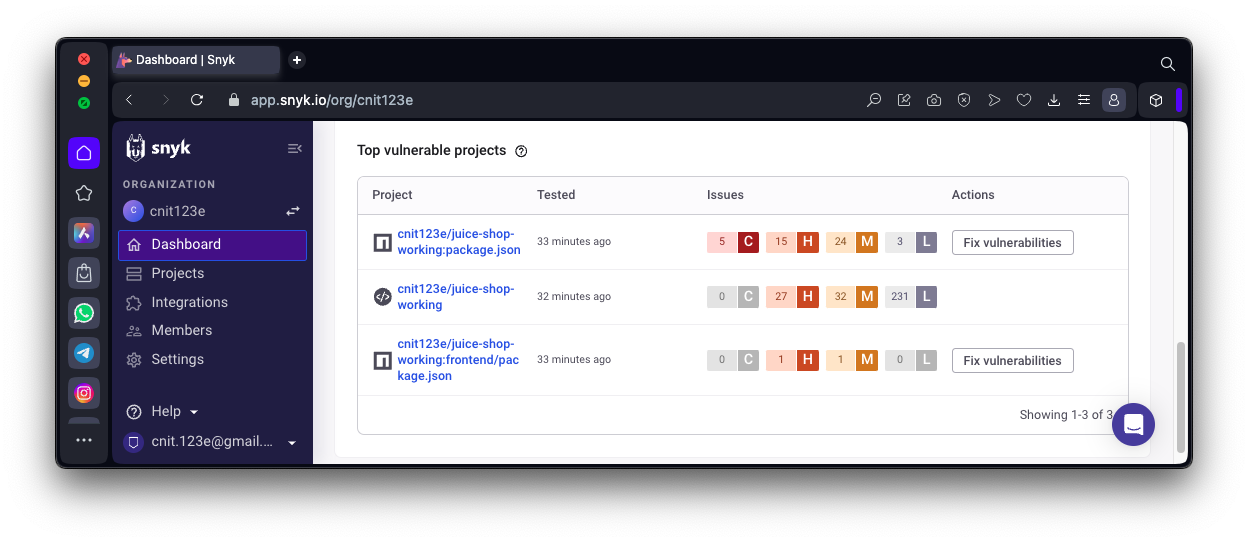

On the next page, at the bottom, in the "Top vulnerable projects" section, find the Project that does not end in "package.json".

In the image below, it is the second one.

Click that project name.

Read the description. This sounds like a typical XSS vuln, where user data is sent back within the HTML on a Web page, allowing JavaScript code injection.

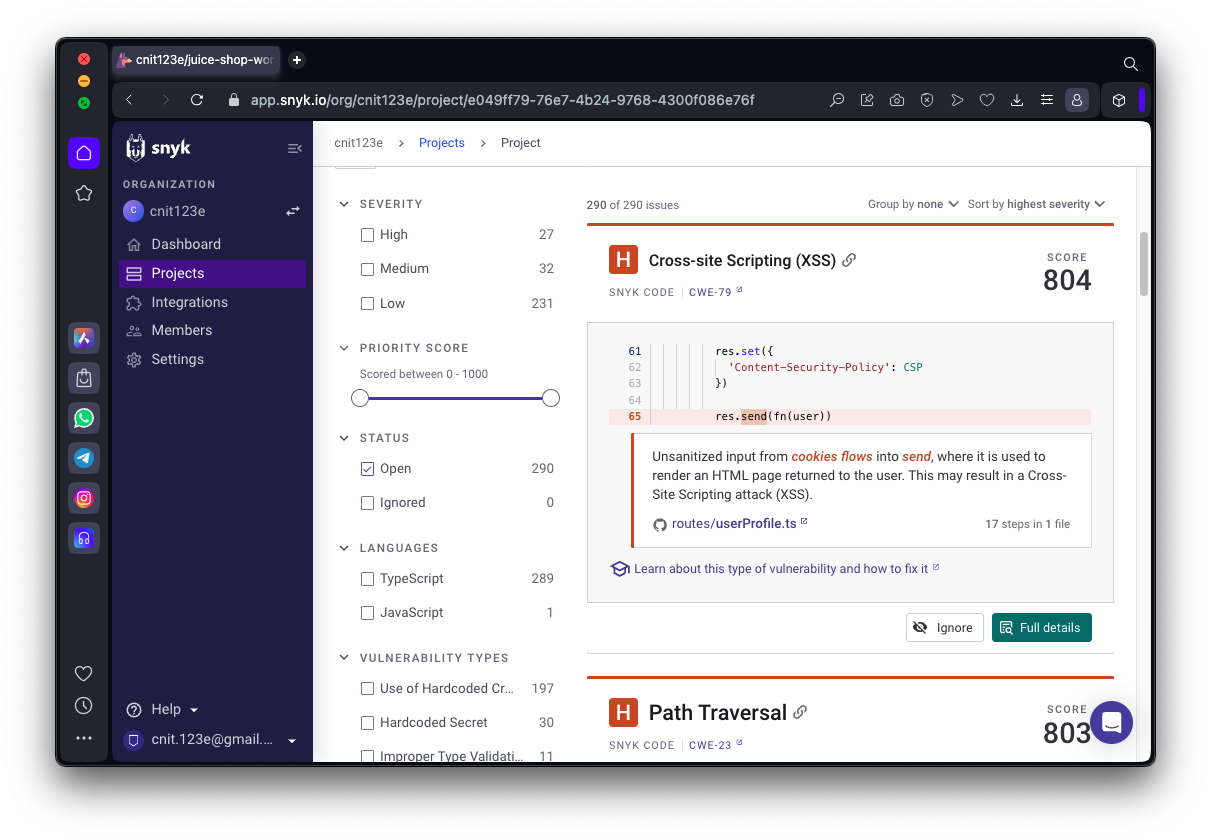

On the next page, find the "Cross-site Scripting" vulnerability shown below.

Notice that there is no automatic fix available.

On the Snyk page, click the green "Full details" button.

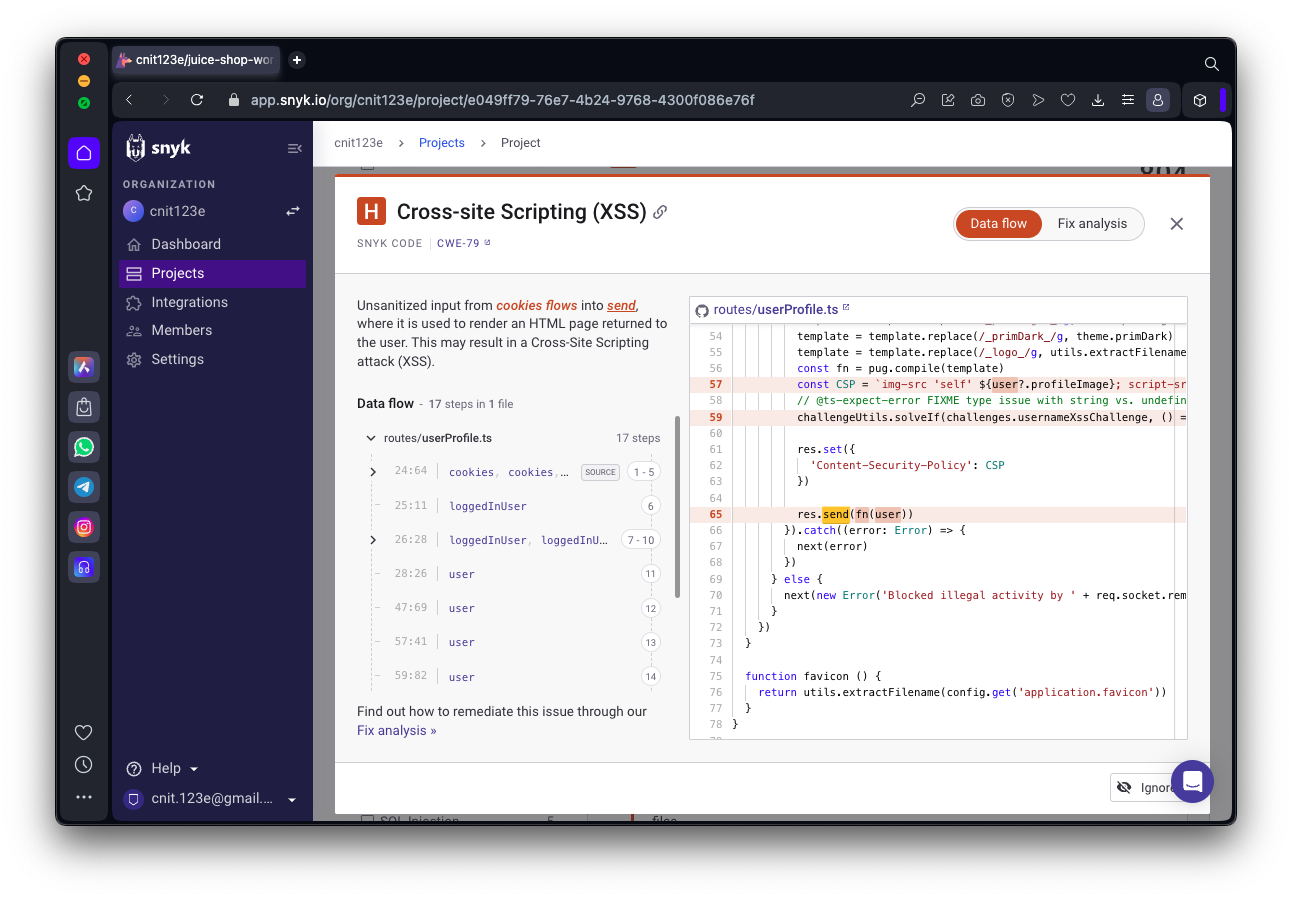

A page appears, explaining the vulnerability and showing the vulnerable line of code, as shown below.

At the top right, click "Fix analysis".

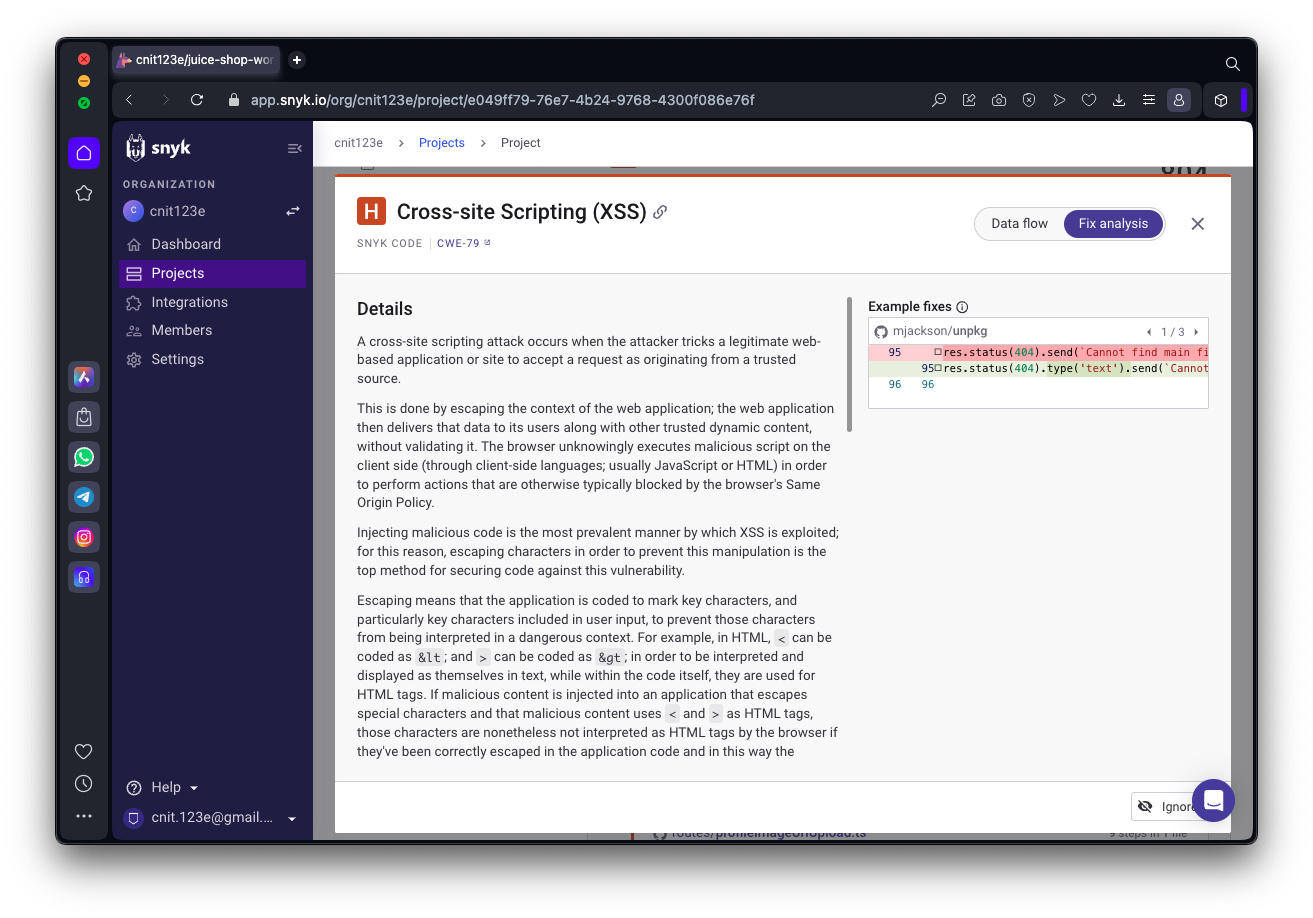

A helpful page explains the issue, and on the right shows example code with a fix, as shown below.

The proposed solution is to add ".text" to the untrusted input data. It took some Googling, but I found this page which says that is indeed a good way to escape special characters:

Is jQuery .text() method XSS safe?
So this seems very helpful, although not quite as convenient as an automatic fix.

Flag SC 130.2: Path Traversal (10 pts)

Find the Path Traversal vulnerability on line 94 of the "routes/vulnCodeSnippet.ts" file.

Examine the Fix analysis and the example fixes.

The flag is the added function code needed to fix this problem, covered by a green rectangle in the image below.

Posted 3-3-24
