Project 7: NSM Consoles (15 pts.)

What You Need

A SecurityOnion virtual machine, which you prepared in a previous project.

Purpose

To practice using these tools:

Starting SecurityOnion

Start your SecurityOnion (SO) virtual machine and log in with the username and password you chose (I recommended so and so).

Right-click an empty portion of the SO desktop and click Applications, "Terminal Emulator".

In the Terminal window, execute the ifconfig command. Make a note of your IP address. You'll need it later.


Task 1: Using Sguil

Testing NSM Services

On your SecurityOnion machine, in a Terminal window, execute this command:
sudo service nsm status
When asked for your password, enter it.

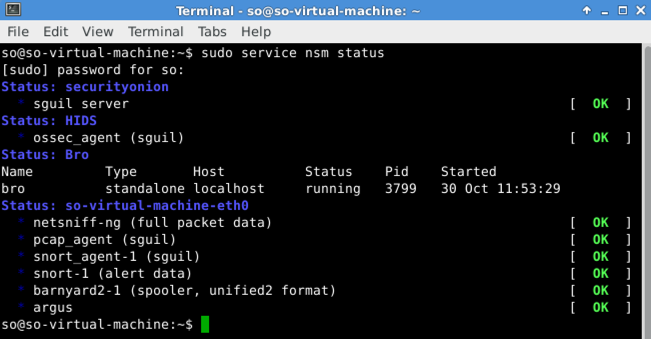

You should see several services, all with OK status, as shown below.

Starting Sguil

On your SO desktop, double-click the Sguil icon.

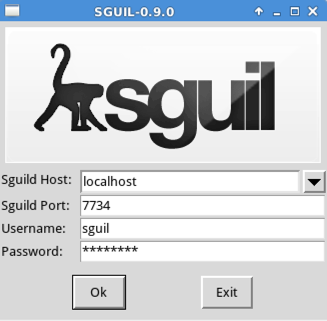

Log in with a username of sguil and a password of password as shown below.

Troubleshooting

If your password doesn't work, use this command to add another user named so2 with the password so2:
sudo sguild-add-user so2 so2

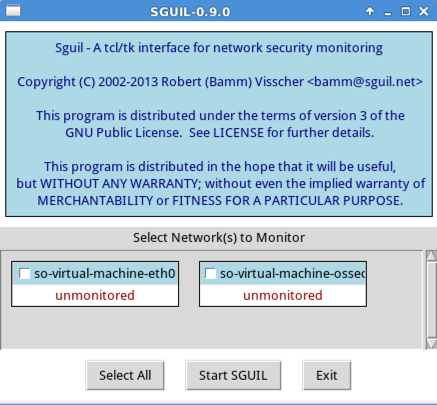

A box pops up asking which networks to monitor, as shown below.

Click "Select All" and click "Start SGUIL".

Squil opens. Click a row in the top section to highlight it, and click these three boxes:

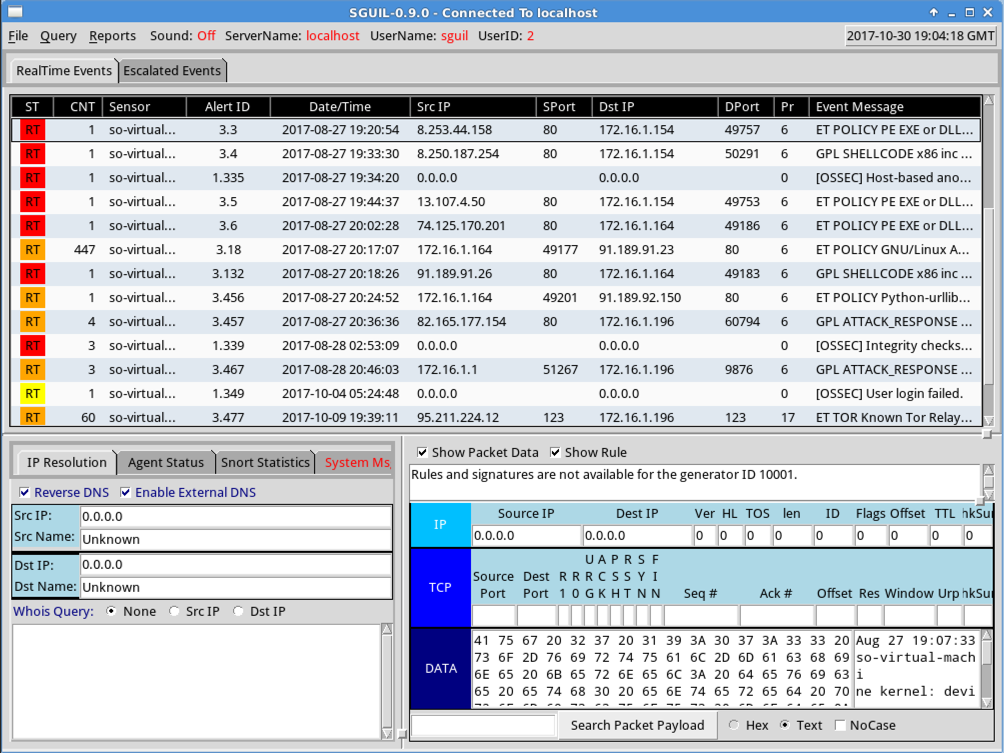

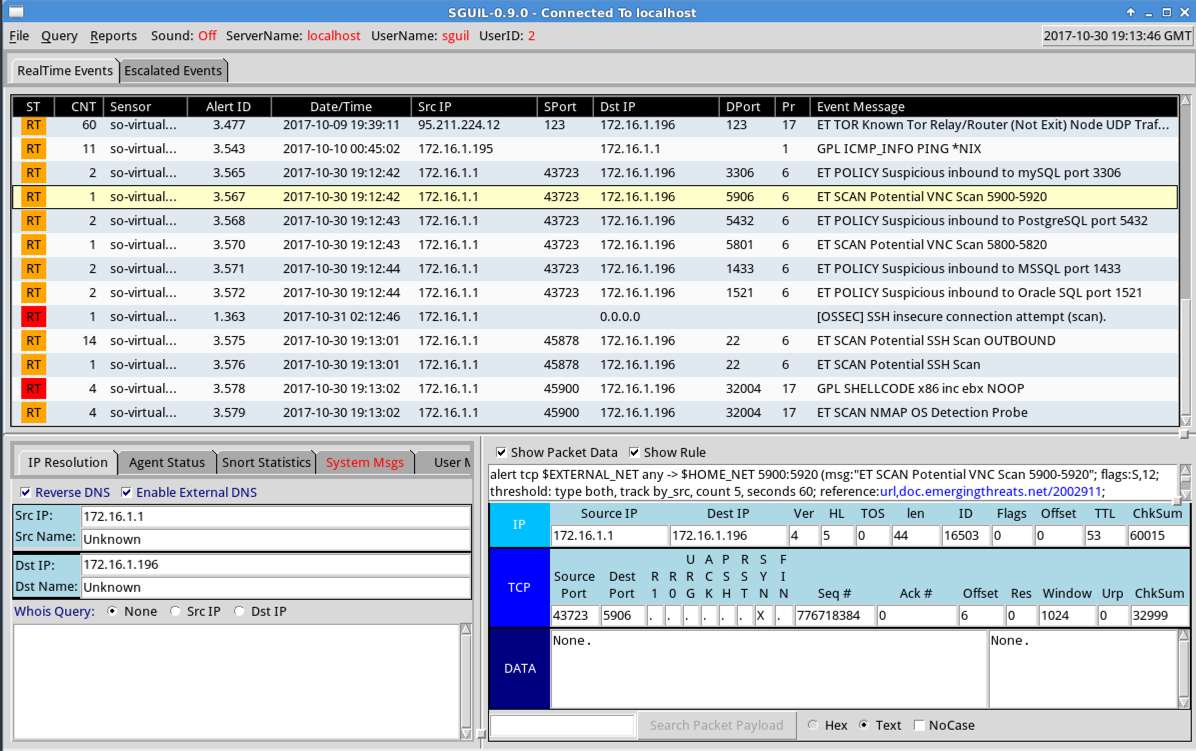

Your Sguil window should resemble the image shown below.

Scanning with Nmap

Sguil doesn't show every network transmission--only "event data" -- that is, alerts from IDS engines like Snort and Suricata.

To see alerts, we'll perform a simple, harmless attack: an Nmap scan.

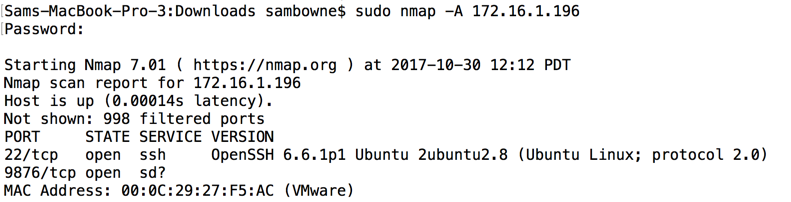

On your host computer, scan the SO virtual machine with nmap, as shown below. Replace the IP address with the IP address of your SO machine.

If you don't have Nmap, get it here:

https://nmap.org/download.html

Sguil shows several events, as shown below.

Using a Query

In Sguil, from the menu bar, click Query, "Query Event Table".

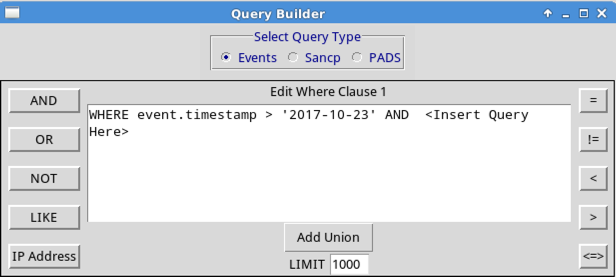

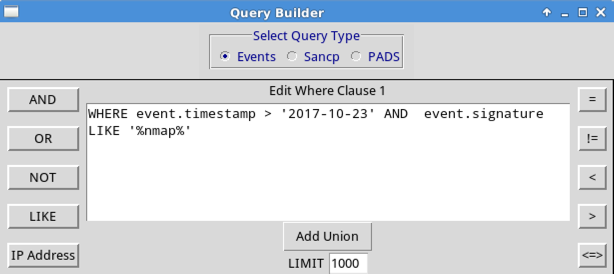

The Query Builder opens, as shown below.

Replace "" with "event.signature LIKE '%nmap%'", as shown below. Click Submit.

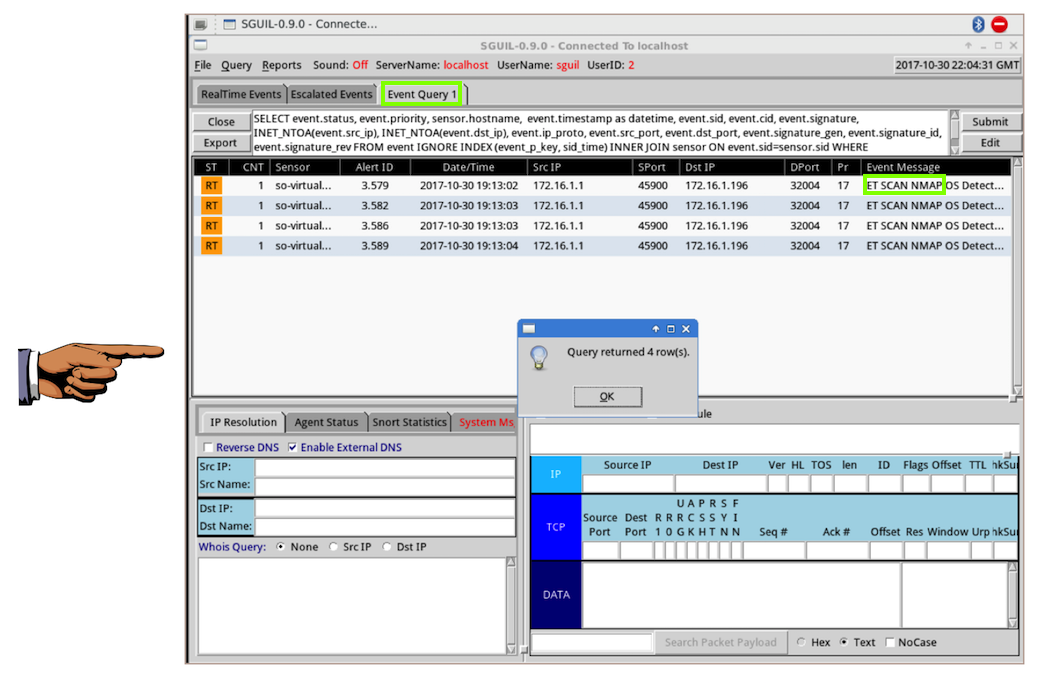

Several results are found, labelled "nmap", as shown below.

In the "Query returned 4 row(s)" box, click OK.

Capturing Screen Image A

Make sure these required items are visible, as shown above:

Capture a whole-desktop image and save it as "Proj 7a from YOURNAME".

YOU MUST SEND IN A WHOLE-DESKTOP IMAGE FOR FULL CREDIT

Pivoting to Full Content Data

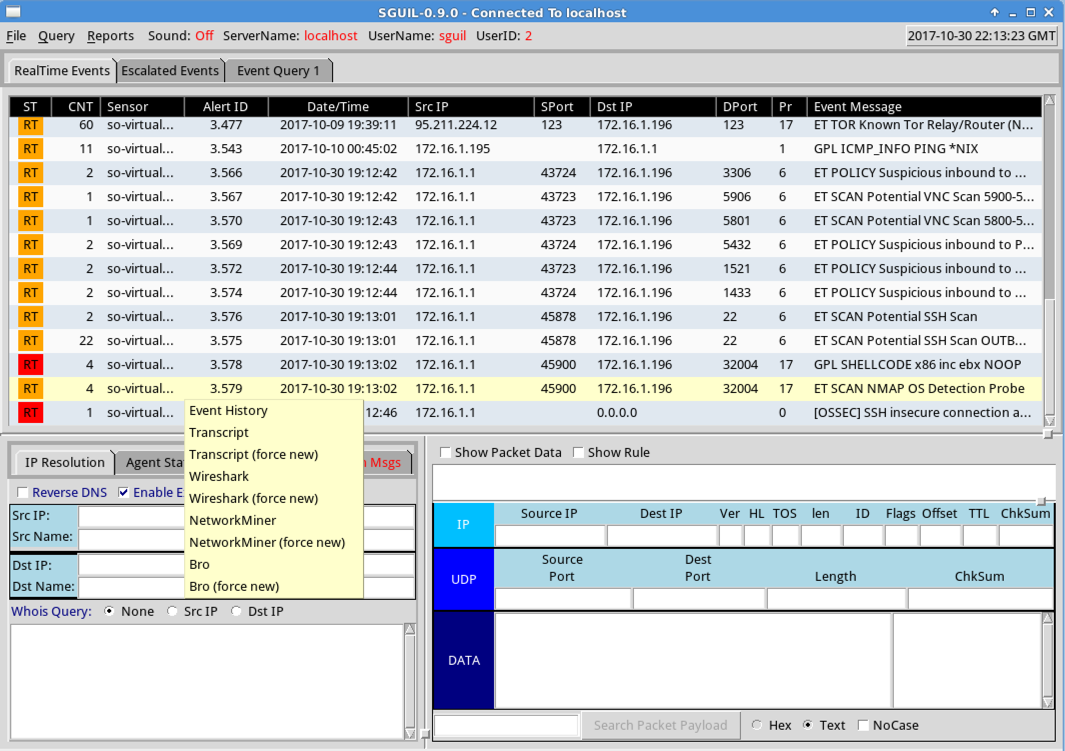

At the top of Sguil, click the "RealTime Events" tab. Scroll down to find the event labelled "NMAP". Right-click the Alert ID in that row. A context menu appears, as shown below.

Click Transcript.

A message says "Transcripts can only be generated for TCP data."

Right-click the Alert ID again and click Wireshark.

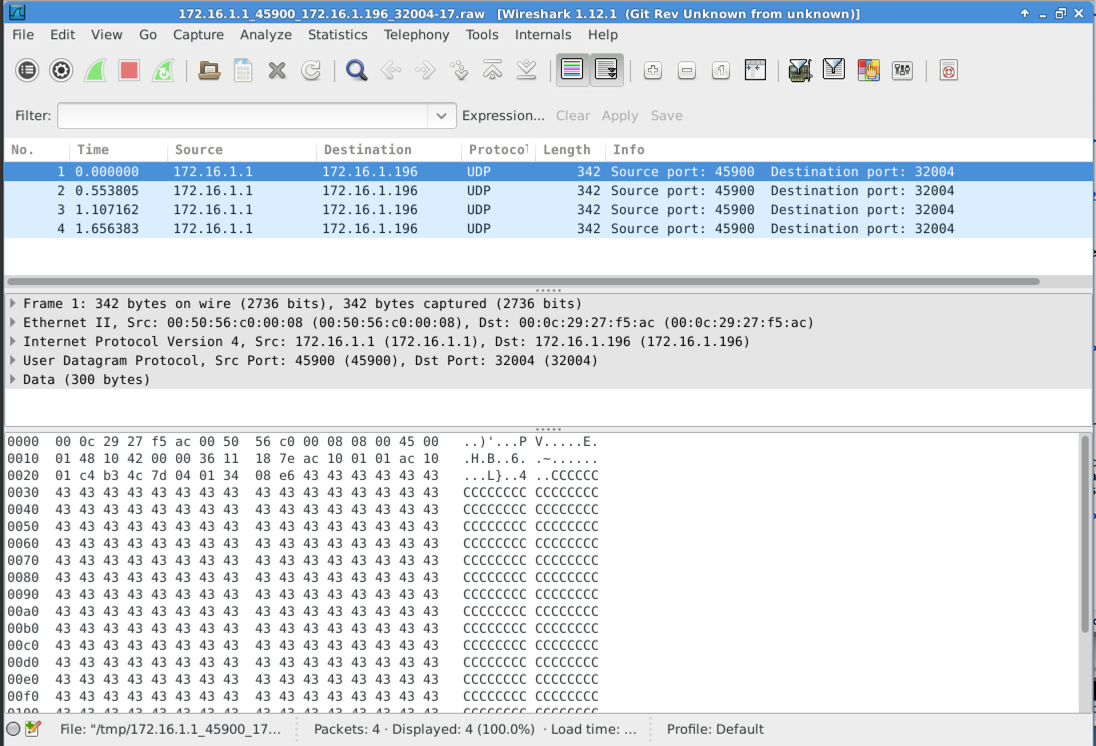

Wireshark opens, showing the four packets, as shown below. Notice that these packets end with a lot of C characters.

Close Wireshark. Close Sguil.


Task 2: Using Squert

On the SO desktop, double-click Squert.

Chromium opens with a message saying "Your connection is not private".

Click ADVANCED.

Click "Proceed to localhost (unsafe)".

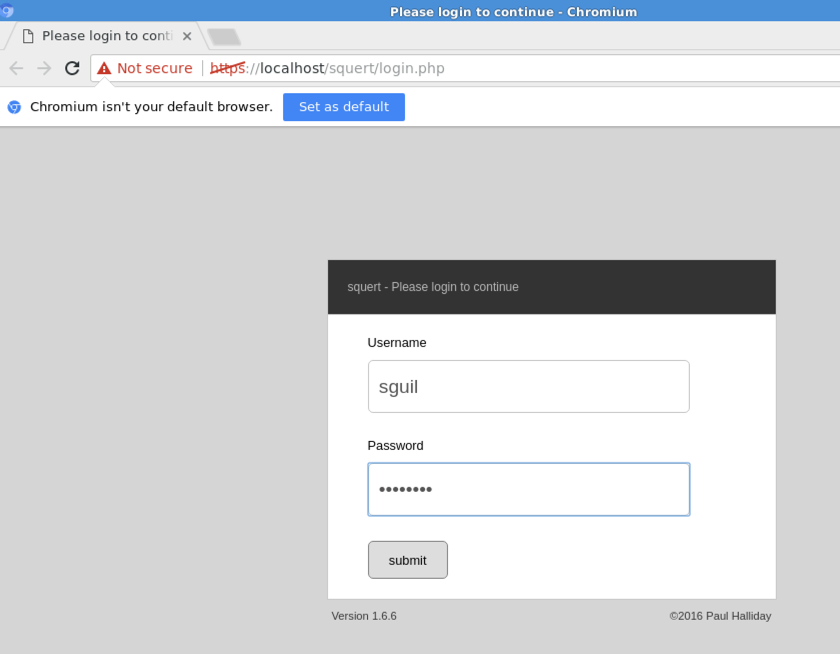

Log in with the username sguil and the password password as shown below.

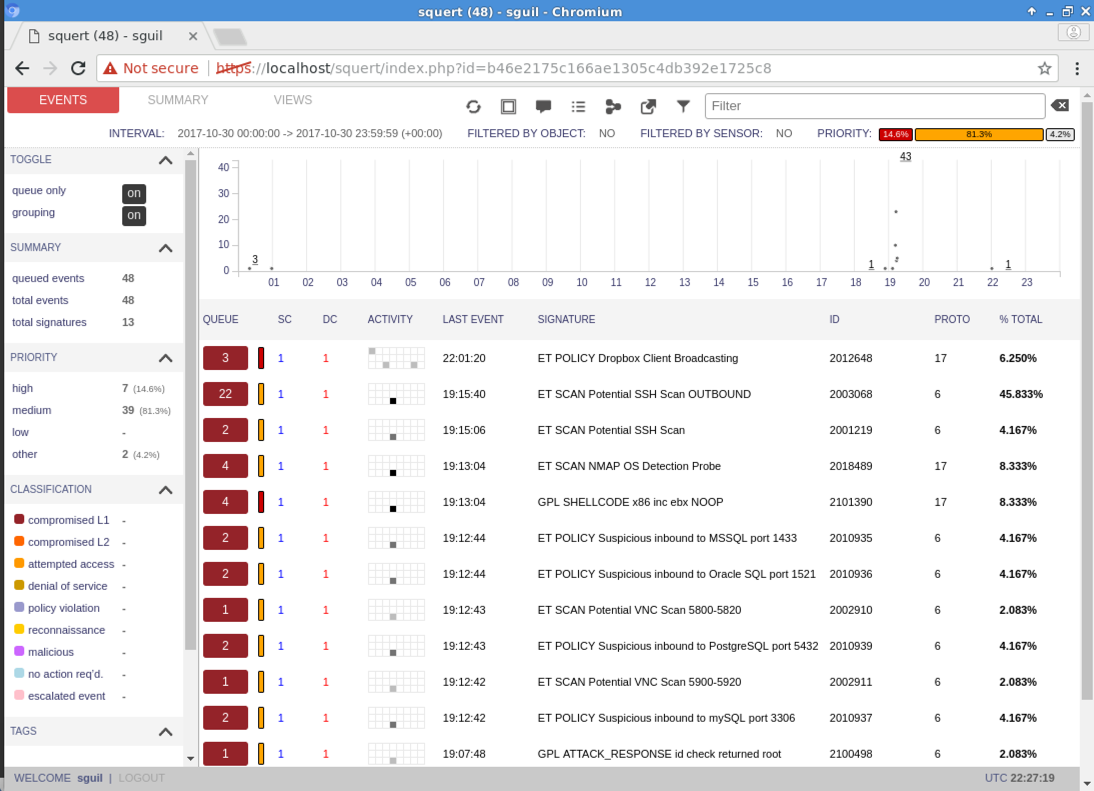

Squert shows a panel with a list of events, as shown below.

In the Filter box, at the top right, type nmap and press Enter.

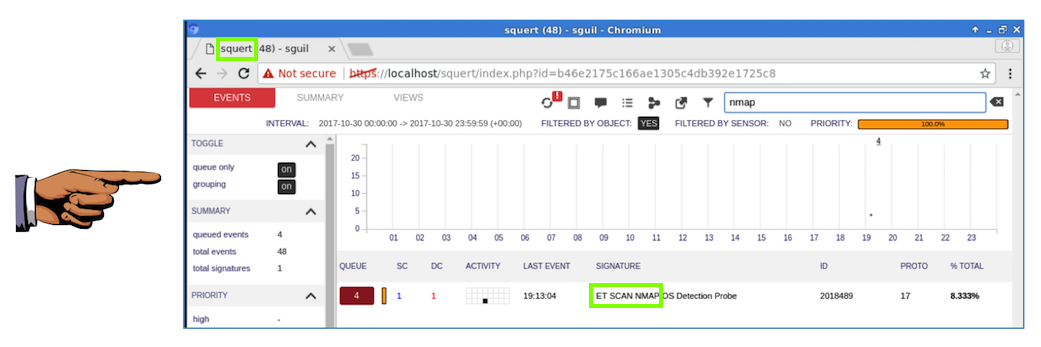

Squert finds the NMAP scan, as shown below.

Capturing Screen Image B

Make sure these required items are visible, as shown above:

Capture a whole-desktop image and save it as "Proj 7b from YOURNAME".

YOU MUST SEND IN A WHOLE-DESKTOP IMAGE FOR FULL CREDIT Close the browser.


Task 3: Using ELSA

Starting ELSA

On the SO desktop, double-click ELSA.

Log in with the username sguil and the password password.

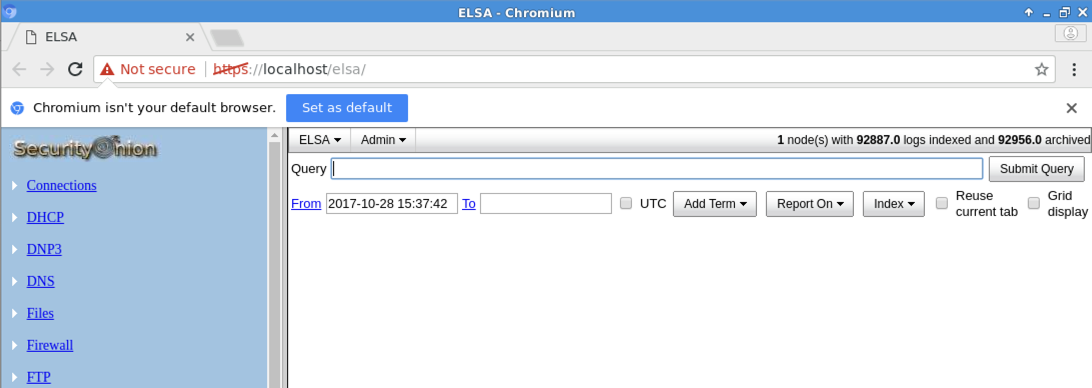

ELSA opens, as shown below.

Viewing Frequently-Used Programs

On the left side, click the triangle to the left of "Host Logs".

Click "Syslog-NG (Program)".

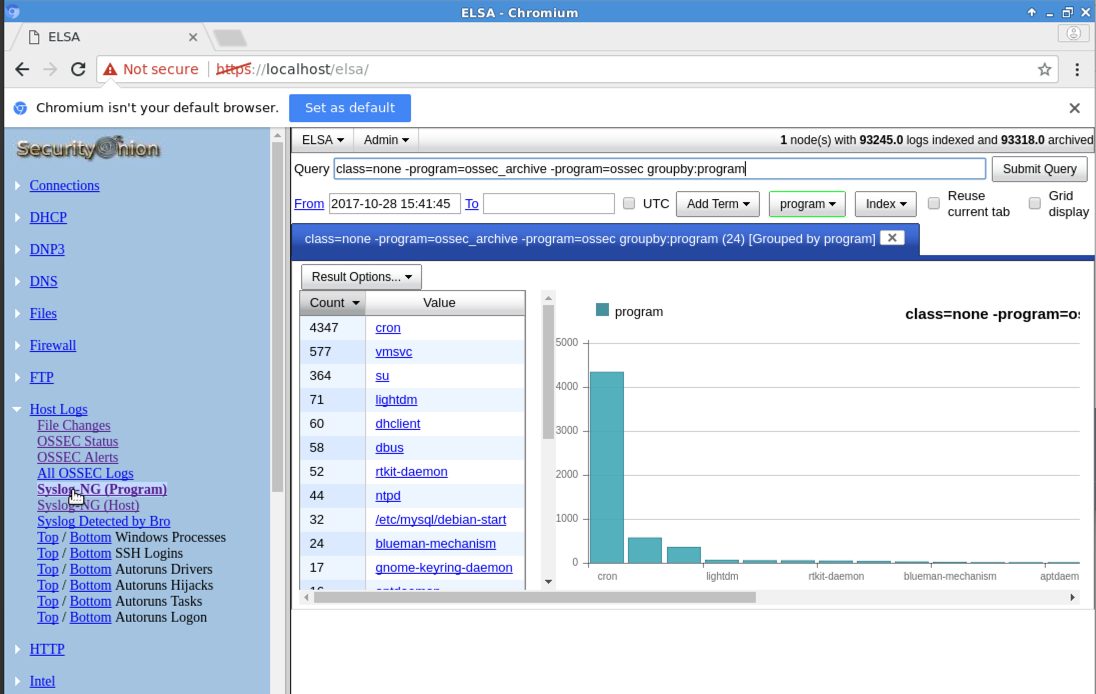

A chart of programs and the number of times they were launched appears. as shown below.

Viewing Frequently-Visited Websites

On the left side, click the triangle to the left of HTTP.

In the "Server IPs" line, click Top.

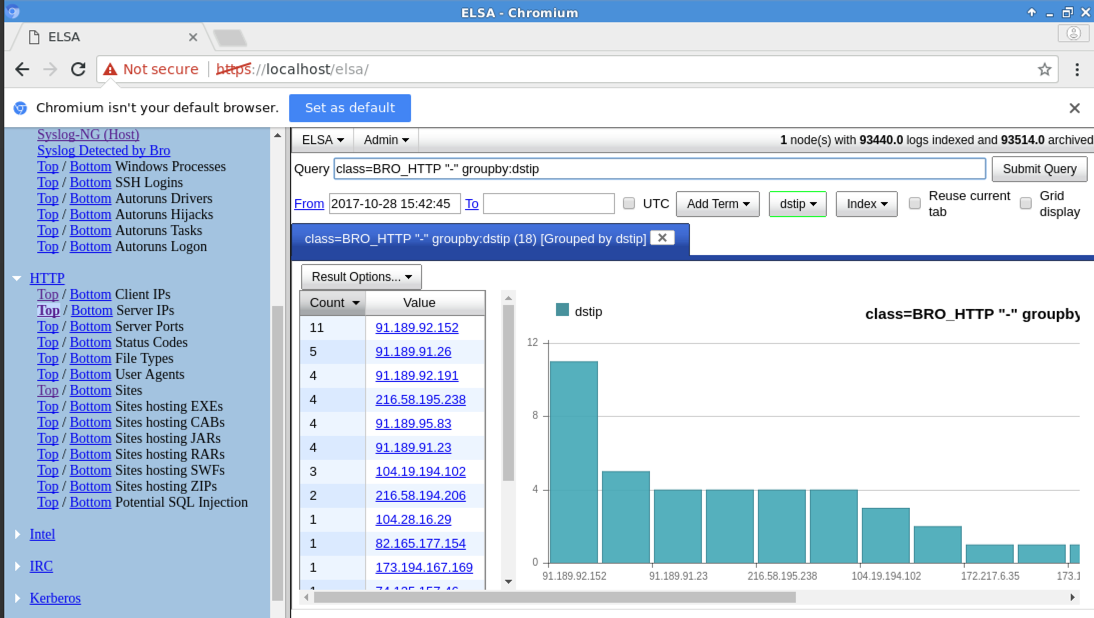

A chart of IPs of times they were visited appears. as shown below.

Finding NMAP Scans

At the top, in the Query bar, erase all the text and enter nmap. Click "Submit query".

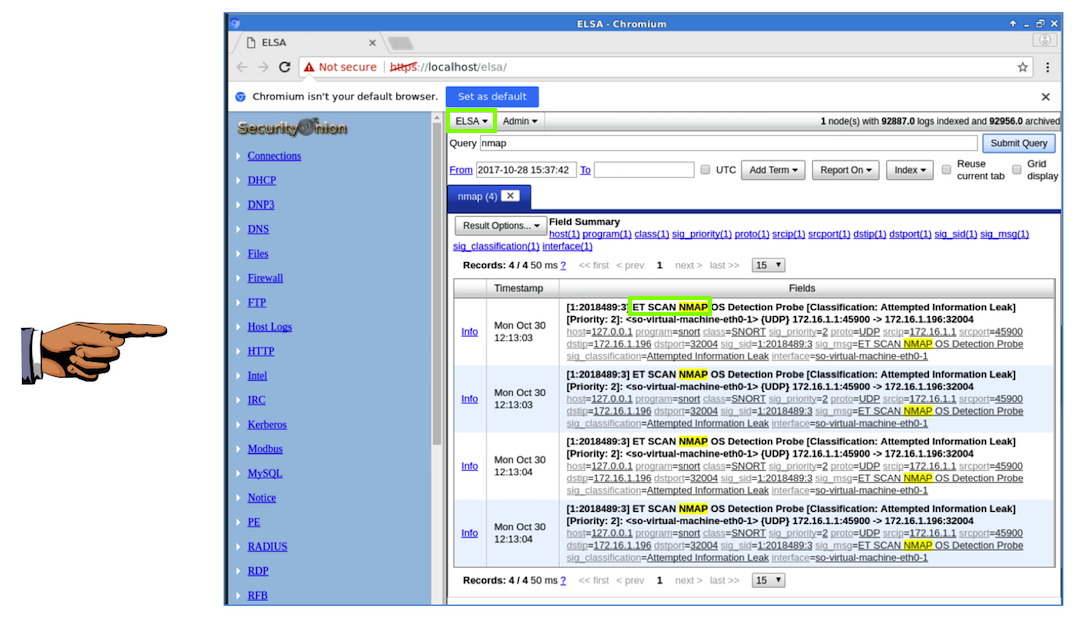

NMAP events are fouond, as shown below.

Capturing Screen Image C

Make sure these required items are visible, as shown above:

Capture a whole-desktop image and save it as "Proj 7c from YOURNAME".

YOU MUST SEND IN A WHOLE-DESKTOP IMAGE FOR FULL CREDIT Close the browser.

Turning in Your Project

Email the images to cnit.50sam@gmail.com with a subject line of "Proj 7 From YOUR NAME", replacing "YOUR NAME" with your real name.

Send a Cc to yourself.
