Proj 5: Cracking a Short RSA Key (10 pts. + 40 pts. extra credit)

What you need:

Purpose

To break into RSA encryption without prior knowledge of the private key. This is only possible for small RSA keys, which is why RSA keys should be long for security.

Summary

Here's a diagram from the textbook showing the RSA calculations.

Problem Statement

Meghan's public key is (10142789312725007, 5). Find her private key.

1. Factoring n

Finding the Square Root of n

n = 10142789312725007. This is the product of two prime numbers, p and q.

How large are p and q? Well, they can't both be larger than the square root of n, or they'd be larger than n when multiplied together.

Start Python in interactive mode. On a Mac or Linux box, you can do that by typing this command into a Terminal window:

python
Execute these commands:
import math
n = 10142789312725007
print math.sqrt(n)
The square root prints out, as shown below.

Displaying More Decimal Places

It's not clear from that output whether the result is an integer, or just rounded off to one decimal place. To see more decimal places, we'll use the repr() function.

Execute this command:

print repr(math.sqrt(n))
Now more decimal places appear, as shown below.

Testing 20 Candidates

So one of the prime factors must be a prime number less than 100711415. All we have to do is try dividing n by odd numbers starting at 100711413 and going down until we get an integer result. (We don't need to test 100711415 because it's divisible by 5 and therefore not a prime number.)

A good way to do this is to calculate n mod c, where c is a candidate. If c is a factor of n, the result will be zero.

We can test the first 20 candidates with a for loop.

Execute these commands:

c = 100711413
for i in range(c, c-40, -2):
  print i, n%i
Press Enter twice after the last command to terminate the loop.

The third candidate is the winner, with a remainder of zero, as shown below.

Calculating q

We now know p and we can calculate q.

Execute these commands:

p = 100711409
q = n / p
print p, q, n, p*q, n - p*q
The calculation worked, so the last value is zero, as shown below.

2. Compute phin = (p-1) * (q-1)

Execute these commands:
phin = (p-1) * (q-1)
print p, q, n, phin
The parameters print out, as shown below.

3. Installing the "gmpy" Library

This library allows Python to perform multiple-precision arithmetic. The steps to install it are different for each OS. Follow the appropriate steps below.

Installing gmpy on Mac OS

First install brew as explained here:

https://brew.sh/

Open a new Terminal window, not the one running Python, and execute this command to download and install a few dependencies and gmpy:

brew install gmp mpfr mpc
pip install gmpy
One student said "pip" did not work. so he did this:
brew install python
And thereafter used "python2.7" in place of "python".

Installing gmpy on Kali

In a Terminal window, execute this command:
apt install python-gmpy

Installing gmpy on Windows

If you are using the 32-bit Windows Server 2008 system provided by your instructor, you need to use a very old version of gmpy.

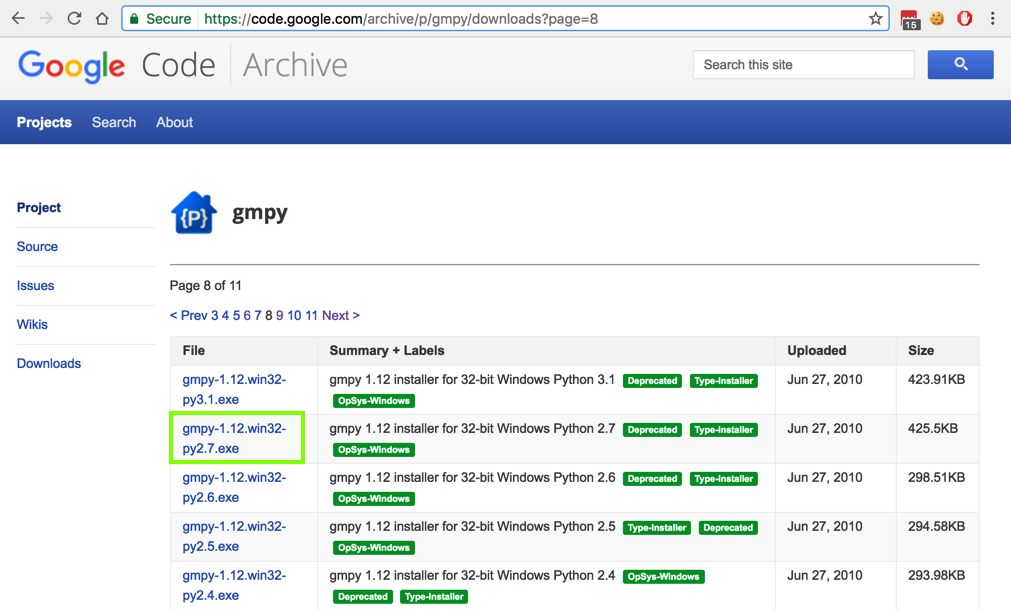

In a Web browser, go to:

https://code.google.com/archive/p/gmpy/downloads?page=8

Download gmpy-1.12.win32-py2.7.exe, as shown below. Double-click this file and install it with the default options.

If you are using a later version of Windows, you might need a more recent version of gmpy from this page . These downloads are "wheel" files, and must be installed from a command prompt with the "pip install" command.

4. Compute Private Key d

We need to find a d with this property:
(d * e) mod phin = 1
d is the "multiplicative inverse" of e.

We know that e = 5 from the Problem Statement.

It's not obvious how to find d, but there's a simple way to do it in Python, using the "gmpy" library.

In the Terminal window running python, execute these commands.

e = 5
import gmpy
d = gmpy.invert(e, phin)
print d, e, d*e %phin
We get the value of d, and, to verify it, we see that d*e %phin is indeed 1, as shown below.

5. Encrypting a Message

Encoding the Message as a Number

Cueball wants to send Meghan this message:
Hi!
We can only send numbers. Let's convert that message to three bytes of ASCII and then interpret it as a 24-bit binary value.

In the Terminal window running python, execute these commands.

x1 = ord('H')
x2 = ord('i')
x3 = ord('!')
x = x1*256*256 + x2*256 + x3
print x
We get the value of x, as shown below.

Encrypting the Message with the Public Key

A public key contains two numbers: n and e. To encrypt a message x, use this formula:

Execute these commands:

y = x ** e % n
print y
The encrypted message appears, as shown below.

6. Decrypting a Message

To decrypt a message, use this formula:
Execute this command:
xx = y ** d % n
Python crashes, as shown below. It cannot handle such large numbers. (On Windows, you see a different error message saying "outrageous exponent". Execute the exit() command to exit Python.)
To compute such a number, we must use the pow() function.

Execute these commands to restart python and restore all the values we calculated previously:

python
n = 10142789312725007
p = 100711409
q = 100711423
phin = (p-1) * (q-1)
e = 5
import gmpy
d = gmpy.invert(e, phin)
x1 = ord('H')
x2 = ord('i')
x3 = ord('!')
x = x1*256*256 + x2*256 + x3
y = x ** e % n
Your screen should look like the image below.
Let's try that decryption again with the pow() function. Execute these commands:
xx = pow(y, d, n)
print xx
Now it works, showing our original message in numerical form.

Converting the Message to Readable Text

To convert that number back to letters, execute these commands:
xx1 = xx / (256*256)
xx2 = (xx - 256*256*xx1) / 256
xx3 = xx - 256*256*xx1 - 256*xx2
msg = chr(xx1) + chr(xx2) + chr(xx3)
print xx1, xx2, xx3, msg
Now it works, showing the original message in readable form, as shown below.

Challenge 5a: Encrypt "WOW" (10 pts.)

Using the same keys, encrypt this message:
WOW
Hint 1: The message, converted to a decimal number, is 7 digits long and ends in 43.

Hint 2: The encrypted message is 16 digits long and ends in 66.

Use the form below to put your name on the WINNERS PAGE.

Your Name (without spaces):
Encrypted message:
Save a whole-screen image of the winners page showing your name with the filename "YOUR NAME Proj 5a".

Challenge 5b: Encrypt "OBEY!" (10 pts. extra credit)

Using the same keys, encrypt this message:
OBEY!
Hint 1: The message, converted to a decimal number, is 12 digits long and ends in 41.

Hint 2: The encrypted message is 16 digits long and ends in 81.

Use the form below to put your name on the WINNERS PAGE.

Your Name (without spaces):
Encrypted message:
Save a whole-screen image of the winners page showing your name with the filename "YOUR NAME Proj 5b".

Challenge 5c: Message to Cueball (15 pts. extra credit)

Cueball's public key is:
(111036975342601848755221, 13)
Meghan sends this message to Cueball. Decrypt it.
80564890594461648564443
Use the form below to put your name on the WINNERS PAGE.
Your Name (without spaces):
Cleartext Message:
Save a whole-screen image of the winners page showing your name with the filename "YOUR NAME Proj 5c".

Challenge 5d: Message to Rob (15 pts. extra credit)

Rob public key is:
(1234592592962967901296297037045679133590224789902207663928489902170626521926687, 5557)
Meghan sends this message to Rob. Decrypt it.
272495530567010327943798078794037733865151017104532777645776936985235709526002
Hint: make square root calculations more precise.

Use the form below to put your name on the WINNERS PAGE.

Your Name (without spaces):
Cleartext Message:
Save a whole-screen image of the winners page showing your name with the filename "YOUR NAME Proj 5d".

Turning in your Project

Email the images to cnit.141@gmail.com with the subject line: Proj 5 from YOUR NAME.

Sources

Cracking short RSA keys

Prime Numbers Generator and Checker

Arbitrary precision of square roots

Posted 3-31-16 by Sam Bowne
Winners pages added 8-6-16
Attack server name updated 4-4-17
Added challenge and all renumbered 6-11-17
Added email and screen cap instructions 9-9-17
Added brew install 9-25-17
Pts fixed 10-3-17
Mac tip added 10-6-17
