Proj 18: Quantum Entanglement with IBM Q (15 pts. + 10 pts. extra credit)

What you need

Purpose

To practice using a quantum computer for very basic operations.

Getting Started

In a Web browser, go to

https://quantumexperience.ng.bluemix.net/qx/experience

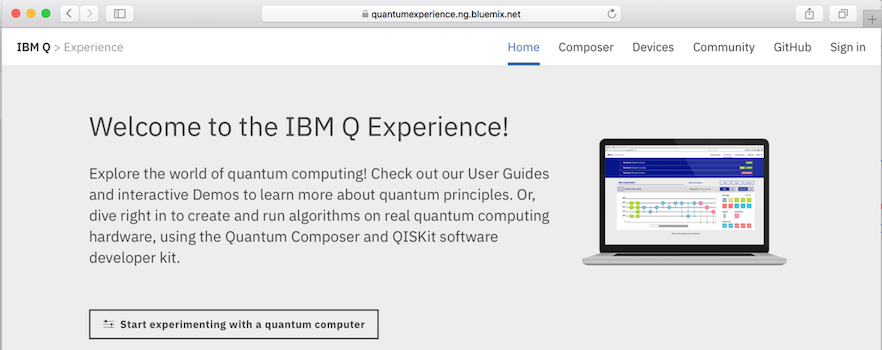

Click the "Start experimenting with a quantum computer" button, as shown below.

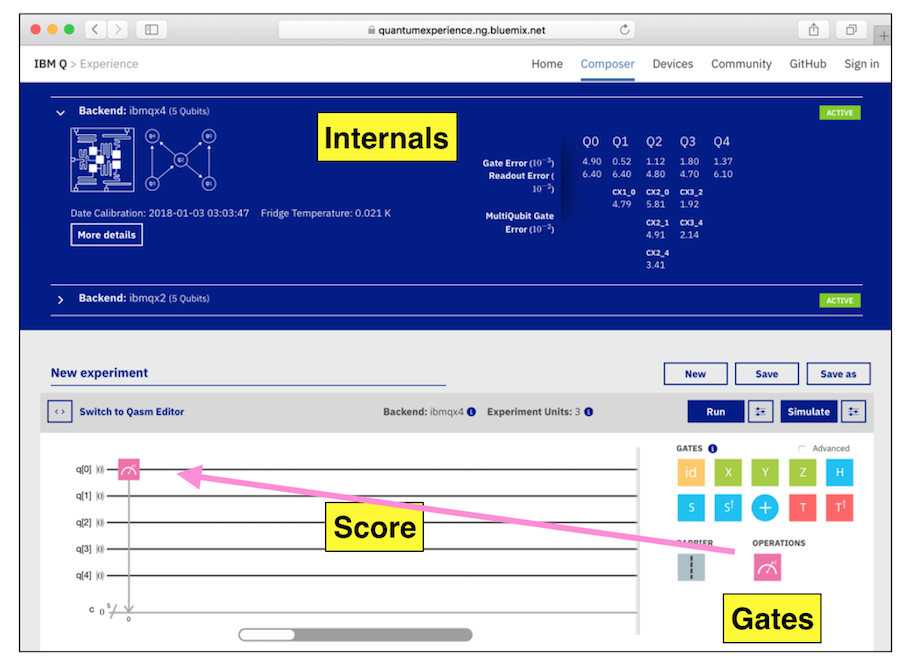

The next page shows the "Composer". Here we'll program a quantum computer, using the chart at the bottom with five lines, like a music composer's score.

At the top is the Internals section, showing the details of IBM's actual quantum computer. Ignore it for this project.

At the lower left is the Score where you will create your programs, by dragging Gates from the right and dropping them.

The pink icon with a white umbrella-looking figure on it is called a "Measurement Gate". Drag a measurement gate onto the score and drop it there, as indicated by the pink arrow in the figure below.

At the center right, click the Simulate button.

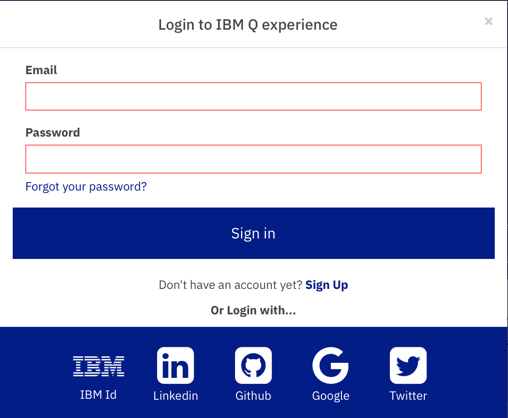

A login box pops up, as shown below. Log in with a social network, or create an IBM Q account and log in with that.

Click the Simulate button again.

A box pops up asking you to "Name your experiment". Click OK.

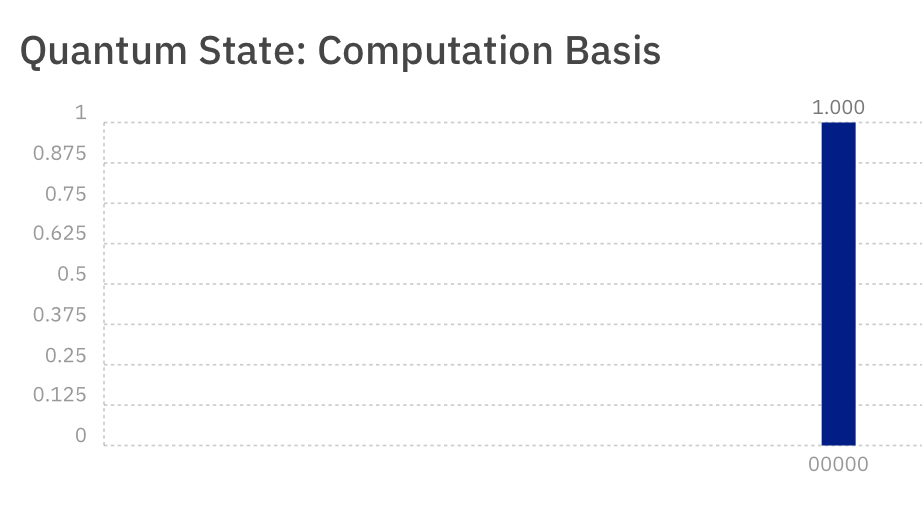

"Your Quantum Results" appear, including the "Quantum State: Computation Basis" chart shown below.

This chart shows the results of running your experiment 100 times. Every time, the result was the same: 00000, as shown at the bottom of the purple bar.

Classical Measurement

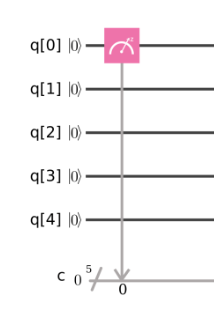

The experiment you just created is shown below.

It did not demonstrate any quantum behavior. There are five Qubits, and they all start in the "Zero" state, written as

|0>
All you did was measure one Qubit, and the result was always 00000 because all the Qubits are stable in their zero state.

More Classical Measurements

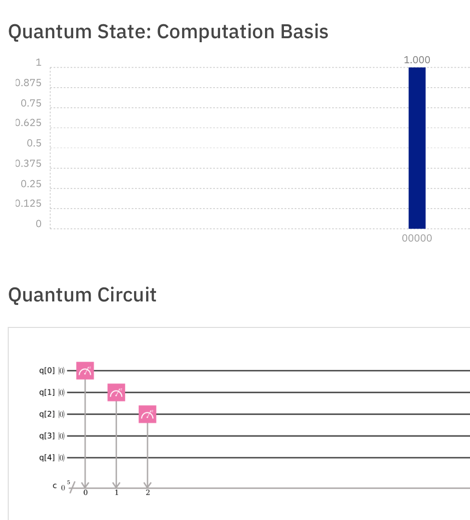

Close the "Your Quantum Results" box. Drag more "Measurement Gates" onto the score, as shown in the lower portion of the image below.

Click the Simulate button. You get the same result: 00000 every time, as shown in the upper part of the image below.

This is how ordinary non-quantum processors work. Measuring a bit has no effect on it--you can measure it anytime you want.

Flipping a Bit

Close the "Your Quantum Results" box.

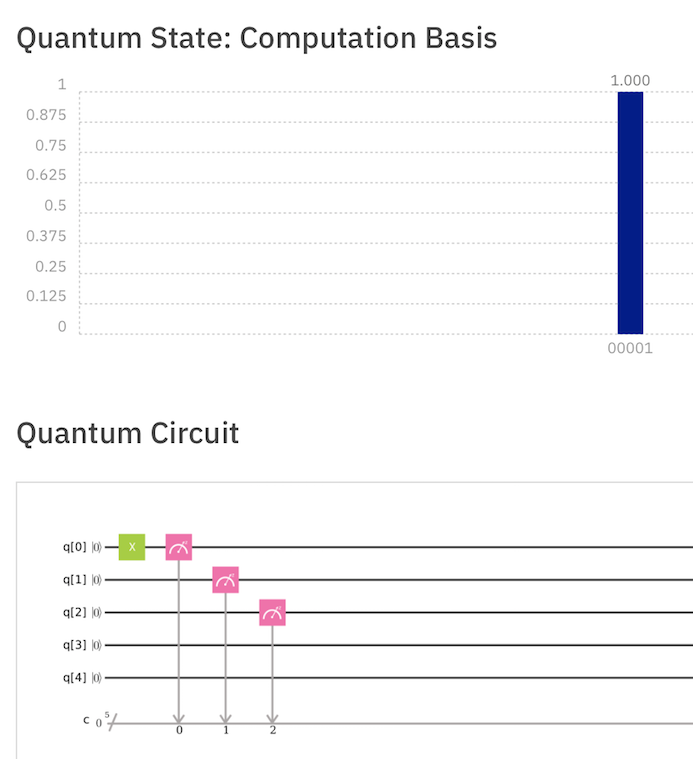

Drag gates as needed to make the quantum score shown below, and Simulate it.

The green X gate flips a Qubit from |0> to |1>

This is still the same as a normal processor: no quantum effects are visible.

Creating Uncertainty ("Superposition")

Close the "Your Quantum Results" box.

Drag gates as needed to make the quantum score shown below, and Simulate it.

The blue H gate is called a "Hadamard" gate, and it changes a Qubit from its |0> state to a "Superposition" state, mixing equal portions of the |0> state and the |1> state.

This is also called "Uncertainty" and it's the bizarre part of quantum mechanics: quantum objects in a "Superposition" state are neither 1 nor 0, but in an uncertain state with a probability of either result.

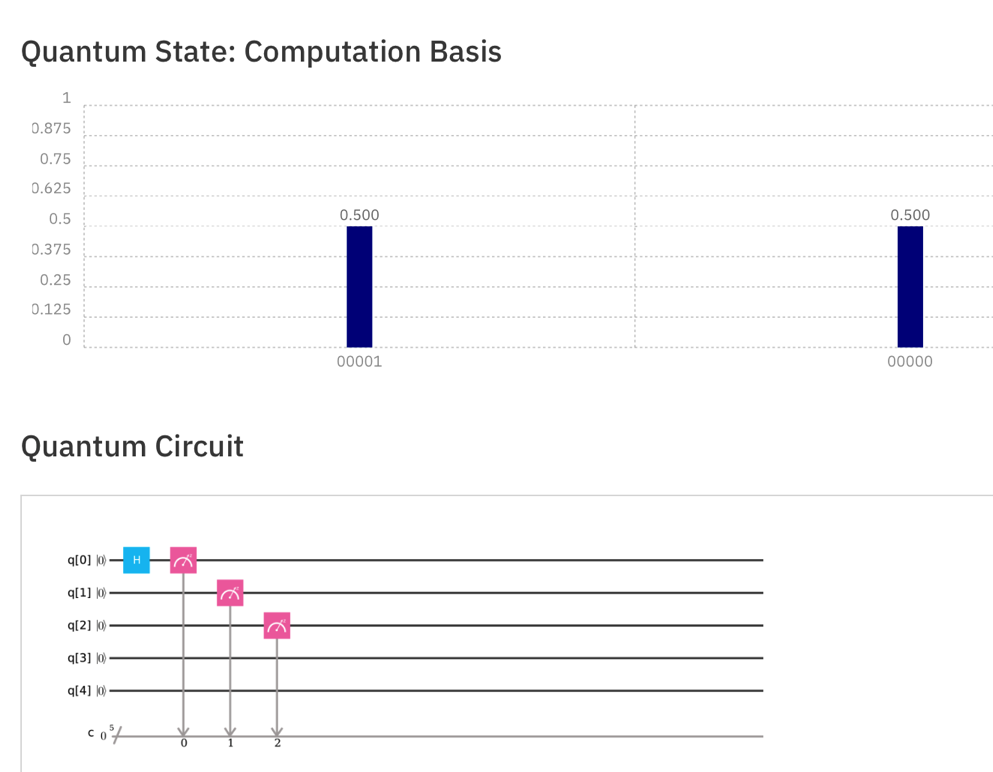

So the measurement doesn't always give the same result. Half the time the result is 00001 and the other half of the time it's 00000.

Three Qubits in Superposition States

Close the "Your Quantum Results" box.

Drag gates as needed to make the quantum score shown below, and Simulate it.

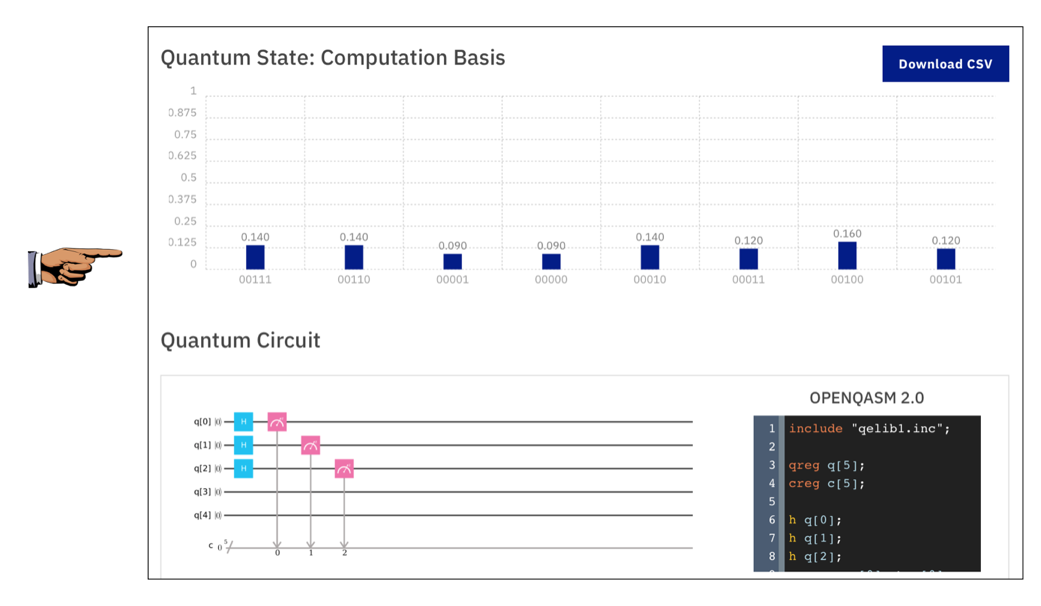

The three Qubits are all in Superposition states, so there are eight possible results with equal probability.

Saving a Screen Image

Make sure the bar chart is visible, showing eight bars with approximately equal height, as shown in the image above.

Capture a whole-desktop image.

Save the image with the filename "Your Name Proj 18a". Use your real name, not the literal text "Your Name".

YOU MUST SUBMIT AN IMAGE OF THE WHOLE DESKTOP TO GET FULL CREDIT!

One Uncertain Qubit

Close the "Your Quantum Results" box.

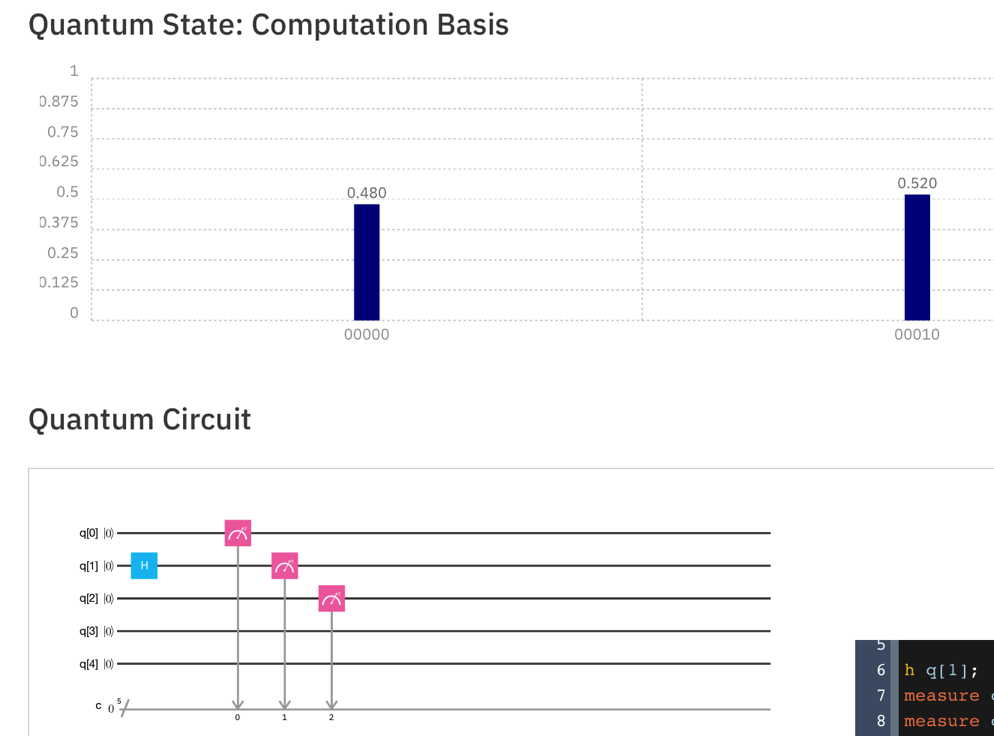

Drag gates as needed to make the quantum score shown below, and Simulate it.

The H gate makes the second Qubit uncertain, but the other two Qubits are stable in the |0> state,.

The only two possible answers are 00000 and 00010, as shown below.

Entanglement

Close the "Your Quantum Results" box.

Drag gates as needed to make the quantum score shown below, and Simulate it.

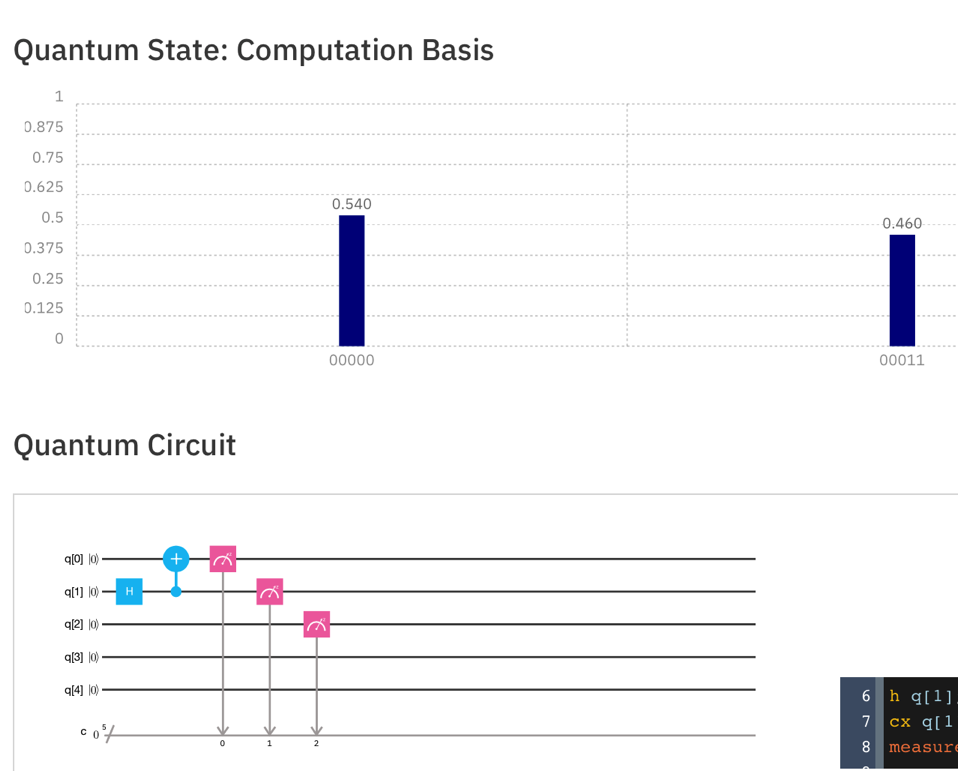

The + gate Entangles two Qubits, so they will always give the same result when measured. So Qubit 0 now follows Qubit 1, and the possible results are now 00000 and 00011, as shown below.

Entanglement with Bit-Flip

Close the "Your Quantum Results" box.

Drag gates as needed to make the quantum score shown below, and Simulate it.

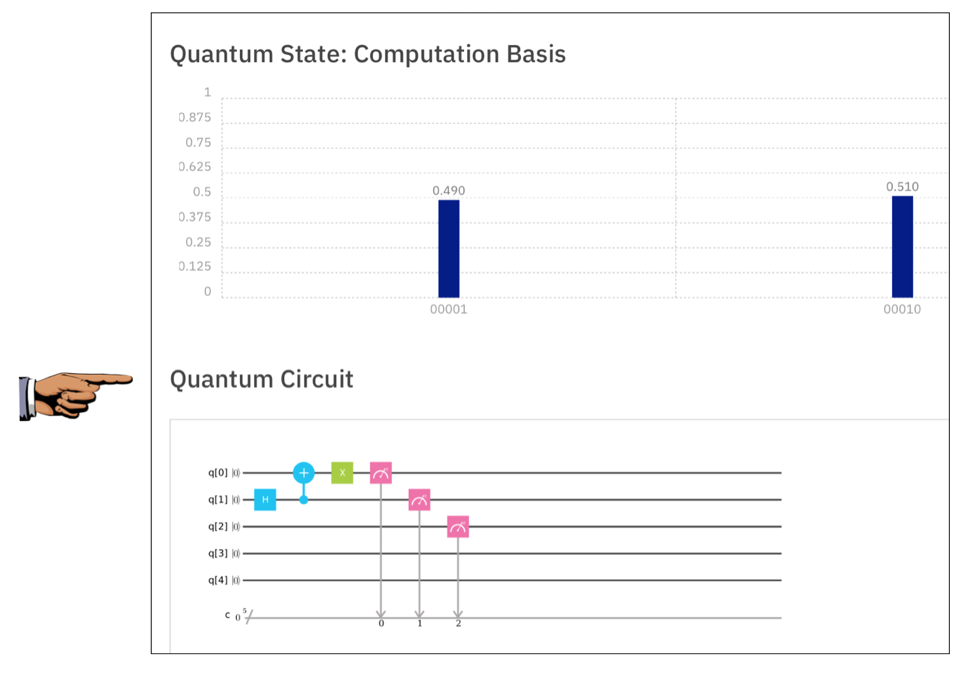

Now Qubits 0 and 1 are entangled, but always opposite, so the possible results are 00001 and 00010, as shown below.

Saving a Screen Image

Make sure the bar chart is visible, showing two bars labeled 00001 and 00010, as shown in the image above.

Capture a whole-desktop image.

Save the image with the filename "Your Name Proj 18b". Use your real name, not the literal text "Your Name".

YOU MUST SUBMIT AN IMAGE OF THE WHOLE DESKTOP TO GET FULL CREDIT!

Challenge: Four Entangled Qubits (10 pts. extra credit)

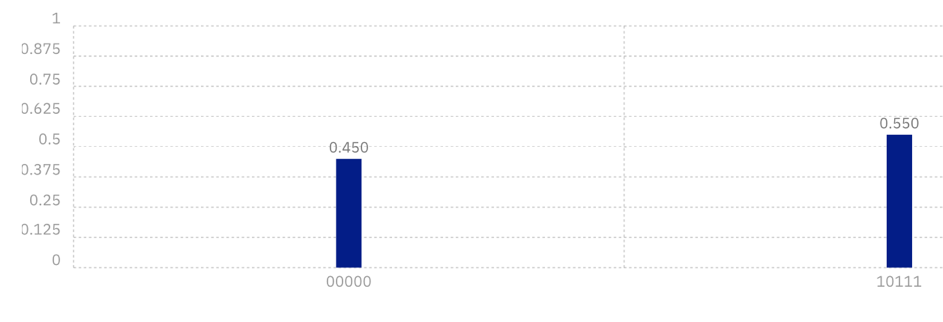

Entangle four Qubits, so there are only two possible answers: 00001 and 10111, as shown below.

Save a whole-desktop image with the filename "Your Name Proj 18c".

Turning in your Project

Send the image to: cnit.141@gmail.com with a subject line of "Proj 18 From Your Name", replacing Your Name with your own first and last name. Send a Cc to yourself.

Sources

IBM Q Beginner's Guire

Posted 1-3-18 by Sam Bowne
