C 810: HQC (Hamming Quasi-Cyclic) Encryption (10 pts extra)

What You Need

A Debian Linux machine. I used Debian 12.

Purpose

To practice using the HQC encryption algorithm,which was just approved by NIST.

Background

On March 11, 2025, NIST selected HQC, as explained here:

NIST Selects HQC as Fifth Algorithm for Post-Quantum Encryption

Here are the main points from that announcement:

NIST has chosen a new algorithm for post-quantum encryption called HQC, which will serve as a backup for ML-KEM (Kyber), the main algorithm for general encryption.
HQC is based on different math than ML-KEM, which could be important if a weakness were discovered in ML-KEM.
NIST plans to issue a draft standard incorporating the HQC algorithm in about a year, with a finalized standard expected in 2027.

While the ML-KEM algorithm is built around a mathematical idea called structured lattices, the HQC algorithm is built around another concept called error-correcting codes, which have been used in information security for decades. HQC is a lengthier algorithm than ML-KEM and therefore demands more computing resources. However its clean and secure operation makes it a worthy backup choice.

Security Levels

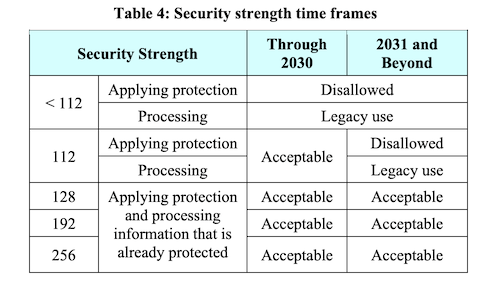

Here are the current encryption security levels specified in NIST Special Publication 800-57 Part 1: Revision 5 -- Recommendation for Key Management.

"Security Strength" refers to the number of bits of security, meaning that a brute force attack would need to search through that many bits to find the key.

Post-Quantum Security Levels

Here are the security levels for post-quantum encryption, from this page:

Level I: At least as hard to break as AES-128 (exhaustive key search)
Level II: At least as hard to break as SHA-256 (collision search)
Level III: At least as hard to break as AES-192 (exhaustive key search)
Level IV: At least as hard to break as SHA-384 (collision search)
Level V: At least as hard to break as AES-256 (exhaustive key search)

HQC Algorithms

Here are the HQC algorithms and their security levels, from Open Quantum Safe: HQC:

Algorithm Claimed NIST Level Public key size (bytes) Secret key size (bytes)

HQC-128 1 2249 2305

HQC-192 3 4522 4586

HQC-256 5 7245 7317

Algorithm	Claimed NIST Level	Public key size (bytes)	Secret key size (bytes)
HQC-128	1	2249	2305
HQC-192	3	4522	4586
HQC-256	5	7245	7317

Configure, Build and Install liboqs from C Source Code

Execute these commands:

sudo apt update sudo apt install cmake git clone --depth=1 https://github.com/open-quantum-safe/liboqs cmake -S liboqs -B liboqs/build -DBUILD_SHARED_LIBS=ON cmake --build liboqs/build --parallel 8 sudo cmake --build liboqs/build --target install

Install and Activate a Python Virtual Environment

Execute these commands:

python3 -m venv hqc source hqc/bin/activate python3 -m ensurepip --upgrade

Configure and Install the Python Wrapper

Execute these commands:

git clone --depth=1 https://github.com/open-quantum-safe/liboqs-python cd liboqs-python pip install . pip install pycryptodome

Generate a Shared Secret

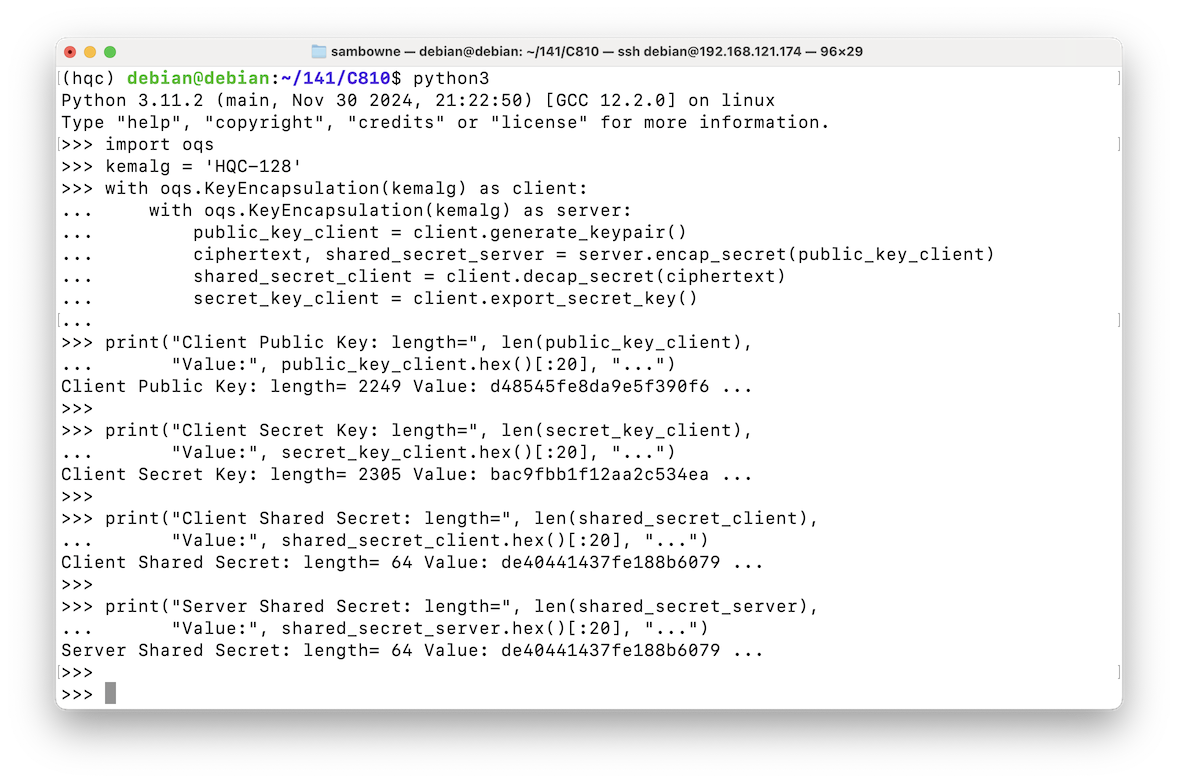

Execute these commands, as shown below:

python3 import oqs kemalg = 'HQC-128' with oqs.KeyEncapsulation(kemalg) as client: with oqs.KeyEncapsulation(kemalg) as server: public_key_client = client.generate_keypair() ciphertext, shared_secret_server = server.encap_secret(public_key_client) shared_secret_client = client.decap_secret(ciphertext) secret_key_client = client.export_secret_key() print("Client Public Key: length=", len(public_key_client), "Value:", public_key_client.hex()[:20], "...") print("Client Secret Key: length=", len(secret_key_client), "Value:", secret_key_client.hex()[:20], "...") print("Client Shared Secret: length=", len(shared_secret_client), "Value:", shared_secret_client.hex()[:20], "...") print("Server Shared Secret: length=", len(shared_secret_server), "Value:", shared_secret_server.hex()[:20], "...")

Notice these things:

The public key is 2249 bytes long
The Secret key is 2305 bytes long
The shared secret is 64 bytes long

Generating an AES Key from the Shared Secret

Execute these commands, as shown below:

import hashlib from Crypto.Cipher import AES aes_key = hashlib.pbkdf2_hmac('sha256', shared_secret_server, b"", 1024, 16) print("AES Key: length=", len(aes_key), aes_key.hex())

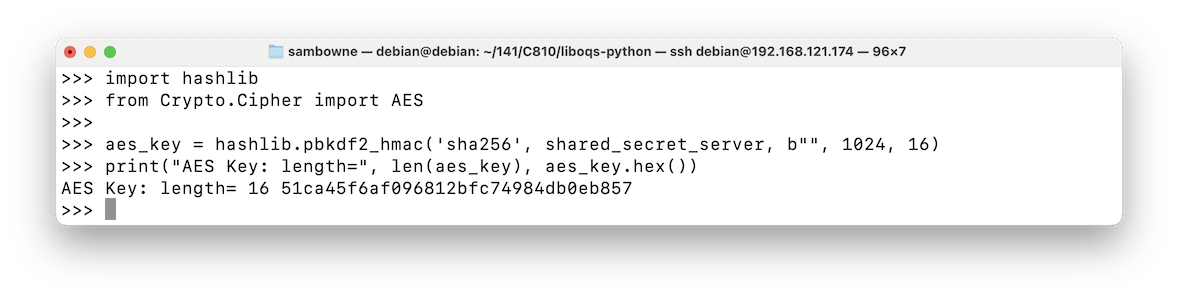

You see a key that is 16 bytes long, as shown below.

Encrypting Text

Execute these commands, as shown below:

cleartext = b'Using Post-Quantum Cryptography!' iv = b"0000111122223333" cipher = AES.new(aes_key, AES.MODE_GCM, nonce=iv) ciphertext = cipher.encrypt(cleartext) print("Ciphertext: ", ciphertext.hex())

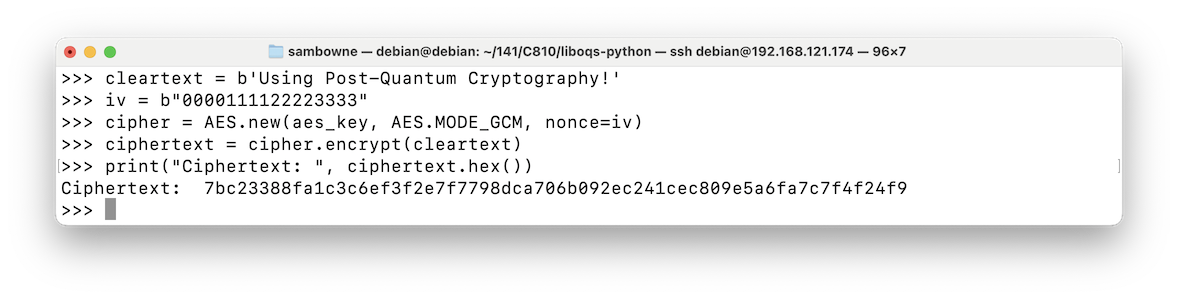

THe ciphetext is random-appearing hex bytes, as shown below.

Decrypting Text

Execute these commands, as shown below:

iv = b"0000111122223333" cipher = AES.new(aes_key, AES.MODE_GCM, nonce=iv) decrtext = cipher.decrypt(ciphertext) print("Decrypted text: ", decrtext)

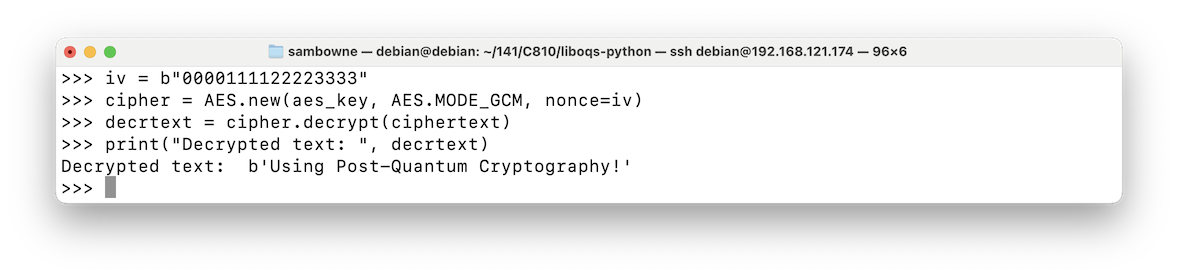

The cleartext message is recovered, as shown below.

C 810.1: Server Details (10 pts)
Execute this command:
print(server.details)

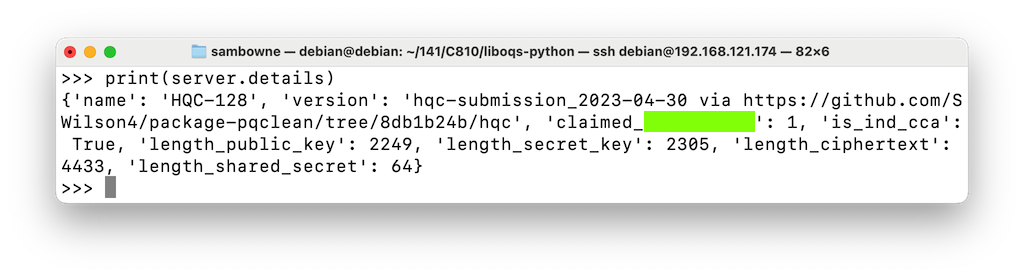

The flag is covered by a green rectangle in the image below.

Sources

liboqs-python: Python 3 bindings for liboqs
Code-Based Post-Quantum Cryptography
NIST: Post-Quantum Cryptography Selected Algorithms
Open Quantum Safe: HQC
NIST Selects HQC as Fifth Algorithm for Post-Quantum Encryption

Posted and video added 4-9-25
