W 700: SonarQube Code Scanner (15 pts)

What You Need

A computer of any type with a Web browser
A Debian server, either locally or in the cloud. I used Debian 11 and Debian 12 and they both worked.

Purpose

To use a code scanner and find coding flaws and vulnerabilities.

Install Docker

In an SSH shell or Terminal window, execute these commands, one at a time. Approve the execution as you are prompted to.

sudo apt update

sudo apt install apt-transport-https ca-certificates \
  gnupg2 software-properties-common curl

curl -fsSL https://download.docker.com/linux/debian/gpg | sudo apt-key add -

sudo add-apt-repository "deb [arch=amd64] https://download.docker.com/linux/debian $(lsb_release -cs) stable"

sudo apt update

sudo apt install docker-ce

sudo systemctl status docker

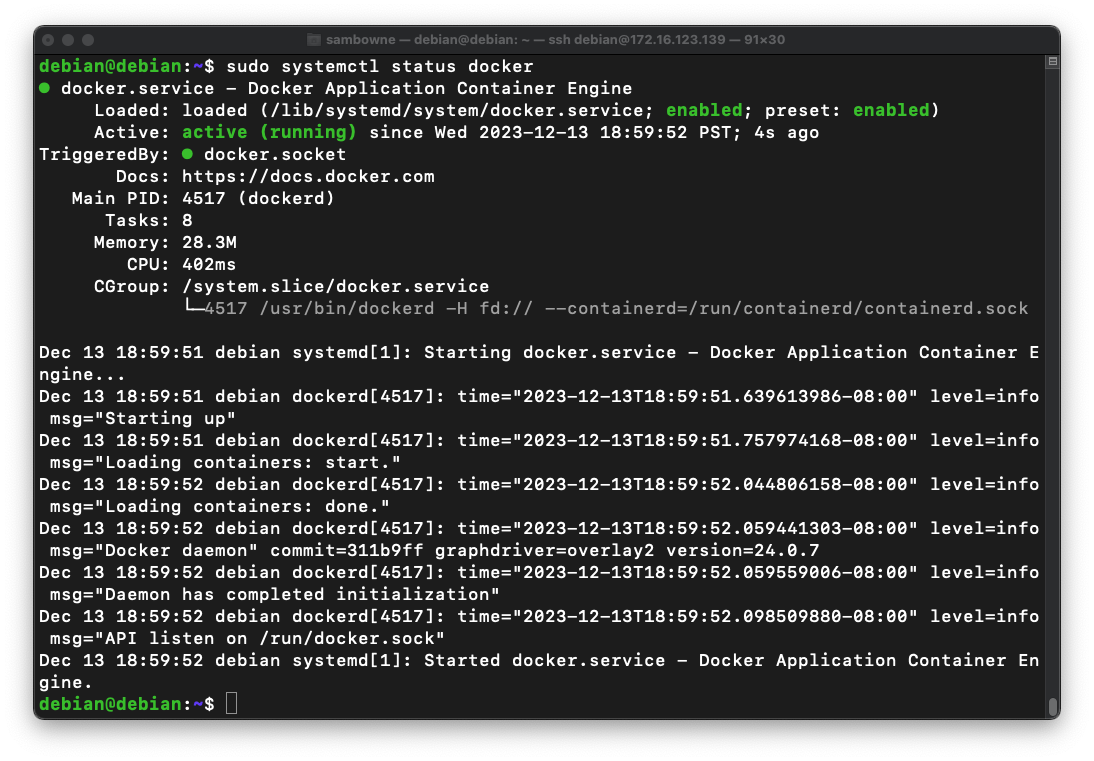

Docker is active, as shown below.

Press Q to exit the status display.

Installing the SonarQube Server

In an SSH shell or Terminal window, execute these commands, one at a time.

sudo docker pull sonarqube:10.4.0-community

sudo docker network create sonar-network

sudo docker run -d --name sonar-db --network sonar-network \
  -e POSTGRES_USER=sonar -e POSTGRES_PASSWORD=sonar \
  -e POSTGRES_DB=sonar postgres:9.6

sudo docker run -d --name sonar -p 9000:9000 --network sonar-network \
  -e SONARQUBE_JDBC_URL=jdbc:postgresql://sonar-db:5432/sonar \
  -e SONAR_JDBC_USERNAME=sonar -e SONAR_JDBC_PASSWORD=sonar sonarqube

sudo ss -pant

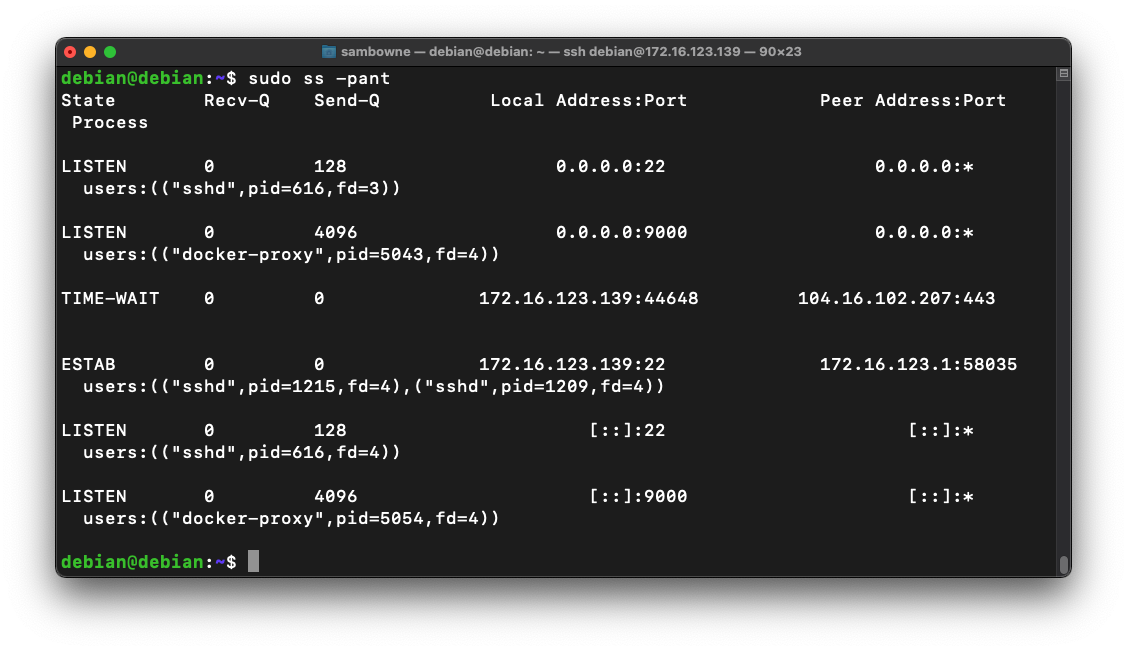

You see "docker-proxy" listening on port 9000, as shown below.

Troubleshooting
If your Linux machine crashes, and you need to recreate the docker containers, first delete the old ones with this process:
Execute this command to view all your containers:
sudo docker ps -a
Then delete them one by one, using the name that appears at the right end of each row, such as "sonar" below:
sudo docker rm sonar

Finding your Linux Server's IP Address

On your Debian machine, in a Terminal or SSH window, execute this command:

ip a

Make a note of your Linux server's IP address. You'll need it later.

Launching the Dashboard

In a Web browser, go to the address of your server on port 9000. When I did it, I used this URL:

http://172.16.123.132:9000

Choose a new password, such as P@ssw0rd

The dashboard appears, as shown below.

Creating a New Project

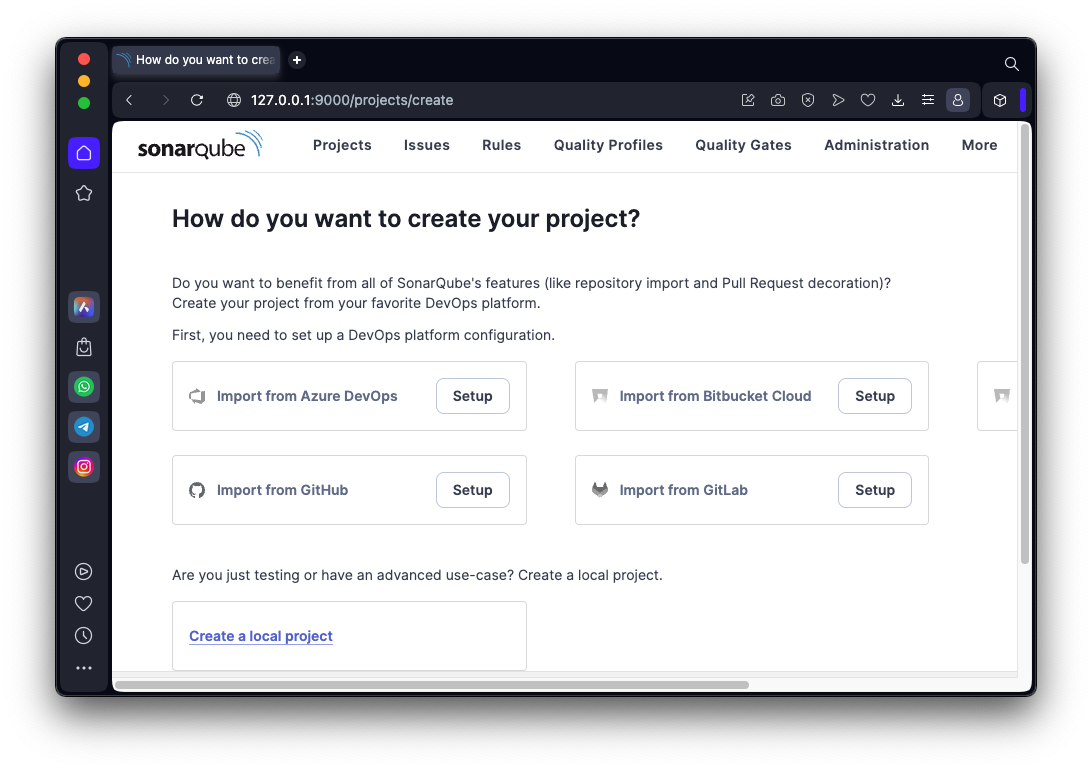

Click "Create a local project".

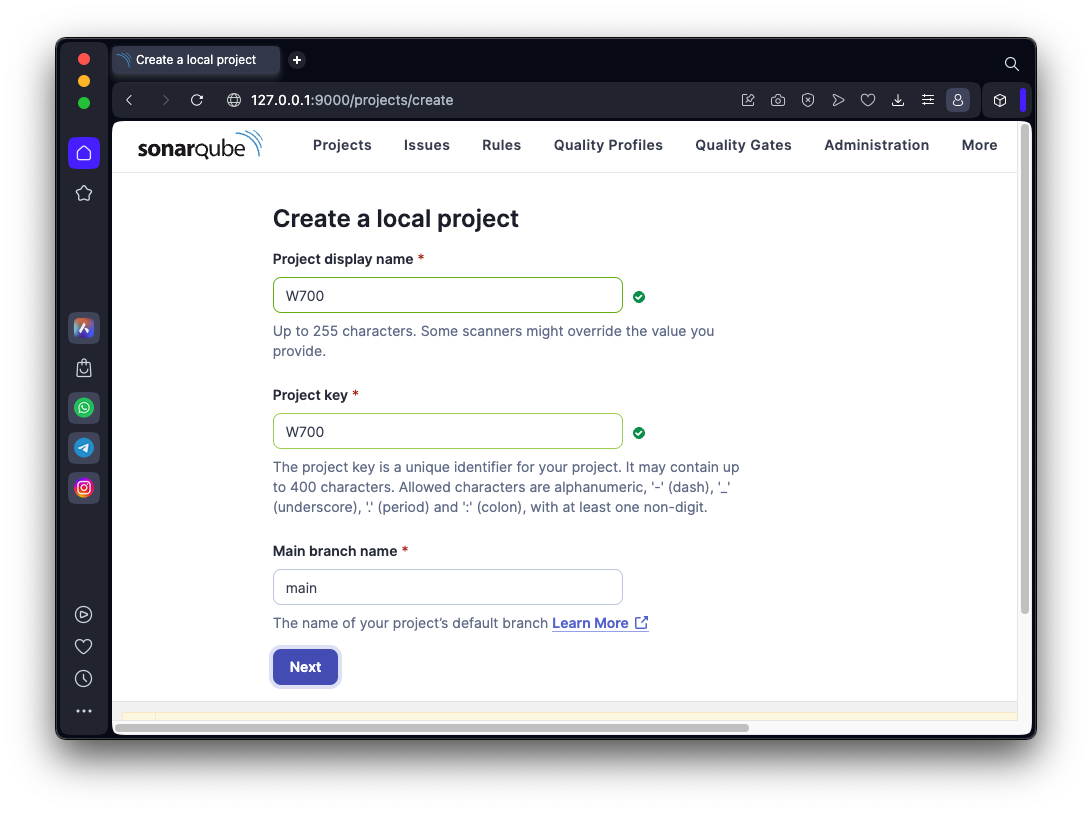

Enter a display name of W700, as shown below.

Click Next.

On the "Set up project for Clean as You Code" page, click the "Use the global setting" button and click the "Create project" button.

On the "Analysis Method" page, click Locally.

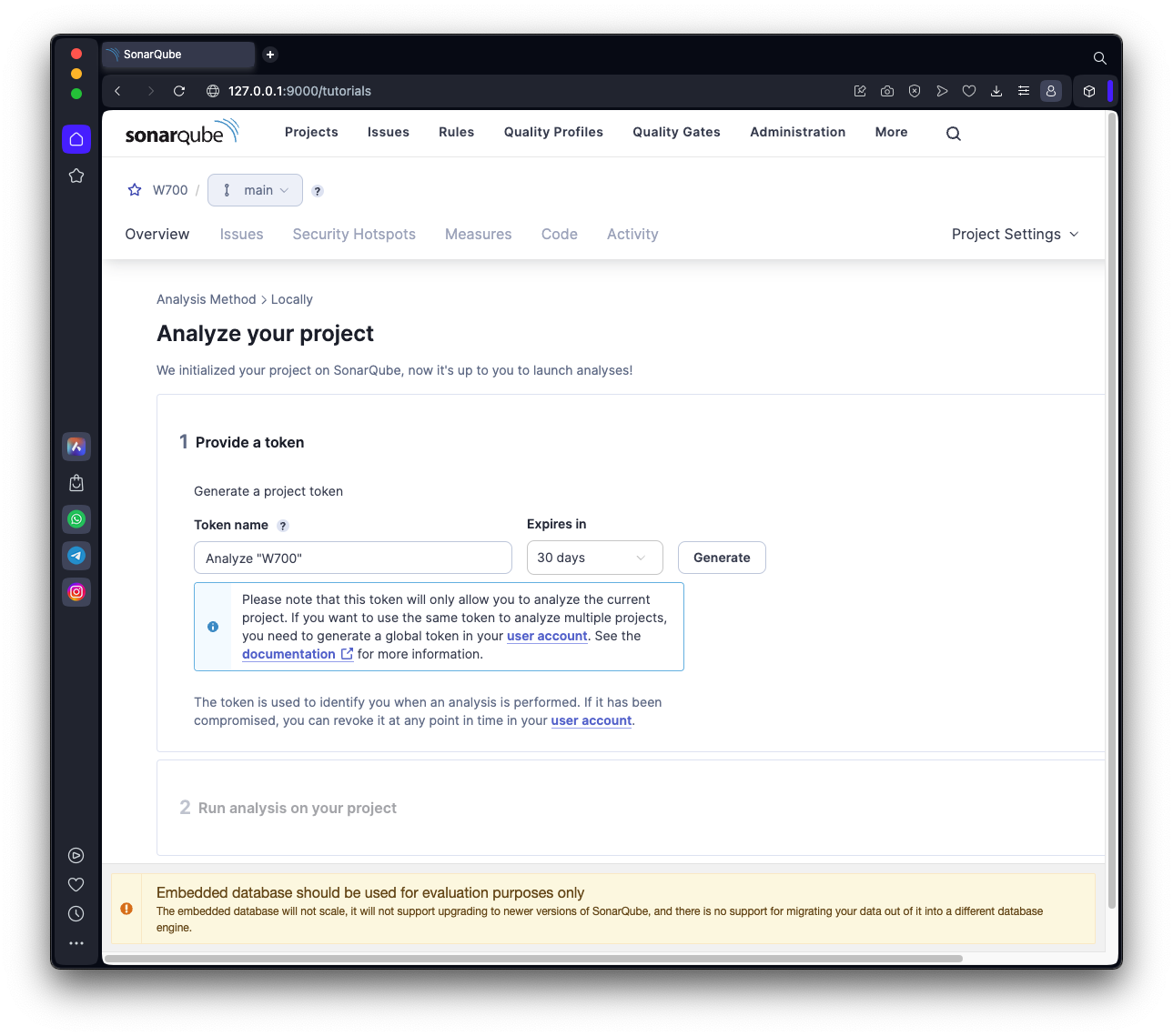

On the "Analyze your project" page, as shown below, click Generate.

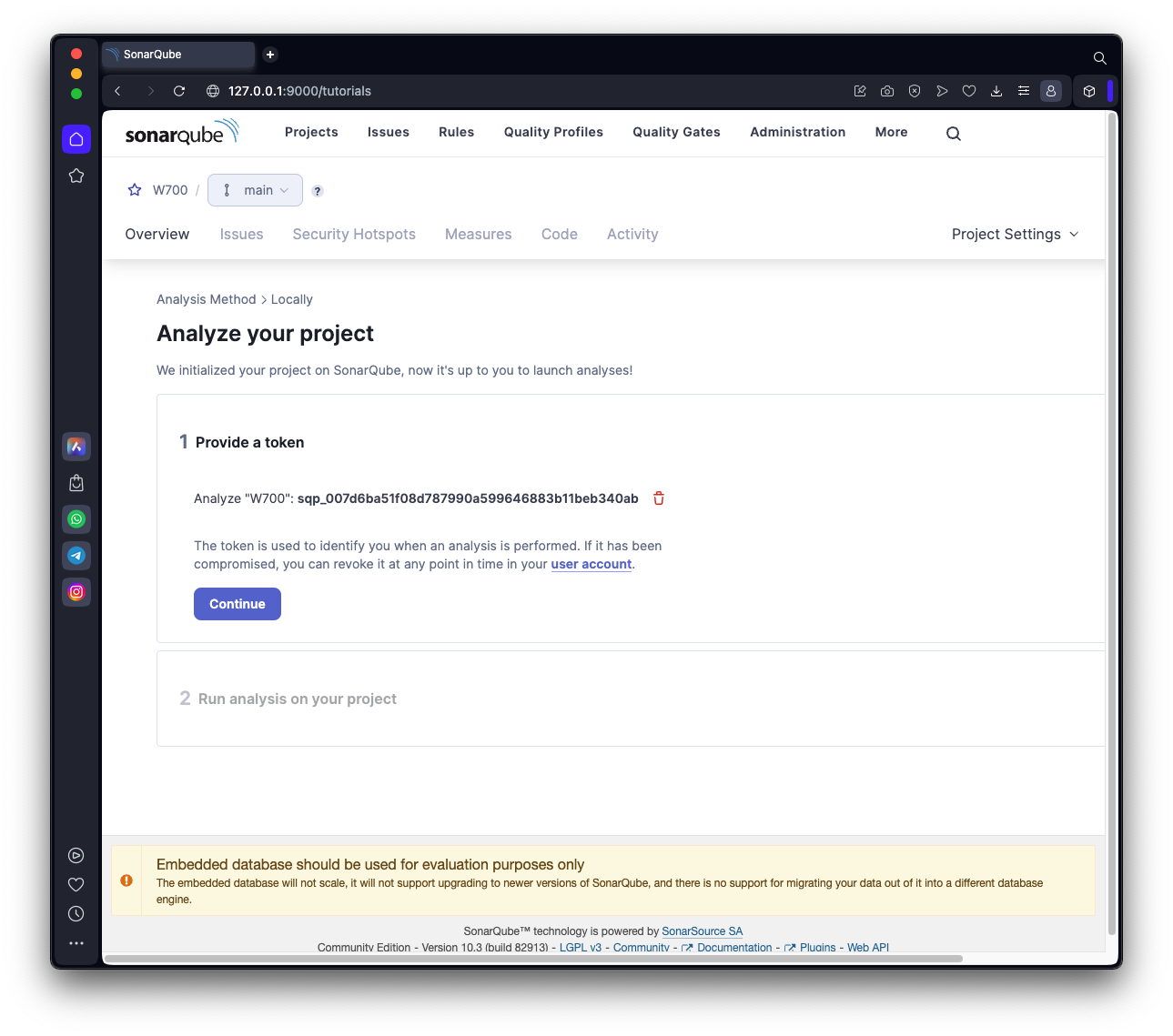

Your token appears, as shown below. Copy it to a text editor so you can use it later.

Click Continue.

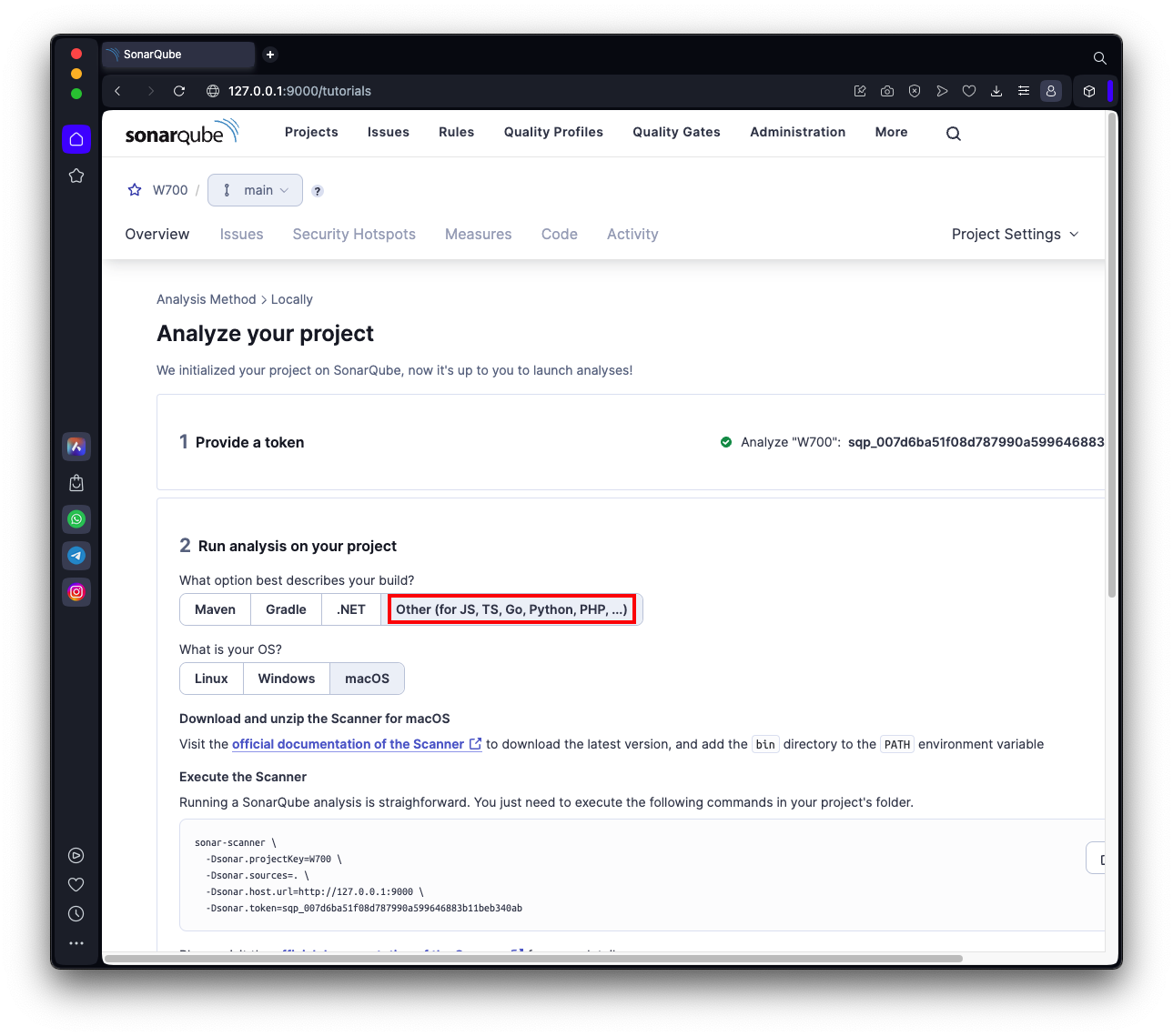

In the "Run analysis on your project" section, click the Other button, outlined in red in the image below.

Select the OS of your local machine (the machine you are opening Web pages on) and follow the instructions that appear to download and install the Scanner, as shown below.

Download and unzip the sonar scanner. On my Mac, I downloaded and unzipped this file:

sonar-scanner-cli-5.0.1.3006-macosx.zip

I moved the sonar-scanner-cli-5.0.1.3006-macosx folder to my home directory and renamed it sonar-scanner.

Make a note of the complete path to the executable sonar-scanner file.

On my system, it was:

/Users/sambowne/sonar-scanner/bin/sonar-scanner

Downloading and Scanning Vulnerable Code

On your host system, in a command prompt, execute these commands making these changes to the second one:

Replace the path to the scanner with the correct path for your system
Replace the IP address with the address of your Debian server
Replace the token at the end with the correct token for your project

git clone https://github.com/OWASP/OWASPWebGoatPHP.git

/Users/sambowne/sonar-scanner/bin/sonar-scanner \
  -Dsonar.projectKey=W700 \
  -Dsonar.sources=OWASPWebGoatPHP \
  -Dsonar.host.url=http://172.16.123.132:9000 \
  -Dsonar.token=sqp_b05100f00211b0b9013ea3527eecaf6ba93c95df

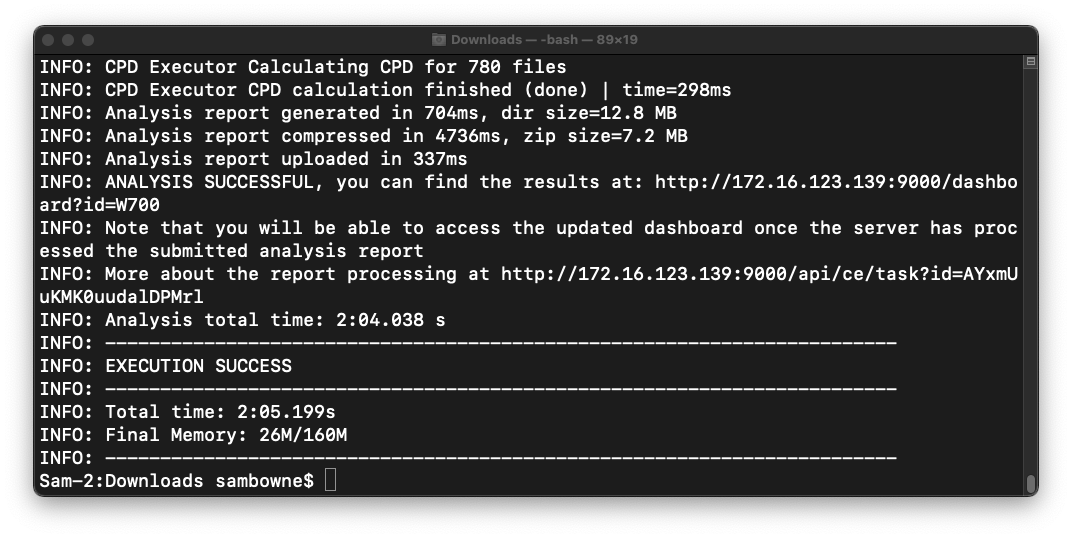

It analyzes over 700 files, as shown below.

Viewing Results

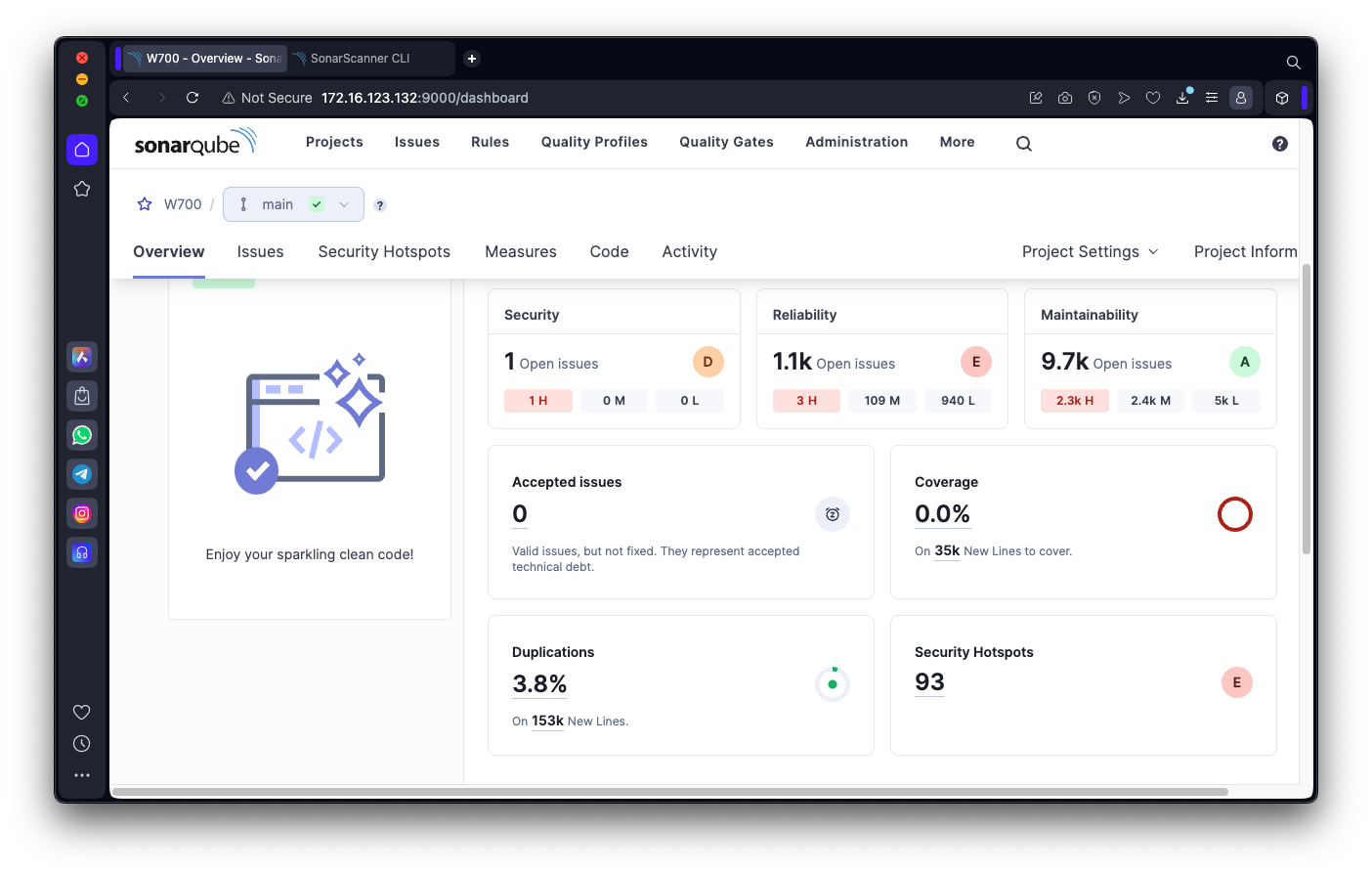

An Overview page opens in the browser, as shown below.

Flag W 700.1: Vulnerability (15 pts)
In the Overview page, in the Security section, click the number 1.
Click the blue text saying "Use secure mode and padding scheme".
Click the "How can I fix it?" tab.

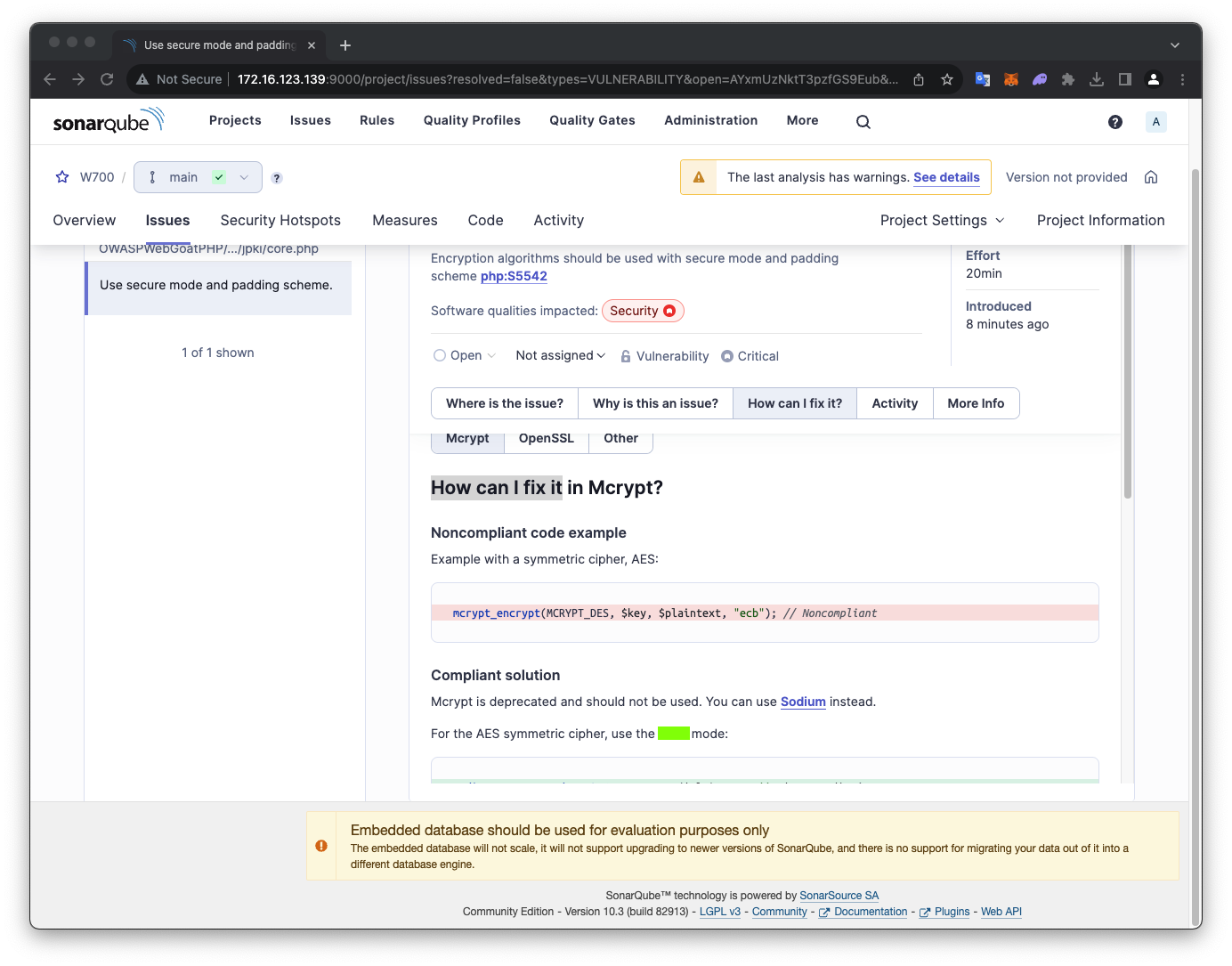

The flag is the word covered by a green rectangle in the image below.

References

How to Setup SonarQube locally on Mac
Setup SonarQube in a Docker Container
Docker CLI Cheat Sheet
Install Sonar using Docker

Posted 12-13-23
Minor updates 2-26-24
Stray ] changed to backslash and missing "sudo apt update" and "docker rm" tip added 7-17-24
