M 304: MobSF Static Analysis (25 pts extra)

What You Need for This Project

Purpose

To practice using Mobile Security Framework (MobSF), an automated, all-in-one mobile application (Android/iOS/Windows) pen-testing, malware analysis and security assessment framework capable of performing static and dynamic analysis.

Finding your Linux Server's IP Address

On Linux, execute this command:
ip a
Make a note of your Linux server's IP address. You'll need it later.

Installing Docker

MobSF runs as a Docker container, which is like a smaller, faster virtual machine.

To run Docker containers, you must first install docker.

On Linux, execute these commands, one at a time. Notice that some of these commands continue onto a second line.

sudo apt update

sudo apt install apt-transport-https ca-certificates curl gnupg git

curl -fsSL https://download.docker.com/linux/debian/gpg \
  | sudo gpg --dearmor -o /usr/share/keyrings/docker.gpg

echo "deb [arch=$(dpkg --print-architecture) signed-by=/usr/share/keyrings/docker.gpg] https://download.docker.com/linux/debian bookworm stable" \
  | sudo tee /etc/apt/sources.list.d/docker.list > /dev/null

sudo apt update

sudo apt install docker-ce docker-ce-cli containerd.io docker-buildx-plugin

sudo systemctl is-active docker

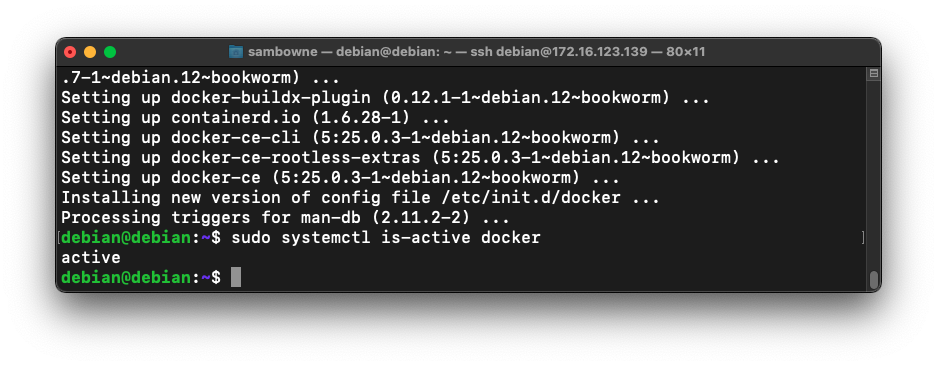

Docker is active, as shown below.

Installing MobSF

On Linux, in a Terminal, execute these commands, one at a time.

The pull command downloads a lot of data, and may take a long time if your network is slow.

sudo docker pull opensecurity/mobile-security-framework-mobsf:latest

sudo docker run -it --rm -p 8000:8000 opensecurity/mobile-security-framework-mobsf:latest

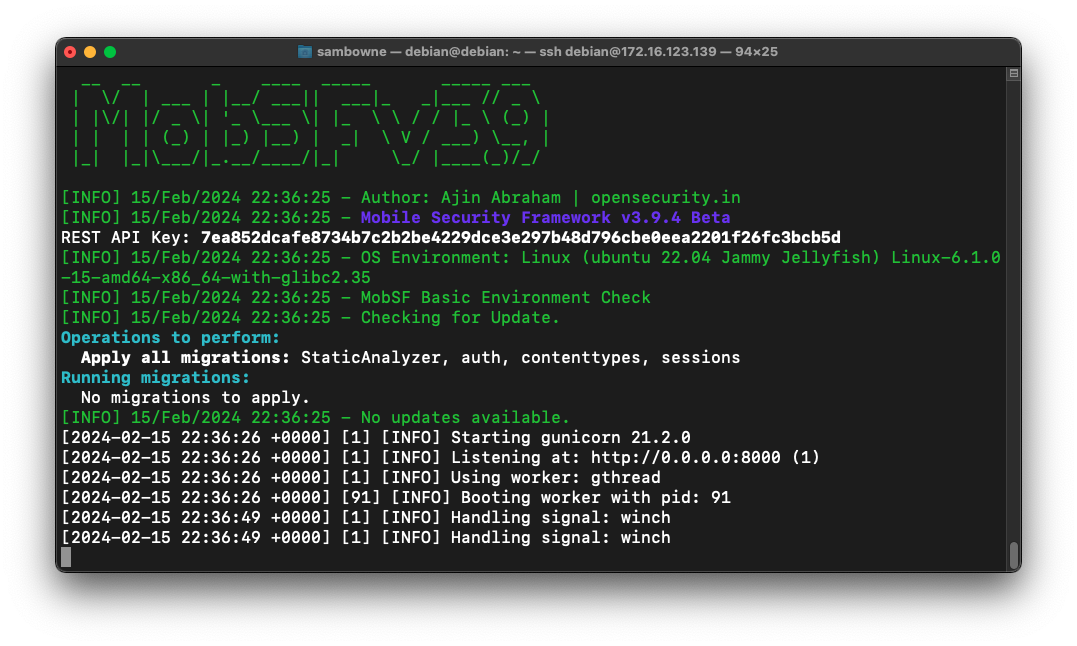

MobSF starts listening on port 8000, as shown below.

Viewing the MobSF Web Page

In a Web browser, open this URL, replacing the IP address with the correct IP address of your Linux server:
http://172.16.123.139:8000
You see the MobSF Web page.

Log in with a username and password of mobsf

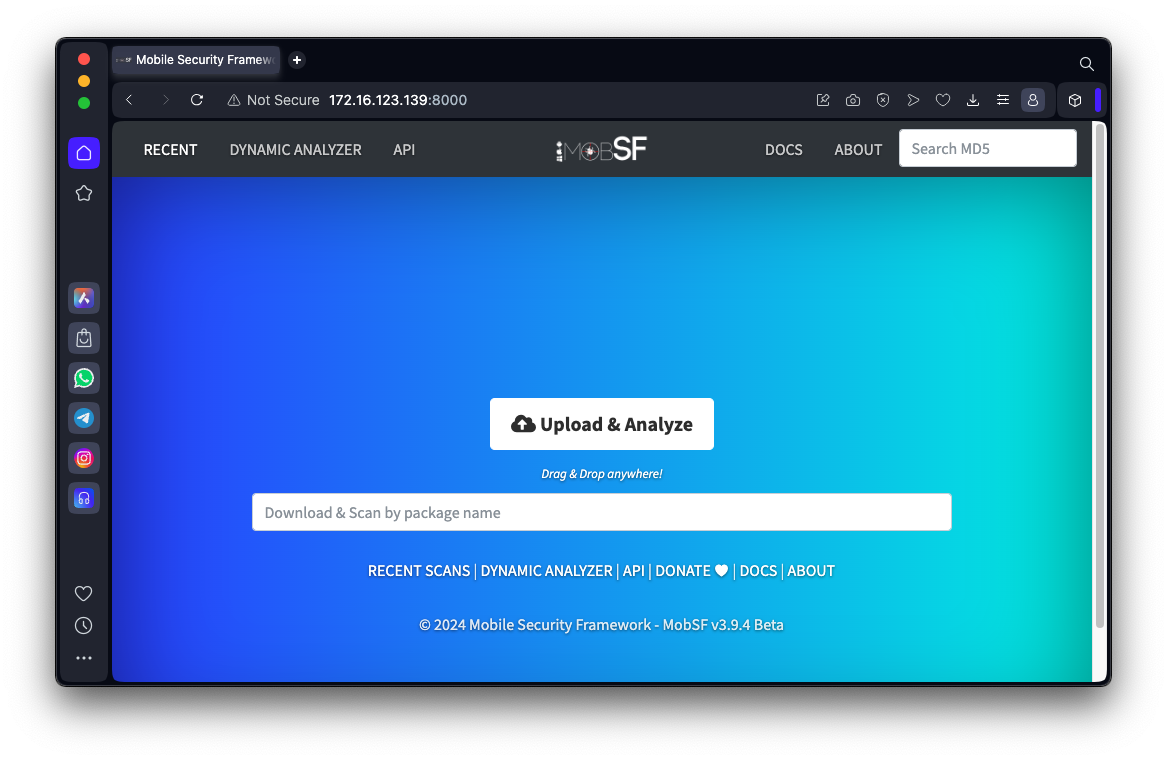

You see the "Upload & Analyze" page, as shown below.

Analyzing a Vulnerable App

Download this APK file:
genie.apk
Drag and drop the genie.apk file onto the MobSF Web page.

Wait while the MobSF analyzes the app.

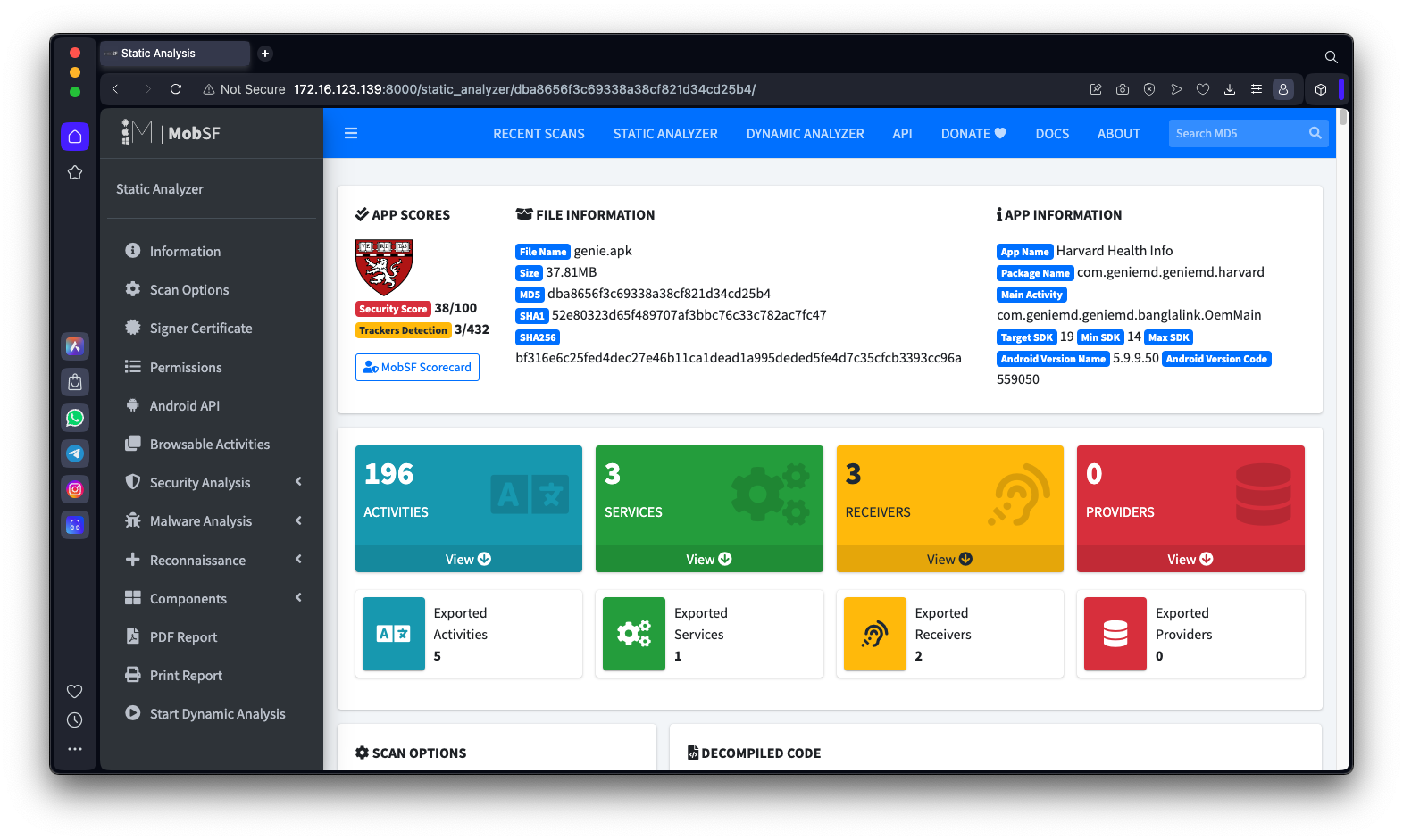

When it finishes, you see a pretty display of the results, as shown below.

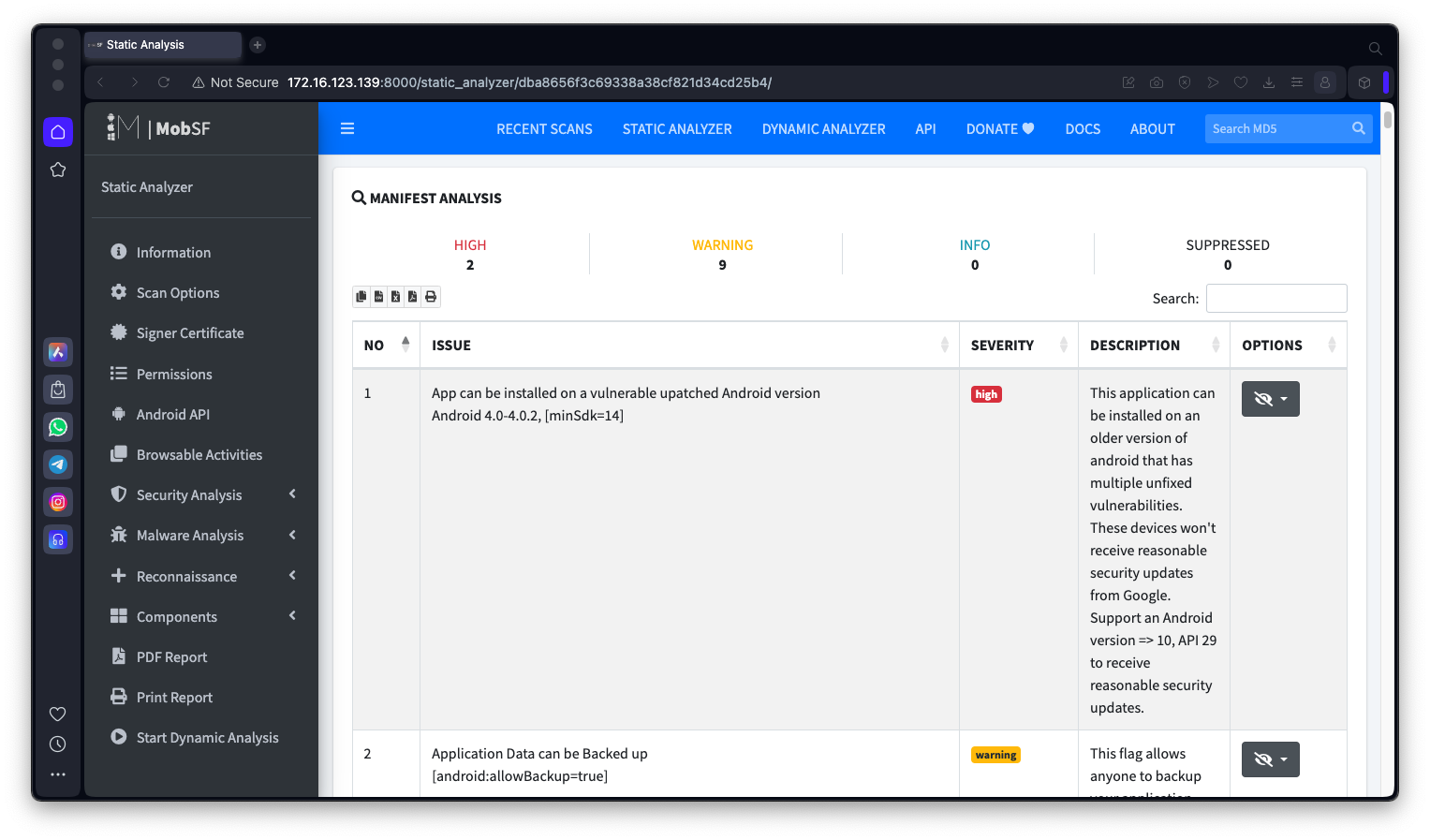

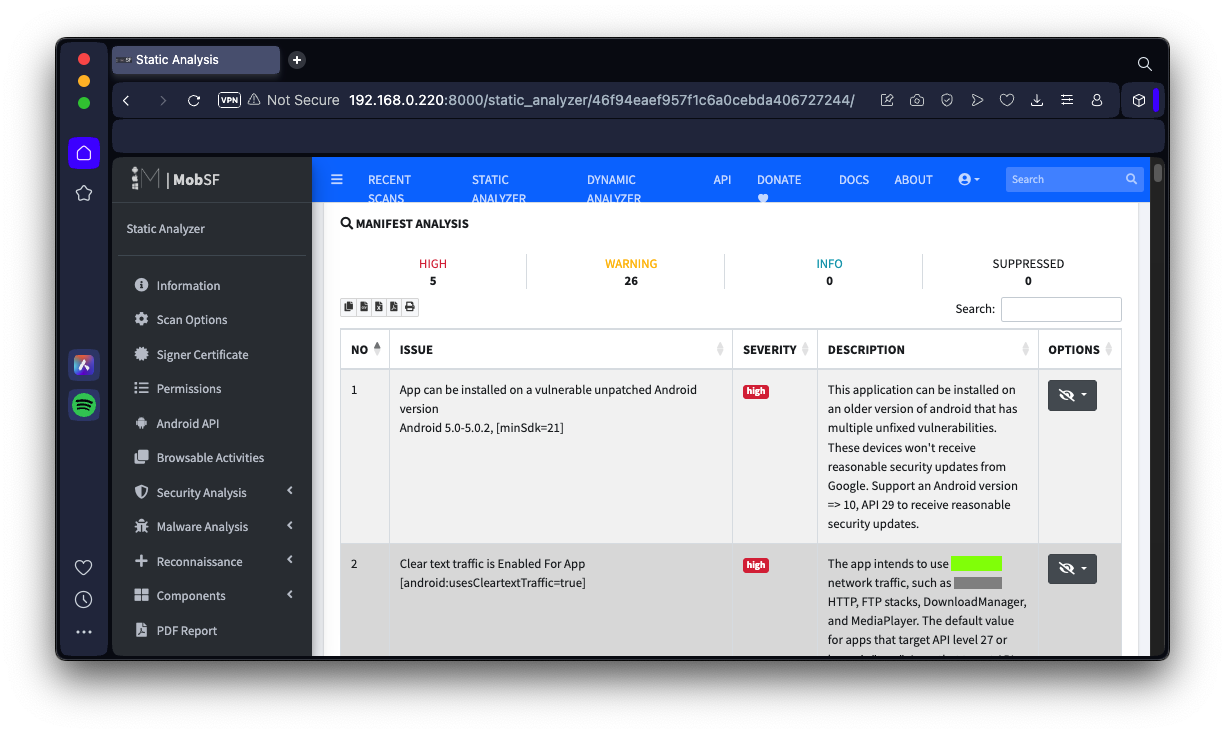

Scroll down to the MANIFEST ANALYSIS section as shown below.

M 304.1: Hijacking Vulnerability (10 pts)

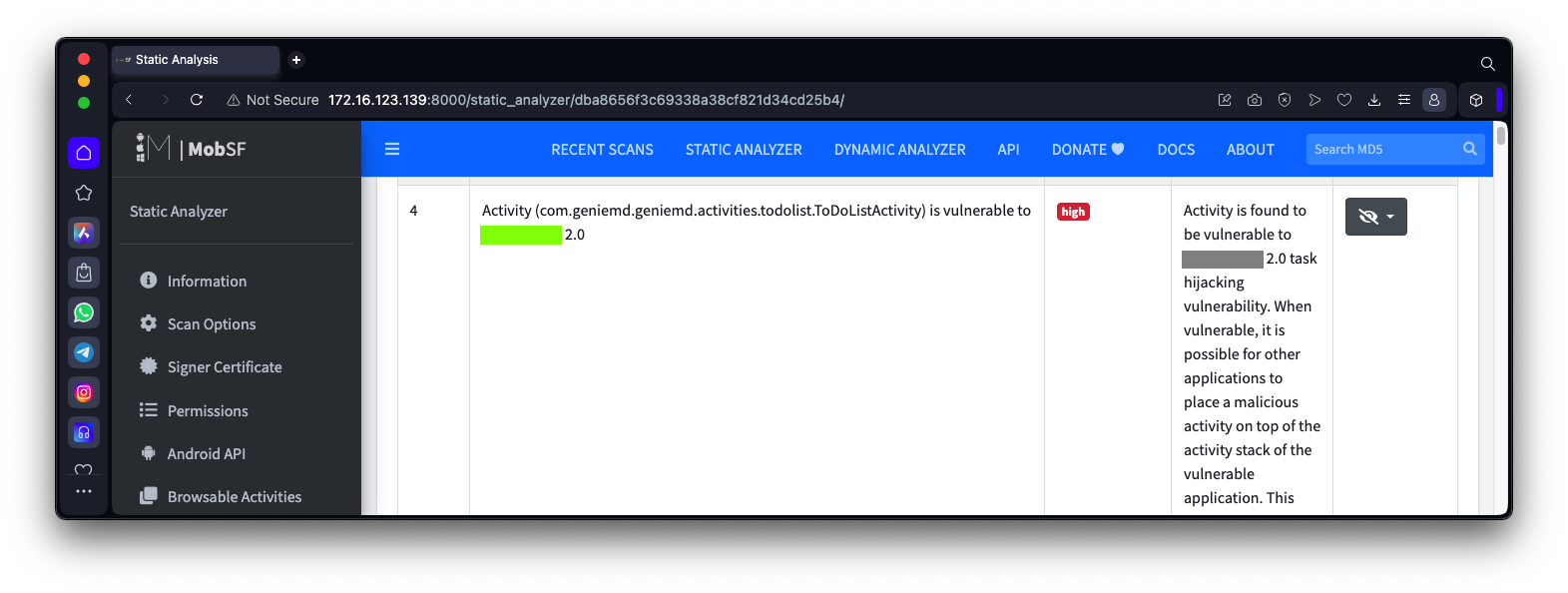

In the the MANIFEST ANALYSIS section, find the text covered by a green box in the image below. That's the flag.

M 304.2: NETWORK SECURITY (5 pts)

Analyze this app, which the Chinese government uses to scan phones of citizens:
National_Anti_Fraud_Center.apk
The app is larger than the "genie" app, so the analysis will take longer.

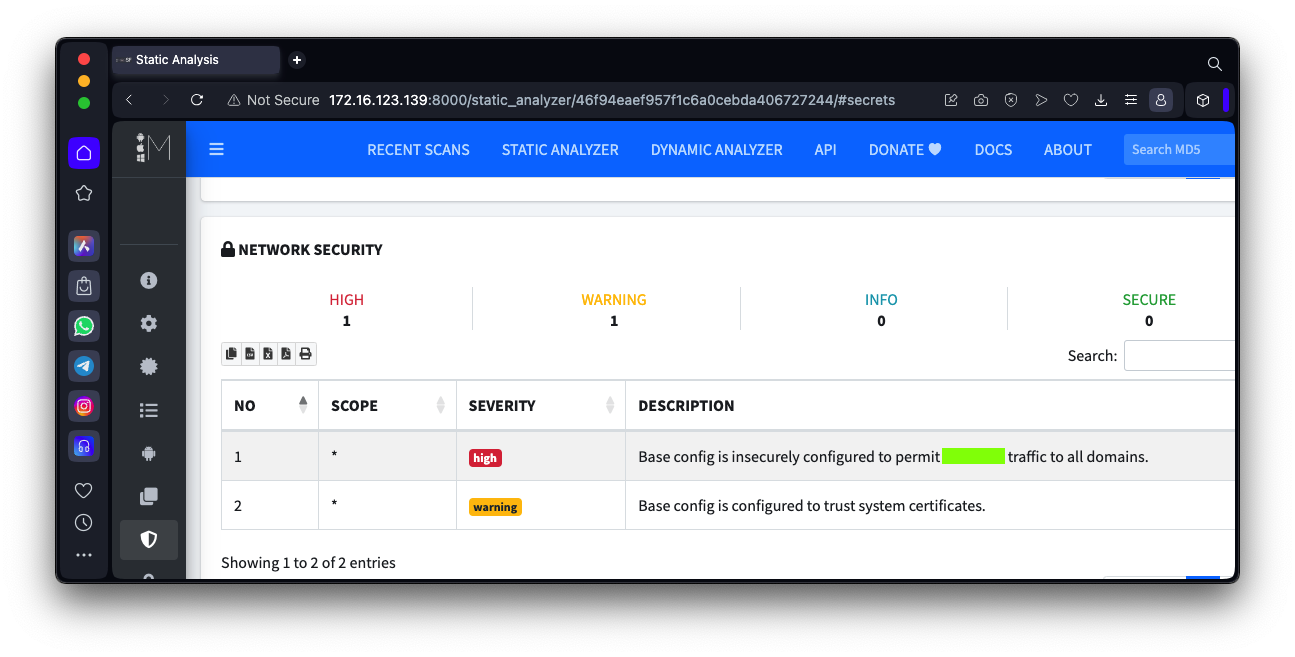

In the the NETWORK SECURITY section, find the text covered by a green box in the image below. That's the flag.

M 304.3: ABUSED PERMISSIONS (5 pts)

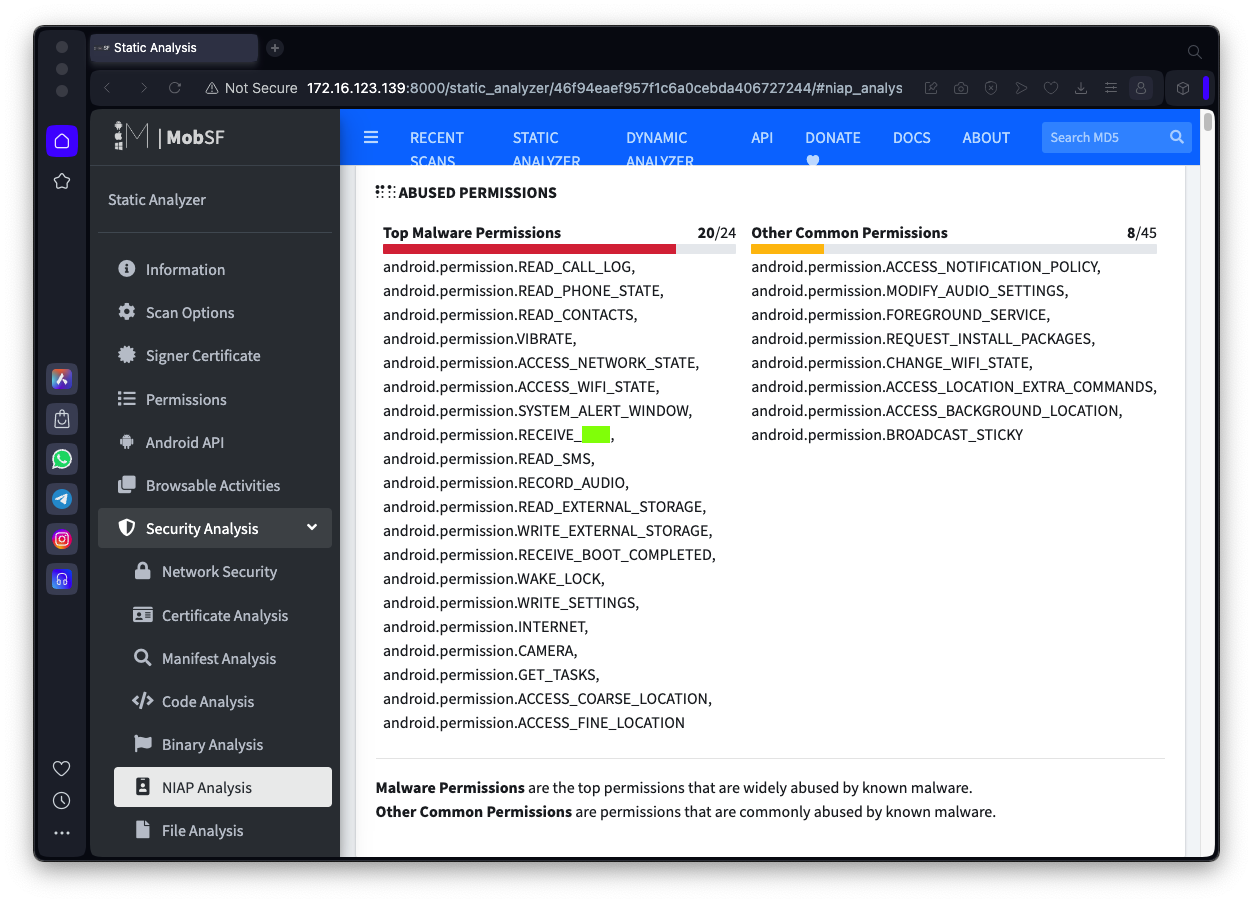

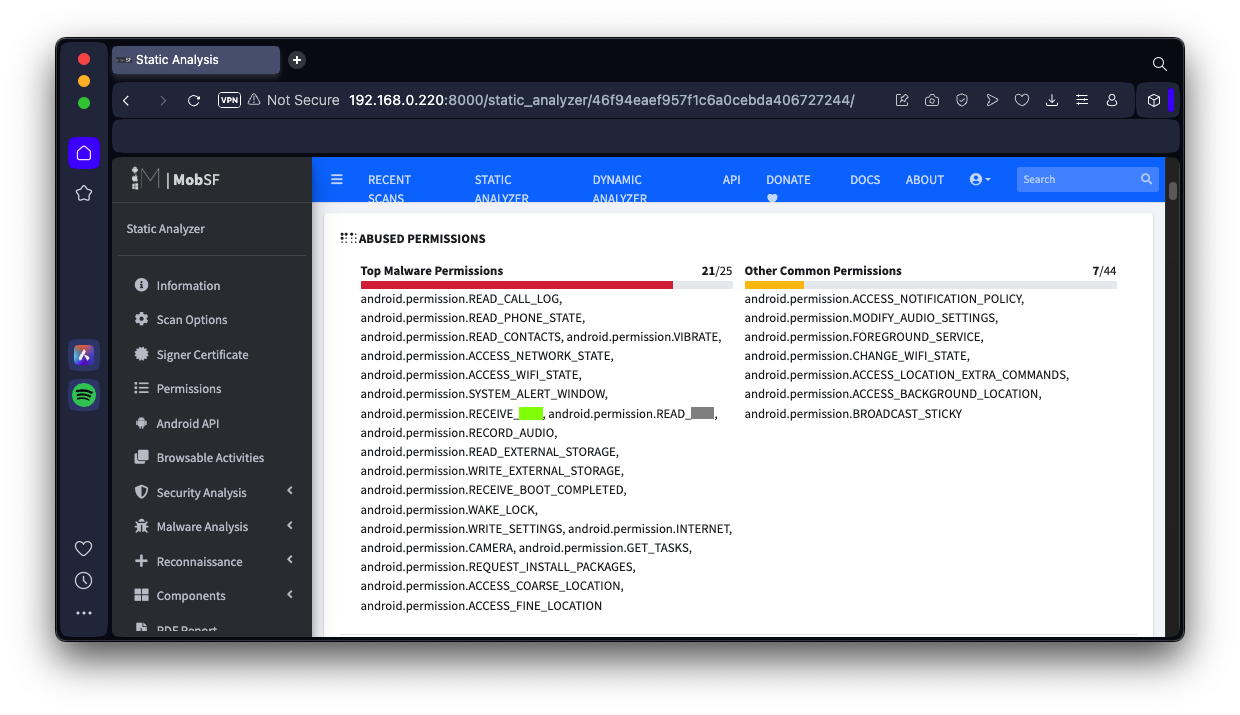

For the National_Anti_Fraud_Center.apk, examine the ABUSED PERMISSIONS, which appear below the "NIAP Analysis" section.

Find the text covered by a green box in the image below. That's the flag.

M 304.4: Registration Code (5 pts)

Analyze this app:
https://www.bowneconsultingcontent.com/pub/Attack/proj/A31.2.apk

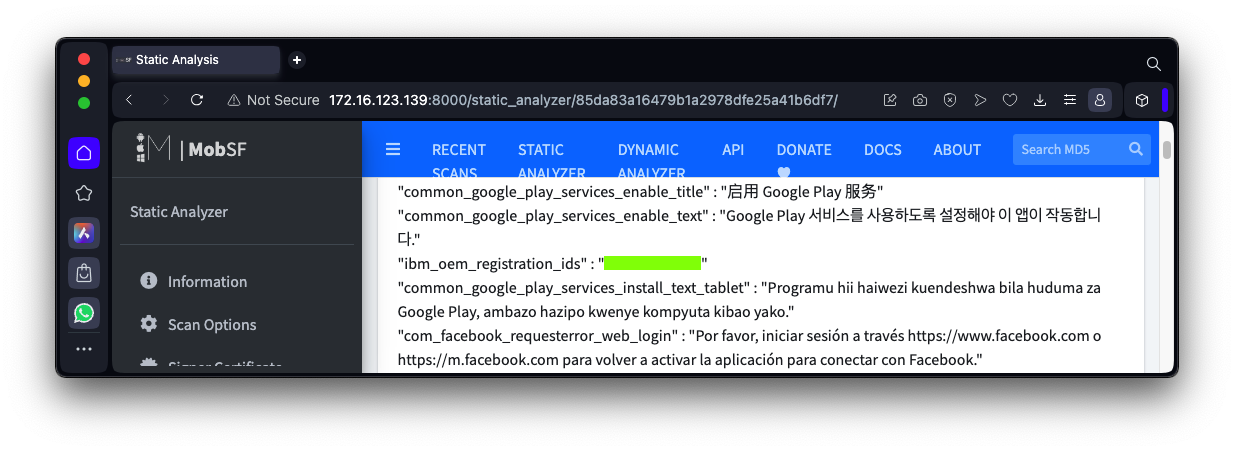

At the bottom of the page, in the Strings section, find the registration code, covered by a green box in the image below. That's the flag.

References

Mobile Security Framework (MobSF)
MobSF Documentation
Dynamic Analysis Not Supported in Docker

Posted 2-15-24
Login section added 6-10-25
