M 103: Burp (20 pts)

What You Need for This Project

Purpose

To get Genymotion and Burp working, so you can perform man-in-the-middle traffic interception, to detect SSL certificate validation errors.

Installing Burp

Burp is a very popular proxy, enabling you to view and alter network traffic.

In a Web browser, go to https://portswigger.net/burp

In the "Community Edition" column, click Download", as shown below.

Install the software with the default options.

Ubuntu Users

If you are using Ubuntu, execute these commands:
cd
cd Downloads
ls -l
You should see the name of the downloaded file, which should be something like burpsuite_free_v1.6.01.jar. Use that name in the commands below:
cd
cd Downloads
sudo mkdir /opt/burp
sudo mv burpsuite_free_v1.6.01.jar /opt/burp
cd /opt/burp
sudo touch burp
sudo chmod 777 burp
sudo echo "java -jar burpsuite_free_v1.6.01.jar" > burp
./burp

Warning

If you run Burp in Kali, it seems not to properly export the certificate and Chrome on Android refuses to accept it. It can be imported but Chrome gives an error when opening secure pages anyway.

We succeeded by running Burp directly on the host system instead (Mac OS).

Starting Burp

When Burp starts, the first window asks you to create a project. Accept the default option of "Temporary project" and click Next.

In the next page, click the Start Burp button.

The main Burp window opens, as shown below.

Click the Proxy tab. Click the Intercept sub-tab.

The third button says "Intercept is on", as shown below.

Configuring Burp

In Burp, click the "Intercept is on" button. It changes to "Intercept is off".

On the Proxy tab, click the Options sub-tab.

In the central box, click the Interface address to highlight it, as shown below.

On the left side, click the Edit button.

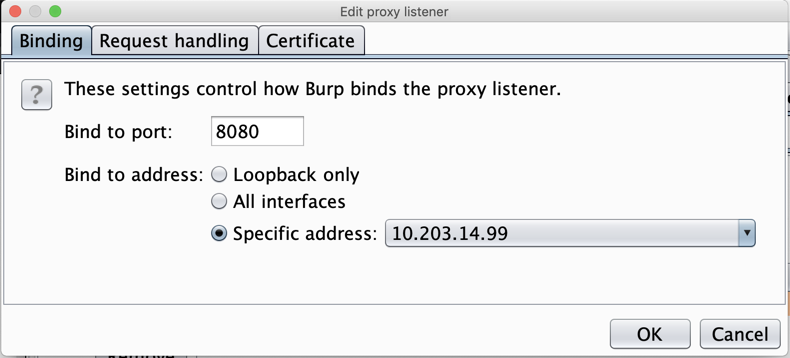

In the "Edit proxy listener" box, click the "Specific address" button, and select your computer's IP address that is used to connect to the Internet, as shown below.

Click OK.

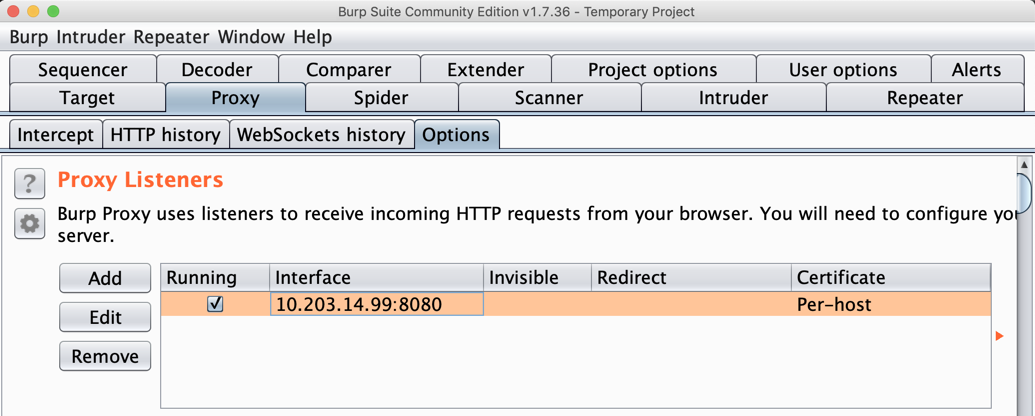

Burp shows a proxy listener on your IP address and port 8080, as shown below.

Make a note of this address--you will need it below.

Adjusting Android Networking to Use the Burp Proxy

Launch your Genymotion Android device.

From the Android home screen, click and drag up to show all apps.

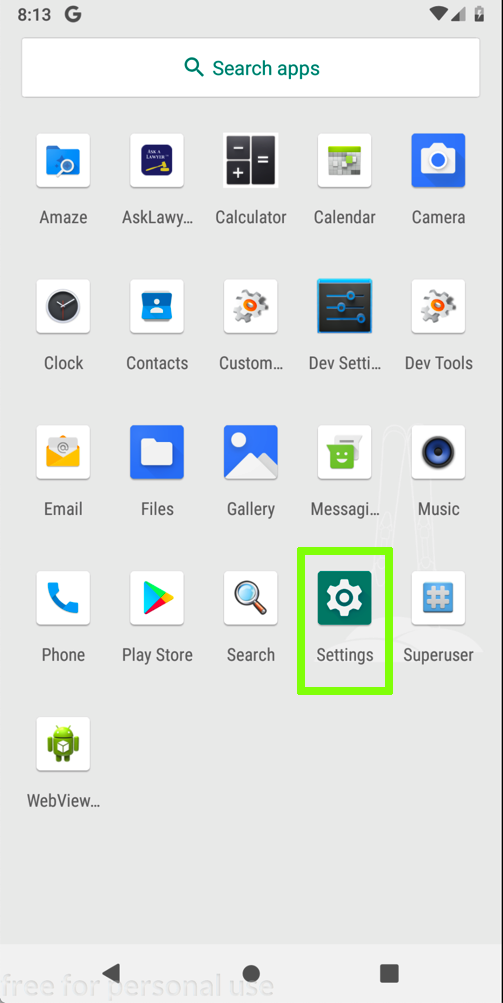

Click Settings, which is outlined in green in the image below.

In Settings, click "Network & internet".

Click Wi-Fi.

Click AndroidWiFi.

Click Advanced.

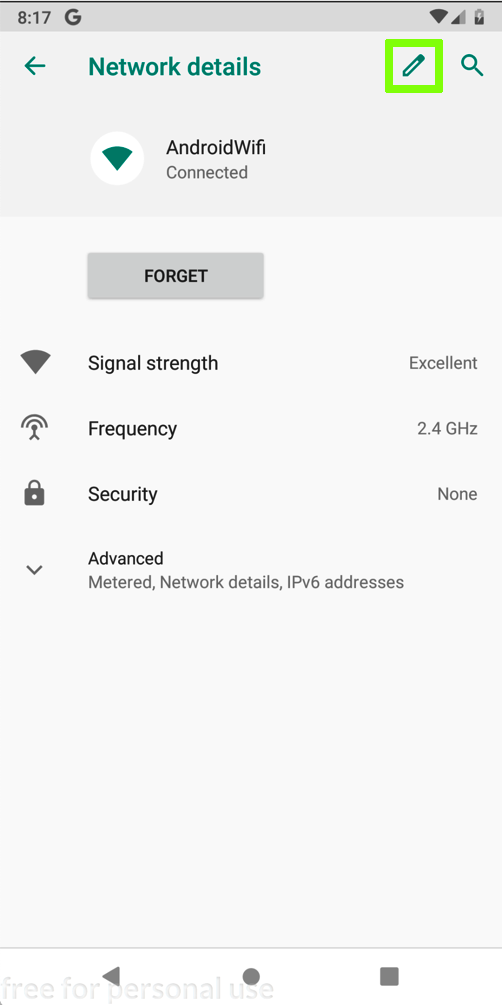

In the "Network details" screen, at the top right, click the Pencil icon, outlined in green in the image below.

In the "AndroidWifi" box, in the "Advanced options" row, click the down-arrow.

In the "Proxy" field, click the down-arrow.

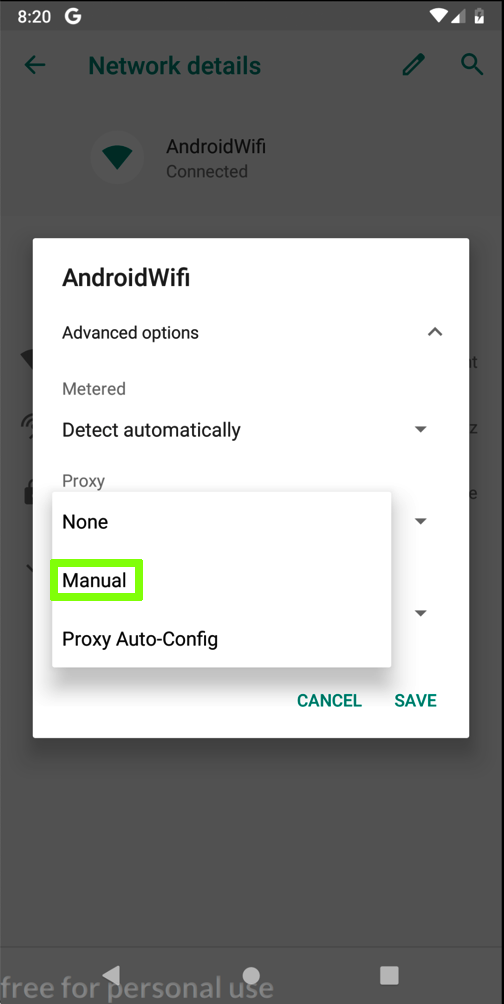

Click Manual, which is outlined in green in the image below.

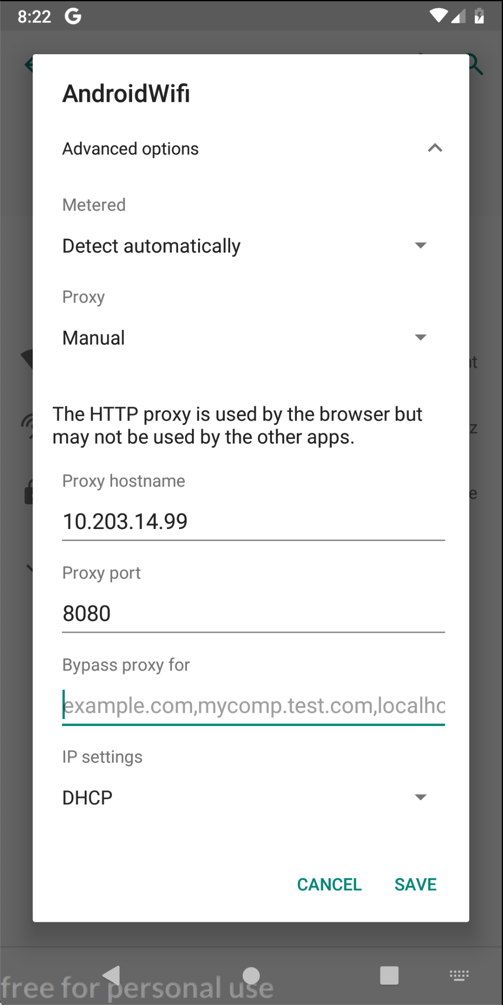

Enter the IP address and port number of the Burp proxy listener, as shown below.

On your Android device, click SAVE.

At the bottom center of the device, click the round Home button.

Testing the Proxy

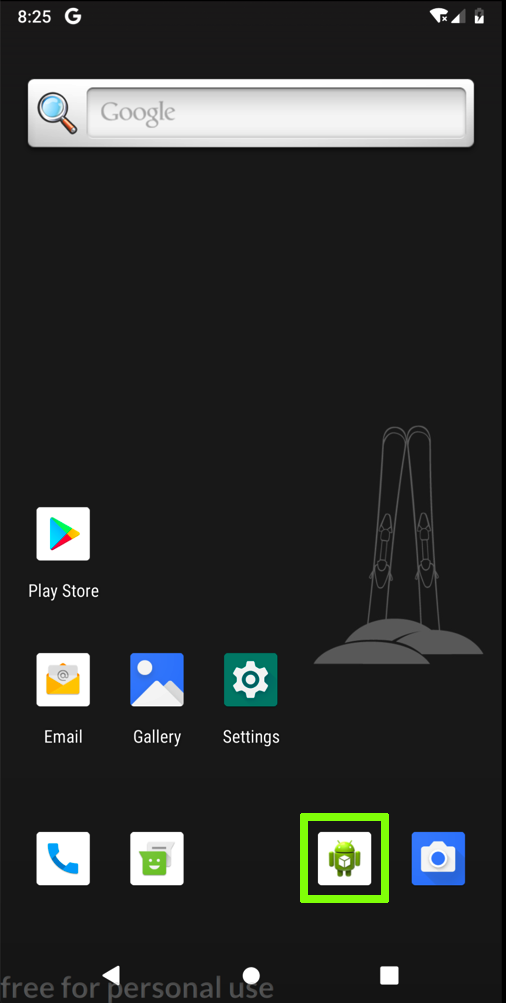

From the Android home page, on the lower right, click the Browser, outlined in green in the image below.

In the Browser, and go to

hackazon.samsclass.info

A "Hackazon" shopping site opens, as shown below.

Viewing Traffic in Burp

In Burp, on the Proxy tab, click the "HTTP history" sub-tab.

Scroll down and find traffic to hackazon.samsclass.info as shown below.


M 103a: Filename (10 pts)

Find the text covered by a green box in the image above. That's the flag.


Opening a Secure Page

In the Android device, in the Browser, and go to

https://samsclass.info The browser does nothing, as shown below. It's a lousy browser, which is why we installed Chrome.

Opening a Secure Page in Chrome

At the bottom center of the device, click the Home button. Open Chrome.

When you see the "Sign in to Chrome" page, click "NO THANKS".

In Chrome, go to

https://samsclass.info

A warning message appears, saying "Your connection is not private", as shown below. Notice the specific error shown: NET:ERR_CERT_AUTHORITY_INVALID. This happens because Burp is performing a man-in-the-middle attack with a self-signed certificate.

Setting a PIN

Android won't let us import a certificate until the device has a PIN configured, so we'll do that first.

At the bottom center of the device, click the Home button. Open Settings.

Scroll down and click "Security & location", as shown below.

In the "Security & location" screen, click "Screen lock", as shown below.

In the "Choose screen lock" screen, click PIN.

Enter a simple PIN you can remember, such as 1234, twice. Click DONE.

Exporting the PortSwigger CA Certificate from Burp

This is HTTPS working as it should, warning you that you do not have a secure connection to the end site. Burp is intercepting the traffic.

We want to add PortSwigger as a trusted certificate authority to get rid of these messages.

In Burp, click the Proxy tab.

Click the Options sub-tab.

Click the "Import /export CA certificate..." button.

In the "CA Certificate" box, in the Export setion, click the "Certificate in DER format" button, as shown below.

Click Next.

On the next page, click the "Select file..." button. Navigate to a folder you can find, such as your Desktop.

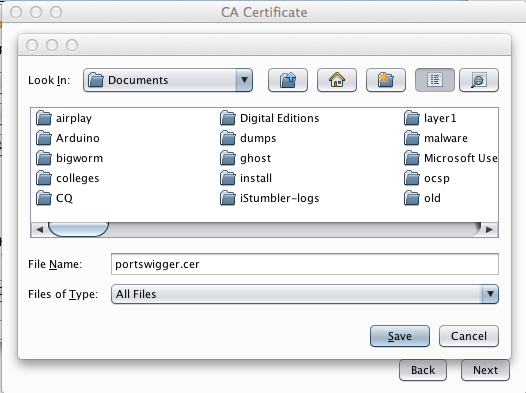

Give the file a name of portswigger.cer, as shown below.

Click Save.

Click Next. Click Close.

Installing the PortSwigger CA Certificate into Android

Drag the portswigger.cer file from your host system and drop it on the Android home page.

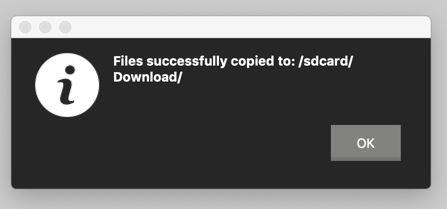

A message appears, saying "Files successfully copied to sdcard/Download", as shown below.

Click OK.

On your Android device, in Settings,

Importing the Portswigger Certificate

On your Android device, in the "Security & location" screen, click Advanced, as shown below.

Click "Encryption & credentials".

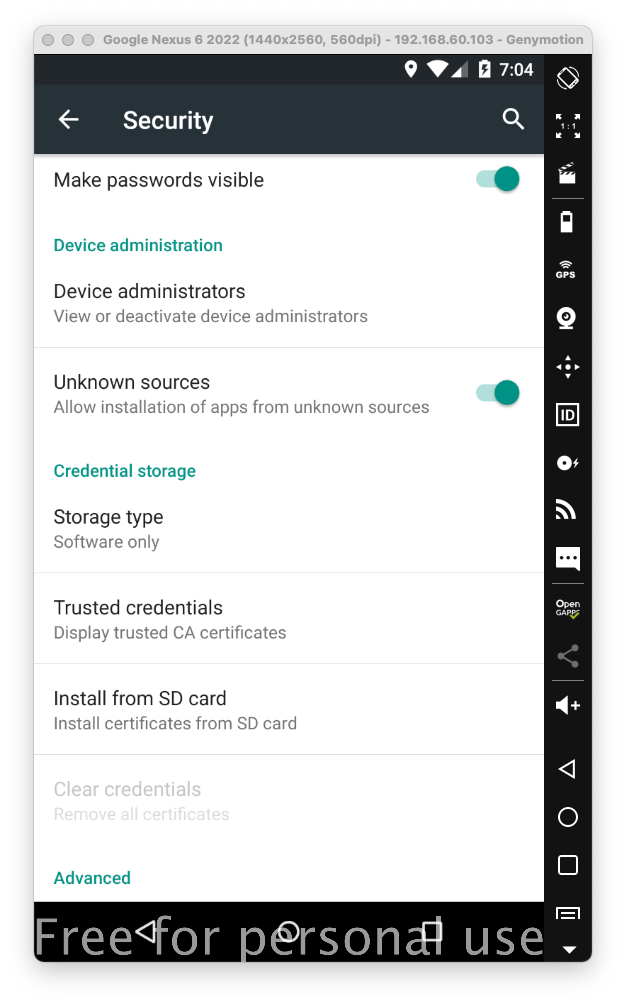

Click "Install from SD card", as shown below.

In the next screen, at the top left, click the three-bar icon. Click Downloads.

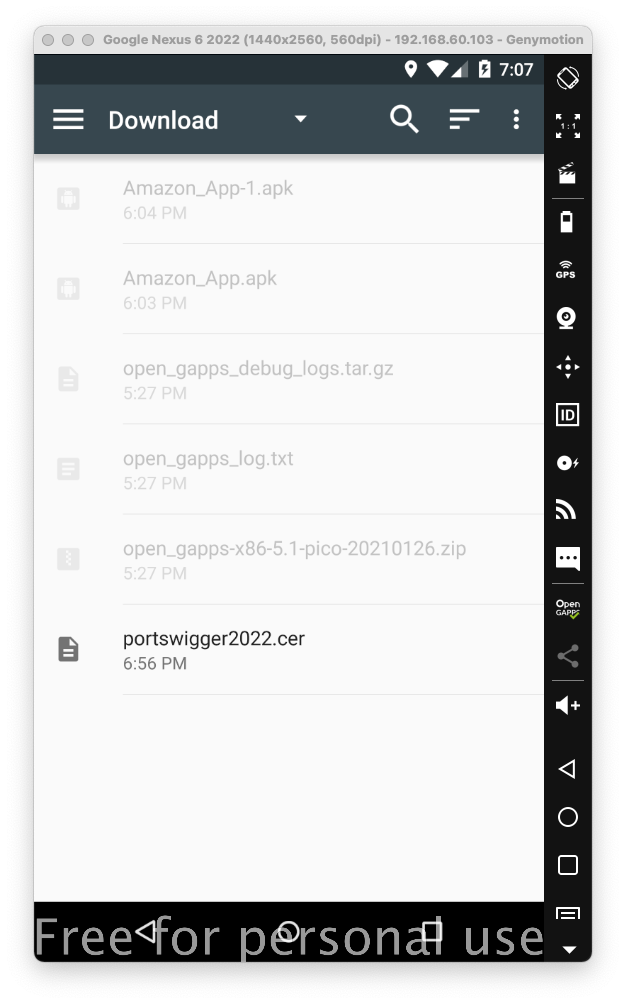

In the Downloads window, click portswigger.cer, as shown below.

Enter your PIN.

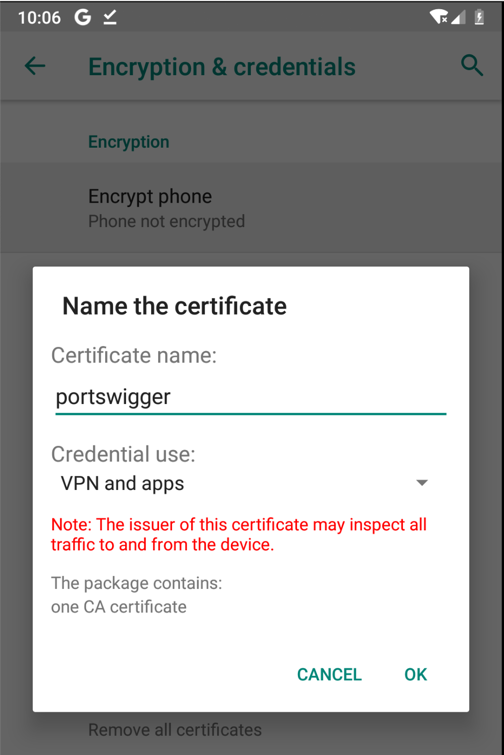

Enter a name of portswigger, as shown below, and click OK.

Opening a Secure Page Again

In Android, launch Chrome. Go to

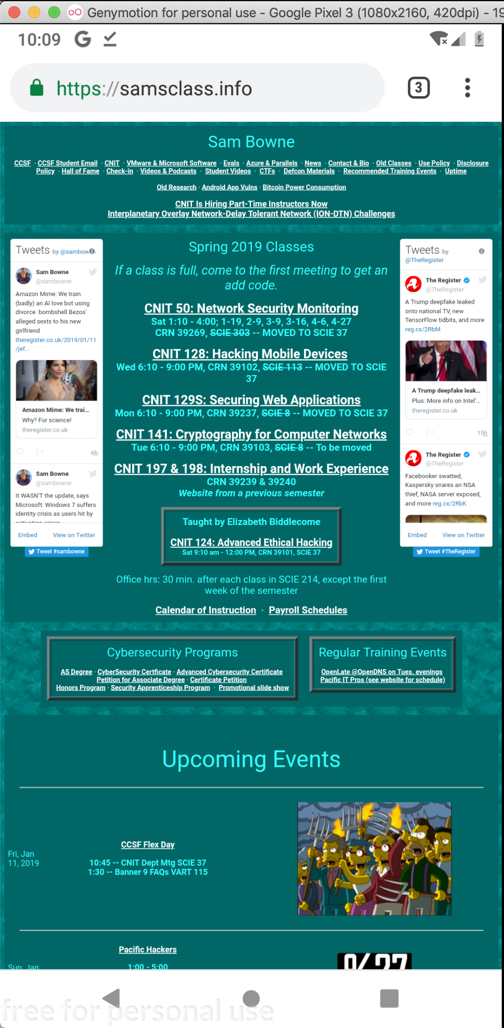

https://samsclass.info The page opens, as shown below.

Viewing HTTPS Requests in Burp

In Burp, on the Proxy tab, click the "HTTP history" sub-tab.

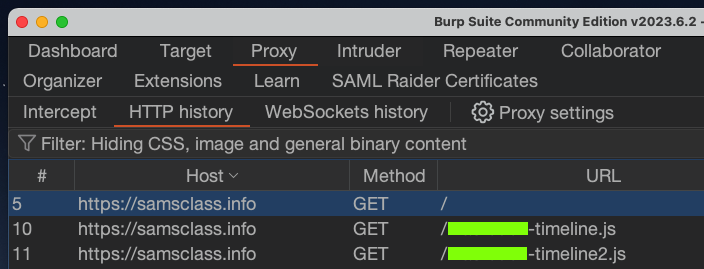

Find the line that shows the https://samsclass.info page loading, as shown below.


M 103b: Filename (10 pts)

Find the text covered by a green box in the image above. Enter it into the form below to record your success.


Adjusting Android to Bypass the Proxy

While Burp is useful, most of the time you want to bypass it so you can get to Google Play.

From the Android home screen, click the circle at the bottom center.

Open Settings.

In Settings, click "Network & internet".

Click Wi-Fi.

Click AndroidWiFi.

Click Advanced.

In the "Network details" screen, at the top right, click the Pencil icon.

In the "Proxy" field, click the down-arrow.

Click None.

Then click Save.
