5. Basic Dynamic Analysis

What you need:


You will practice the techniques in chapter 3.

This project follows Lab 3-1 in the textbook.

Task 1. Basic Static Analysis

Using PEview

Open Lab03-01.exe in PEview. As shown below, the only DLL imported is kernel32.dll, and the only function imported is ExitProcess. That doesn't tell us much--perhaps this malware is packed and the real imports will come at runtime.

Using Strings

Examine the strings in Lab03-01.exe and find these items, as shown below. These readable strings are surprising--if the malware were packed, the strings would not be readable. Something strange is going on, and the easiest way to learn more is dynamic analysis.

Task 2. Preparing for Dynamic Analysis

Dynamic analysis is simple: run monitoring tools, then run the malware, and let it have its way with our virtual machine. This is a sloppy technique, trusting a system that is being infected, but it usually works.

We will use these three programs to see what the malware does:

  1. Process Explorer
  2. Wireshark
  3. Process Monitor

Run Process Explorer

Process Explorer shows currently running processes, with far more detail than Task Manager. It doesn't keep a log of them, so it's harmless to leave running.

Run Wireshark

Start Wireshark and begin capturing packets from the interface that goes to the Internet, which is normally "Local Area Connection".

If your virtual machine is in "NAT" networking mode, there shouldn't be a lot of traffic.

Start Process Monitor

Process Monitor logs all the events in Windows Event Viewer, which will typically be hundreds of thousands of events. Don't leave it running for too long or it will use up all the RAM and crash.

It's best to start Process Monitor last, so you can exclude all the harmless processes the other tools are using.

Launch Process Monitor. If a Security Warning box pops up, allow the software to run.

Agree to the license.

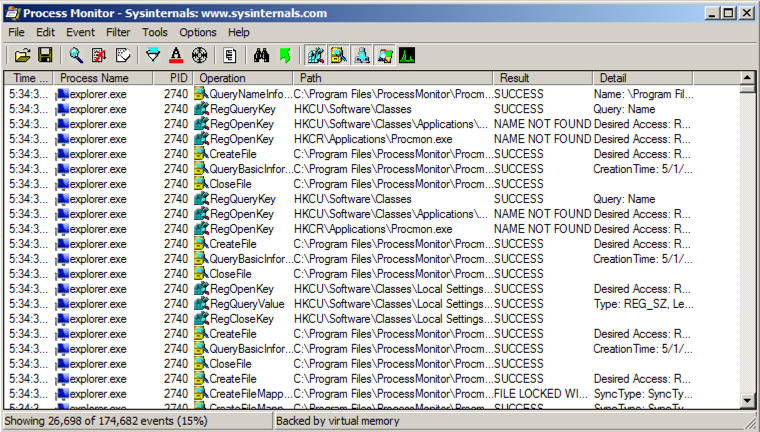

You should see Process Monitor, with a lot of processes visible, as shown below:

Excluding Harmless Processes

To make the analysis easier, we will ignore all the processes that are already running before the malware starts.

In Process Monitor, right-click the name of one of the visible processes, such as explorer.exe, and click "exclude 'lsass.exe'", as shown below:

Right-click a remaining process, such as "lsass" and exclude it too.

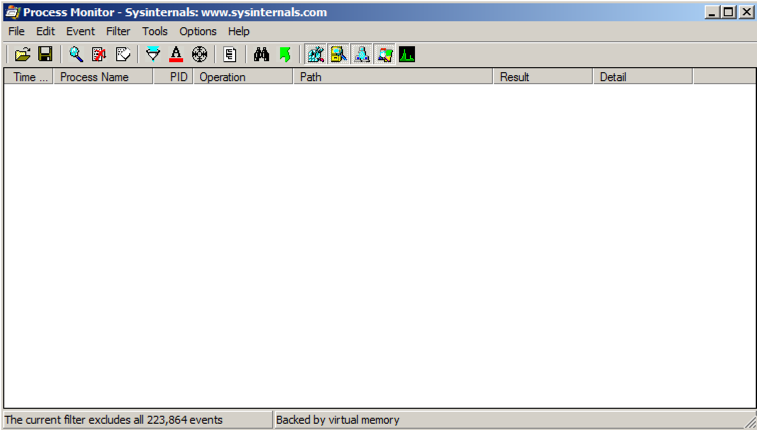

Repeat the process until all current processes are hidden, as shown below. There are a lot of processes to ignore, perhaps 20 or 30.

Run the Lab03-01.exe File

On your desktop, open the "Practical Malware Analysys Labs" folder. Open the "Binary Collection" and Chapter_3L folders. Now double-click the Lab03-01.exe File.

Viewing the Running Malware in Process Explorer

In Process Explorer, in the top pane, find Lab03-01.exe and click it.


If the Lab03-01.exe process does not appear in Process Explorer, that probably means that the malware has already been run on this VM.

To make the malware run properly again, open Process Explorer and kill the vmx32to64.exe process. Then delete this file:


In Process Explorer, click View, "Lower Pane View", Handles.

You see the WinVMX32 mutant, as highlighted below. A mutant, also called a mutex, is used for interprocess connunication. A wonderful explantion of mutexes in terms of rubber chickens is here.

In Process Explorer, click View, "Lower Pane View", DLLs.

Scroll to the bottom to find ws2_32.dll and WSHTCPIP.DLL, as shown below. This shows that the malware has networking functionality.

Viewing the Malicious Process's Events in Process Monitor

In Process Monitor, click the magnifying glass icon on the toolbar to stop capturing events.

In Process Monitor, click Filter, Filter. Enter a Filter for "Process Name" is Lab03-01.exe, Include, as shown below.

Click Add to add the filter.

Add two more filters:

In the "Process Monitor Filter" box, click OK.

You end up with the two events shown below.

Double-click the event with a Path ending in vmx32to64.exe. The Properties sheet shows that this event creates a file named vmx32to64.exe, as shown below.

The malware wrote 7,168 bytes--the same size as Lab03-01.exe itself. The malware copied itself to a file named vmx32to64.exe, so that filename is a useful Indicator of Compromise.

Double-click the event with a Path ending in VideoDriver.

This event creates a new a Run key in the registry named "VideoDriver" with a value of "C:\WINDOWS\system32\vmx32to64.exe" -- this is a persistence mechanism, to re-launch the malware when the machine restarts.

Viewing Beacons in Wireshark

In the Windows machine, in Wireshark, click Capture, Stop.

At the top left of the Wireshark window, in the Filter bar, type a filter of

frame contains malware
Press Enter to see the filtered packets, as shown below.

Every 30 seconds, the malware performs a DNS lookup for the domain "www.practicalmalwaresnalysis.com".

Click the line showing the first DNS request for www.practicalmalwareanalysis.com -- in the example above, it is packet 174.

In the top right of Wireshark, in the green filter bar, click the X button to clear the filter.

The packets following the DNS request appear, as shown below. Notice these items:

This is intended to fool a firewall into thinking it's HTTPS traffic, but there is no actual encryption or key exchange. A real HTTPS connection contains many more packets, such as "Client Hello", "Server Hello", and "Change Cipher Spec".

Find the SYN packet sent to the https port, which may be marked "443". In the example above, it is packet 176. Right-click it and click "Follow TCP Stream".

You see 256 bytes of random data, as shown below. These are beacons and are used by malware to notify the Command and Control server that the machine is infected and ready to use.

Last modified 6-26-17
