Project 8: Disassembling C on Windows (15 pts. + 10 extra credit)

What You Need


You will write a small C programs, compile it, and examine it in the IDA Pro disassembler to learn what it looks like in assembly language.

Starting Visual Studio Express

Click Start, "VS Express 2013 for Desktop".

Global and Local Variables

From the "Visual Studio Express 2013" menu, click FILE, "New Project...".

In the "New Project" window, on the left, expand the "Visual C++" container.

Click Win32.

In the center pane, accept the default selection of "Win32 Console Application".

At the bottom of the "New Project" window, type a Name of YOURNAME-8a, replacing "YOURNAME" with your own name. Do not use any spaces in the name.

In the "Location" line, notice the location files will be saved in--it's a subfolder of your Documents folder.

In the "New Project" window, click OK.

A box opens, titled "Welcome to the Win32 Application Wizard".

Click Next. In the next screen, accept the default settings and click Finish.

A window opens, showing a simple C program.

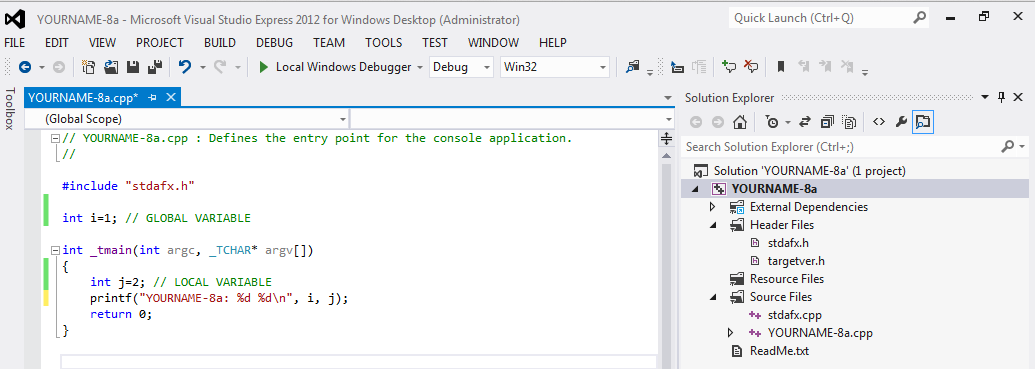

Modify this program to match the code shown in text and the image below.

Do not use the literal string "YOURNAME"--replace it with your own name.

// YOURNAME-8a.cpp : Defines the entry point for the console application.

#include "stdafx.h"


int _tmain(int argc, _TCHAR* argv[])
int j=2; // LOCAL VARIABLE
printf("YOURNAME-8a: %d %d\n", i, j);
return 0;

Compiling your Program

Click BUILD, "Build Solution".

You should see the message "Build: 1 succeeded" at the bottom of the window. If you see errors, you need to correct them and re-compile the program.

Running your Program

Click DEBUG, "Start Without Debugging".

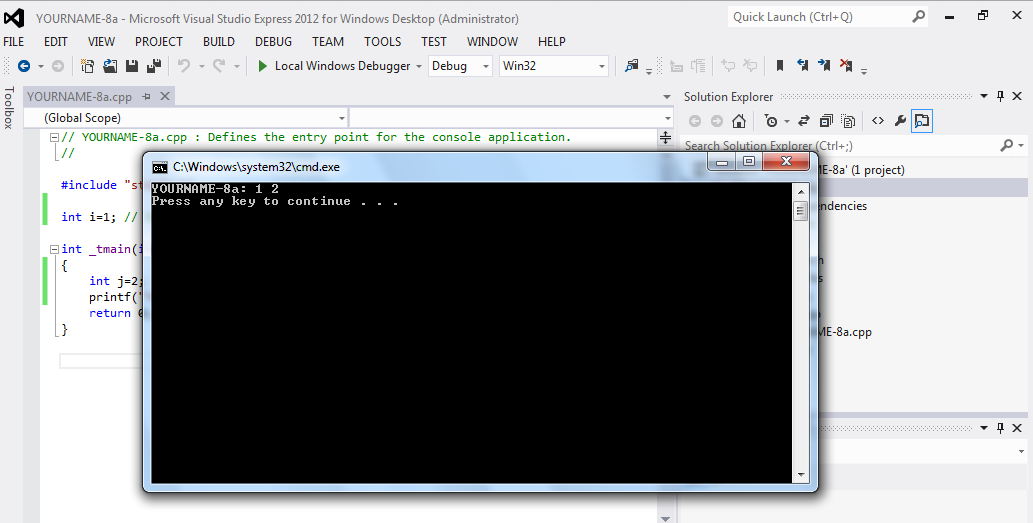

A Command Prompt window opens, showing the output of "1 2", as shown below:

Disassembling the EXE

Click in the Command Prompt window, and press Enter to close it.

Minimize the Visual Studio Express window.

Start IDA Pro Free.

In the "About" box, click OK.

Agree to the license.

Close the Help window.

In the "Welcome to IDA!" box, click the New button.

In the "New disassembly database" box, double-click "PE Executable".

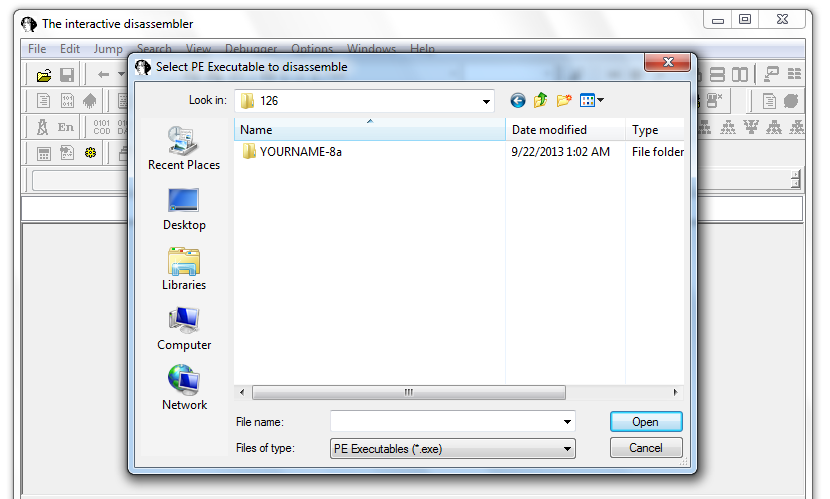

In the "Select PE Executable to disassemble" box, navigate to the folder you used to save your program. The default location is in your Documents folder, in a subfolder named "visual studio 2013\Projects".

Double-click the "YOURNAME-8a"folder.

Double-click the Debug folder.

Double-click the YOURNAME-8a.exe file.

In the "PE Executable file loading Wizard", click Next, Next, Finish.

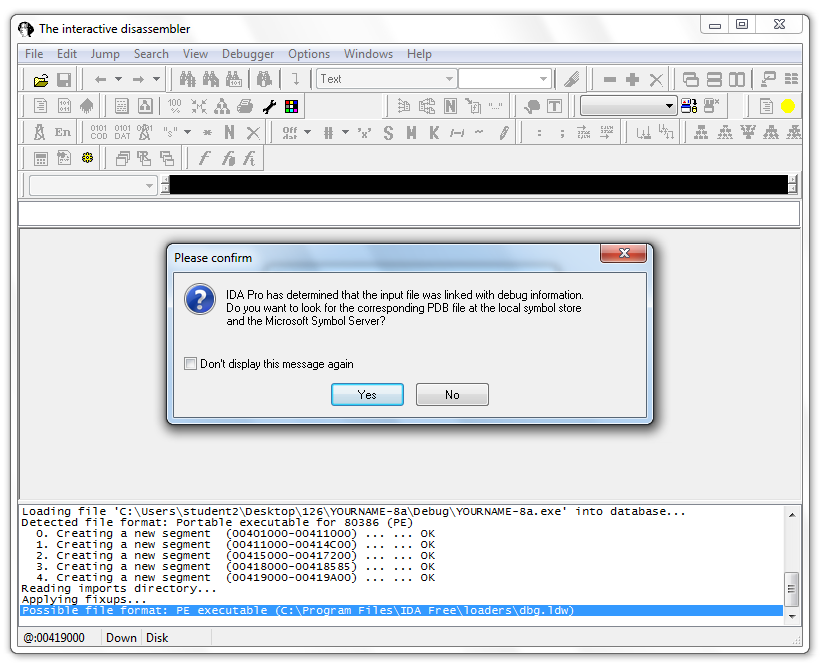

A box appears, saying this file was linked with debug information, as shown below. This is a luxury you won't often have with malware, but it's nice for this project.

Click Yes

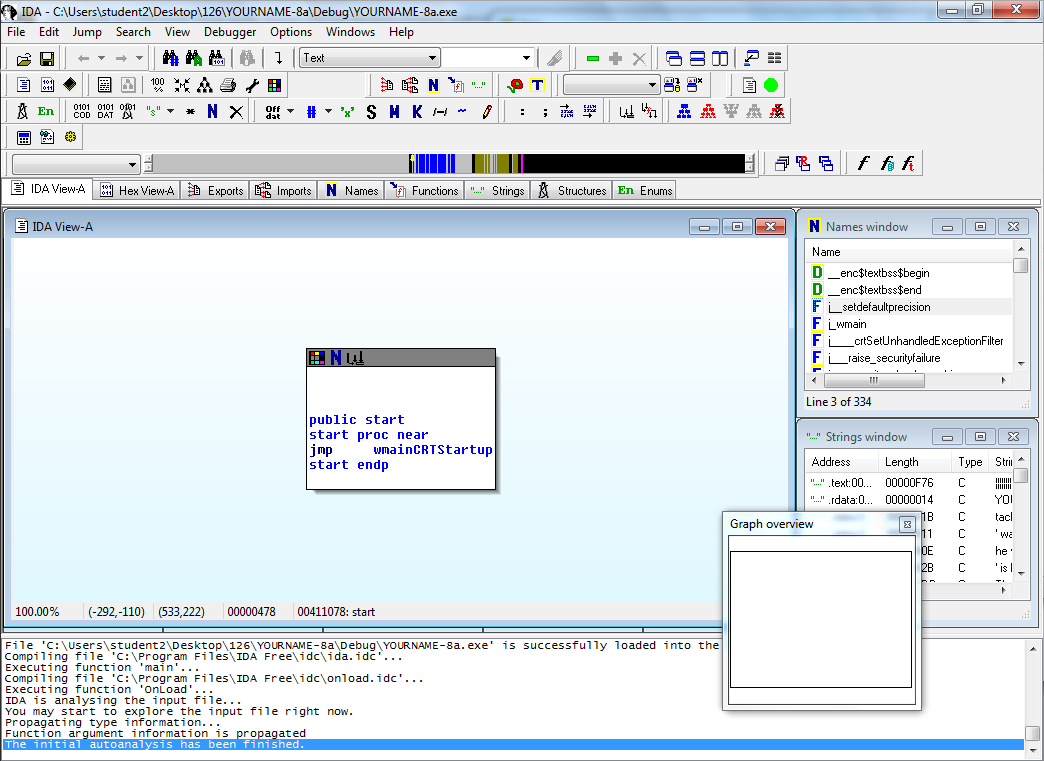

IDA Pro loads the file. Unfortunately, the graph mode isn't much use, as shown below.

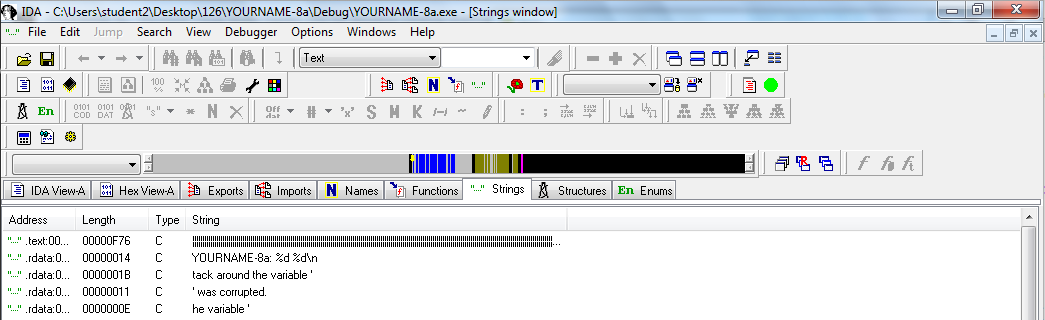

However, we can still find the code. Expand the Strings window and find "YOURNAME-8a %d %d\n", as shown below.

Double-click "YOURNAME-8a %d %D\n".

The location containing the string appears, as shown below.

This is in the .rdata section of the file, which contains data but not executable instructions.

To the right of "YOURNAME-8a" there is a "DATA XREF" comment. Hover over the address to the right of "DATA XREF", which was "wmain+32" when I did it.

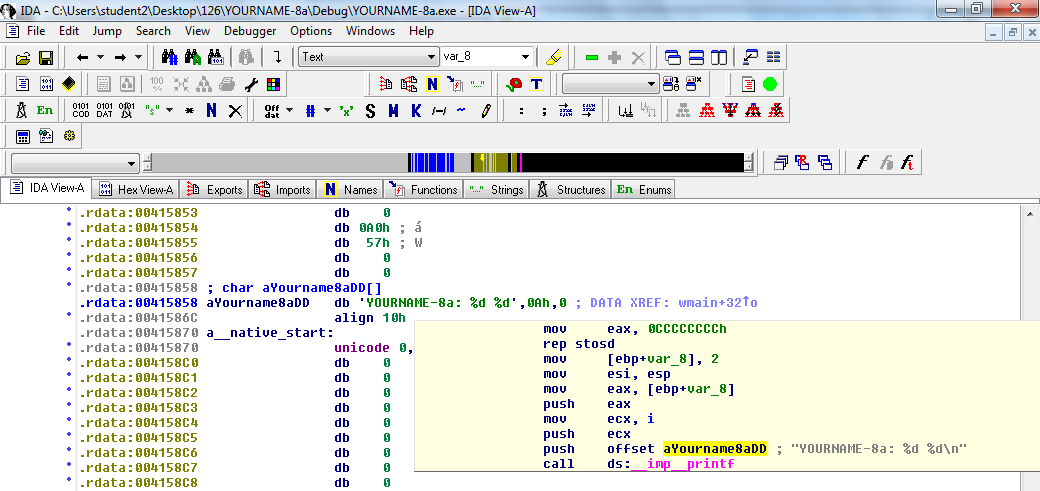

The instructions that use this string appear in a yellow pop-up box, as shown below.

Double-click "wmain+32".

Now the assembly code that performs the task you wrote in C appears, as shown below.

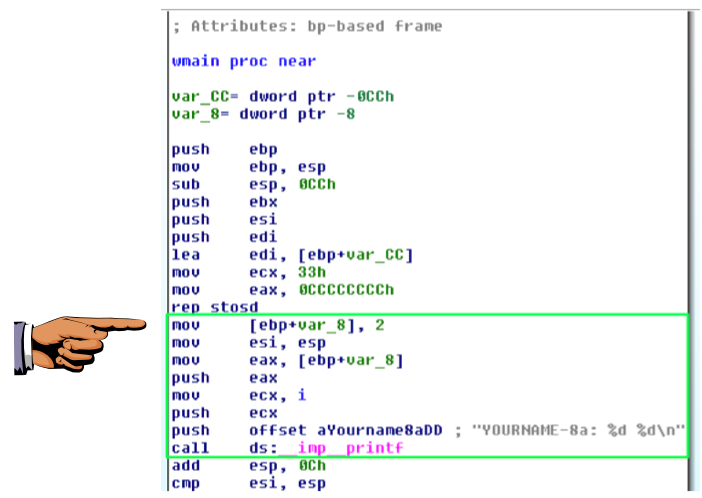

Notice the region in the green box in the figure below.

These commands perform these C statements:

int j=2;
printf("YOURNAME-8a: %d %d\n", i, j);

The call at the end jumps into the printf() function.

Saving the Screen Image

Make sure you can see the command showing
push    offset aYourname8aDD ; "YOURNAME-8a: %d %d\n
as shown above. The offset value may be different, but it should contain push and YOURNAME.

On your keyboard, press the PrntScrn key.

Click Start, type in PAINT, and open Paint.

Press Ctrl+V to paste in the image of your desktop.


Save the image with a filename of "Proj 8a from YOUR NAME".

Understanding Global and Local Variables

Before the call, the three arguments are pushed onto the stack in reverse order: first j, then i, then the string "YOURNAME-8a: %d %d\n", as detailed below.
mov     [ebp+var_8], 2                                  ; PUT 2 into j
mov     esi, esp
mov     eax, [ebp+var_8]                                ; PUT j into eax
push    eax                                             ; PUSH j onto the stack
mov     ecx, i                                          ; PUT i into ecx
push    ecx                                             ; PUSH i onto the stack
push    offset aYourname8aDD ; "YOURNAME-8a: %d %d\n"   ; PUSH the address of the string onto the stack
call    ds:__imp__printf                                ; CALL printf()

j is a local variable, so it is simply stored on the stack at the location ebp+var_8. It's temporary, only available to the function it's defined in.

i is a global variable, and in this case IDA was able to refer to it by name in the "mov ecx, i" instruction.

To see where i is stored, hover the mouse over it.

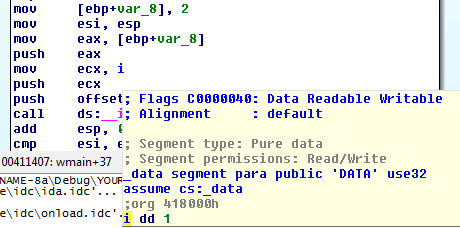

A yellow box pops up showing where it is stored. When I did it, it was stored at location 418000, as shown below.

This variable will be available everywhere in the program, to any function.

CHALLENGE: 10 Pts. Extra Credit

Modify the C program to contain a second global variable named x and a second local variable named y.

Compile it and disassemble it.

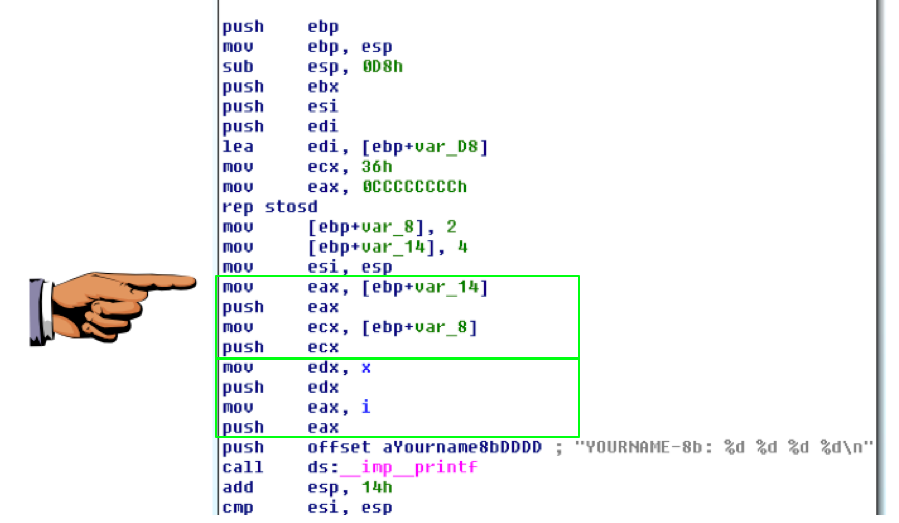

It must show these features, as shown below:

Turning in Your Project

Email the images to: with a subject line of Proj 8 From Your Name, replacing Your Name with your own first and last name. Send a Cc to yourself.

Last Modified: 9-22-14 3:42 pm
