Proj 1: Basic Static Techniques (Lab 1-1) (25 pts.)

What you need:

Purpose

You will practice the techniques in chapter 1.

Install 7-Zip

On your Windows machine, in a Web browser, go to http://www.7-zip.org/

Download and install the correct version of 7-zip.

Downloading the Lab Files

In a Web browser, go here:

http://sourceforge.net/projects/labs-encryptzip/

Click the green Download button to download the encrypted 7-zip archive.

Right-click the PracticalMalwareAnalysis-Labs.7z fie, point to 7-Zip, and click "Extract Here". Use the password malware

The file extracts to tn EXE file. Double-click it to perform a second extraction process. Click the Accept button. Click the Extract button.

A folder named "Practical Malware Analysis Labs" appears. The files you need are in that folder, in a subfolder named "BinaryCollection".

This project uses the files Lab01-01.exe and Lab01-01.dll, both in the "Chapter_1L" folder.

This project follows Lab 1-1 in the textbook. There are more detailed solutions in the back of the book.

VirusTotal

Upload the Lab01-01.exe and Lab01-01.dll files to www.virustotal.com

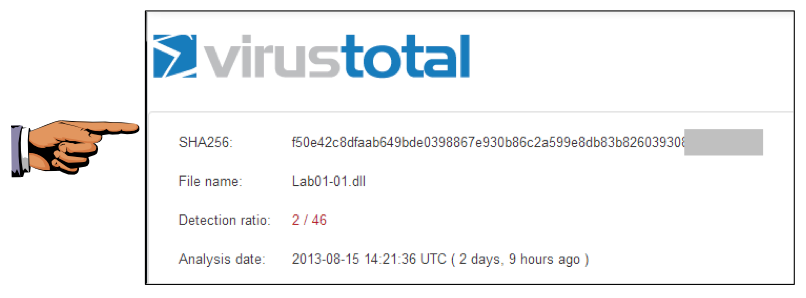

Turn in the image showing your analysis of Lab01-01.dll as shown below.

We will grade it by checking the last digits of the SHA256 value.

Press the PrntScrn key to capture an imag of the whole desktop.

Open Paint and paste the image in with Ctrl+V.

Save this image with the filename "Proj 1a from YOUR NAME".

YOU MUST SUBMIT WHOLE-DESKTOP IMAGES TO GET FULL CREDIT!

PEview

You can download PEview from here:

http://wjradburn.com/software/

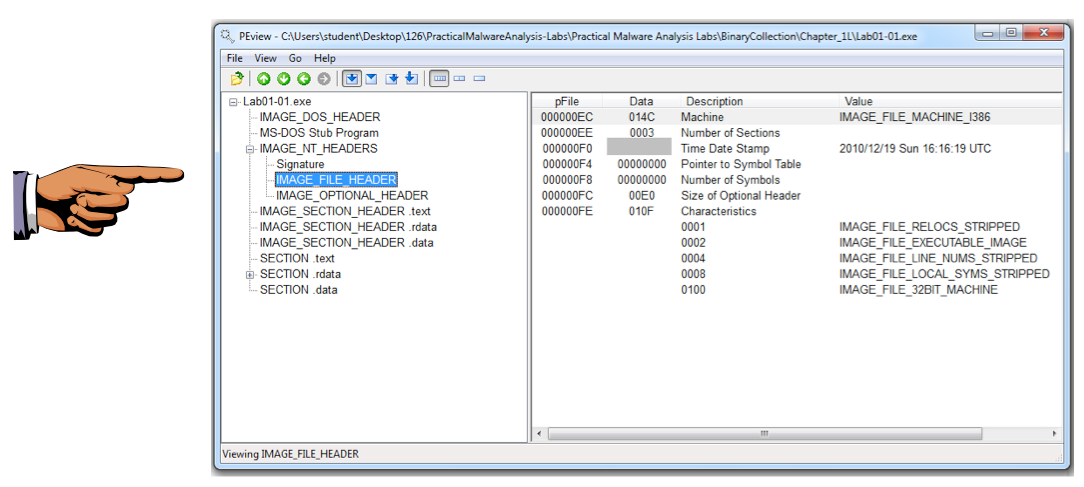

Open the files in PEview. For each file, find the "Time Date Stamp" as shown below.

The files were both compiled on the same date within a minute of each other, indicating that they are part of the same package.

Turn in the image showing your analysis of Lab01-01.exe as shown below.

We will grade it based on the "Data" column of the "Time Date Stamp" field.

Save this image with the filename "Proj 1b from YOUR NAME".

YOU MUST SUBMIT WHOLE-DESKTOP IMAGES TO GET FULL CREDIT!

PEiD

You can download PEiD here:

http://www.softpedia.com/progDownload/PEiD-updated-Download-4102.html

Open the files in PEiD. They are identified as "Microsoft Visual C++" files, which shows that they are unpacked.

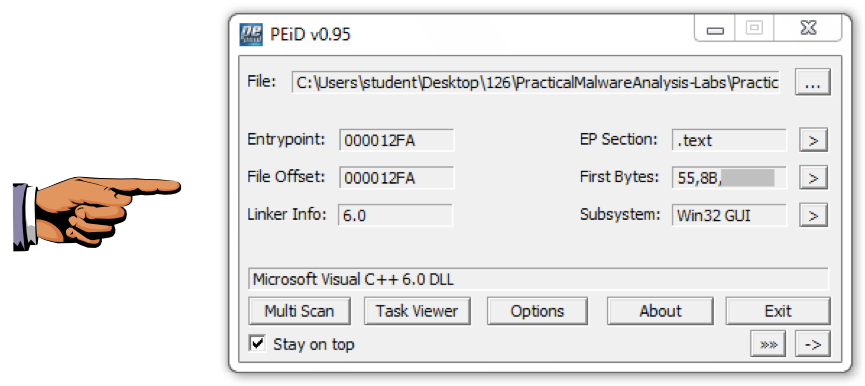

Turn in the image showing your analysis of Lab01-01.dll as shown below.

We will grade it based on the "First Bytes".

Save this image with the filename "Proj 1c from YOUR NAME".

YOU MUST SUBMIT WHOLE-DESKTOP IMAGES TO GET FULL CREDIT!

Strings

You can download Strings for Windows go here:

http://technet.microsoft.com/en-us/sysinternals/bb897439

Click the "Download Strings" link.

Save the Strings.zip file on your desktop. Unzip it, and copy strings.exe to the C:\Windows\System32 folder.

Open a Command Prompt and use the CD command to move to the directory containing your lab files.

Then collect the strings from the Lab01-01.exe file.

On my machine, I used these commands:

cd "\Users\Administrator\Desktop\126\Practical Malware Analysis Labs\BinaryCollection\Chapter_1L"

strings Lab01-01.exe > str1exe.txt

notepad str1exe.txt

Notice these items, as shown below:

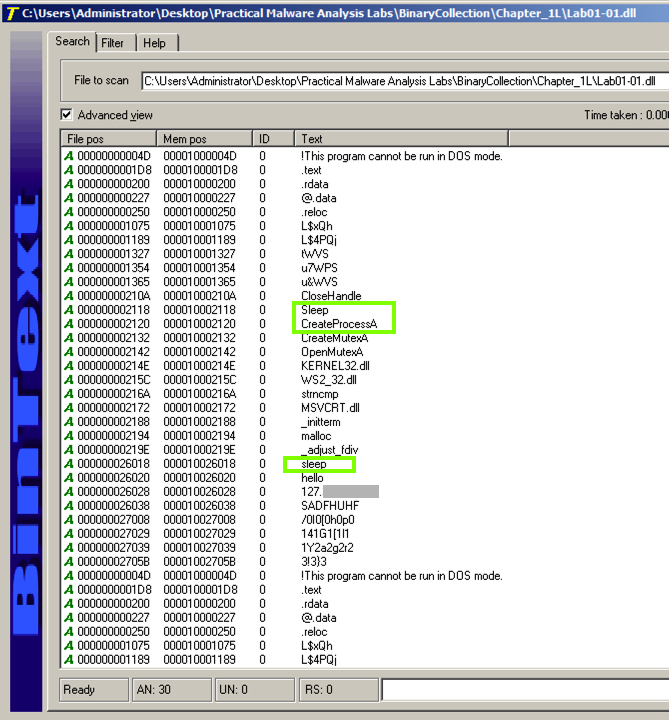

Look at the strings for Lab01-01.dll.

Notice these items, as shown below:

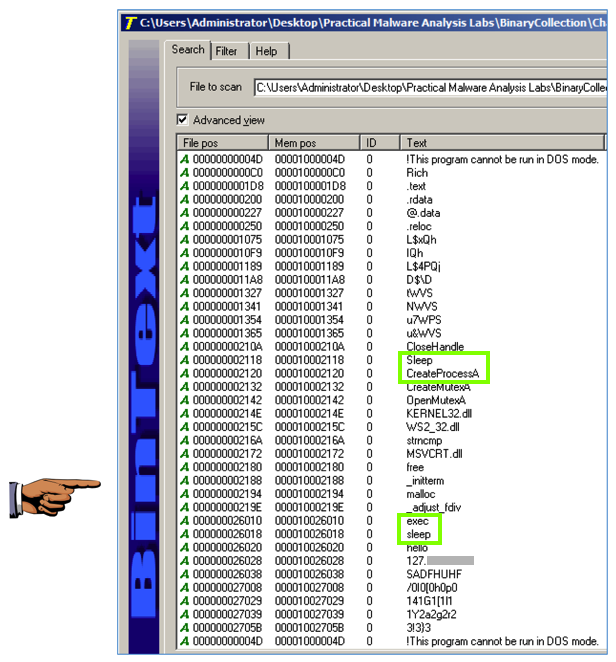

Turn in the image showing your analysis of Lab01-01.dll as shown below.

Below "sleep" and "hello" there is an IP address, starting with 127.

We will grade it by checking the last digits of the IP address.

Save this image with the filename "Proj 1d from YOUR NAME".

Dependency Walker

You can download Dependency Walker here:

http://www.dependencywalker.com/

Troubleshooting

If that link fails, use this alternate download link:

https://samsclass.info/126/proj/depends22_x86.zip

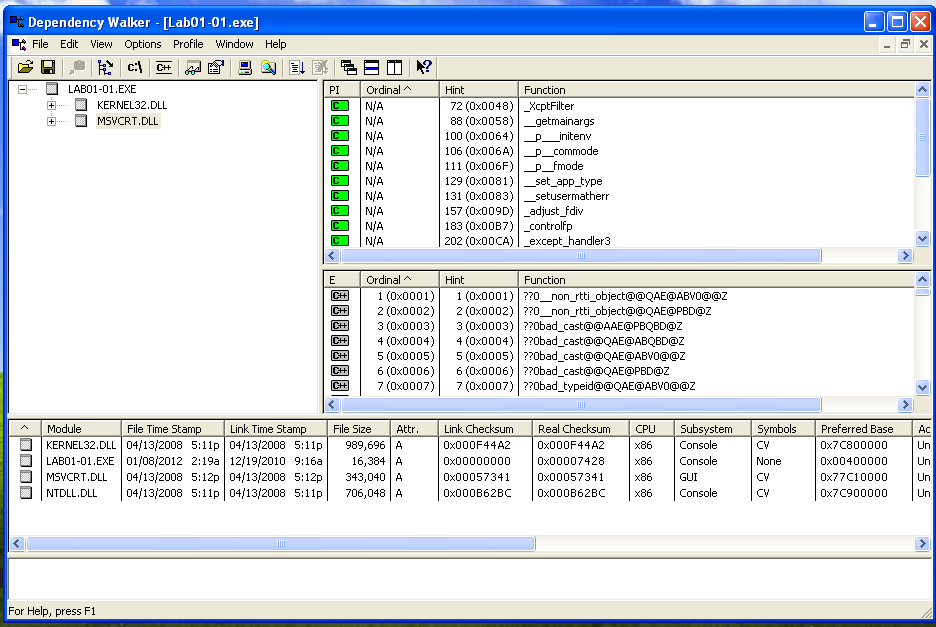

Open Lab01-01.exe in Dependency Walker.

In the left pane, click MSVCRT.DLL as shown below.

There are several imports in the upper right pane, and exports in the middle right pane. Scan through them--these are normal for any EXE.

In the left pane, click KERNEL32.DLL.

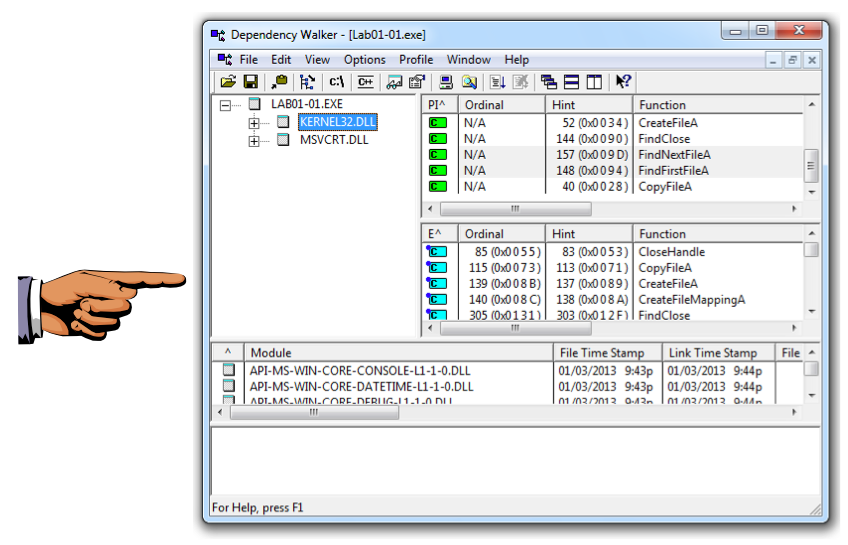

Turn in the image showing your analysis of Lab01-01.exe as shown below.

In the "PI^" section (Parent Import), you should see FindNextFileA and FindFirstFileA as shown below.

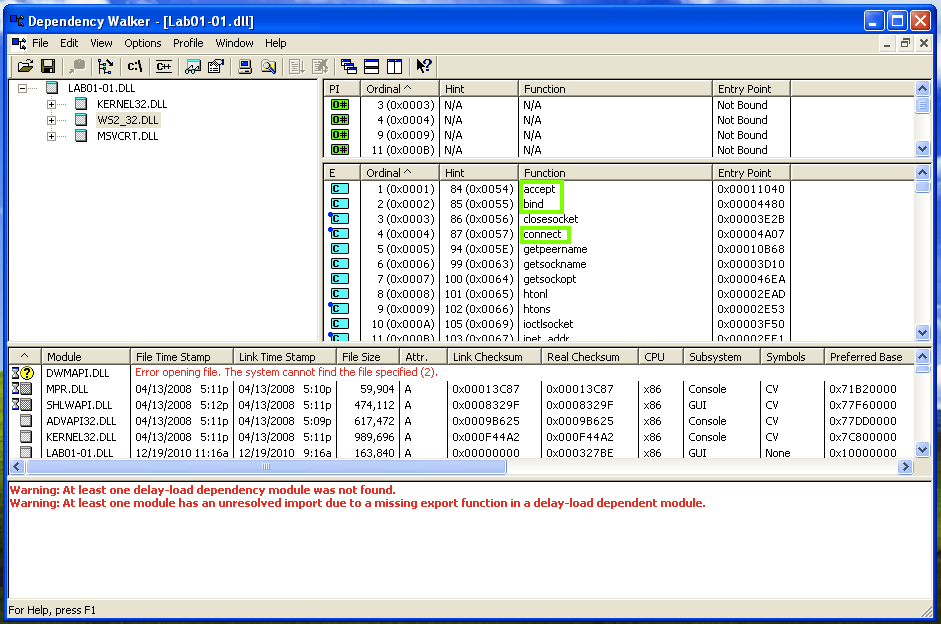

Save this image with the filename "Proj 1e from YOUR NAME". Open Lab01-01.dll in Dependency Walker. Notice that it imports functions from "WS2_32.DLL".

WS2_32.DLL has networking functions. The right center pane shows function names that perform networking tasks, such as "bind", "closesocket", and "connect", as shown below.

Turning in your Project

Email the images showing the secret messages to cnit.126sam@gmail.com with the subject line: Proj 1 from YOUR NAME


Last modified 7-20-14 12:05 pm
