PMA 405: Monitoring Windows API Calls with WinDbg (15 pts extra)

What you need

Purpose

To understand how Windows API calls work, and to practice monitoring them live in WinDbg.

Use the Windows Machine with Tools

Use the machine from this project, or any other Windows virtual machine:
PMA 41: Windows 11 with Analysis Tools

If you are using another Windows machine, and don't already have WinDbg, get it from the Microsoft Store.

Understanding the ntdll!NtCreateFile Function

This Windows API call is documented here.

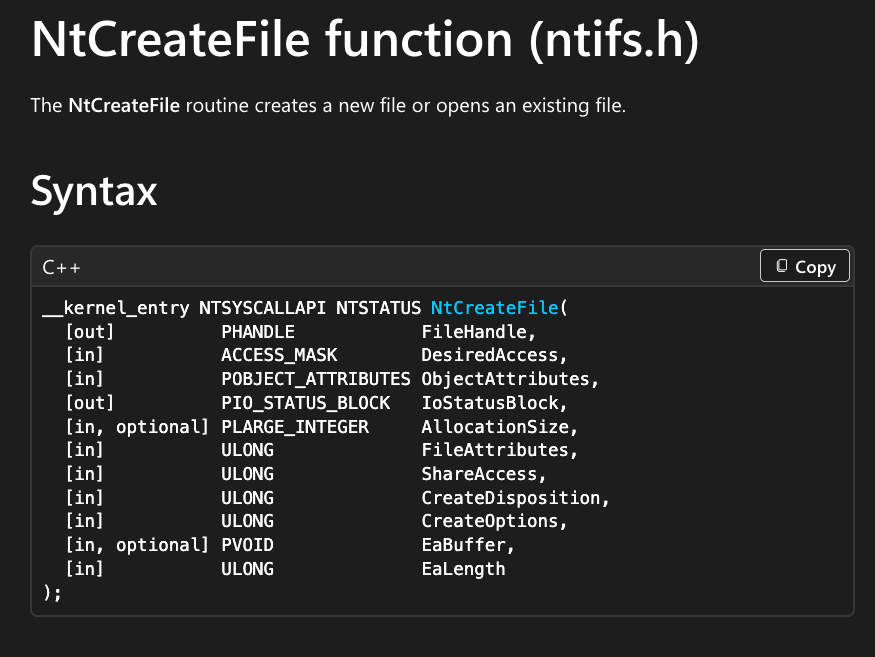

As shown below, it creates a file, using several parameters, including one named ObjectAttributes.

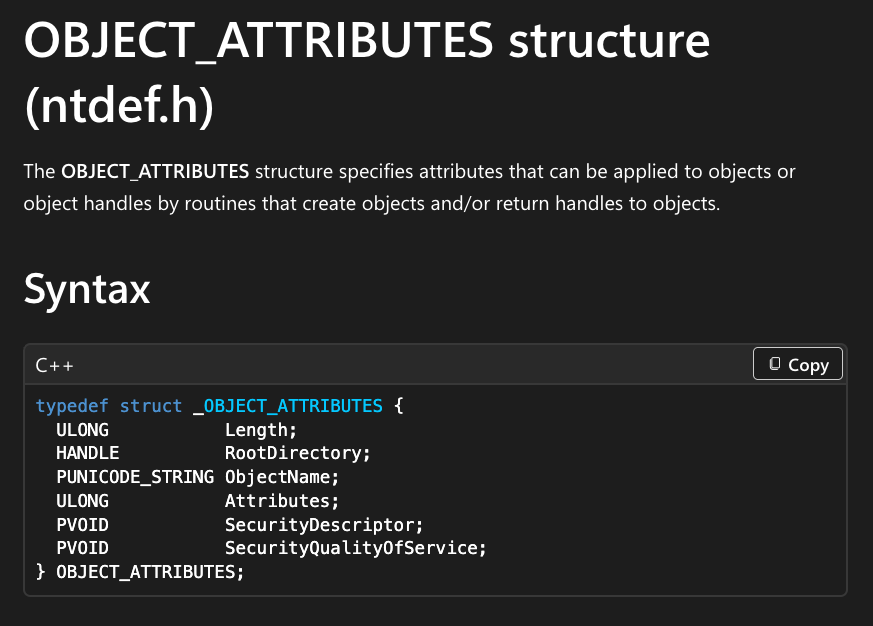

The OBJECT_ATTRIBUTES structure is shown below.

The ObjectName attribute contains a pointer to the filename.

Downloading a Vulnerable Version of Notepad++

On your Windows machine, in a Web browser, go to

https://notepad-plus-plus.org/downloads/ Download "Notepad++ v 8.8.5" and install it.

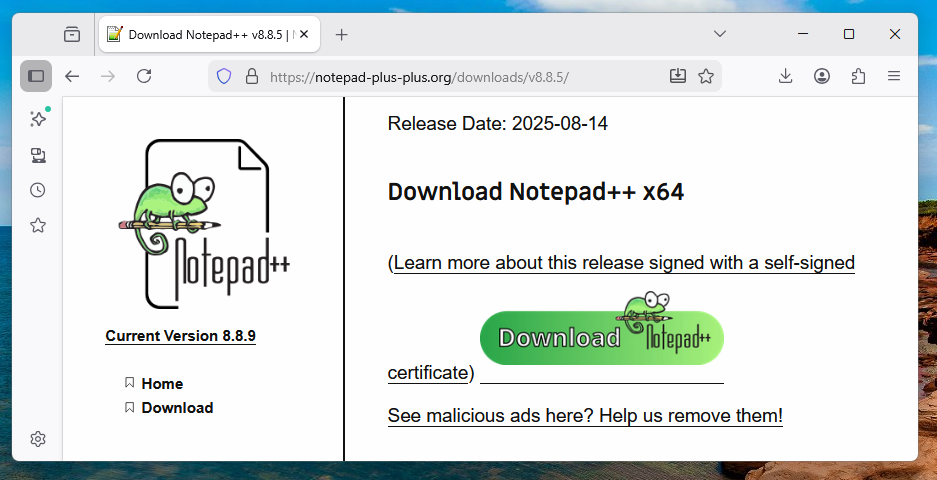

You need to click the version number, and then scroll down past a lot of deceptive fake download buttons, to find the real download button with a green animal on it, as shown below.

Install Notepad++ normally.

Preparing to Create a File

Launch Notepad++. Create a new text document containing the word HELLO<>.

Click File, Save.

Navigate to your Documents folder.

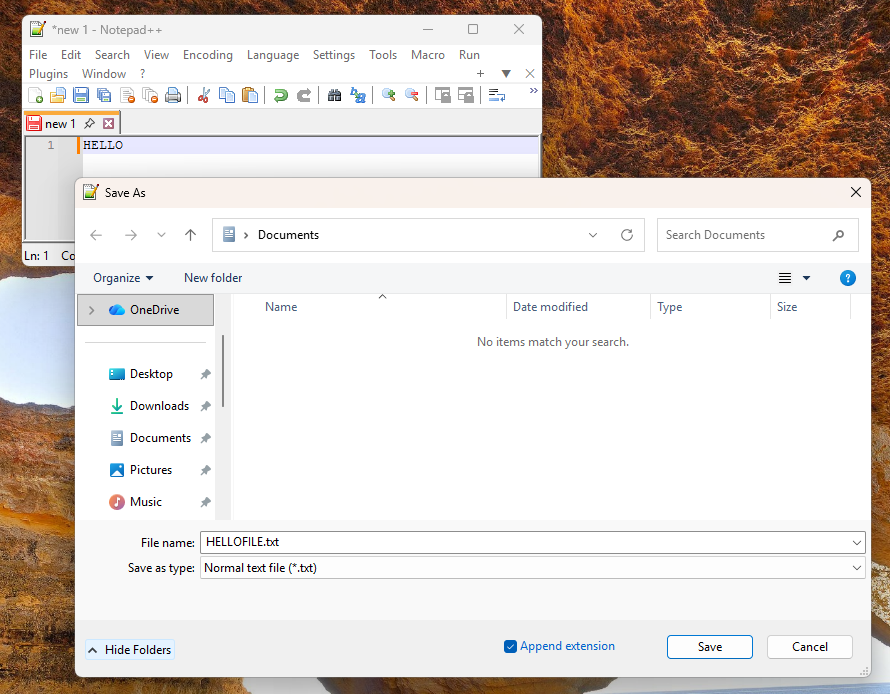

Enter a filename of HELLOFILE, as shown below.

Don't click the Save button yet.

Use WinDbg to Monitor the Notepad++ Process

Launch WinDbg as Administrator.

Click File, "Attach to process".

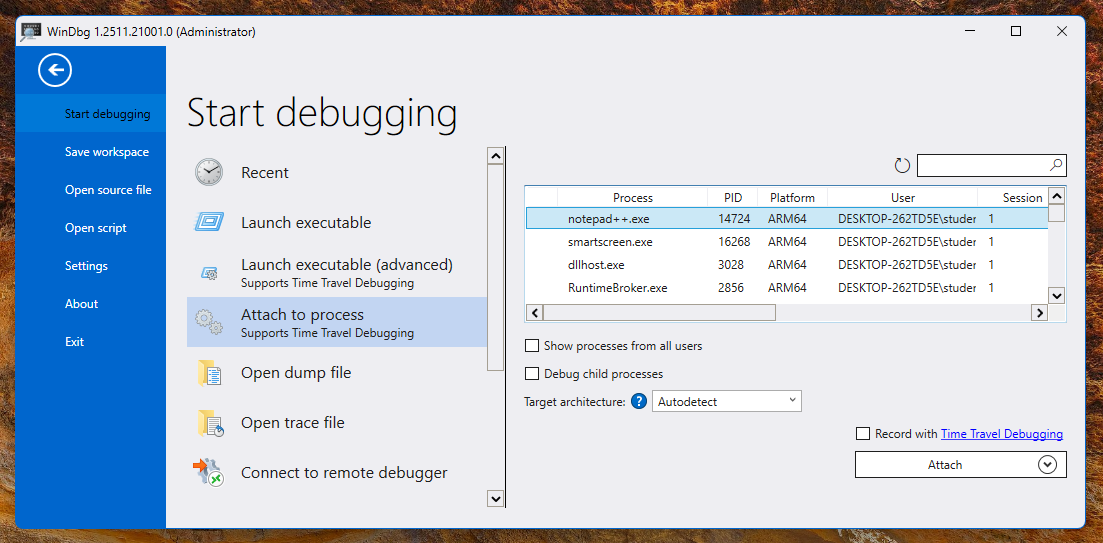

Select the notepad++ process and, at the lower right, click the Attach button, as shown below.

WinDbg attaches to the process and inserts a Break, halting execution, as shown below.

Inserting a Breakpoint

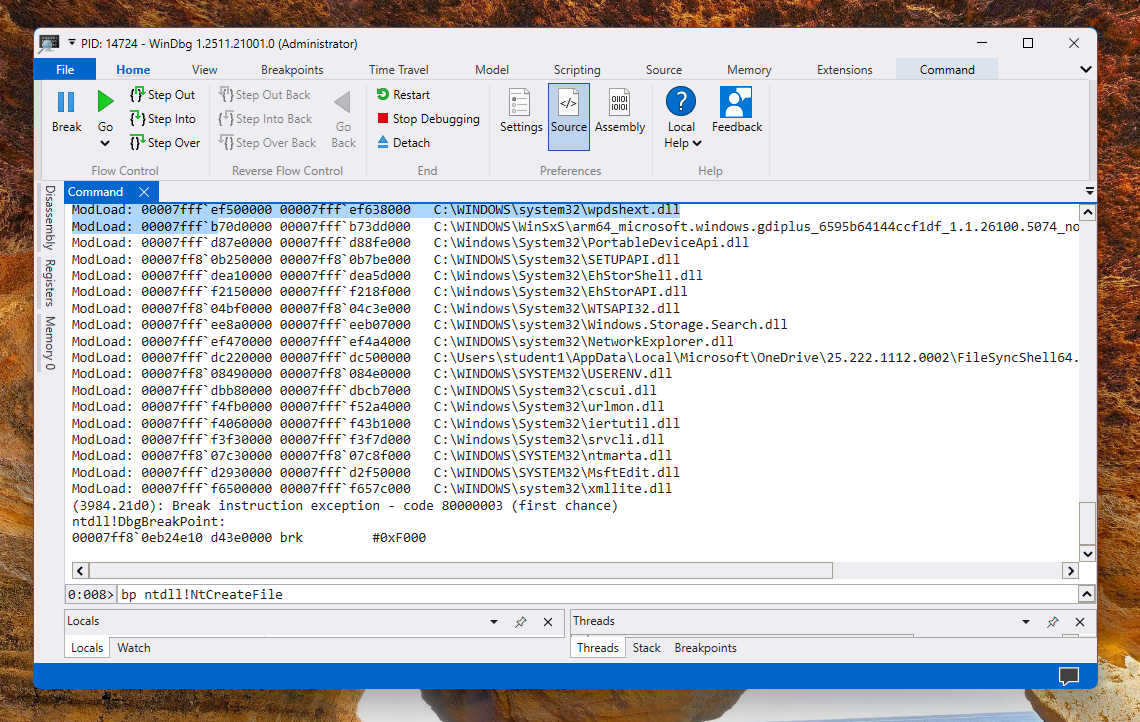

In Windbg, in the lower section, paste in this command, as shown below, and then press Enter.
bp ntdll!NtCreateFile

At the top left of WinDng, click the green Go button.

In Notepad++, click Save.

In WinDbg, the breakpoint is hit, because Notepad++ called NtCreateFile.

In Windog, in the lower section, paste in this command, as shown below, and then press Enter.

dt _OBJECT_ATTRIBUTES @x2

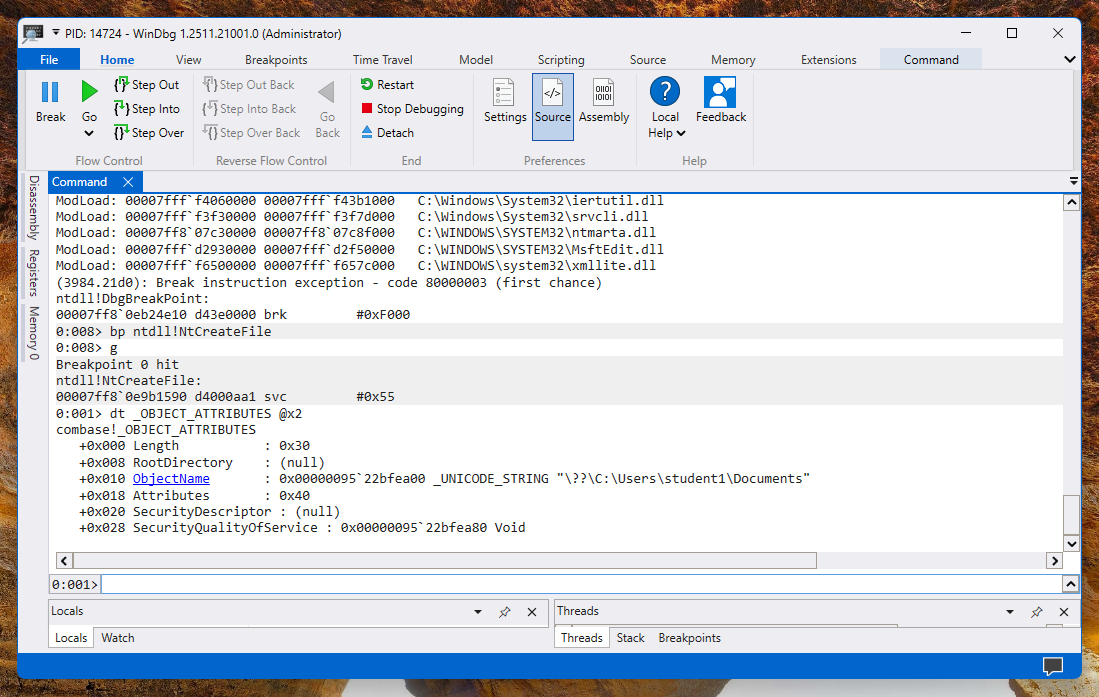

As shown below, the ObjectName attribute points to the Documents directory, but doesn't show the filename.

Enter these commands in WinDbg:

g
dt _OBJECT_ATTRIBUTES @x2
g
dt _OBJECT_ATTRIBUTES @x2

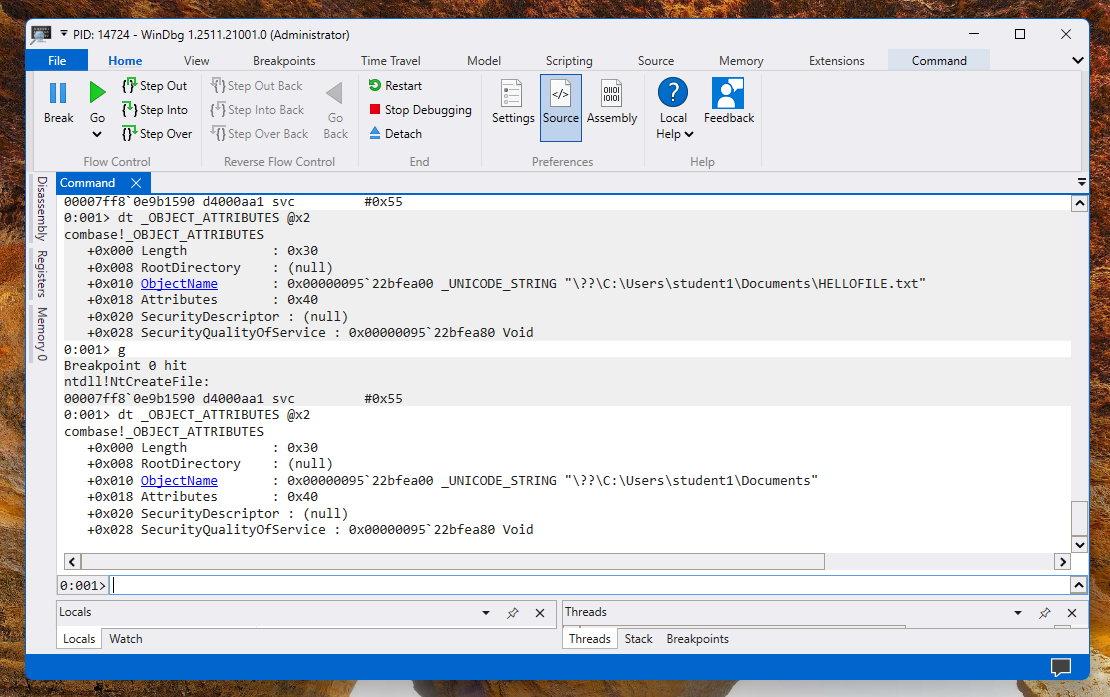

As shown below, there is a call to NtCreateFile including the filename, and another with only the directory path.

Automating WinDbg

We'll write a script to automatically show all the calls to NtCreateFile and the filenames used.

Close WinDbg.

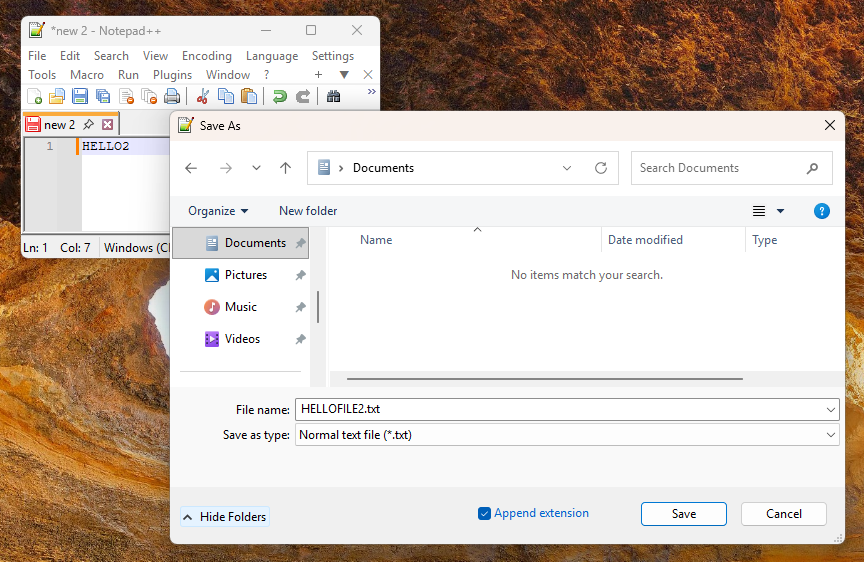

Launch Notepad++ again, and prepare another file containing HELLO2 ready to save in your Documents folder with the name HELLOFILE2, as shown below.

Launch WinDbg again as Administrator and attach to the notepad++ process.

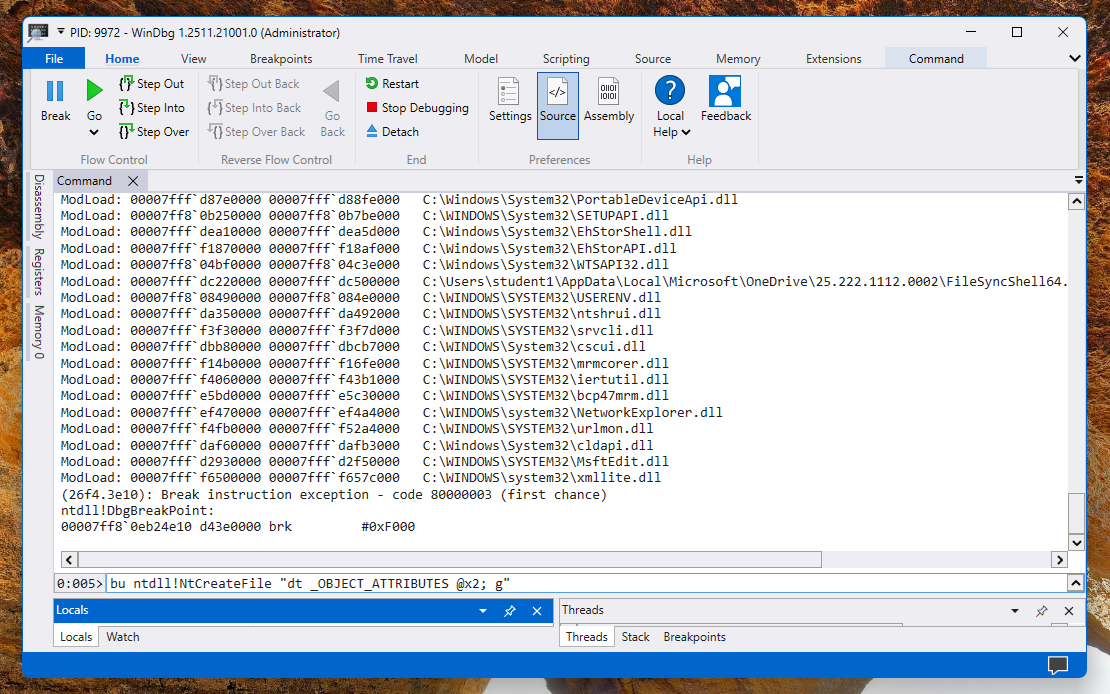

In WinDng, execute this command, as shown below.

bu ntdll!NtCreateFile "dt _OBJECT_ATTRIBUTES @x2; g"

At the top left of WinDng, click the green Go button.

In Notepad++. click Save

PMA 405.1: MountPoint (15 pts)

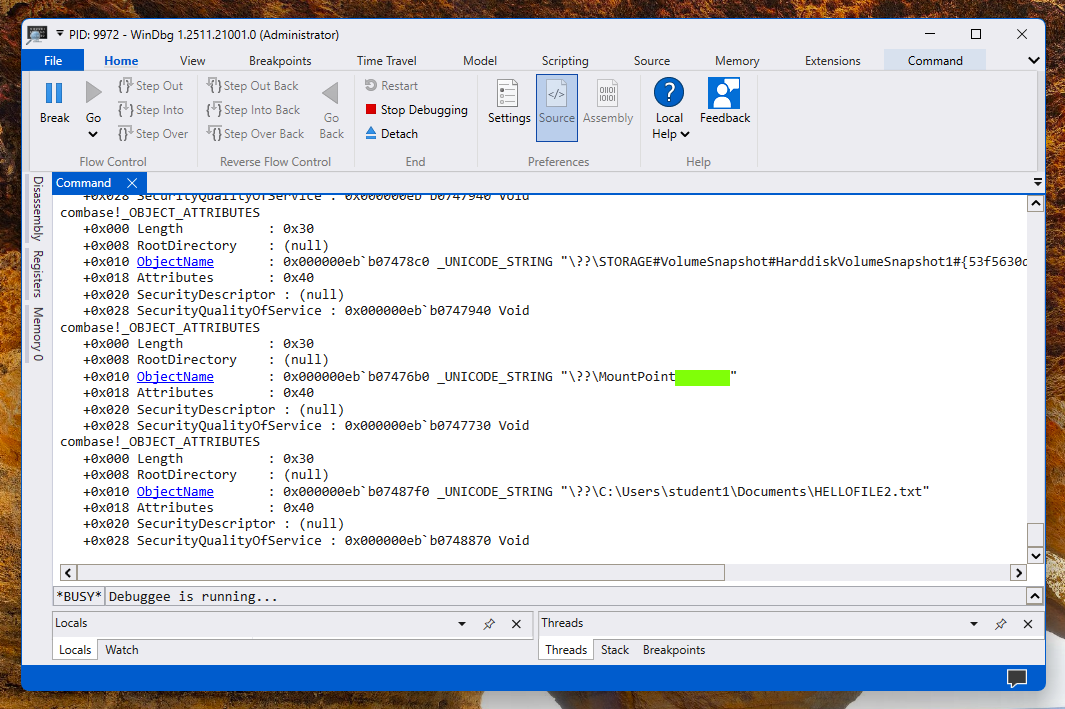

There are several calls to a location used to handle "Mount Points", which are used to find the actual disk location for a symbolic object such as "C:".

The flag is covered by a green box in the image above.

Sources

Posted 12-15-25
