PMA 340: Windows ARM Executable (15 pts extra)

What You Need

Purpose

You will write a small C program and compile it for ARM64 with and without stack protection. You'll examine the executable using IDA Pro and see the code that implements the stack cookie.

Downloading and Installing Visual Studio for ARM

In Edge, Open this page:

https://learn.microsoft.com/en-us/visualstudio/install/visual-studio-on-arm-devices?view=vs-2022

Click the "Download Visual Studio" button, as shown below.

On the next page, in the Community section, click the "Free download" button.

Run the downloaded file, which is named VisualStudioSetup.exe.

A large window appears, as shown below.

At the top left, check "Desktop development with C++".

At the bottom right, click the Install button.

Wait while software downloads and installs.

After the installation is finished, restart your Windows machine.

Click Start, and, at the top right, click "All apps".

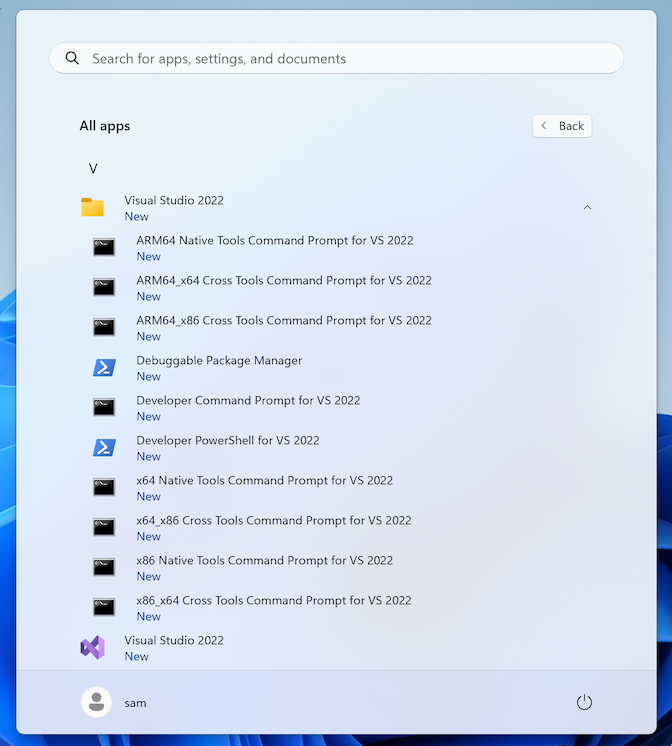

Scroll to the V section. Open the "Visual Studio 2022" folder and click "ARM64 Native Tools Command Prompt for VS 2022", as shown below.

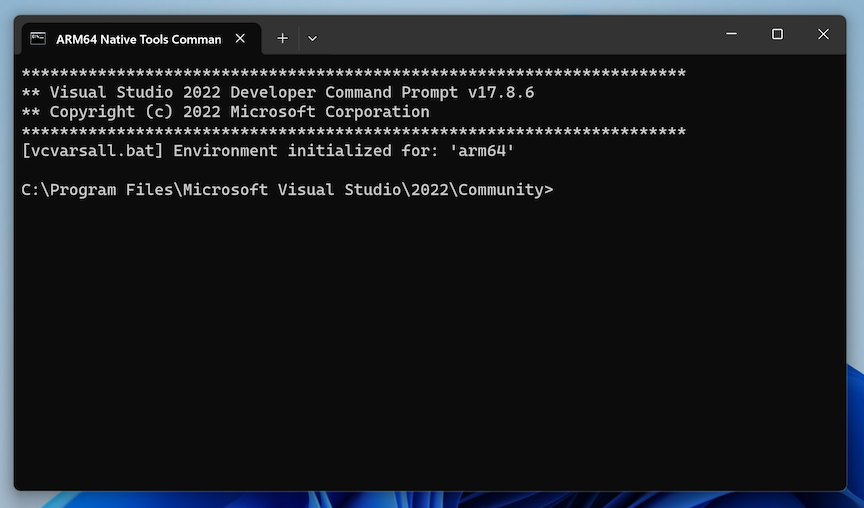

A Developer Command Prompt window opens, as shown below.

Making the "secret" Program in C++

In the Developer Command Prompt window, execute these commands:
mkdir c:\127
cd c:\127
notepad secret.cpp
A box pops up, asking "Do you want to create a new file?". Click Yes.

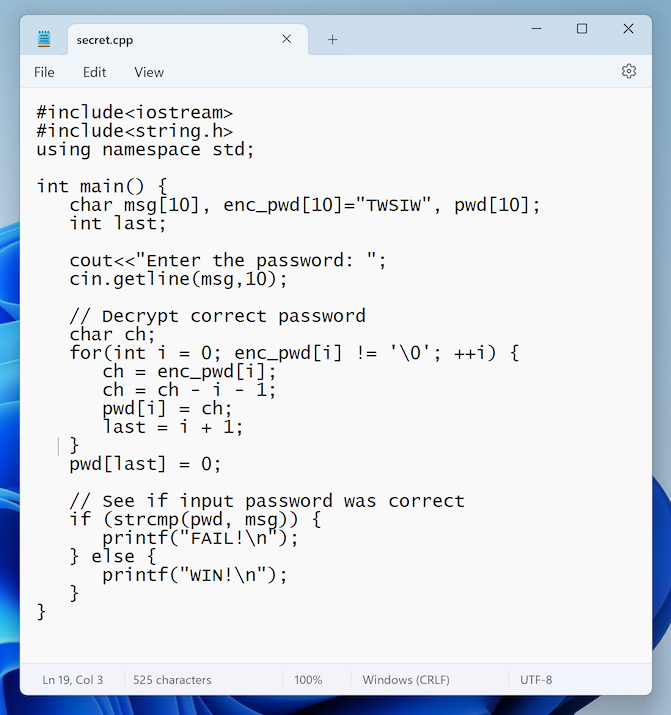

Enter this code, as shown below:

#include<iostream>
#include<string.h>
using namespace std;

int main() {
   char msg[10], enc_pwd[10]="TWSIW", pwd[10];
   int last;

   cout<<"Enter the password: ";
   cin.getline(msg,10);

   // Decrypt correct password
   char ch;
   for(int i = 0; enc_pwd[i] != '\0'; ++i) {
      ch = enc_pwd[i];
      ch = ch - i - 1;
      pwd[i] = ch;
      last = i + 1;
   }
   pwd[last] = 0;

   // See if input password was correct
   if (strcmp(pwd, msg)) {
      printf("FAIL!\n");
   } else {
      printf("WIN!\n");
   }
}

In Notepad, click File, Save.

In the Developer Command Prompt window, execute these commands:

cl /EHsc /Zi secret.cpp
secret.exe

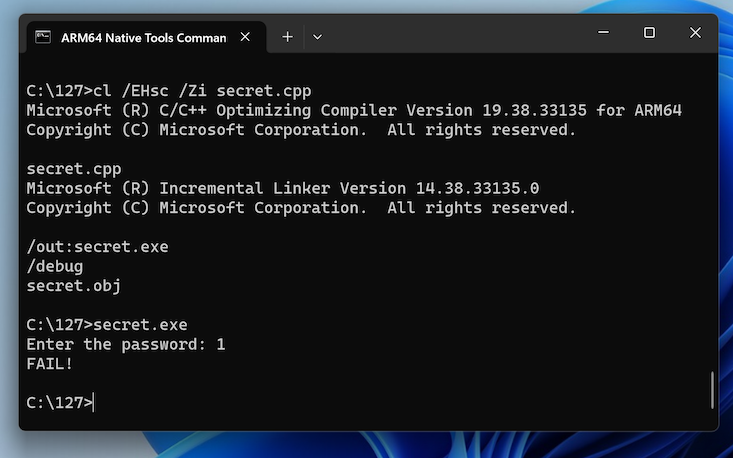

The program compiles, with debugging symbols, and runs. When it asks for a password, enter 1. It replies "Fail", as shown below.

Viewing Executable Properties

Open File Explorer. Navigate to C:\127. Right-click secret.exe, click "Show more options", and click Properties.

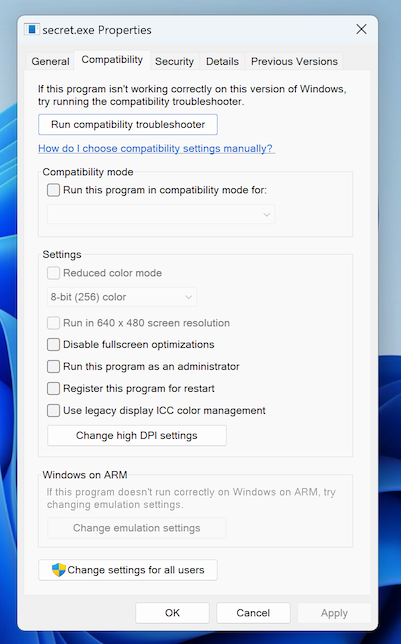

On the Compatibility tab, at the bottom, in the Windows on ARM section, the items are grayed out, as shown below.

That indicates that this is a native ARM program.

Installing WinDbg for ARM64

In Edge, go to:

https://learn.microsoft.com/en-us/windows-hardware/drivers/debugger/

Click the "Download WinDbg" button.

Run the installer.

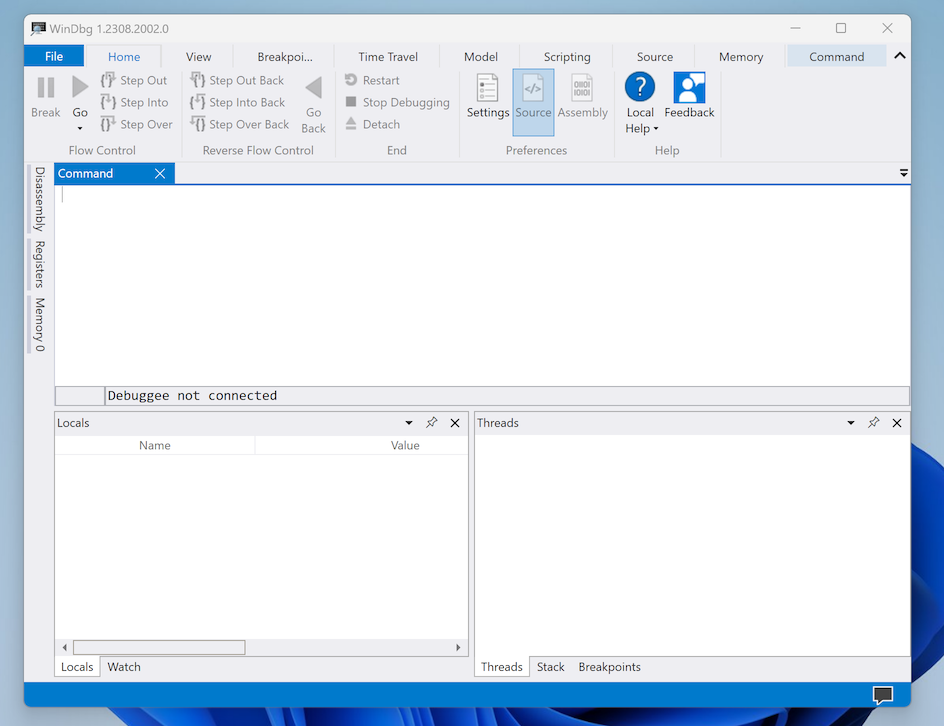

WinDbg launches, as shown below.

Debugging secret.exe

In WinDbg, click File, "Launch Executable".

Navigate to C:\127. Double-click secret.exe

The program launches, opening an empty Command Prompt window.

Click the WinDbg window to bring it to the front.

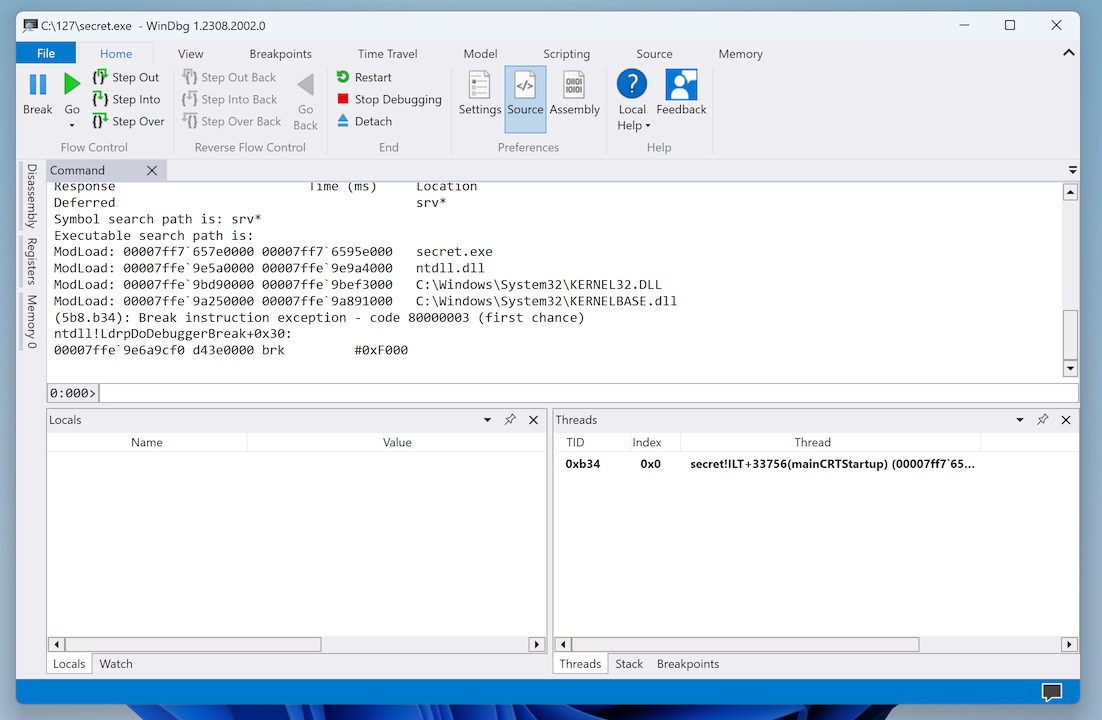

The modules in the program are shown, starting with pwd.exe and then loading three libraries, as shown below.

In the command line, in the center of the WinDbg window, outlined in red in the image above, execute these commands, one at a time:

x secret!main
bp secret!main
g
The first command searches for a location named secret!main, the start of the main() function in secret.exe, and finds it.

The second command sets a breakpoint at secret!main.

The third command runs to the breakpoint.

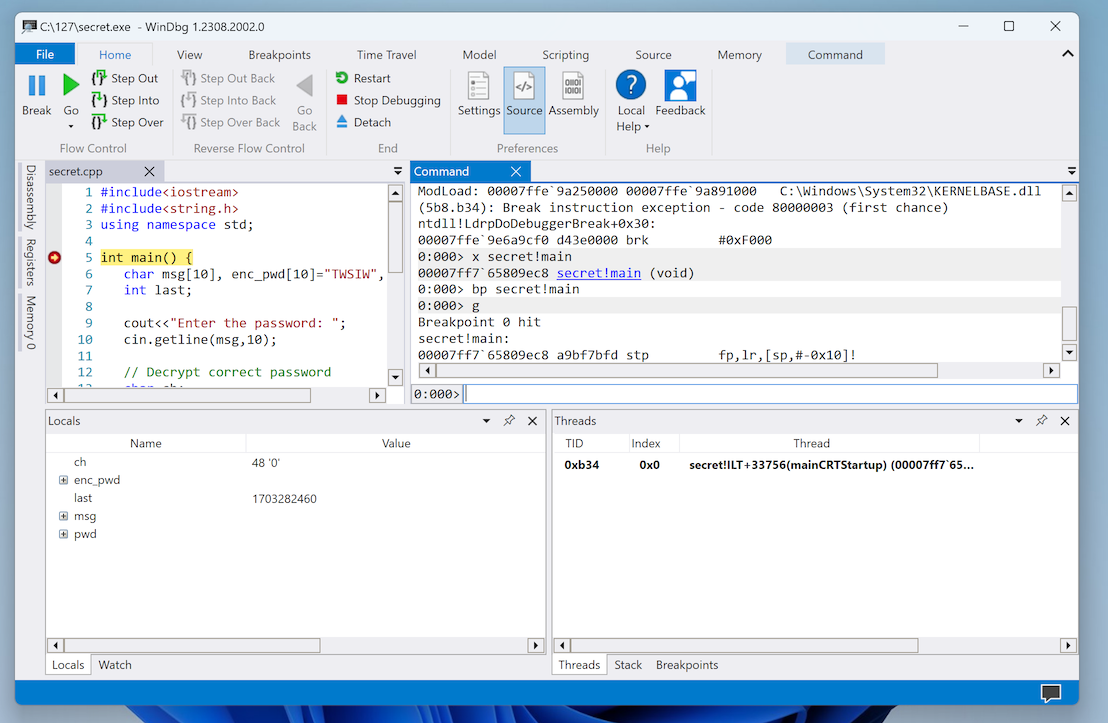

WinDbg shows the source code of the main() function in the left pane, as shown below.

Disassembly View

In WinDbg, on the View tab of the ribbon, click Layouts, Disassembly.

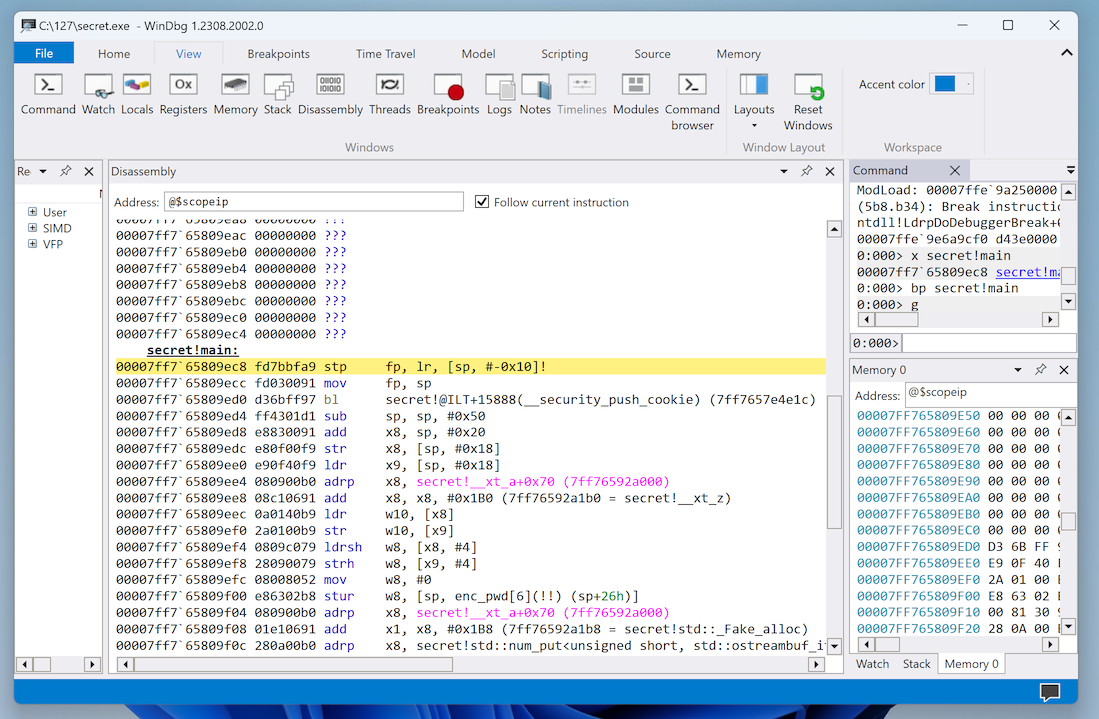

You see the ARM64 assembly code, beginning with pushing a security cookie onto the stack, as shown below.

Returning to Source View

In WinDbg, on the View tab of the ribbon, click Layouts, Default.

In the ribbon, click the Home tab.

Click Restart.

Move the Command Prompt out of the way.

Click Go.

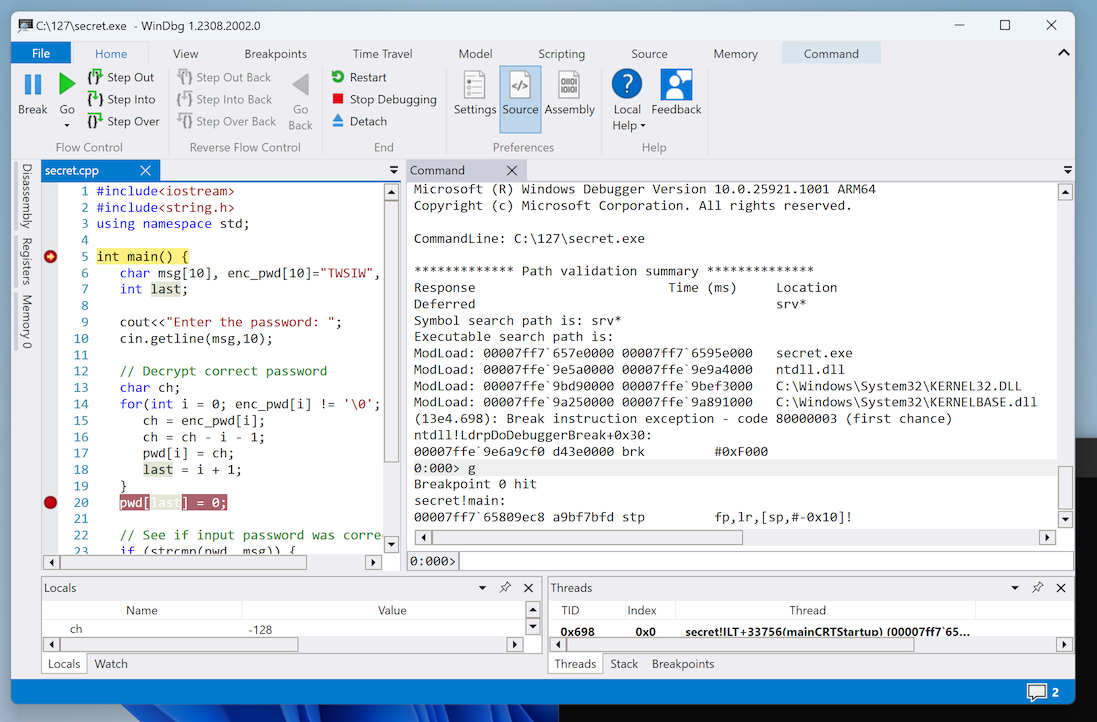

You see the source code, as shown below.

In line 20, click in the left border to set a breakpoint there. At this point, the correct password is in the "pwd" variable.

PMA 340.1: Finding the Secret Password (15 pts)

In WinDbg, click Go.

In the Command Prompt window, enter a password of 1 and press Enter.

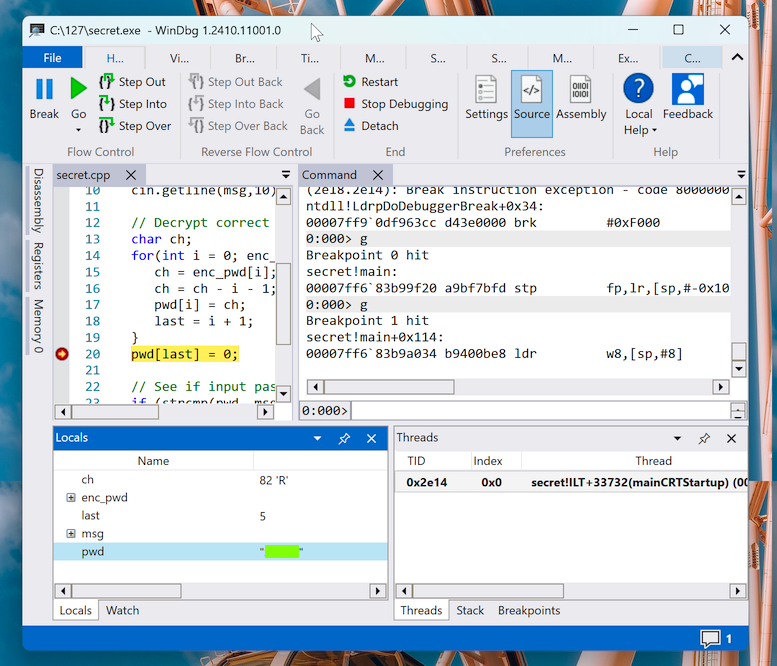

In the lower left "Locals" pane, expand pwd. The password is visible, covered by a green box in the image below. That's the flag.
