Project 3: Sniffing for Passwords with Wireshark (10 Points)

What You Need for This Project

Installing the Wireshark Packet Sniffer

Open a Web browser and go to WireShark.org

Download and install the latest version of Wireshark. The installer will also install WinPCap.

Note: A student who had problems installing WinPCap found the solution here:
http://nicolask.wordpress.com/2012/09/23/solved-winpcap-4-12-install-error/

Starting a Packet Capture

Click Start, Wireshark.

In Wireshark, on the left side, click "Interface List".

In the "Wireshark: Capture Interfaces" box, check all the interfaces, as shown below.

Click the Start button.

You should see packets being captured and scrolling by, as shown below on this page. Every packet sent from or to your machine is shown here. But it shows a lot more information than you usually want to know.

Sending a Test Password to gogoNET

Open a Web browser and go to gogo6.com

On the top right of the screen, click "Sign In".

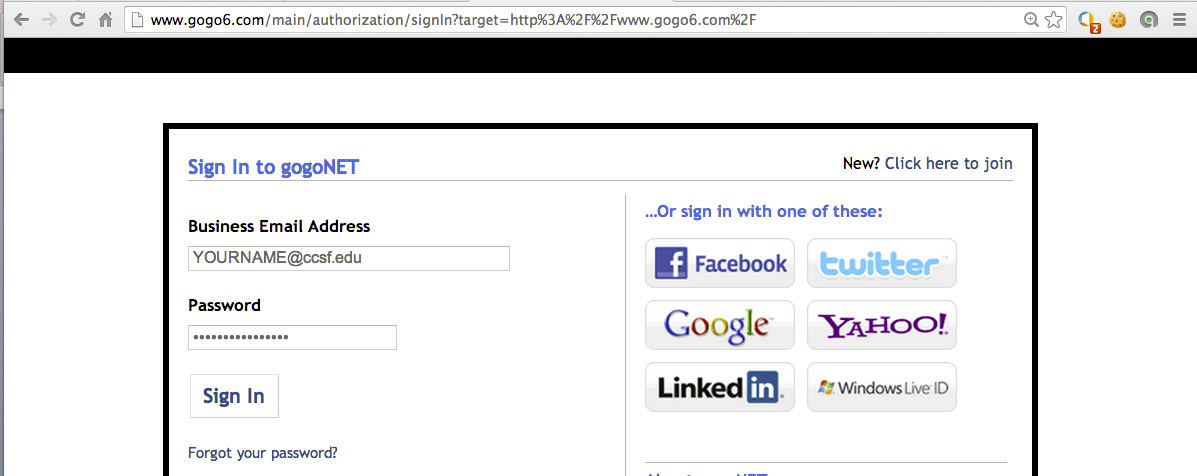

Enter a Username of YOURNAME@ccsf.edu (using your own name, not the literal string "YOURNAME") and a Password of topsecretpassword, as shown below:

Click the "Sign In" button. If you see a message asking whether to remember the password, click "Not Now".

You see an error message from gogoNET saying the login failed.

That doesn't matter--the point of this project is to see how the password was sent to gogoNET.

In the Wireshark window, box, click Capture, Stop.

Observing the Password in Wireshark

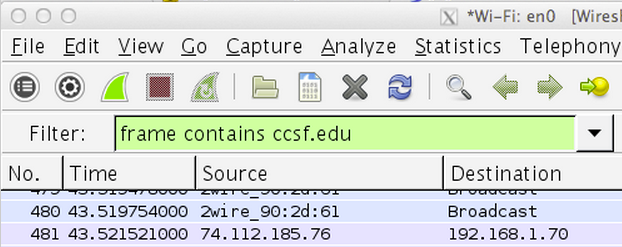

In the Wireshark window, box, in the Filter bar,type this filter, as shown below:
frame contains ccsf.edu

Wireshark shows an HTTP packet containing the text. In the upper pane of Wireshark, right-click the HTTP packet and click "Follow TCP Stream", as shown below.

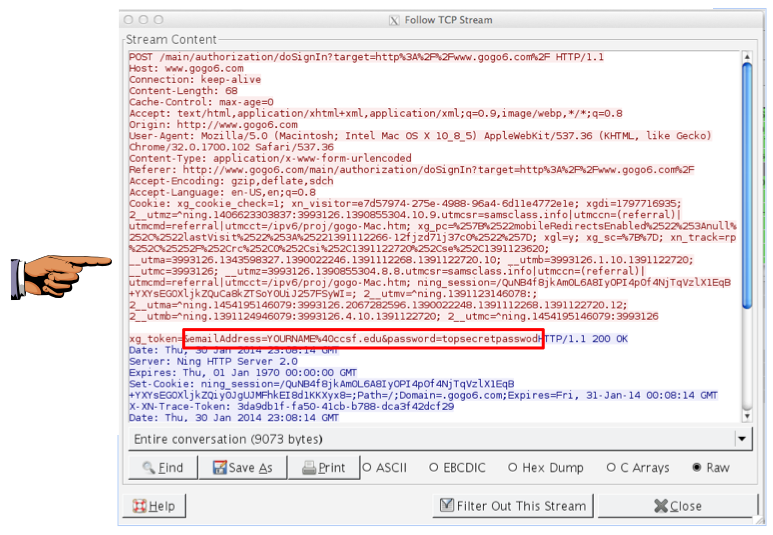

Expand the "Follow TCP Stream" box so that you can see YOURNAME and the password of topsecretpassword, as shown below.

Saving a Screen Image

Make sure your screen shows these required items in the captured packet:

Press Ctrl+Alt to release the mouse from the Virtual Machine.

Press the PrintScrn key in the upper-right portion of the keyboard. That will copy the whole desktop to the clipboard.

YOU MUST SUBMIT AN IMAGE OF THE WHOLE DESKTOP TO GET FULL CREDIT!

Open Paint and paste in the image.

Save the image with the filename "Your Name Proj 3". Use your real name, not the literal text "Your Name".

Starting Another Packet Capture

From the Wireshark menu bar, click Capture, Start. A bob pops up asking "Do you want to save the captured packets before starting a new capture?" Click "Continue without saving".

Using a Secure Password Transmission

In a Web browser, go to http://gmail.com

Enter a Username of YOURNAME (using your own name, not the literal string "YOURNAME", and a Password of topsecretpassword, as shown below.

Click the "Sign in" button.

Gmail will reject the credentials, just like gogoNET did.

In the Wireshark window, box, click Capture, Stop.

Searching for the Password in Wireshark

In the Wireshark window, box, click Edit, "Find Packet".

In the "Wireshark: Find Packet" box, click the String button. Enter a search string of secret, as shown below.

In the "Search In" section, click "Packet bytes".

Click Find.

A message appears briefly in the status bar at the bottom of the Wireshark window, saying "No packet contained that string", as shown below.

The password cannot be found because Gmail encrypts it before transmitting it.

Turning in your Project

Email the image to me as an email attachment. Send it to: cnit.120@gmail.com with a subject line of "Proj 3 From Your Name", replacing Your Name with your own first and last name. Send a Cc to yourself.

Last Modified: 1-30-14 3:14 pm
