Project 16: Making a Linux HTTPS Server (20 pts.)

What You Need

You need a Linux machine. I used Kali.

Starting the Linux Machine

Start your machine as usual. Open a Terminal window.

Generating a Server Key

In a Terminal window, enter these commands, pressing Enter after each one:
mkdir /cert

cd /cert

openssl genrsa -des3 -out server.key 4096

When you see the message: "Enter pass phrase for server.key:" type a passphrase.

For this project I recommend using a phrase of password -- use a more secure password on a real production server, of course.

When you are prompted to enter the passphrase a second time, do so. You won't see anything on the screen when typing in the passphrases, which is normal for Linux.

Create a Certificate Signing Request

In a Terminal window, enter this command, and then press Enter:
openssl req -new -key server.key -out server.csr
Enter a passphrase of password

Enter a Country Name of US

Enter a State or Province Name of CA

Enter a Locality Name of San Francisco

Enter an Organization Name of YOUR NAME -- don't enter the literal words "YOUR NAME" -- use your own first and last name.

Leave the Orgizational Unit Name blank, by pressing Enter.

Enter an Common Name of YOUR NAME -- don't enter the literal words "YOUR NAME" -- use your own first and last name.

Leave the Email Address blank, by pressing Enter.

Leave the Challenge Password blank, by pressing Enter.

Leave the "optional company name" blank, by pressing Enter.

Sign the Certificate Signing Request

In a Terminal window, enter this command, and then press Enter:
openssl x509 -req -days 365 -in server.csr -signkey server.key -out server.crt
When it prompts you for the passphrase, type password

Make a Version of the Server Key that Doesn't Require a Password

In a Terminal window, enter this command, and then press Enter:
openssl rsa -in server.key -out server.key.insecure
When it prompts you for the passphrase, type password

In a Terminal window, execute these commands:

mv server.key server.key.secure

mv server.key.insecure server.key

The Four Files

In a Terminal window, enter this command, and then press Enter:
ls

Note that the first character is a lowercase L, not the numeral 1.

You should see these four files:

server.crt: The self-signed server certificate.

server.csr: Server certificate signing request.

server.key: The private server key, does not require a password when starting Apache.

server.key.secure: The private server key, it does require a password when starting Apache.

Configuring Apache for SSL

In a Terminal window, enter these commands, pressing Enter after each one. When it prompts you for the passphrase, type password

mkdir /etc/apache2/ssl

cd /cert

cp server.key /etc/apache2/ssl

cp server.crt /etc/apache2/ssl

a2enmod ssl

ln -s /etc/apache2/sites-available/default-ssl /etc/apache2/sites-enabled/000-default-ssl

Creating the Secure Document Root

These commands create a directory /var/www-ssl, which is the home for your secure Web pages.

In a Terminal window, enter these commands, pressing Enter after each one.

cd /var

mkdir www-ssl

Back Up Apache Configuration Files

In a Terminal window, enter these commands, pressing Enter after each one.

cd /etc/apache2/sites-available

cp /etc/apache2/sites-available/default default_original

cp /etc/apache2/sites-available/default-ssl default-ssl_original

Configuring Virtual Hosts

In a Terminal window, enter this command, and then press Enter:

ifconfig

Find your IP address and make a note of it.

Note: If your IP address changes, you will have to re-edit two files to continue this project. I therefore recommend using NAT networking in VMware so your IP address does not change as often.

In a Terminal window, enter this command, and then press Enter:

nano /etc/apache2/sites-available/default

In the text editor, add this line after the <VirtualHost *:80> line, using your correct IP address instead of the example below:

ServerName 192.168.198.135:80

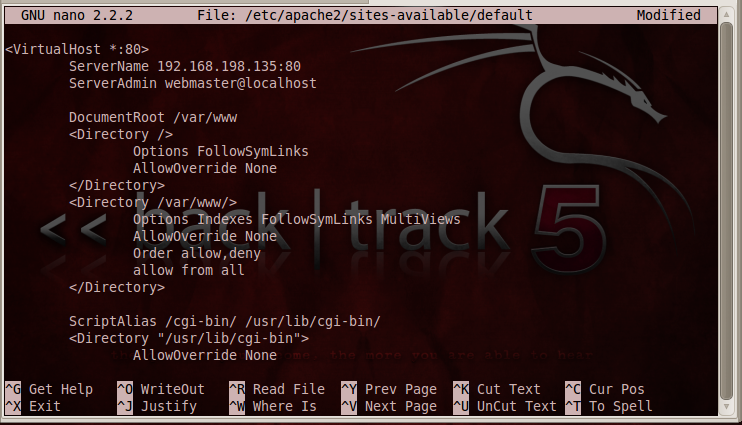

Your file should look like the image below:

Press Ctrl+X, Y, Enter to save the file. In a Terminal window, enter this command, and then press Enter:

nano /etc/apache2/sites-available/default-ssl

In the text editor, add this line after the <VirtualHost *:443> line, using your correct IP address instead of the example below:

ServerName 192.168.198.135:443

Change the line that reads:

DocumentRoot /var/www
to
DocumentRoot /var/www-ssl

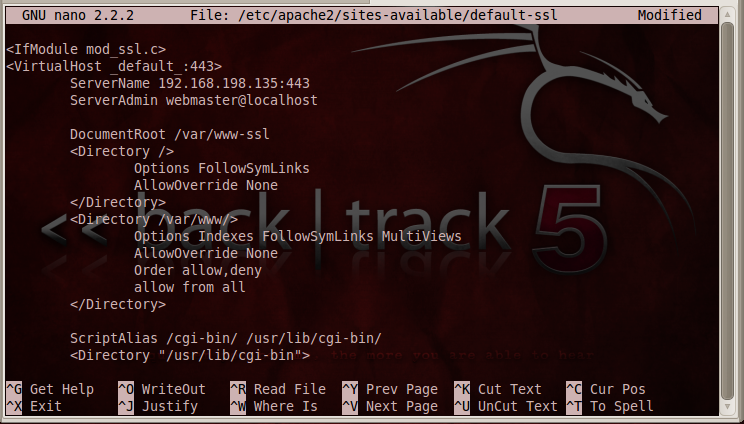

Your file should look like the image below:

Scroll down and find these two lines:

SSLCertificateFile /etc/ssl/certs/ssl-cert-snakeoil.pem
SSLCertificateKeyFile /etc/ssl/private/ssl-cert-snakeoil.key

Change them to this:

SSLCertificateFile /etc/apache2/ssl/server.crt
SSLCertificateKeyFile /etc/apache2/ssl/server.key

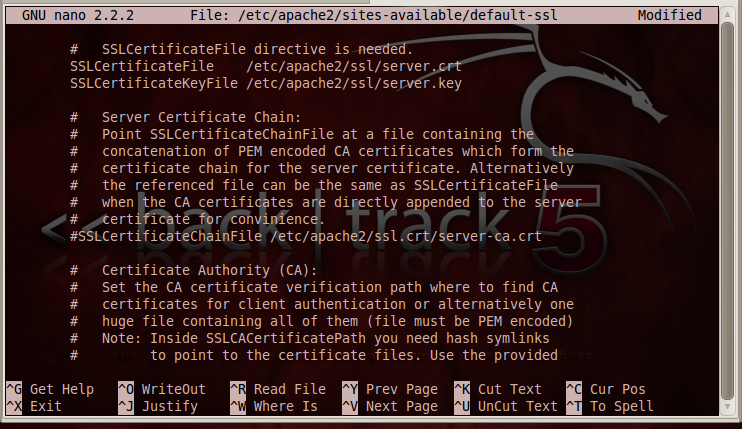

Your file should look like the image below:

Press Ctrl+X, Y, Enter to save the file.

Making a Demonstration Web Page

In a Terminal window, enter this command, and then press Enter:

nano /var/www-ssl/index.html

In the text editor, enter this code, replacing "YOUR NAME" with your own name:

<html>
<body>
<h1>Test Page on My HTTPS Server</h1>
<h2>by YOUR NAME</h2>
</body>
</html>

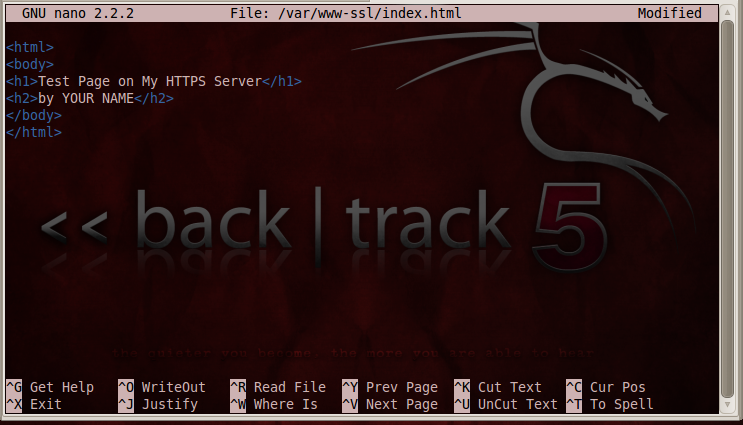

Your file should look like the image below:

Press Ctrl+X, Y, Enter to save the file.

Restarting Apache

In a Terminal window, enter this command, and then press Enter:

service apache2 restart

Viewing the Secure Web Page

From the upper left of the Linux desktop, click Applications, Internet, IceWeasel Web Browser.

Enter this URL, and then press Enter:

https://localhost

A warning page appears, saying "This Connection is Untrusted". That's happening because your SSL certificate is self-signed, rather than purchased from a real Certificate Authority like Verisign.

Click "I Understand the Risks".

Click the "Add Exception" button.

Click the "Confirm Security Exception" button.

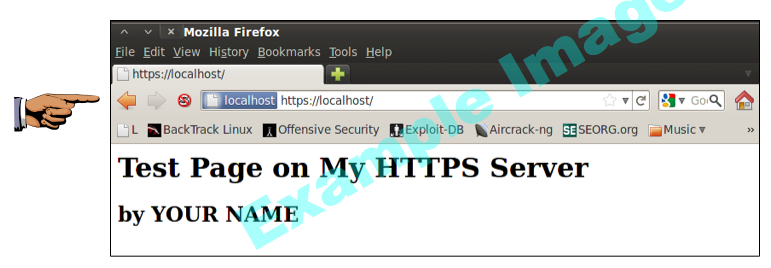

Your secure web page opens, as shown below:

Saving the Screen Image

Make sure the URL begins with https:, and that the page has your name on it, as shown above.

Press PrntScrn to capture the whole desktop.

YOU MUST SUBMIT AN IMAGE OF YOUR WHOLE DESKTOP TO GET FULL CREDIT

Save a screen capture with a filename of "Proj 16 from YOUR NAME".

Turning In Your Project

Email the image to cnit.120@gmail.com with a subject of "Project 16 from YOUR NAME".


Sources

http://www.tc.umn.edu/~brams006/selfsign.html

Last modified: 10-27-11 7 am
