Project 1: Sniffing HTTP Traffic with Wireshark (10 pts.)

What You Need

Installing Wireshark

Click the Start button. In the Search box, type WIRESHARK. If Wireshark is found, that means it's already installed and you can skip the following steps. If it is not found, go to

http://www.wireshark.org/download.html

to download and install it. It will also install WinPCap.

Capturing All Network Traffic With WireShark

Click the Start button. In the Search box, type WIRE

At the top of the menu, a Wireshark item appears. Right-click Wireshark and click "Run as Administrator". If a User Account Control box appears, allow the program to run.

Wiresharks opens, as shown below.

In the upper left of the Wireshark window, click "Interface List".

A list of network interfaces appears. Each interface has an IP address and a count of Packets, as shown below.

At first, all the IP addresses start with fe80: -- these are "Link-Local IPv6 Addresses", and they very useful.

Find the network interface with the most rapidly increasing number of packets--this is the interface that connects to the Internet. Click its IP address.

Wireshark will show the other addresses of this interface.

After one or more clicks, you should see the IPv4 address of the interface, which is four values separated by periods, as shown below:

Click the Start button next to the interface that connects to the Internet.

You should see a lot of text scrolling by, as shown below on this page. Each line in the upper pane summarizes one frame (or packet).

Find these columns in the Wireshark window:

Notice that some lines show Broadcast in the Destination column. Broadcast traffic is common on networks as network devices alert one another of their presence. But it's usually not very interesting. To make Wireshark easier to use, you can Filter the traffic, to see only the interesting packets.

Capturing HTTP Traffic With WireShark

At the upper left of the Wireshark window, in the "Filter" bar, type
http
Press the Enter key on the keyboard.

Wireshark now just sits there, with little or no visible traffic, because it is ignoring all the non-HTTP packets.

Loading the CCSF Web Page

In a Web browser, go to

www.ccsf.edu

You should see a lot of text scroll by in the Wireshark window.

From the Wireshark menu bar, click Capture, Stop.

In the Wireshark window, scroll back to the top of the packet list.

Understanding HTTP GET Packets

The CCSF Web server has an IPv4 address of 147.144.1.212.

Find a packet with a Destination of 147.144.1.212 (the CCSF Web server), and "GET / HTTP/1.1" in the Info column. In the example below, it is packet number 511.

Find the response to that packet, with a Source of 147.144.1.212, and "HTTP/1.1 302 Found (text/html)" in the Info column. In the example below, it is packet number 519.

Saving the Screen Image

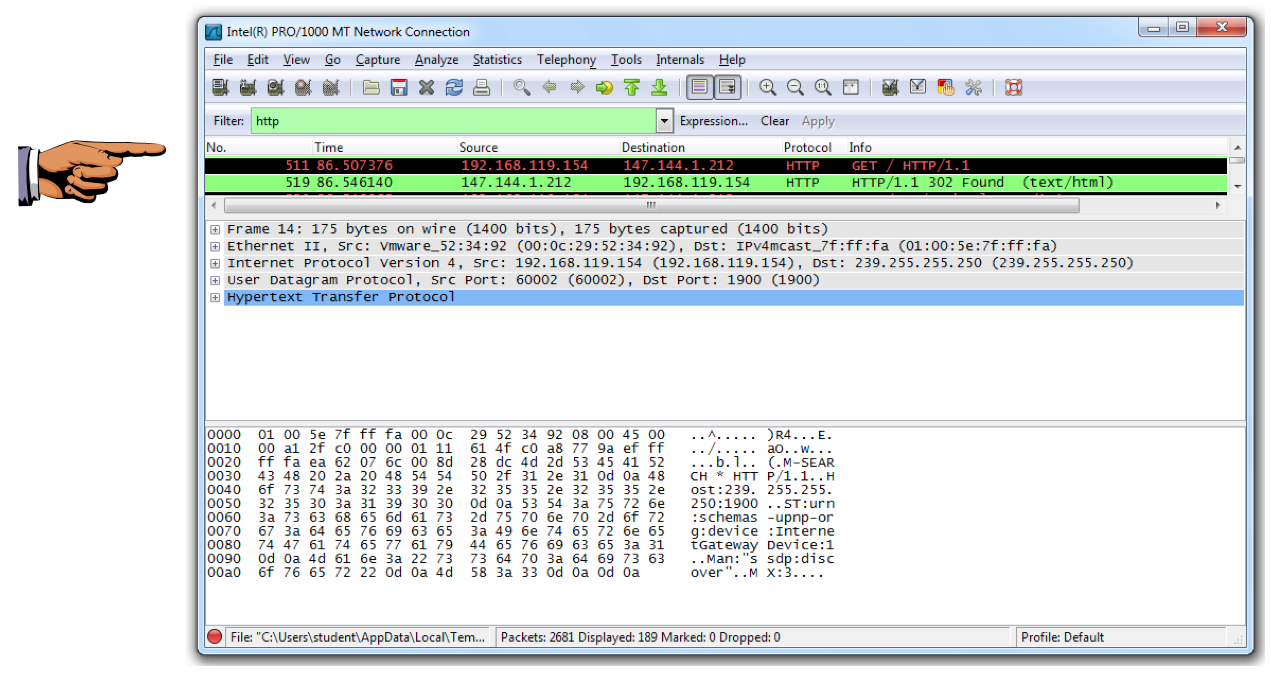

Resize the panes in Wireshark so that only these two packets are visible:

"GET / HTTP/1.1" and "HTTP/1.1 302 Found (text/html)", as shown above.

On your keyboard, press the PrntScrn key.

Click Start, type in PAINT, and open Paint.

Press Ctrl+V to paste in the image of your desktop.

YOU MUST SUBMIT WHOLE-DESKTOP IMAGES TO GET FULL CREDIT.

Save the image with a filename of "Proj 1 from YOUR NAME".

Turning In Your Project

Email the image to cnit.106sam@gmail.com with a subject of "Project 1 from YOUR NAME".
