You can see live transmissions to spacecraft on this page, as shown below.
If you click a device that is in use, and click the "more detail" link in the lower right corner of the page, you see more information about the transmissions, as shown below. When I did it, this data link was running at 3 Mb/sec.
https://sourceforge.net/projects/ion-dtn/
Server 149 with IP 172.16.123.149
Server 150 with IP 172.16.123.150
You will have to adjust the network addresses and IDs in the instructions below to match your systems.
sudo apt update
sudo apt install build-essential -y
wget https://sourceforge.net/projects/ion-dtn/files/ion-3.6.2.tar.gz/download
tar xzvf download
cd ion-3.6.2
./configure
make
sudo make install
sudo ldconfig
For complete details of the configuration, see the "ION Deployment Guide.pdf" file in the ion-3.6.2 folder you just created with the previous commands.
In a Terminal, execute these commands:
mkdir dtn
cd dtn
nano host149.rc
Paste in this code,
as shown below.
You will need to adjust the IP addresses for your network!
## begin ionadmin
1 149 ''
s
a contact +1 +3600 149 149 100000
a contact +1 +3600 149 150 100000
a contact +1 +3600 150 149 100000
a contact +1 +3600 150 150 100000
a range +1 +3600 149 149 1
a range +1 +3600 149 150 1
a range +1 +3600 150 149 1
a range +1 +3600 150 150 1
m production 1000000
m consumption 1000000
## end ionadmin
## begin ltpadmin
1 32
a span 149 32 32 1400 10000 1 'udplso 172.16.123.149:1113' 300
a span 150 32 32 1400 10000 1 'udplso 172.16.123.150:1113' 300
s 'udplsi 172.16.123.149:1113'
## end ltpadmin
## begin bpadmin
1
a scheme ipn 'ipnfw' 'ipnadminep'
a endpoint ipn:149.0 q
a endpoint ipn:149.1 q
a endpoint ipn:149.2 q
a protocol ltp 1400 100
a induct ltp 149 ltpcli
a outduct ltp 149 ltpclo
a outduct ltp 150 ltpclo
s
## end bpadmin
## begin ipnadmin
a plan 149 ltp/149
a plan 150 ltp/150
## end ipnadmin
Save the file with Ctrl+X, Y. Enter.
First we'll use the "killm" command, which kills any previously running ION processes. Then we'll start the ION server. On server 149, in a Terminal, execute these commands:
killm
ionstart -I host149.rc
If your configuration file is correct,
ION will start with "0 errors",
as shown below. Otherwise you'll have
to debug your file.
Execute this command to see the listening UDP socket, as highlighted in the image below.
ss -panu
Execute this command to see the status of some ION services:
ipcs
You should see three "Semaphore Arrays",
as shown below.
Execute this command to send a "loopback" message from your server to itself, via DTN:
echo "Hello, World!" | bpsource ipn:149.1
Execute this command to see the message:
bpsink ipn:149.1
You should see the "Payload delivered",
as shown below. Press Ctrl+C
to exit "bpsink".
mkdir dtn
cd dtn
nano host150.rc
Paste in this code,
as shown below.
You will need to adjust the IP addresses for your network!
## begin ionadmin
1 150 ''
s
a contact +1 +3600 149 149 100000
a contact +1 +3600 149 150 100000
a contact +1 +3600 150 149 100000
a contact +1 +3600 150 150 100000
a range +1 +3600 149 149 1
a range +1 +3600 149 150 1
a range +1 +3600 150 149 1
a range +1 +3600 150 150 1
m production 1000000
m consumption 1000000
## end ionadmin
## begin ltpadmin
1 32
a span 149 32 32 1400 10000 1 'udplso 172.16.123.149:1113' 300
a span 150 32 32 1400 10000 1 'udplso 172.16.123.150:1113' 300
s 'udplsi 172.16.123.150:1113'
## end ltpadmin
## begin bpadmin
1
a scheme ipn 'ipnfw' 'ipnadminep'
a endpoint ipn:150.0 q
a endpoint ipn:150.1 q
a endpoint ipn:150.2 q
a protocol ltp 1400 100
a induct ltp 150 ltpcli
a outduct ltp 149 ltpclo
a outduct ltp 150 ltpclo
s
## end bpadmin
## begin ipnadmin
a plan 149 ltp/149
a plan 150 ltp/150
## end ipnadmin
Save the file with Ctrl+X, Y. Enter.
killm
ionstart -I host150.rc
If your configuration file is correct,
ION will start with "0 errors",
as shown below. Otherwise you'll have
to debug your file.
Execute these commands to send a "loopback" message from your server to itself, via DTN:
echo "Hello, World!" | bpsource ipn:150.1
bpsink ipn:150.1
You should see the "Payload delivered",
as shown below. Press Ctrl+C
to exit "bpsink".
echo "This is Server 149 calling Server 150" | bpsource ipn:150.1
On server 150, execute this command:
bpsink ipn:150.1
Your message should arrive, as shown below.
Press Ctrl+C
to exit "bpsink".
At the top of the Wireshark window, in the filter bar, enter this filter:
ltp
On server 149, execute this command again:
echo "This is Server 149 calling Server 150" | bpsource ipn:150.1
The traffic should appear in Wireshark,
as shown below:
Find that name into the form below to get onto the winners board.
ad.samsclass.info:1113
Send a message in this format, via DTN:
(Replace yourname with your oan name, and don't omit the ":" characters.)
INTERPLANETARY MESSAGE FROM :yourname:

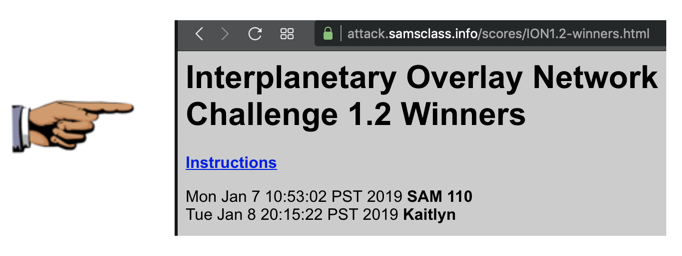

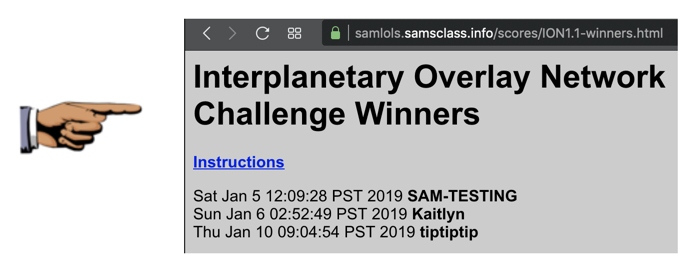

Your name will appear on the
winners board.
Posted 1-5-19
queueing_latency 300 and challenge 1.2 added 1-7-19
Added to CNIT 128 on 1-13-19
