I wrote this project for a 32-bit Kali 2 VM because that's what my students already have. But if you have a 64-bit system handy, it would probably work better.
apt-get update
apt-get install docker.io -y
docker info

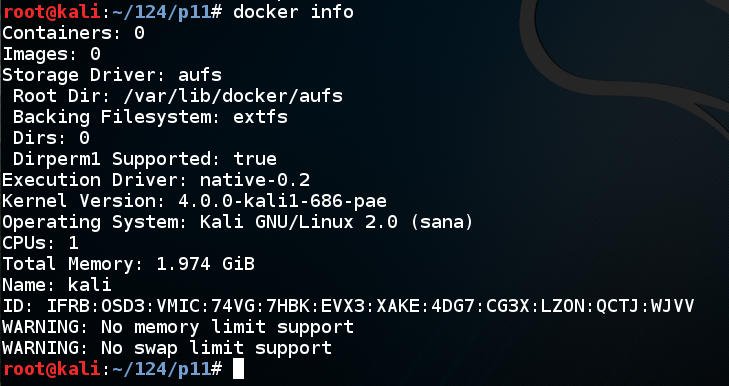

As shown below, docker runs and
tells us there are 0 containers
and 0 images at present.
docker pull 32bit/ubuntu:14.04
Docker starts downloading
the image. The image is 272 MB in size.
While waiting for the download, take a look at the available images here:
https://hub.docker.com/u/32bit/
As you can see, there are only 4 images available. That's what we get for using a 32-bit host.
Take a look at all the 64-bit images:
https://hub.docker.com/explore/?page=1
When the image is finished downloading, execute this command:
docker info

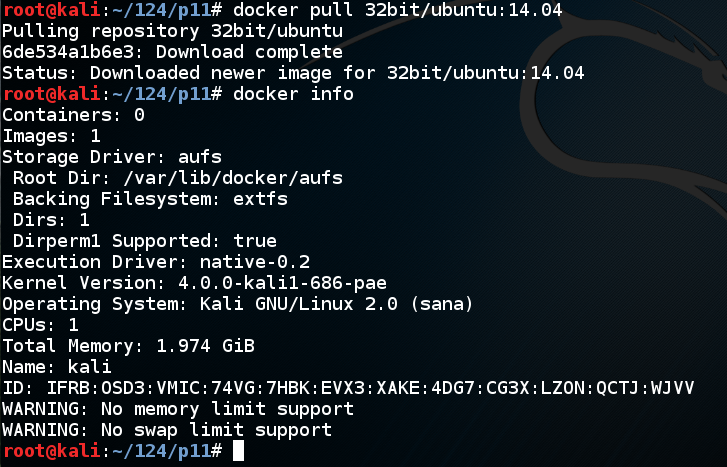

As shown below, docker now
has one image.
Execute this command:
docker images
This shows information about
your image, including its
"IMAGE ID" and size,
as shown below.
docker run -it 32bit/ubuntu:14.04 bash
cat /etc/lsb-release

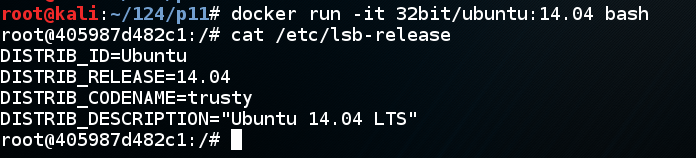

This creates a "Container" from the Ubuntu
image and runs it, showing a bash command-line.
This is really Ubuntu, not Kali, as shown below.
ifconfig
exit

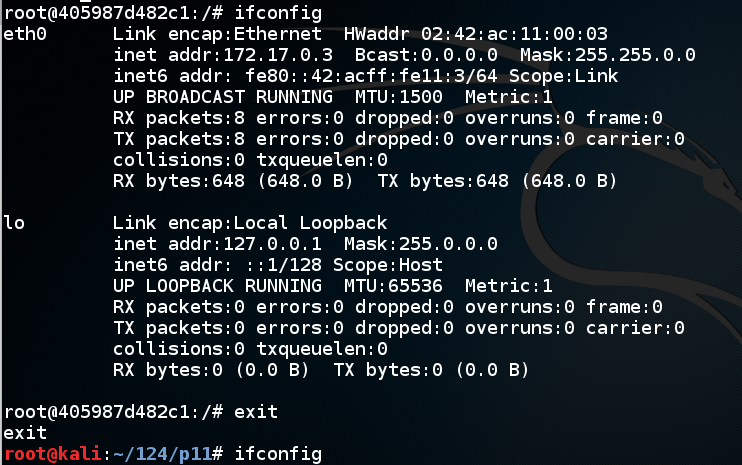

The Ubuntu container has a private IP
address starting with 172, as shown below.
Make a note of your container's IP address.
The "exit" command leaves the Ubuntu container and returns to Kali.
At the Kali prompt, execute this command:
ifconfig

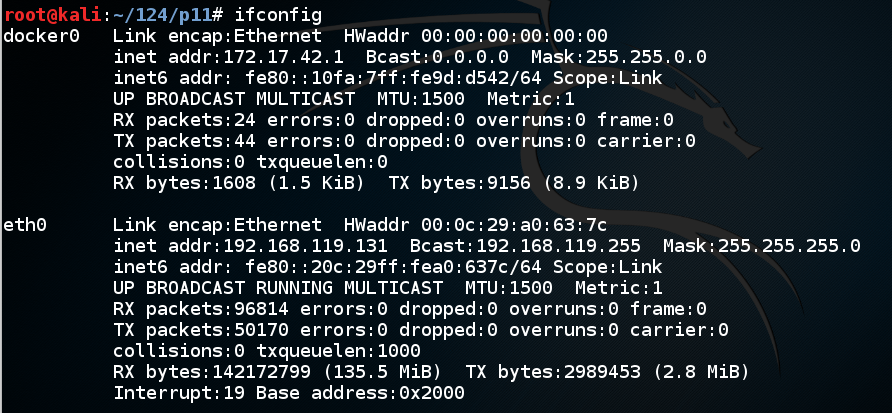

The Kali system now has two adapters:
"docker0" goes to the docker container,
and eth0 goes to the Internet,
as shown below.
At the Kali prompt, execute this command, replacing the IP address with the IP address of your Ubuntu container. After a few seconds, press Ctrl+C.
ping 172.16.0.3
There are no replies from the Docker container,
as shown below.
docker ps
docker ps -a

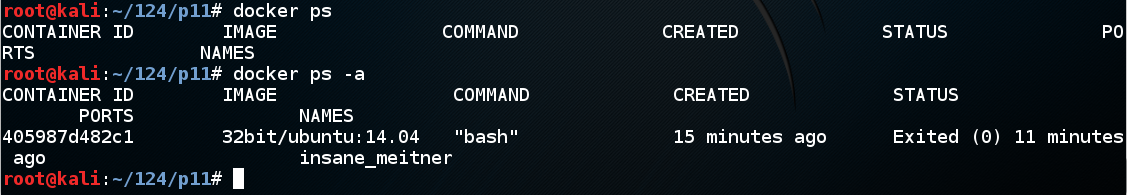

The first command lists running containers,
and shows none. The second command lists
all containers, and shows that you do
have a container, but it's "STATUS" is
"Exited". The container isn't running,
which is why it's not answering the pings.
Notice that the Ubuntu container has a "CONTAINER ID" number and also "NAMES". Currently it has a randomly generated name--when I did it, my container was named "insane_meitner", as shown below.
docker help

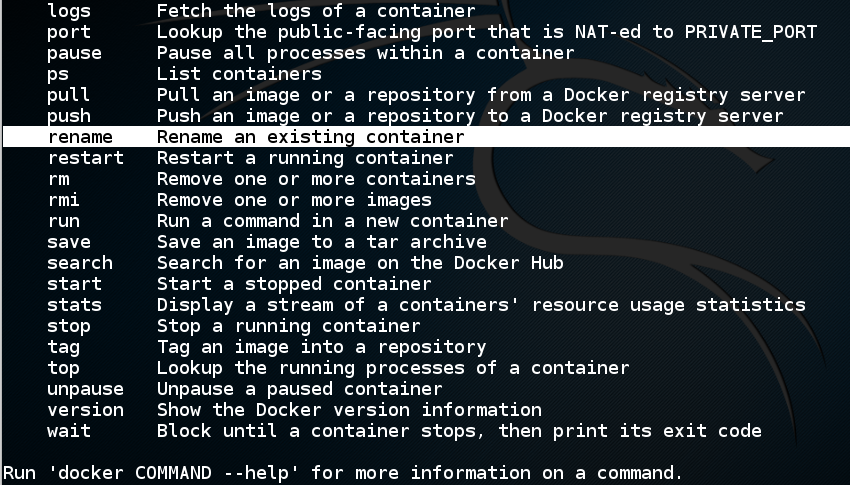

The help message shows that there is a
"docker rename" command,
as shown below.
At the end of the output, it tells us how to learn more about a command: Run 'docker COMMAND --help'.
Execute these commands, using the correct name of your container instead of "insane_meitner", and your own name instead of "YOURNAME":
docker rename help
docker rename insane_meitner ubuntu-YOURNAME
docker ps -a

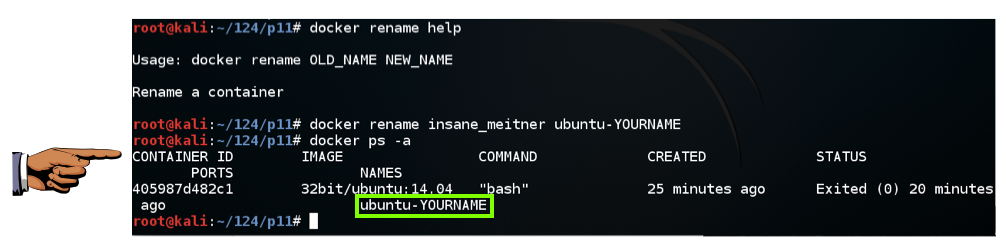

You should see the new name,
as shown below.
Click on the host machine's desktop.
Press Shift+PrintScrn. That will copy the whole desktop to the clipboard.
Open Paint and paste in the image.
Save the image with the filename "Your Name Proj 11a". Use your real name, not the literal text "Your Name". YOU MUST SUBMIT AN IMAGE OF THE WHOLE DESKTOP TO GET FULL CREDIT!
In Kali, in a terminal window, execute these commands to start your container, replacing "YOURNAME" with your own name.
docker start ubuntu-YOURNAME
docker ps

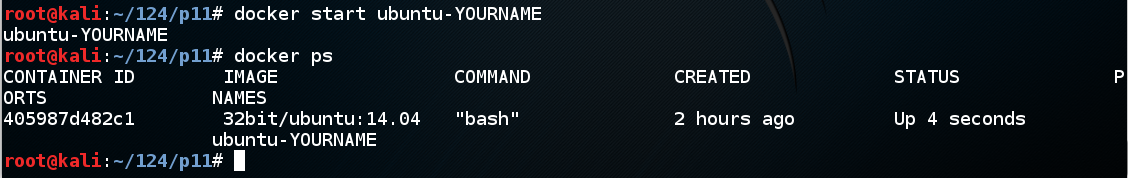

Your container should now have a STATUS
of "Up",
as shown below.
Since your container has restarted, it may have a new IP address. To check, we'll attach to the running container.
Execute these commands:
docker attach ubuntu-YOURNAME
Press Enter.
ifconfig

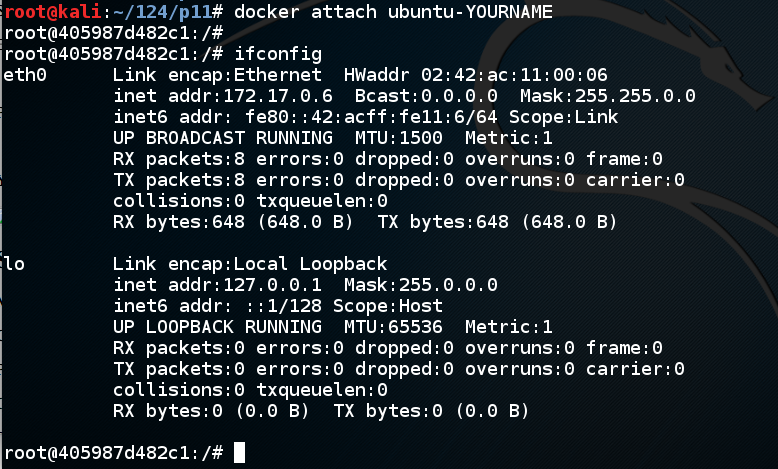

Find the new IP address of your container,
as shown below,
and make a note of it.
Then execute these commands, replacing the IP address with the correct address of your container:
docker ps
ping 172.17.0.6

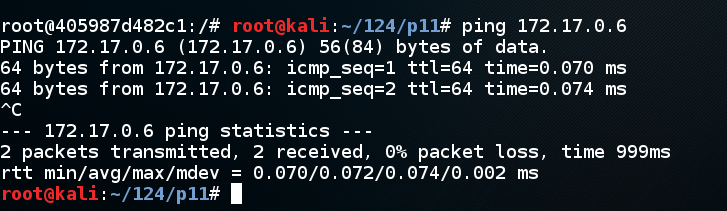

You should see replies, with an amazingly
short time (less than 0.1 millisecond),
as shown below:
Press Ctrl+C to stop the pings.
docker attach ubuntu-YOURNAME
Press Enter.
service apache2 start

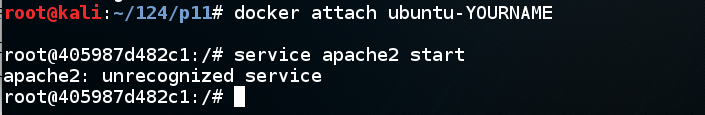

You see an "unregognized service"
message,
as shown below:
This Ubuntu image doesn't have Apache installed on it. To install it, execute these commands:
apt-get update
apt-get install apache2 -y
netstat -pant

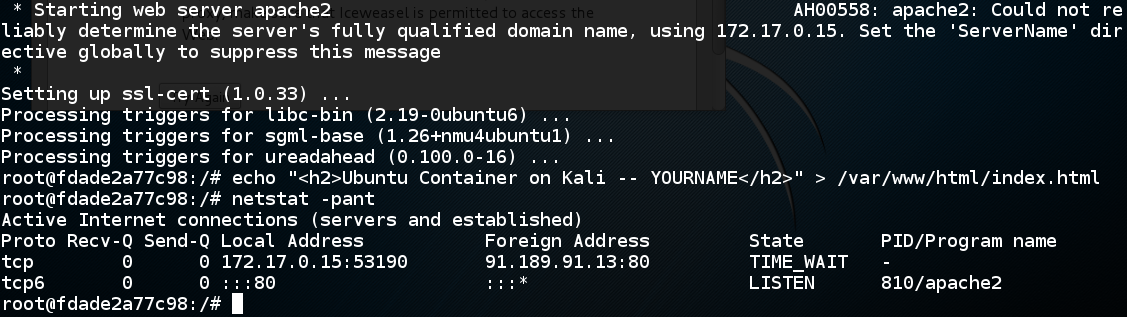

You should see apache2 listening on
port 80,
as shown below:
echo "<h2>Ubuntu Container on Kali -- YOURNAME</h2>" > /var/www/html/index.html
Click IceWeasel.

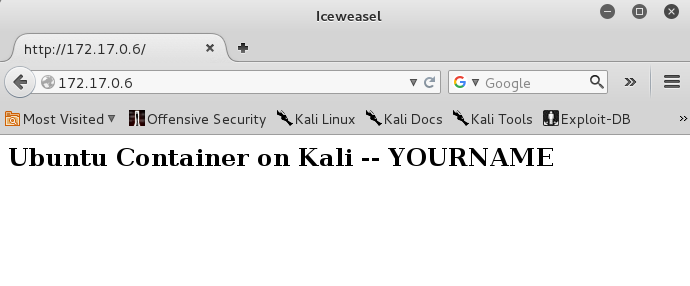

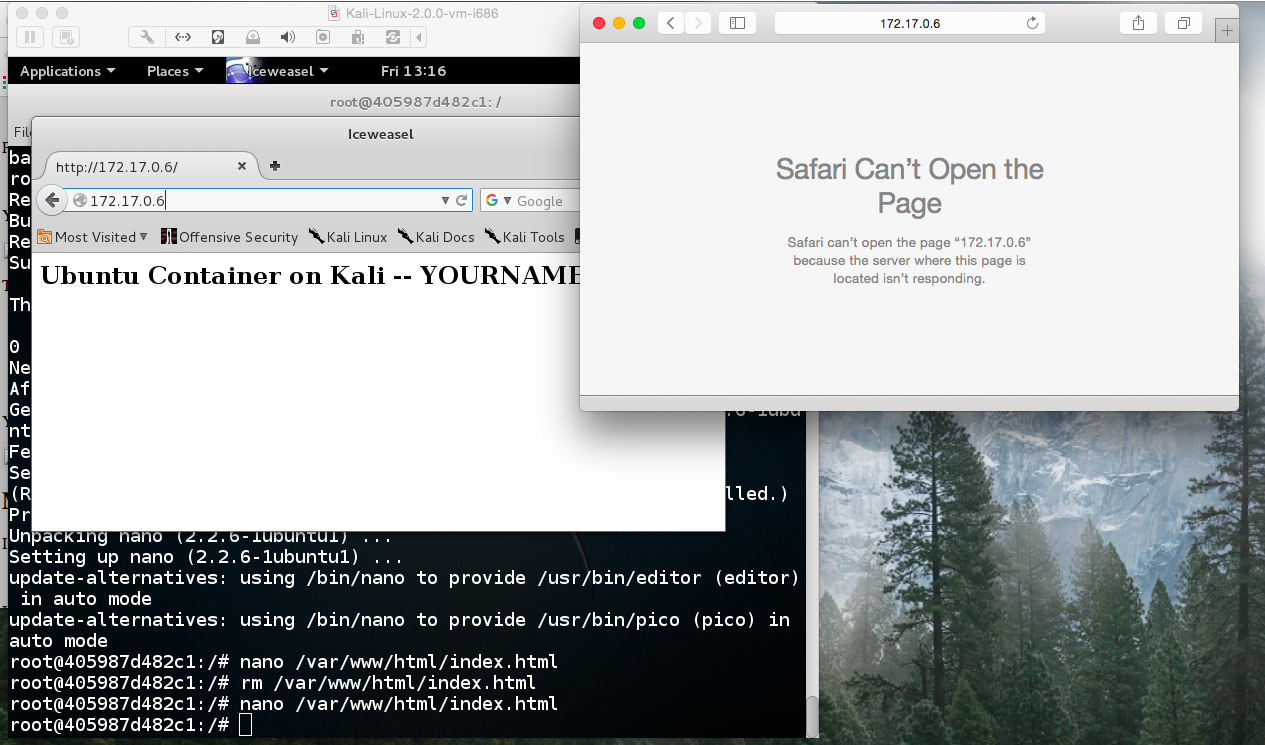

In Iceweasel, in the address bar, enter the IP address of your ubuntu container. You should see the Web page you just created, as shown below.
The browser times out, as shown below.
This happened because the Ubuntu container is behind a virtual router with Network Address Translation--it's not directly connected to the host system.
To operate network services inside the container, we need to specify port forwarding --connecting a port on the Kali host to a port on the Ubuntu guest.
Starting from the Ubuntu prompt, execute these commands, replacing "YOURNAME" with your own name.
exit
docker run -p 8080:80 -it 32bit/ubuntu:14.04 bash
apt-get update
apt-get install apache2 -y
echo "<h2>Ubuntu Container on Kali -- YOURNAME</h2>" > /var/www/html/index.html

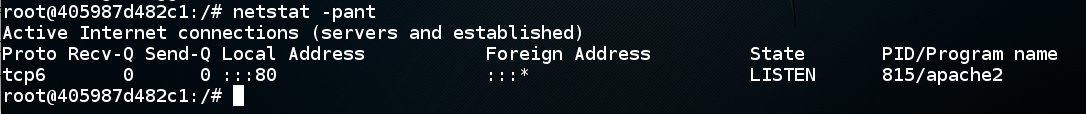

netstat -pant
Your server should be listening
on port 80,
as shown below.
Press Ctrl+P and then press Ctrl+Q to detach from the container and leave it running.
In the Kali terminal, execute this command:

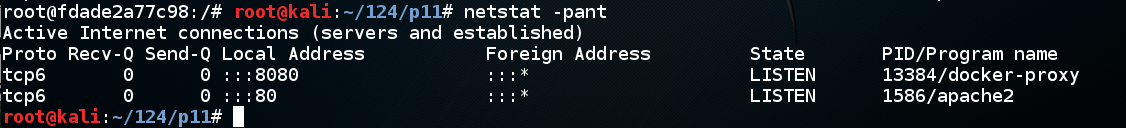

netstat -pant
You should see "docker-proxy"
listening
on port 8080,
as shown below.
In the Kali terminal, execute this command:
ifconfig
Your Kali machine has four adapters now:
Find the address of the eth0 interface. That's the address that can be seen from the host machine.

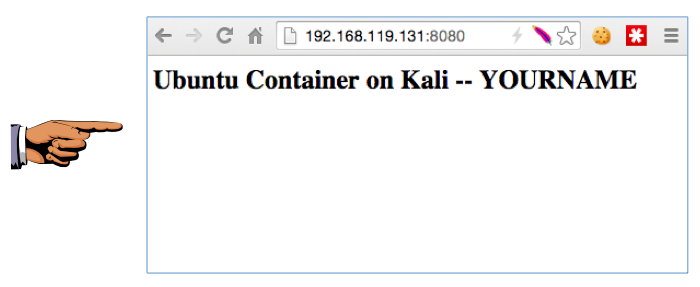

The page should open, as shown below.
Click on the host machine's desktop.
Press Shift+PrintScrn. That will copy the whole desktop to the clipboard.
Open Paint and paste in the image.
Save the image with the filename "Your Name Proj 11b". Use your real name, not the literal text "Your Name". YOU MUST SUBMIT AN IMAGE OF THE WHOLE DESKTOP TO GET FULL CREDIT!
